Features

  • House One ConsoliDator+ PD9000
  • Cutout for One ConsoliDator+ Provided
  • Hinged Door
  • ConsoliDator+ Mounts in Cover
  • Sub-Panels Available
  • PDA6909 Pipe Mounting Kit Available
  • Light / Horn & Reset Button Available
  • Sun Hood Available
  • Enclosure Ventilation Kit Available

Steel Enclosures

  • 14-Gauge Steel
  • NEMA 4, 12 and 13
  • Cover Secured with Screwed Latches
  • Built-In Mounting Flanges with Holes
  • UL Listed, CSA Certified

Plastic Enclosures

  • NEMA 4X
  • Cover Secured with Hasps
  • Clear Hinged Door Fully Encloses ConsoliDator+ (PDA3939 only)
  • ConsoliDator+ Mounts in Hinged Sub-Panel Door (PDA3939 only)
  • Mounting Hardware Provided
  • UL Listed

Overview

The PD9000-ENC enclosures provide a convenient way to mount the PD9000 ConsoliDator+ to walls, pipes, and other vertical structures. The enclosures are available in painted steel and plastic and come pre-cut with one cutout to mount the PD9000.

The enclosures are available in various sizes, with the larger enclosures capable of housing other pieces of equipment, such as PDA1024-01 power supply.

A pipe mounting kit is available to mount the enclosure to a 2-inch pipe and a sun hood accessory is available for outdoor installations.

In addition, the enclosures can be ordered with holes predrilled for mounting devices such as the PDA-LH Light / Horn, PDA-BUTTON Button, and the PDA0007 Ventilation Kit to the enclosure.

The enclosure and ConsoliDator+ are ordered and packaged separately.


Wall Mounting

Wall Mounting for Steel Enclosures

The PDA2909, PDA2919, and PDA2929 steel enclosures come with built-in mounting flanges located on the backside at the top and bottom of the enclosure. These allow for easy and convenient wall mounting.

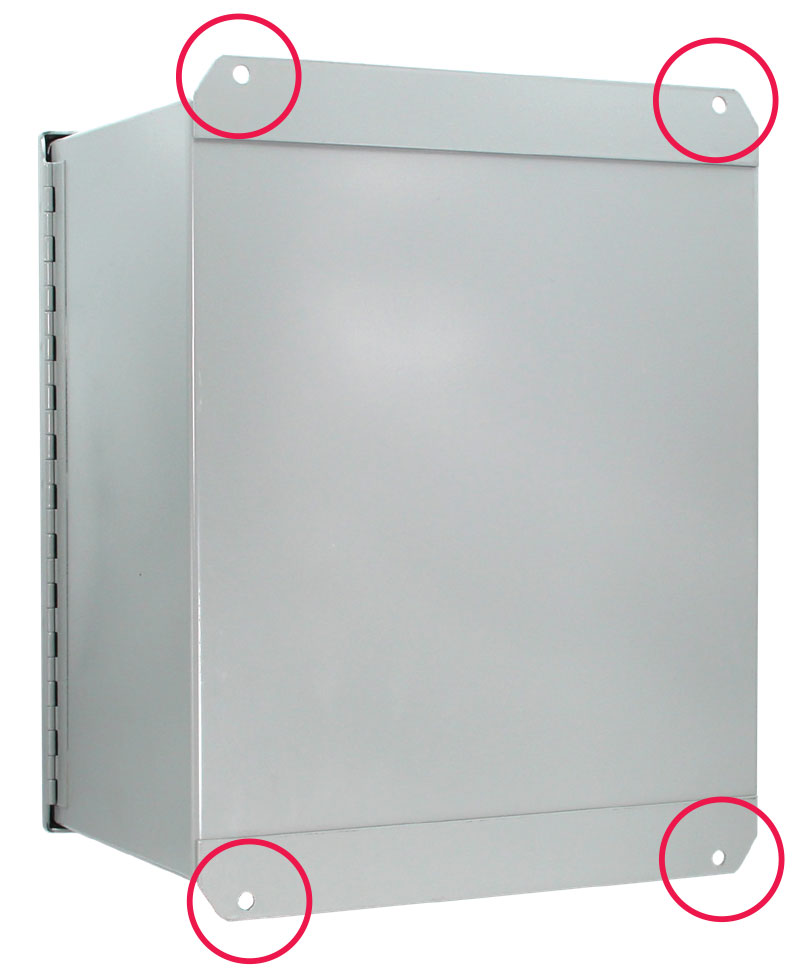

Steel Enclosure Wall Mounting
Steel enclosures have built-in flanges on the back side for wall mounting

Wall Mounting for Plastic Enclosures

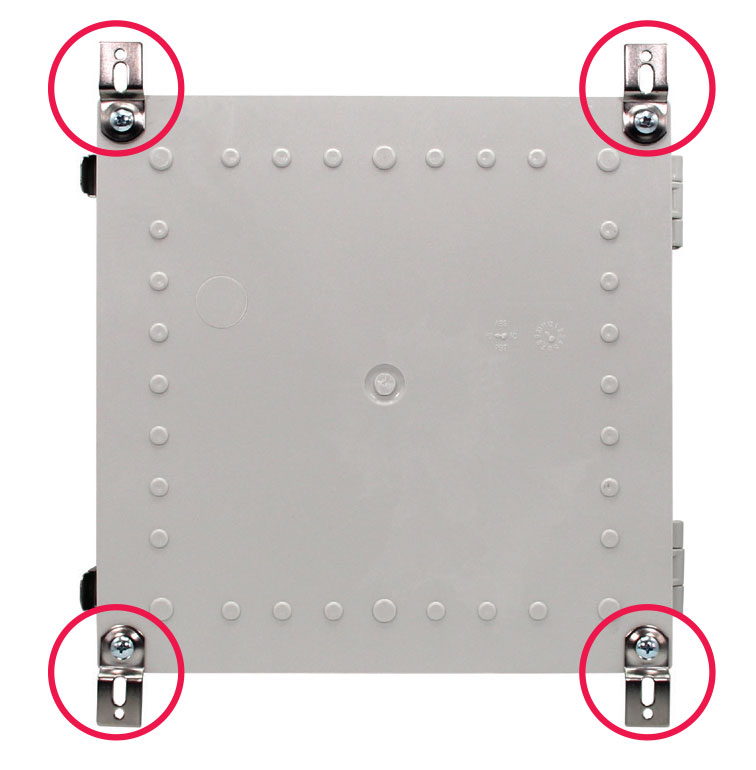

The PDA1909, PDA1939, and PDA3939 plastic enclosures include four mounting flanges and four screws for your convenience. Using the included screws and a Phillips head screwdriver simply assemble each flange in the four threaded screw holes on the back of the enclosure as shown in the example below. Now the enclosure is ready to be easily mounted to a wall.
Plastic Enclosure Wall Mounting
Plastic enclosures are supplied with 4 screws and 4 mounting flanges

Pipe Mounting

PDA6909 Pipe Mounting Kit

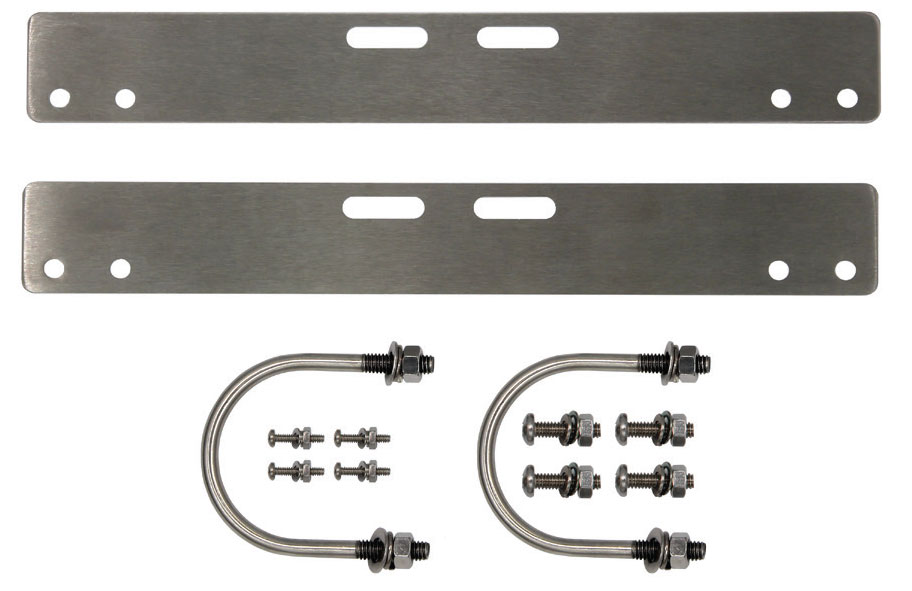

The ConsoliDator+ enclosures can be mounted on a 2" pipe with the PDA6909 pipe mounting kit. The PDA6909 comes with all the hardware you need to conveniently mount the two mounting plates to the enclosure and the enclosure to the pipe. The mounting kit is available in steel or stainless steel. The PDA6909 mounting kit is compatible with both plastic and steel ConsoliDator+ enclosures.
PDA6909 Pipe Mounting Kit for ConsoliDator+ Enclosures

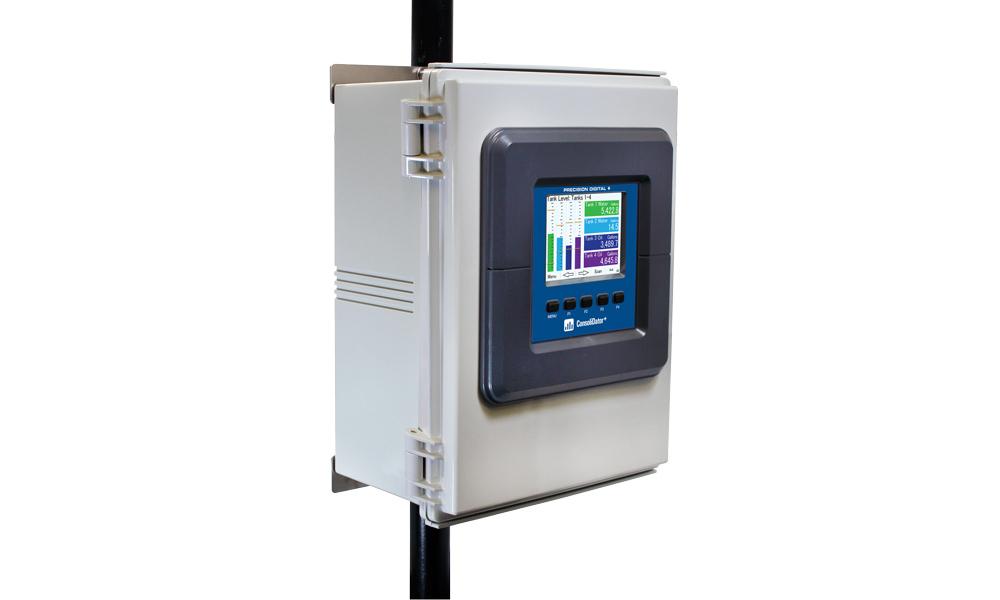

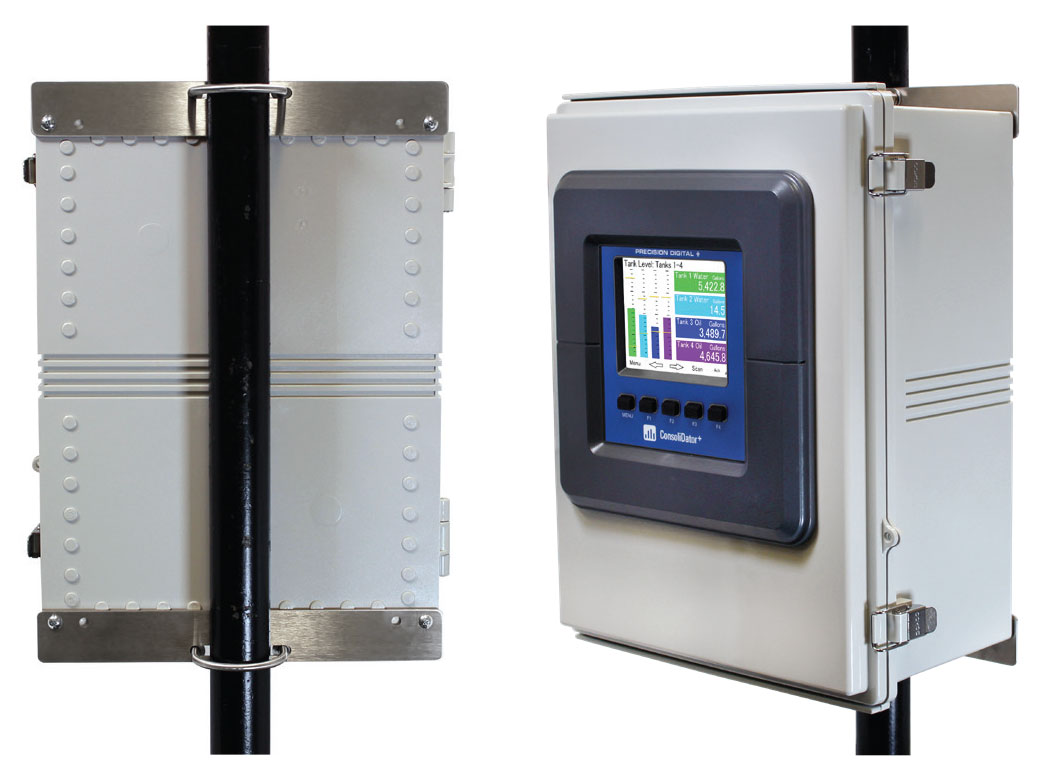

PDA1939 enclosure mounted to 2" pipe with PDA6909 pipe mounting kit
PDA6909 Pipe Mounting Kit for ConsoliDator+ Enclosures
PDA6909 pipe mounting kit available in steel or stainless steel

Cover Securing Method

Plastic Enclosures

The covers on the plastic enclosures are hinged and secured with hasps.

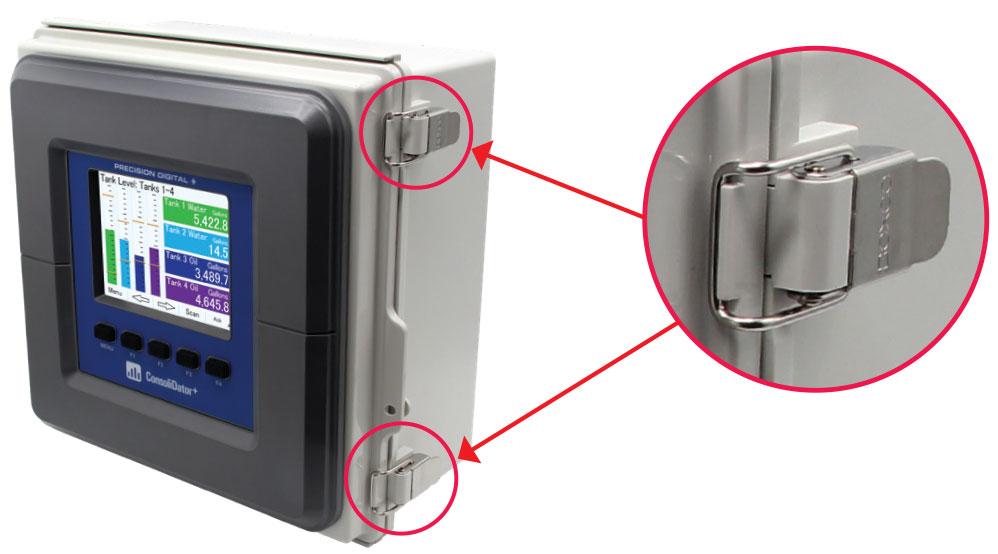

Plastic Enclosure Cover Securing Method
PDA1909 plastic enclosure showing hasps

Steel Enclosures

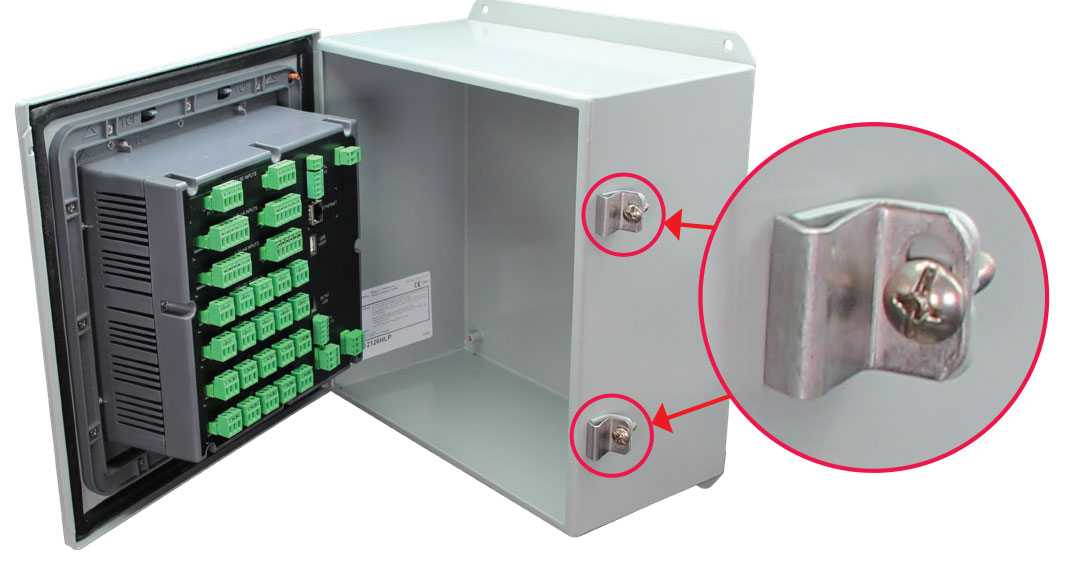

The covers on the steel enclosures are hinged and secured with latches and screws.
Steel Enclosure Cover Securing Method
PDA2909 steel enclosure showing latches
and screws

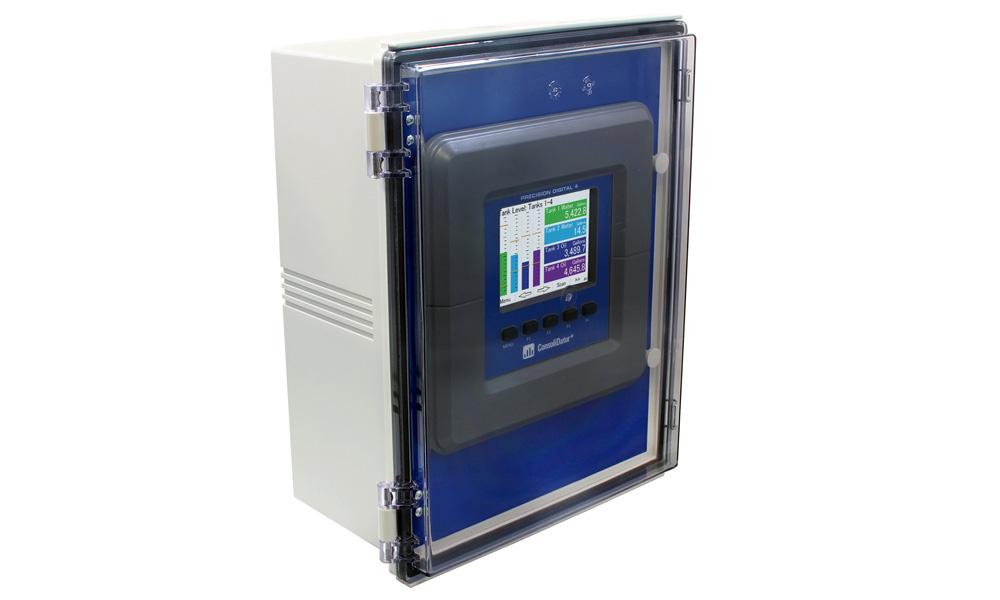

PDA3939 Fully Protects ConsoliDator+

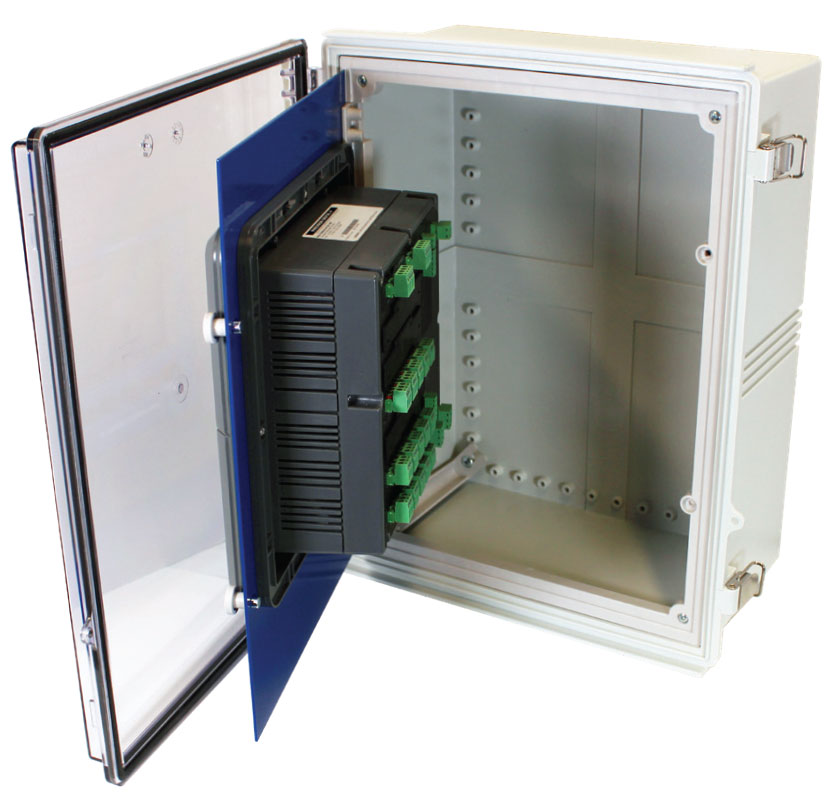

The PDA3939 enclosure fully protects the ConsoliDator+ from the outside elements. The controller is mounted in a hinged interior plate and is covered and secured by the clear plastic outer door and hasps.
PDA3939 Plastic Enclosure Cover Securing Method
PDA3939 plastic enclosure open with clear cover
and interior door for mounting ConsoliDator+

Accessories

PDA9000SH ConsoliDator+ Sun Hood

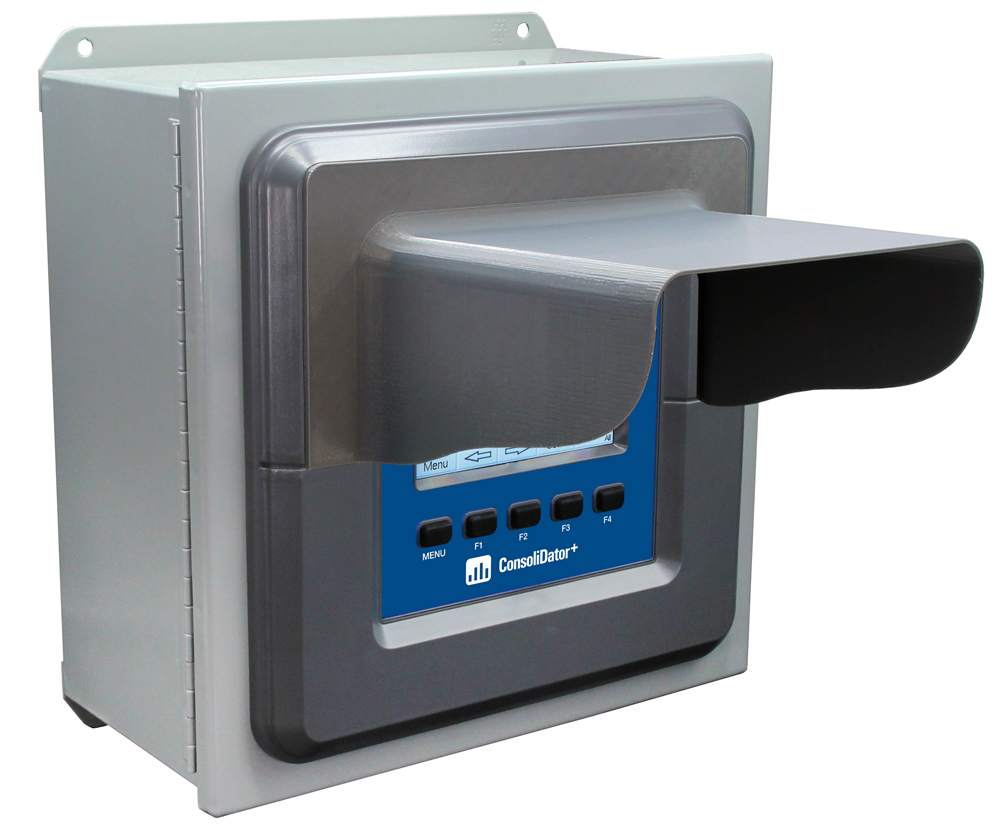

PDA9000SH Installed on PD9000 ConsoliDator+ mounted in PDA2919 enclosure

PDA9000SH Installed on PD9000 ConsoliDator+ mounted in PDA2909
(ConsoliDator+ and enclosure sold separately)



The PDA9000SH ConsoliDator+ Sun Hood provides shade for the ConsoliDator+ when it is mounted in direct sunlight. It is adhered to the ConsoliDator+ enclosure with industrial grade double sided tape (provided).

  • Provides shade in direct sunlight
  • Easy to install
  • Industrial grade double-sided tape provided


Sub-Panels

Precision Digital offers plastic and steel sub-panels for the ConsoliDator+ enclosures that provide a convenient way to mount additional items to the base of the enclosure. They can be drilled to accept screws for easy mounting of relays, contactors, securing wiring clips, or installing other internal devices.
Sub-Panels for Plastic Enclosure
Sub-Panels for Plastic Enclosures

SPECIFICATIONS

Sub-PanelEnclosureDimensions
(Inches)
Dimensions
(mm)
PDP1909PDA190910.3 × 10.3262 × 262
PDP1939PDA1939,
PDA3939
12.0 × 16.0306 × 407

Material: Plastic
Mounting hardware is included.

Sub-Panels for Steel Enclosures
Sub-Panels for Steel Enclosures


SPECIFICATIONS

Sub-PanelEnclosureDimensions
(Inches)
Dimensions
(mm)
PDP2909PDA290911.0 × 11.0279 × 279
PDP2919PDA291913.0 × 11.0330 × 279
PDP2929PDA292915.0 × 13.0381 × 330

Thicknes: 14 gauge
Material: Steel
Mounting hardware is included.


PDA0007 Enclosure Ventilation Kit

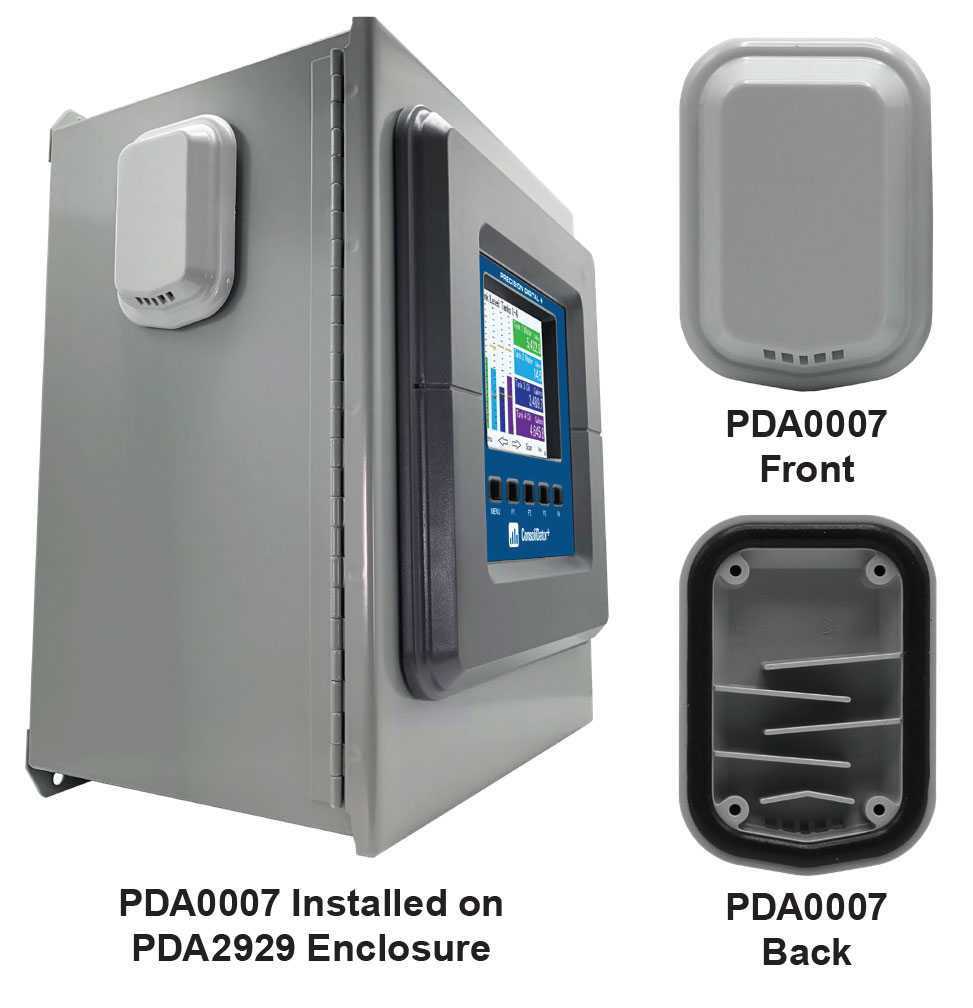

PDA0007 Enclosure Vent Kit
The PDA0007 ventilation kit consists of two vents and is designed to equalize internal / external pressure and temperature to prevent condensation from building up in the enclosure. Internal baffles within the vents create an airflow pattern that allows air to pass between the inside of the enclosure and the outside environment. The vents are compatible for use with steel or plastic enclosures and are rated UL & CSA Type 4X and IP66. The ventilation kit can also be ordered as a MODVENT-P for plastic enclosures and a MOD-VENT-M for steel enclosures. When this is done, the accompanying enclosure will be provided with pre-drilled holes for the vents (Installation is done by the user and the enclosure is sold separately). See ordering information.

  • Prevents condensation inside the enclosure
  • UL & CSA Type 4X IP66
  • Use with steel or plastic enclosures
  • For wall thickness of 16 gauge to 1/4"
  • Corrosion resistant polycarbonate
  • Comes with two vents

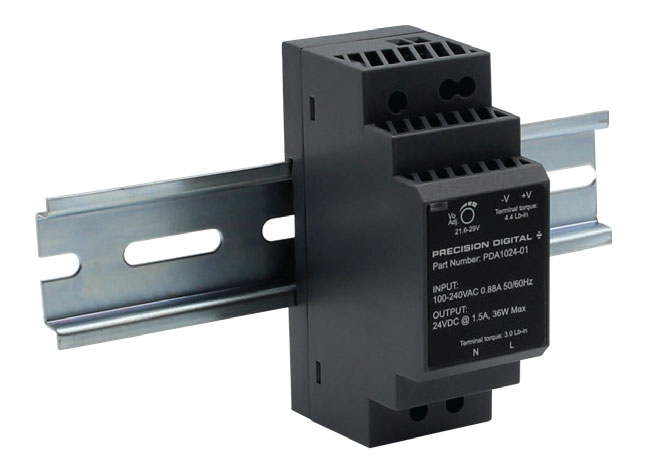

PDA1024-01 24 VDC Power Supply for DIN Rail

PDA1024-01 24 VDC Power Supply
The PDA1024-01 is a DIN rail mounted 1.5 A, 24 VDC power supply that can be used for a variety of functions; the most common of which is powering 4-20 mA transmitters.

SPECIFICATIONS

Output Voltage: 21.6 ~ 29 VDC; ±10% 1.5A rated current.
Dimensions: 1.40" x 3.50" x 2.10"
(35 mm x 90 mm x 54.5 mm) (W x H x D)


Light / Horn & Reset Button Mounted to Enclosure

PDA-LH Light/Horn and Reset Button

Overview

Precision Digital offers a line of Light / Horn accessories that are available as single color (red, green, yellow, blue or white), three layered colors (red, yellow, green), or five colors in one (red, green, yellow, blue or white.) The horn is rated at 85 dB and the light can be programmed to flash or stay steady on. The light(s) and horn can be controlled independently of each other via separate relays on the ConsoliDator+. The following are a few of the many ways the Light / Horn accessories can be used with the ConsoliDator+:

  • One single color Light / Horn with one relay driving the light and one relay driving the horn. The alarm could be based on a single input or when any of the multiple inputs goes into alarm.
  • Several different color Light / Horns all driven by separate relays indicating different alarm conditions.
  • One multi-light Light / Horn with each light and the horn driven by separate relays.

The Light / Horn can be mounted on an enclosure provided by Precision Digital or elsewhere. In addition, multiple Light / Horns can be mounted on one Precision Digital enclosure. If the Light / Horn is ordered as a “MOD”, a reset button is included; and the enclosure is provided with the holes drilled for the Light / Horn and Reset Button for the user to install, as pictured above. The Light / Horn hole is located on the top of the enclosure in the back left corner. The hole for the Reset Button is located on the left side of the enclosure. If the Light / Horn is ordered as a “PDA”, no holes are drilled in the enclosure. Soft keys located on the front of the ConsoliDator+ can also be used to silence the horn and turn off the light. The Light / Horn can be powered by the ConsoliDator+ so no additional power is needed to drive it.

Dimensions

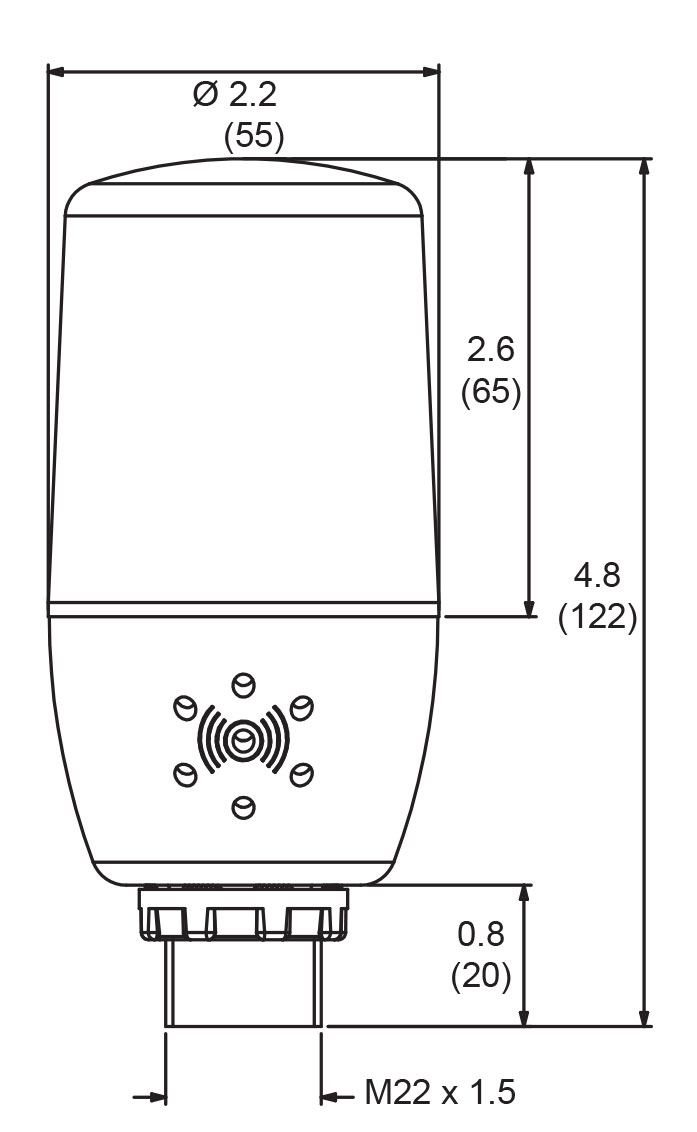

PDA-LH Light/Horn Dimensions

Dimensions

PD9000-ENC 3-D CAD Files

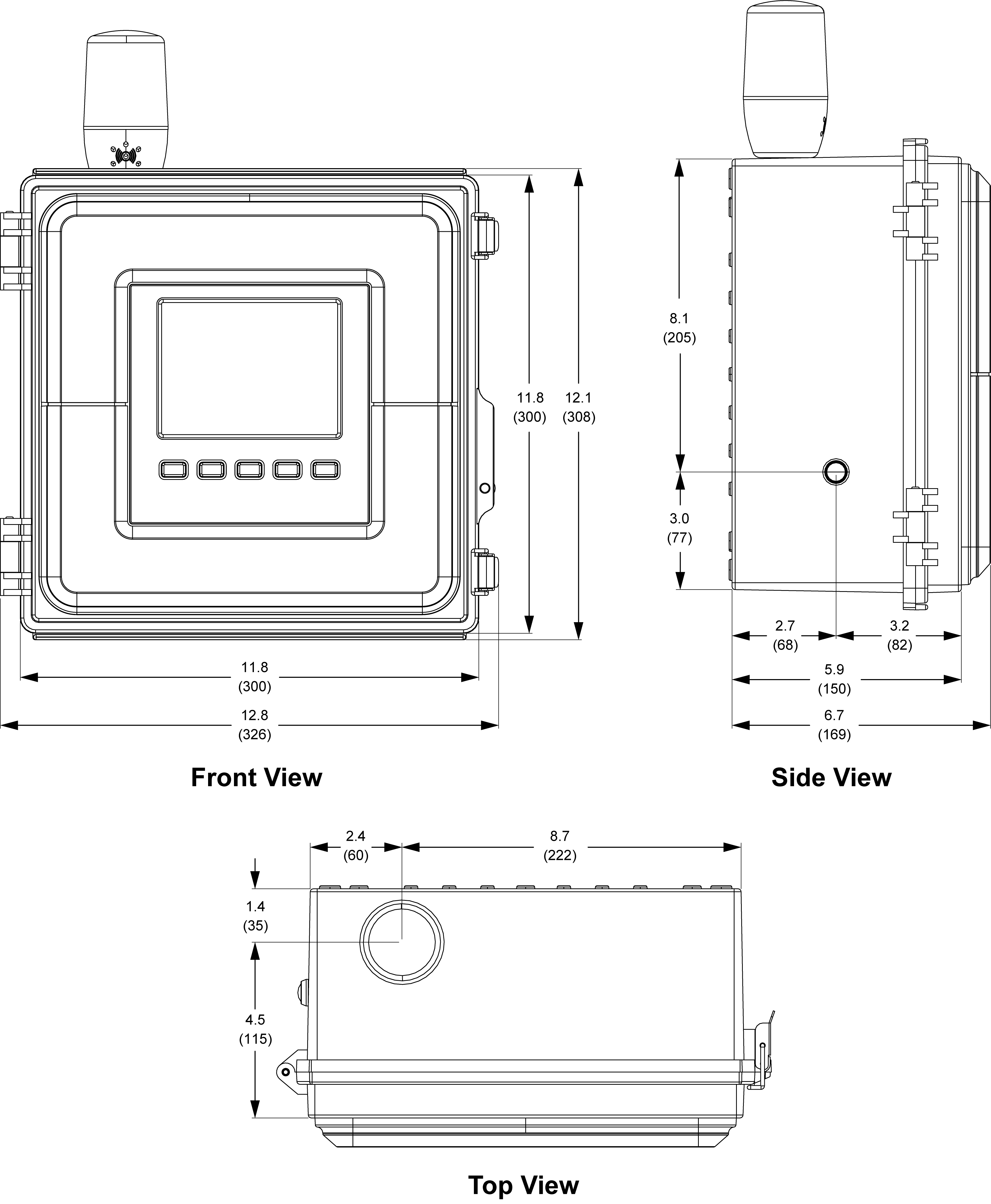

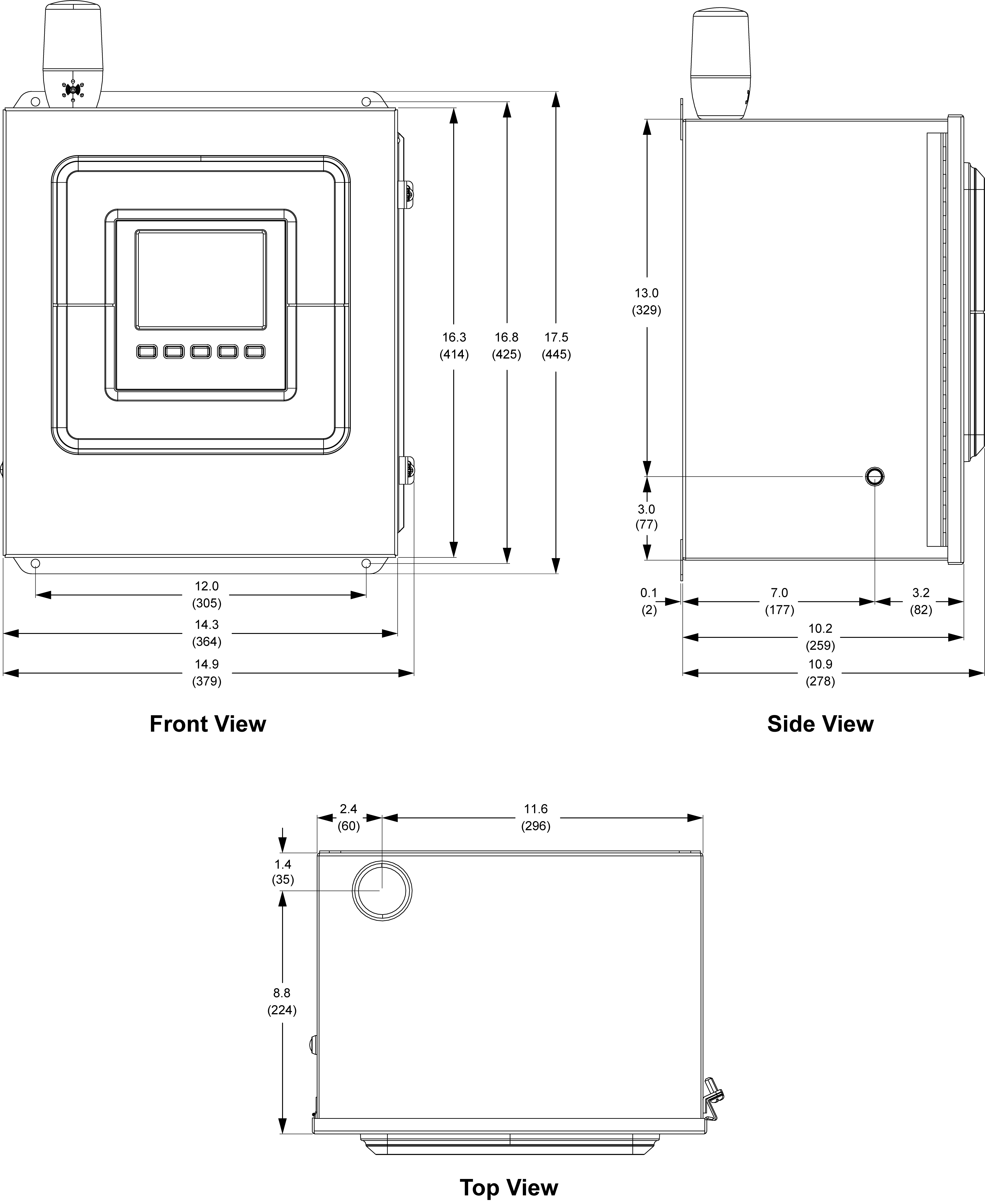

PDA1909 Plastic Enclosure Dimensions

PDA1909 Dimensions

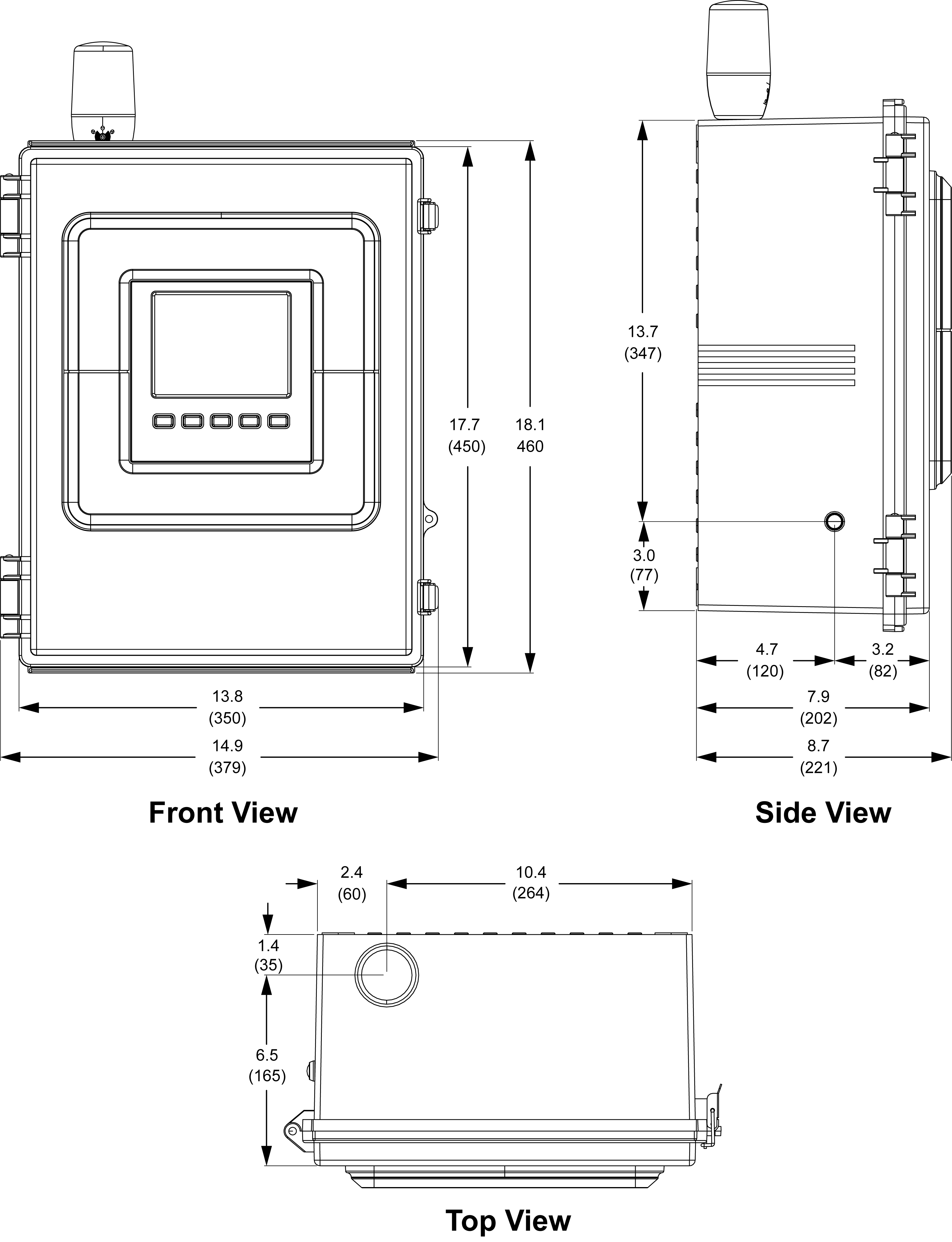

PDA1939 Plastic Enclosure Dimensions

PDA1909 Dimensions

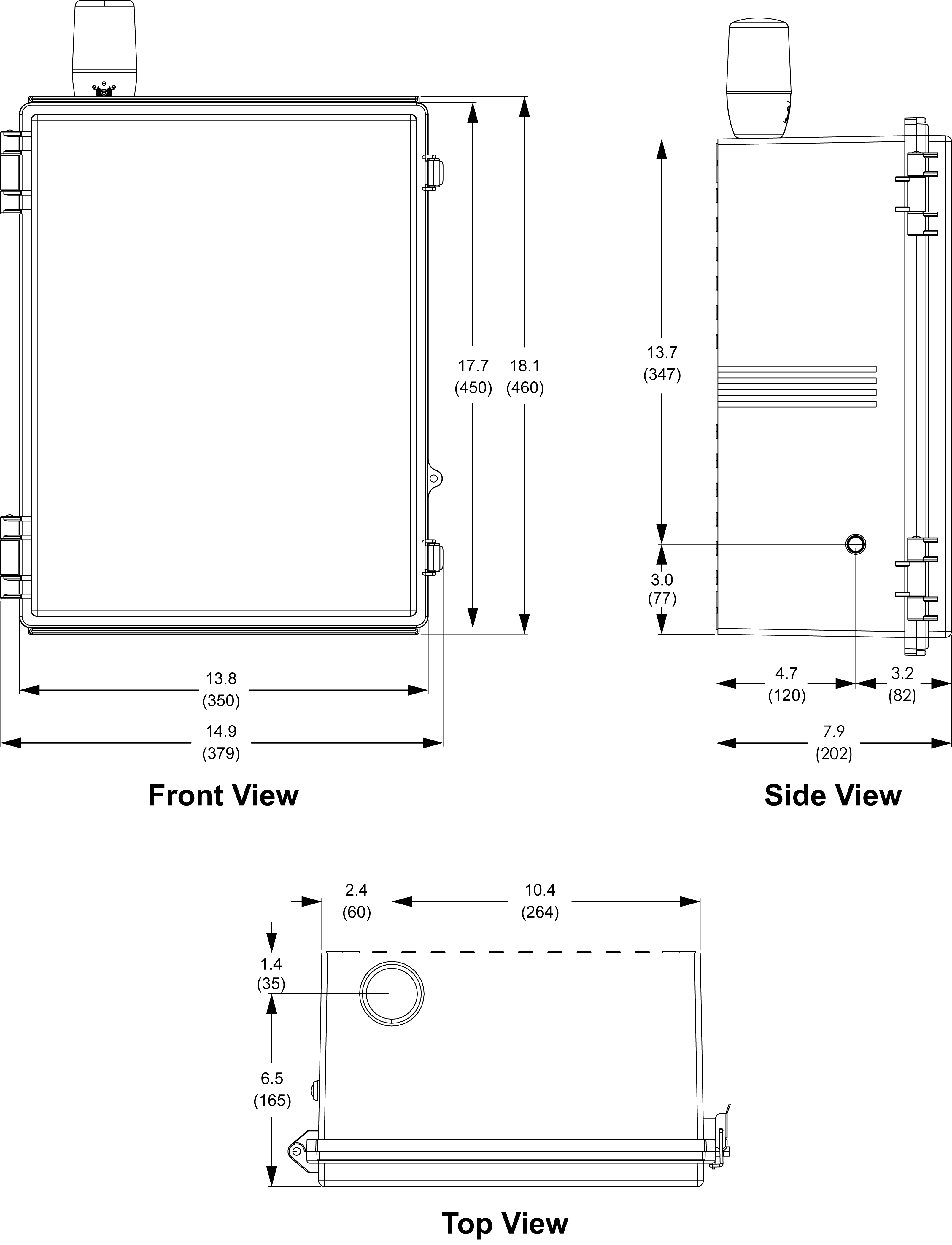

PDA3939 Plastic Enclosure Dimensions

PDA1909 Dimensions

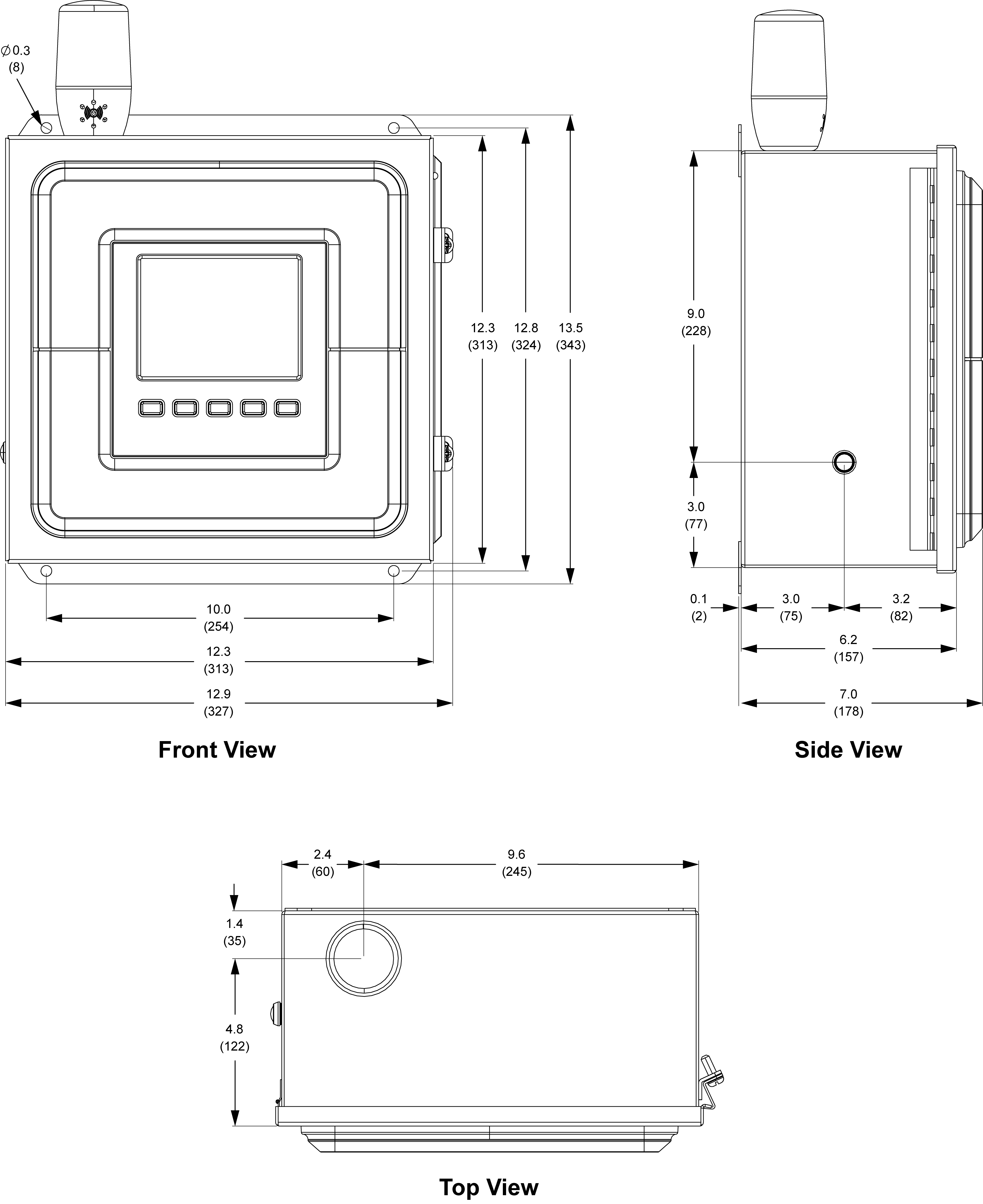

PDA2909 Steel Enclosure Dimensions

PDA1909 Dimensions

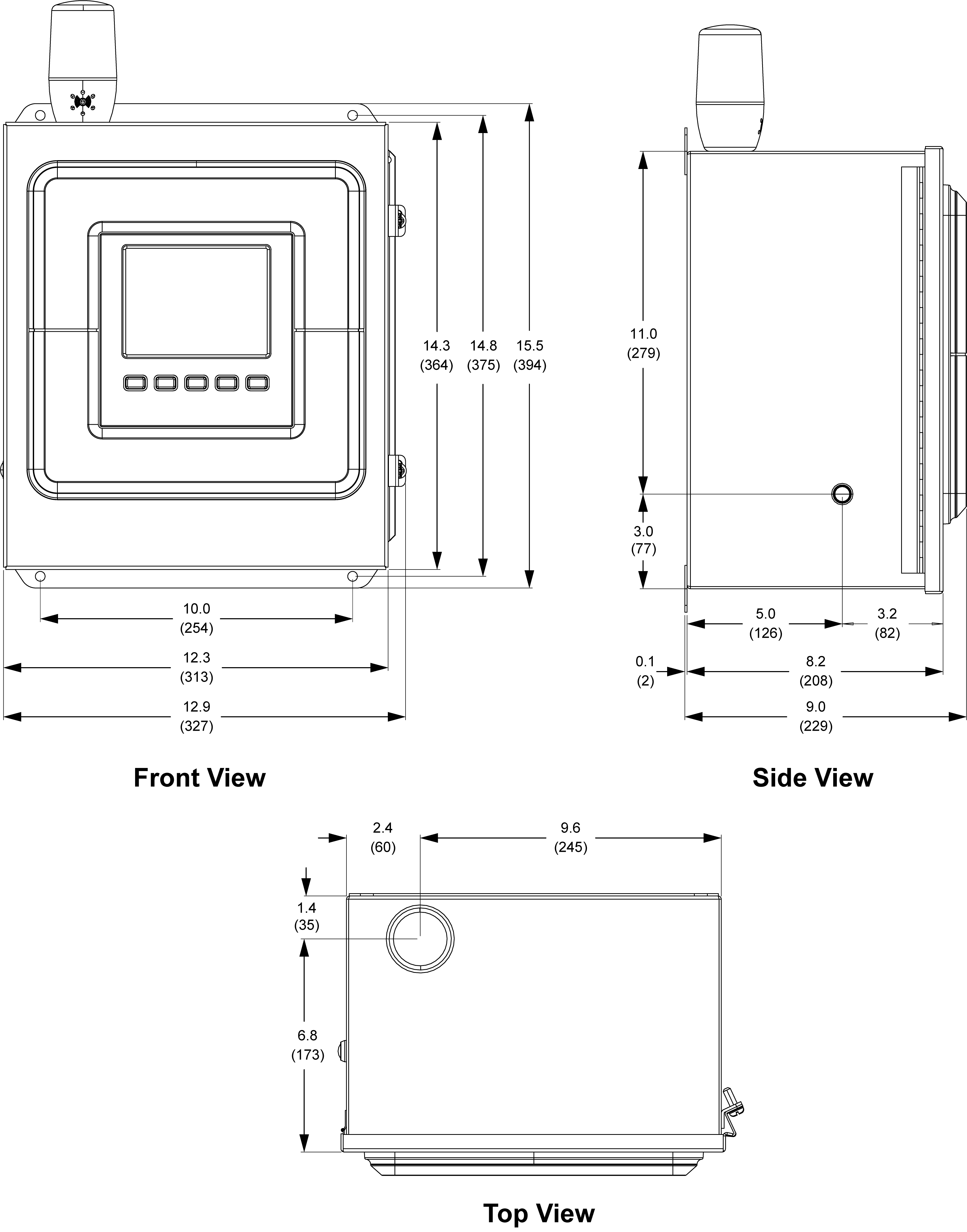

PDA2919 Steel Enclosure Dimensions

PDA1909 Dimensions

PDA2929 Steel Enclosure Dimensions

PDA1909 Dimensions
Notes:
1. Enclosure shown with optional Light / Horn and Button.
2. Holes for the Light / Horn and Button are only present when MOD-LH is ordered.

Specifications

Plastic Enclosure Specifications (PDA1909, PDA1939, PDA3939)
Material: Thermoplastic Polyester Enclosure with Stainless Steel Hardware.
PDA3939 only: Cover: Clear polycarbonate plastic; Plate: Painted Aluminum
Color: Gray
Controller Mounting Method:
PDA1909 & PDA1939: Through cover
PDA3939: Through interior hinged plate
Cover Mounting Method: Hinge / Hasp
Ratings: NEMA 4X
Approvals: UL/C-UL
Operating Temperature: -40 to 120°C
Dimensions:
PDA1909: 11.8" x 11.8" x 5.9" (300 mm x 300 mm x 150 mm) (H x W x D)
PDA1939: 17.7" x 13.8" x 7.9" (450 mm x 350 mm x 200 mm) (H x W x D)
PDA3939: 17.7" x 13.8" x 7.9" (450 mm x 350 mm x 200 mm) (H x W x D)
Weight:
PDA1909: 3.1 lbs (1.4 kg)
PDA1939: 6.4 lbs (2.9 kg)
PDA3939: 8.6 lbs (3.9 kg)
Warranty: 1 year

Steel Enclosure Specifications (PDA2909, PDA2919, PDA2929)
Material: Painted Steel
Color: Gray
Controller Mounting Method: Through cover
Cover Mounting Method: Hinge / Screw
Ratings: NEMA 4, 12, 13
Approvals: CSA, UL/C-UL
Operating Temperature: -40 to 120°C
Dimensions:
PDA2909: 12.0" x 12.0" x 6.0" (305 mm x 305 mm x 152 mm) (H x W x D)
PDA2919: 14.0" x 12.0" x 8.0" (356 mm x 305 mm x 203 mm) (H x W x D)
PDA2929: 16.0" x 14.0" x 10.0" (406 mm x 355 mm x 254 mm) (H x W x D)
Weight:
PDA2909: 11.6 lbs (5.3 kg)
PDA2919: 15.6 lbs (7.1 kg)
PDA2929: 21.9 lbs (9.9 kg)
Warranty: 1 year

Choose Your Options

Configurations other than those specified above are available at a $250 adder. Consult factory for desired model number and price.
