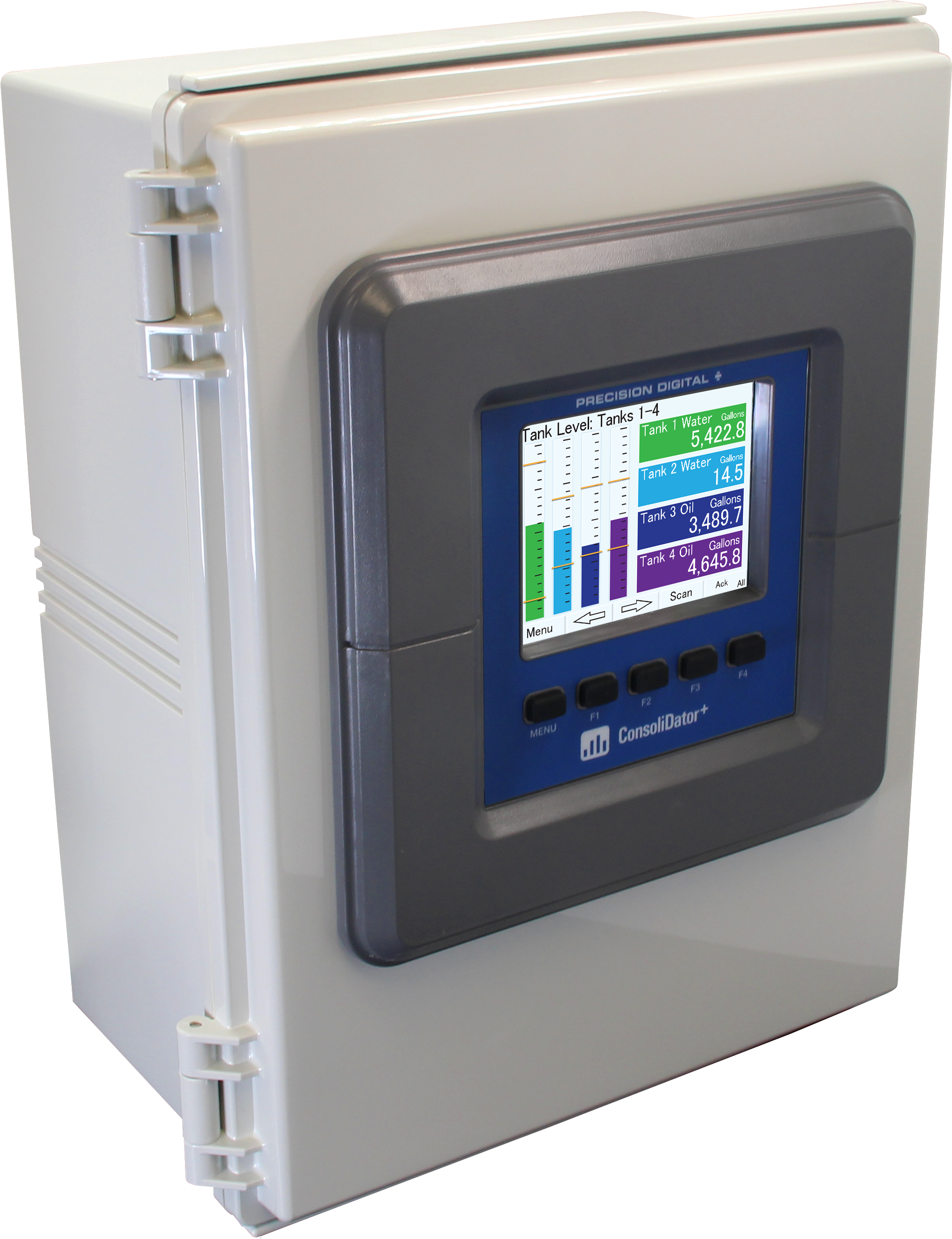

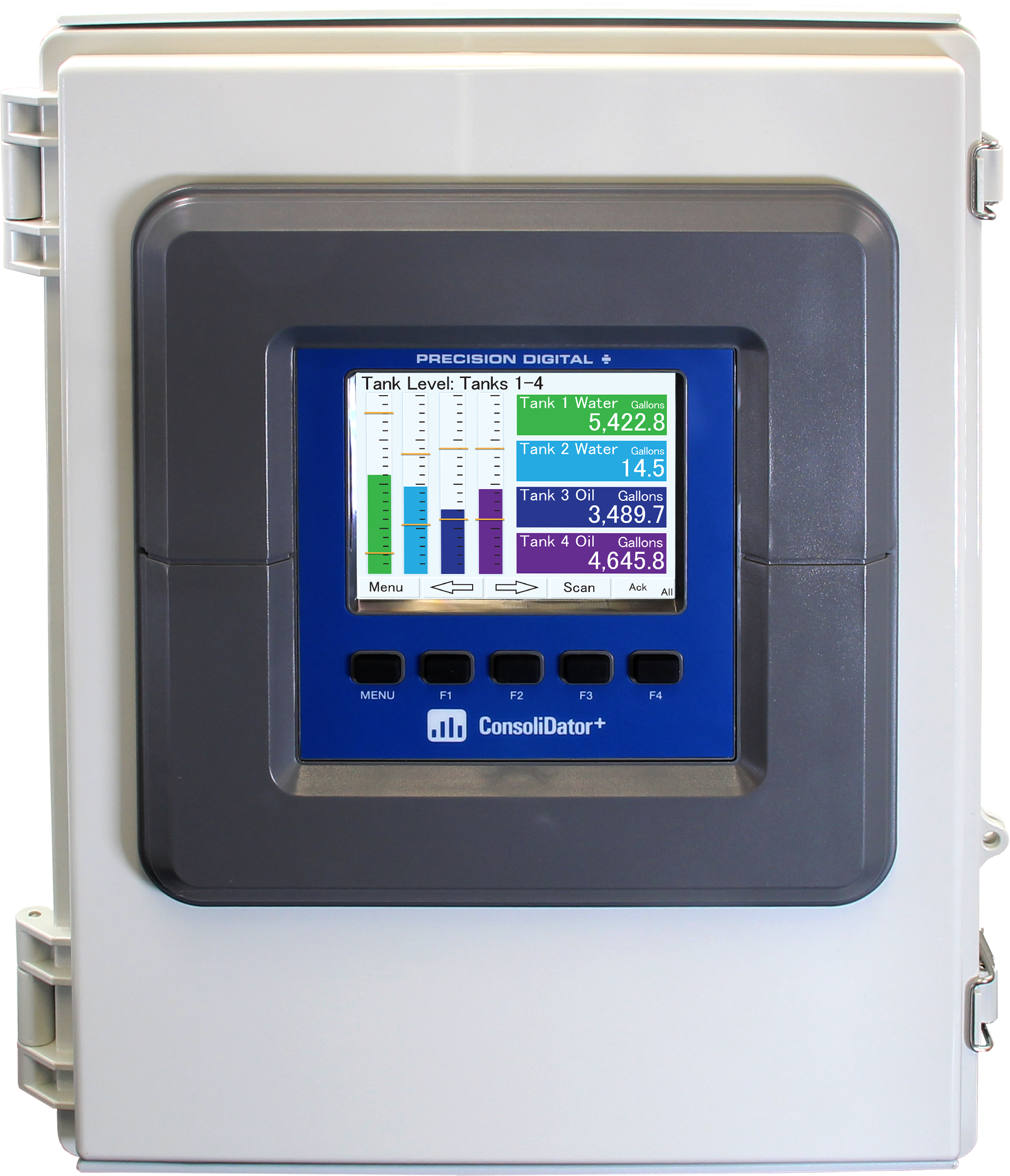

ConsoliDator+ UL Type / NEMA 4X Plastic Enclosure
Left
Model
PDA1939
Product Type
Plastic UL Type 4X Enclosure with (1) Cutout for ConsoliDator+
Material
Thermoplastic Polyester
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
PDP1939
Applicable Meter Types
ConsoliDator+
Cutouts
(1) Cutout for ConsoliDator+
Cover Securing Method
Hinge / Hasp
Fits PDA1024-01
Yes
Sun Hood Compatible
Yes
Light/Horn Compatible
Yes
Overall Dimensions
13.8" x 17.7" x 7.9" (350 mm x 450 mm x 200 mm) (W x H x D)
Weight
6.4 lbs (2.9 kg)
Approvals
C-UL, UL
Warranty
1 Year
$272.00

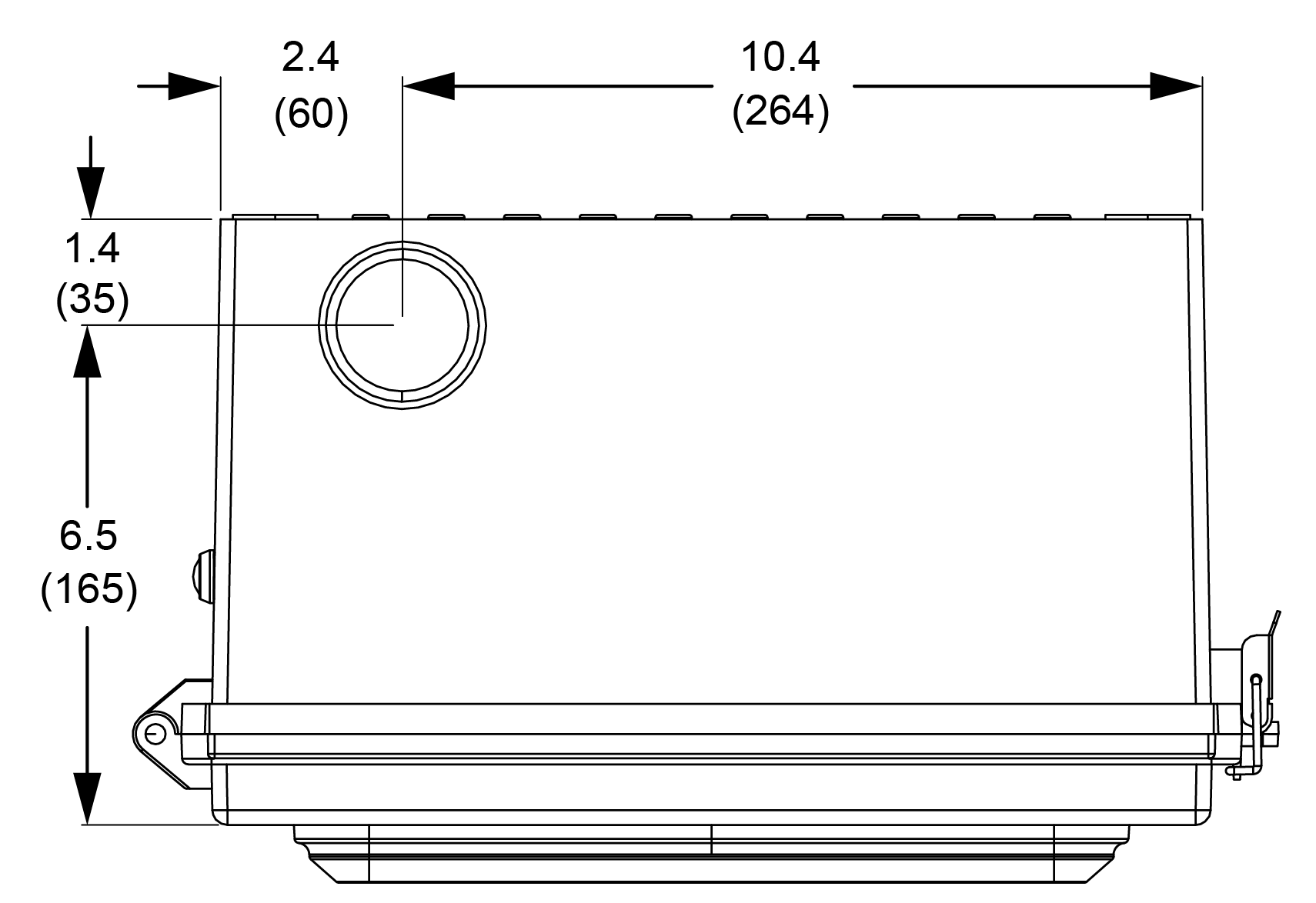

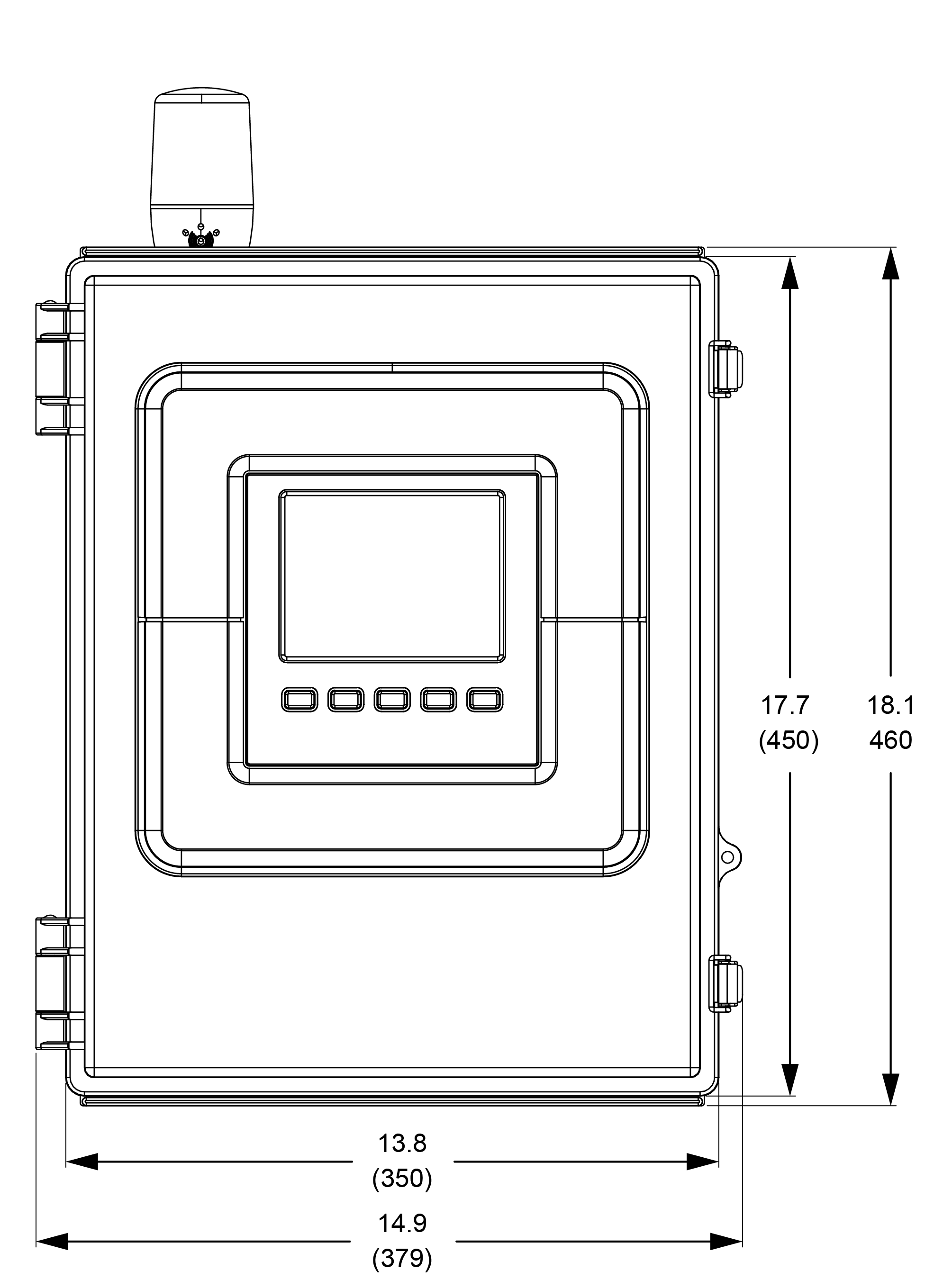

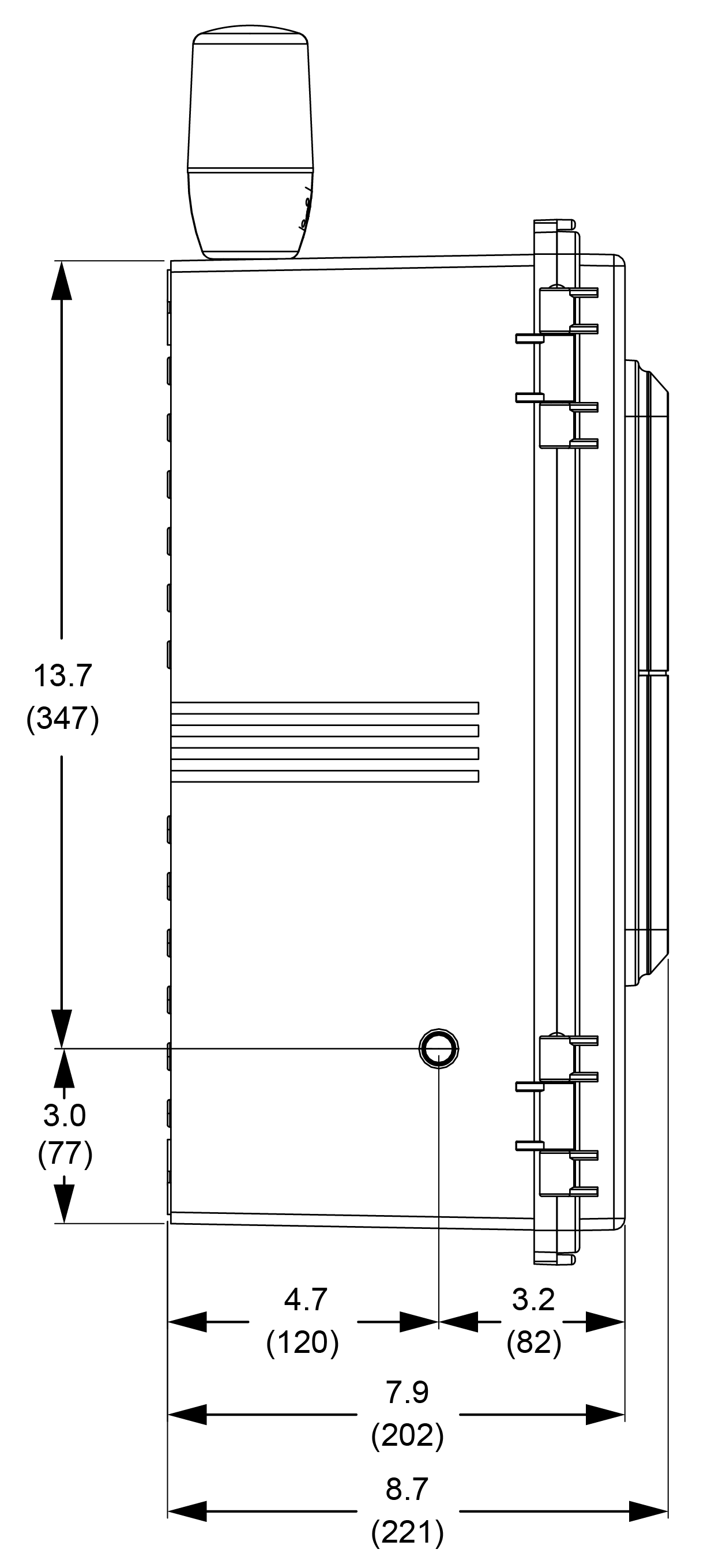

Inches (mm)
