PDA6909 2" Pipe Mounting Kit for PD9000-ENC ConsoliDator+ Enclosures

PDA6909 Manual
ConsoliDator+ and Enclosure (Sold Separately)
Rear View of PDA6909 (Enclosure Sold Separately)
PDA6909 Mounting Plate Dimensions
PDA6909 Mounting Plate Dimensions

Key Features

  • Mounts PD9000-ENC ConsoliDator+ Steel and Plastic Enclosures to 1.5" or 2" Pipe
  • Suitable for Vertical Pipes
  • All Necessary Hardware Provided
  • Zinc Plated Steel or Stanless Steel

Overview

The PDA6909 provides a convenient way to mount Precision Digital PD9000-ENC ConsoliDator+ enclosures to vertical 1.5" or 2" pipes. The mounting kit is available in zinc plated steel or stainless steel and includes all necessary hardware to mount the ConsoliDator+ controller.

Contents

  • All hardware zinc plated steel or stainless steel
  • Two 13 gauge mounting plates
  • Four (each) bolts, washers, lock washers & nuts to mount PD9000-ENC ConsoliDator+ Enclosure to plates
  • Two U-bolts and four (each) washers, lock washers & nuts to mount plates to pipe

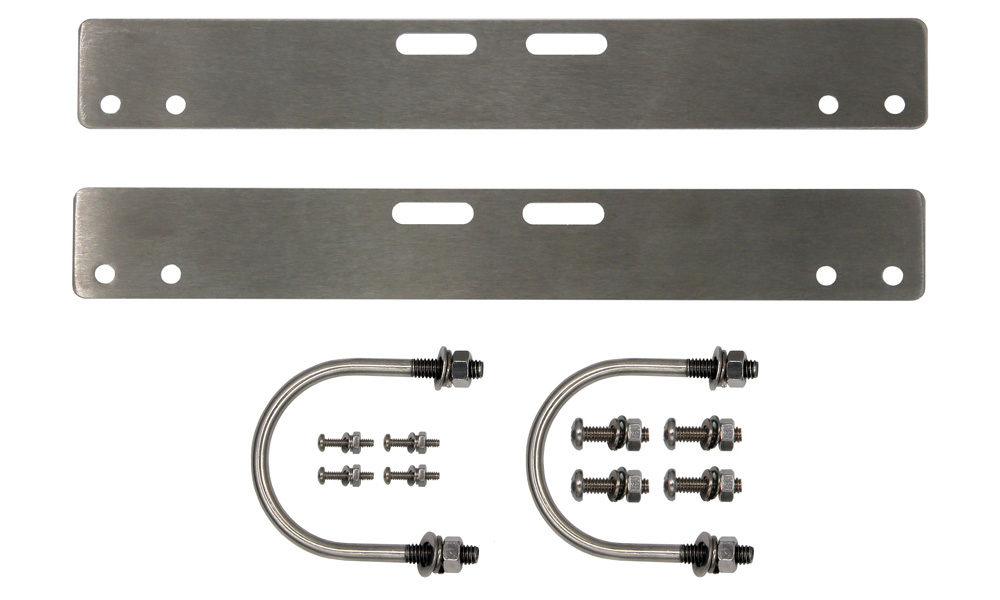

PDA6909 Mounting Kit Contents

Mounting Instructions

  1. Attach the two mounting plates to the enclosure with the provided hardware.
    • The mounting holes on the steel enclosures are found on the flanges at the top and bottom of the enclosure. The mounting holes for the plastic enclosure are located on each corner of the backside of the enclosure.
    • Refer to Figure 1 and table below for the location of the holes on the plates for vertical pipe mounting.
  2. Mount the two plates to the pipe with the provided U-bolts and hardware.

Mounting Holes Location

Hole IDMount OrientationEnclosure Model
1Vertical PipePDA1939, PDA2929, and PDA3939
2Vertical PipePDA1909, PDA2909, and PDA2919
3Vertical PipeSlots for U-Bolt (All Models)
PDA6909 Mounting Plate Dimensions

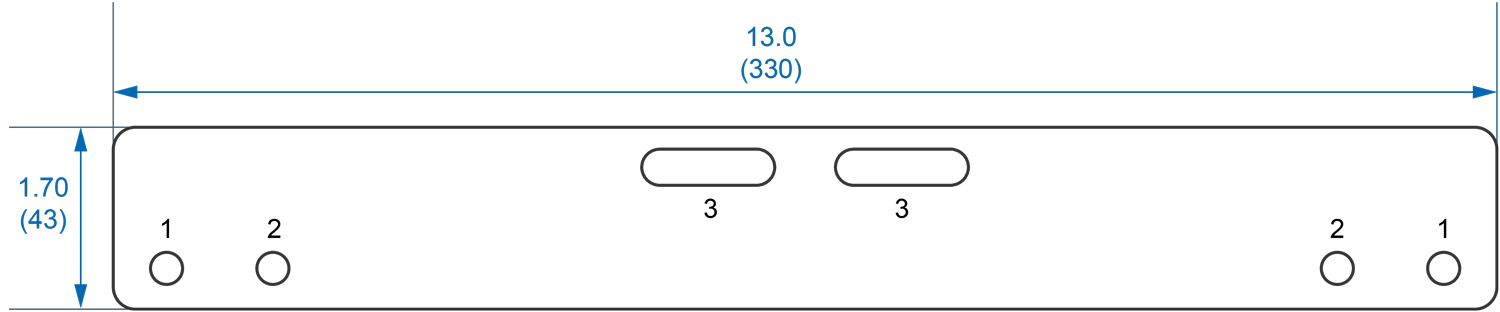

Figure 1. Hole Location Table & Dimension Drawing: Inches (mm)

Drawings

Mounting for Plastic Enclosures

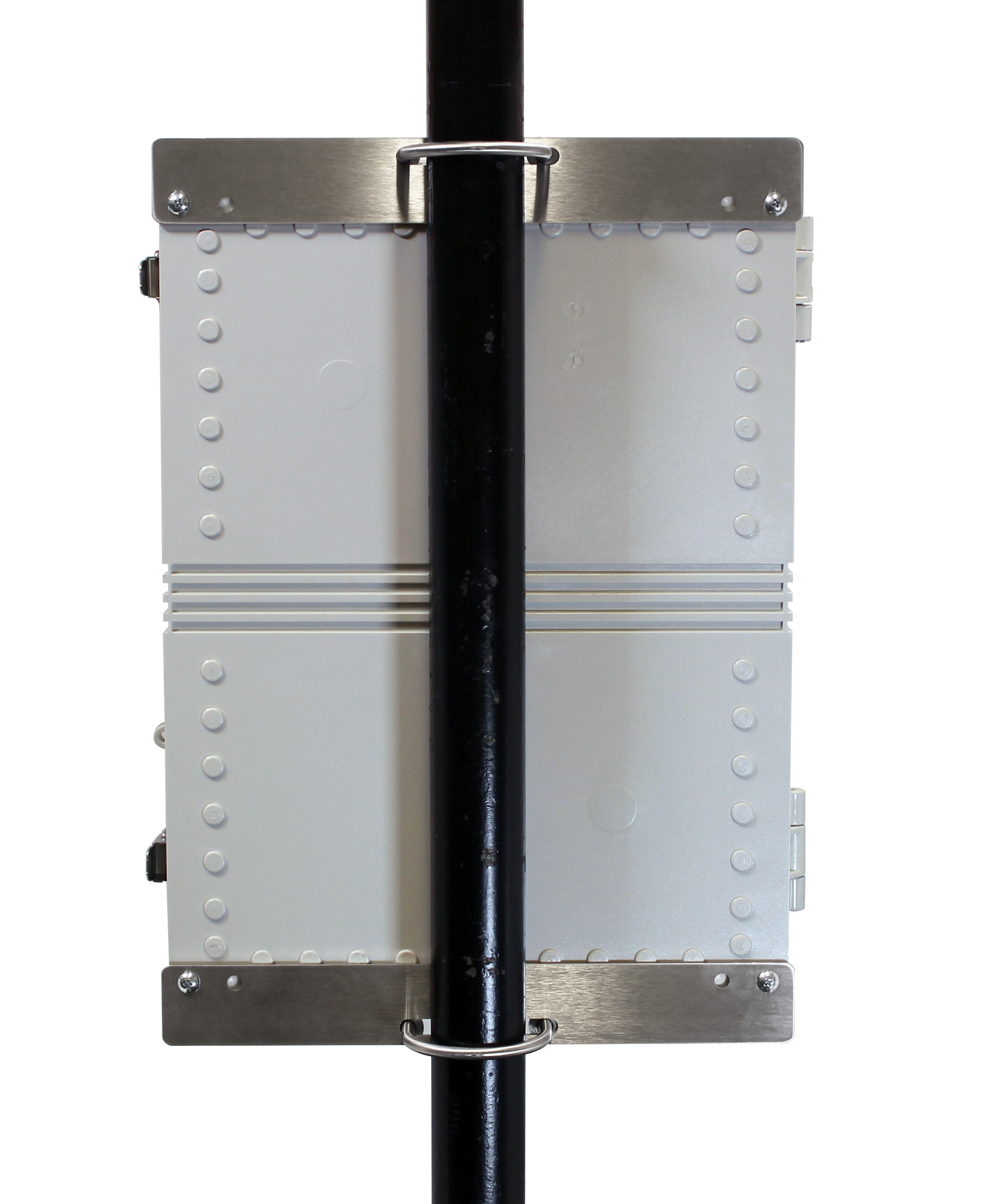

Back view of the PDA1909 enclosure mounted to 2” pipe with PDA6909 pipe mounting kit

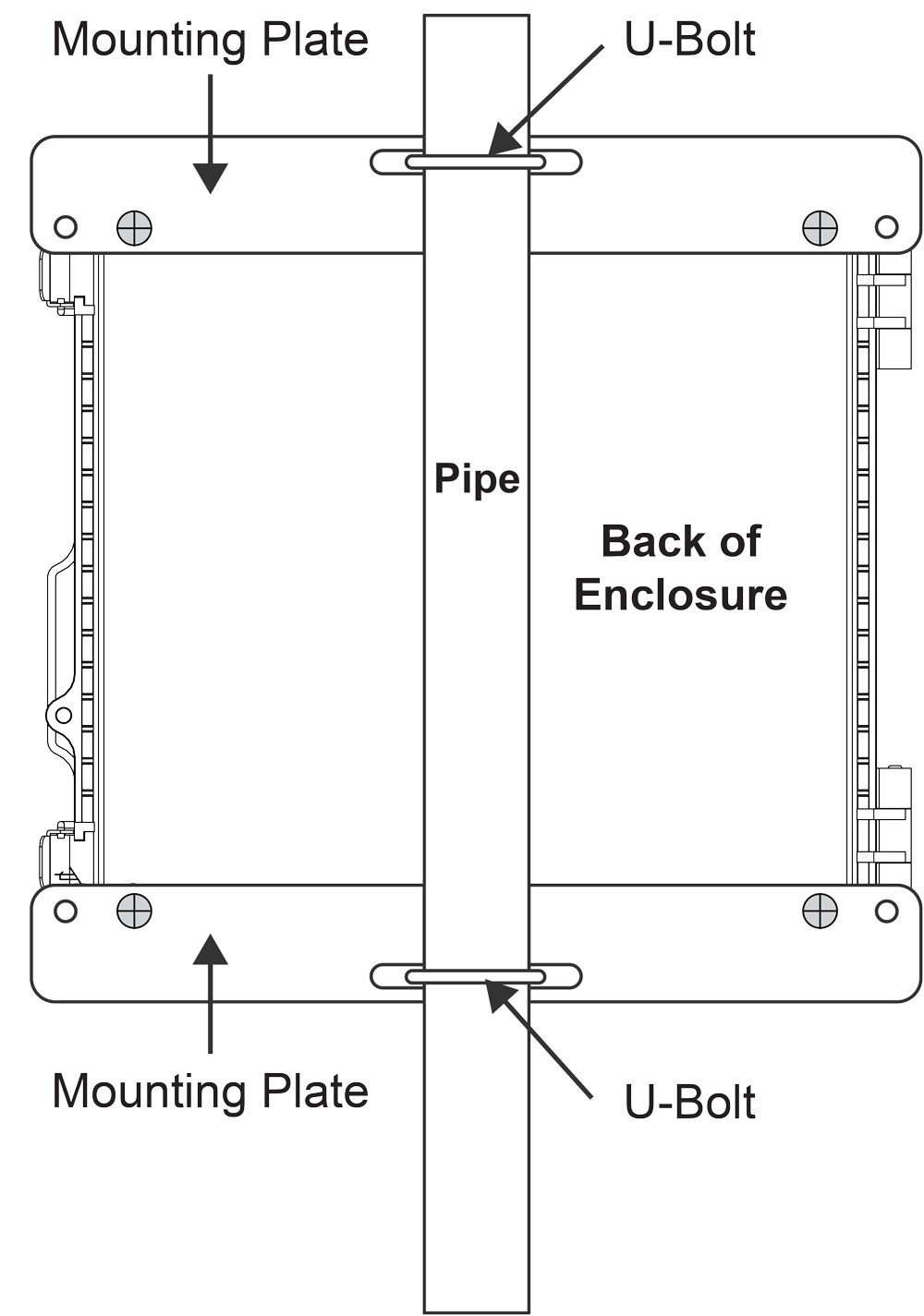

Figure 2. Back view of the PDA1909 enclosure mounted to 2” pipe with PDA6909 pipe mounting kit.
Note: Other plastic enclosures use the outer holes on the pipe mounting kit.

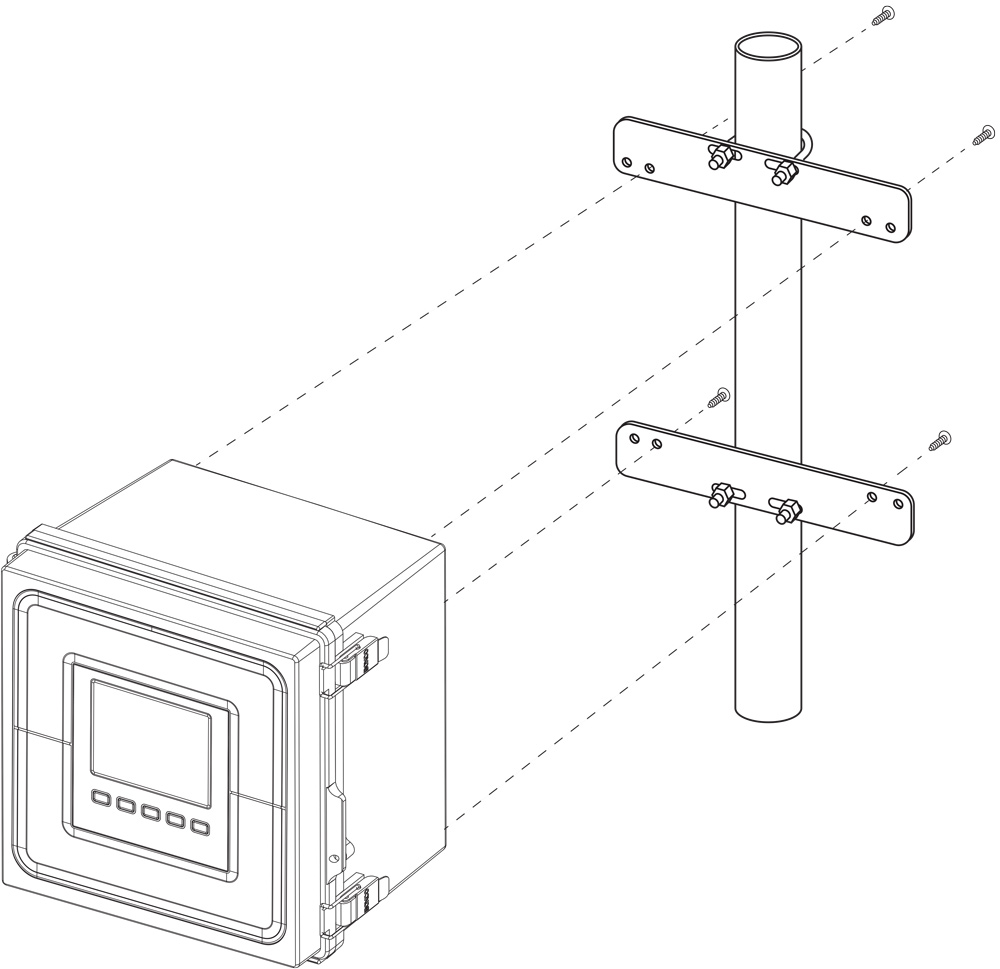

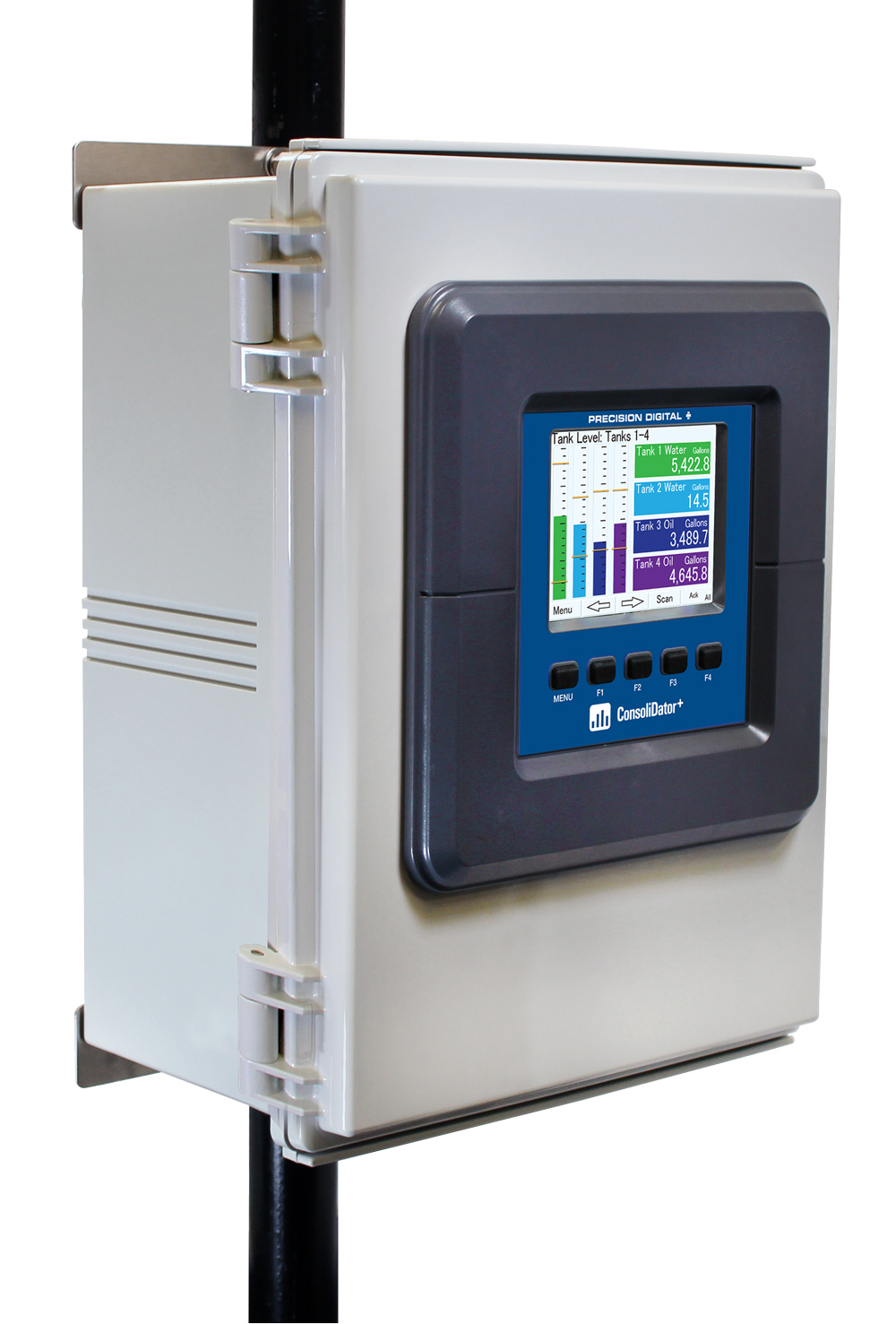

PDA1909 enclosure mounted to 2” pipe with PDA6909 pipe mounting kit

Figure 3. PDA1909 enclosure mounted to 2” pipe with PDA6909 pipe mounting kit.
Note: Other plastic enclosures use the outer holes on the pipe mounting kit.


Mounting for Steel Enclosures

PDA6909 Back View of PDA6909 Mounted to Vertical Pipe

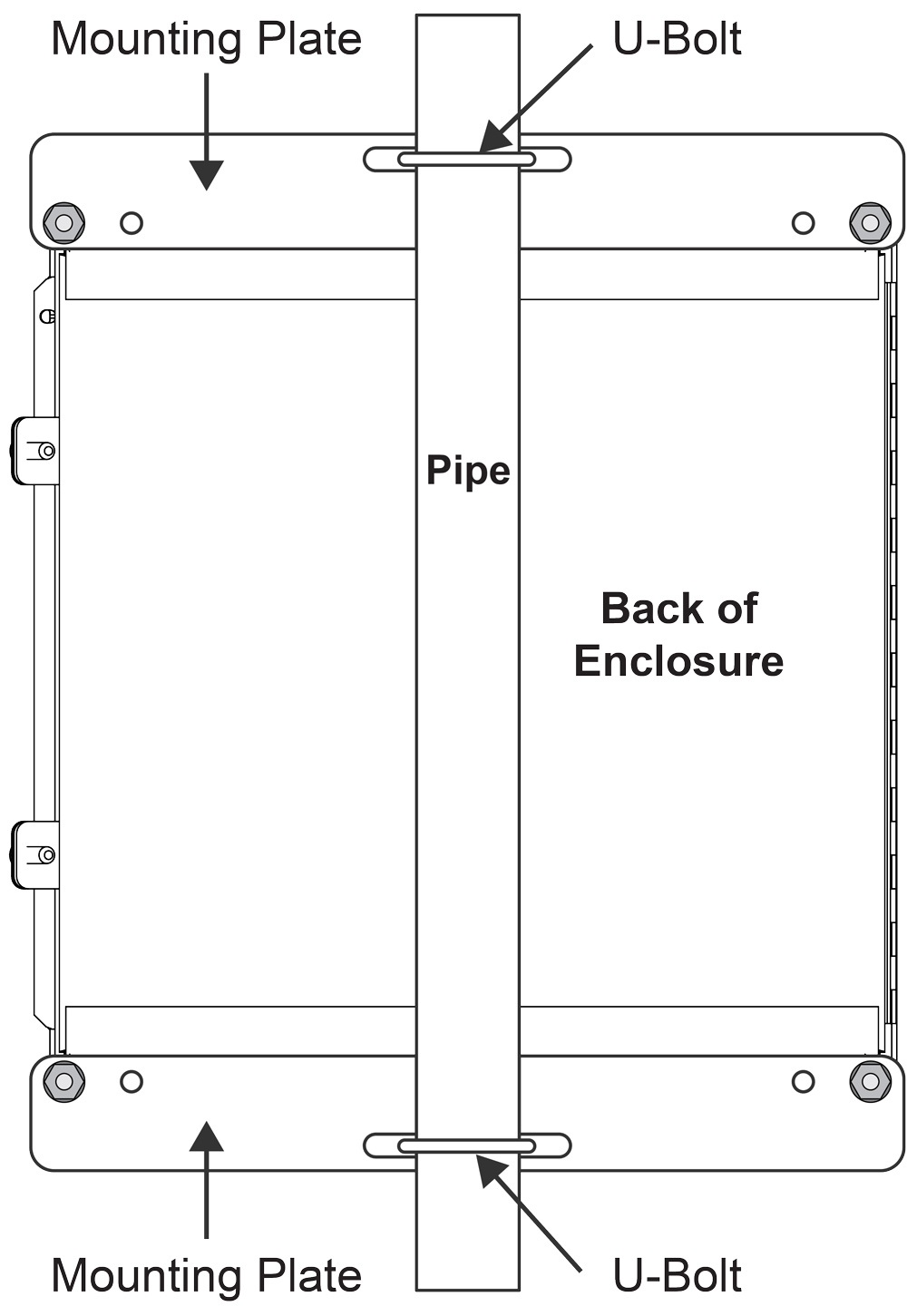

Figure 4. Back view of the PDA2929 enclosure mounted to 2” pipe with PDA6909 pipe mounting kit.
Note: Other steel enclosures use the inner holes on the pipe mounting kit.

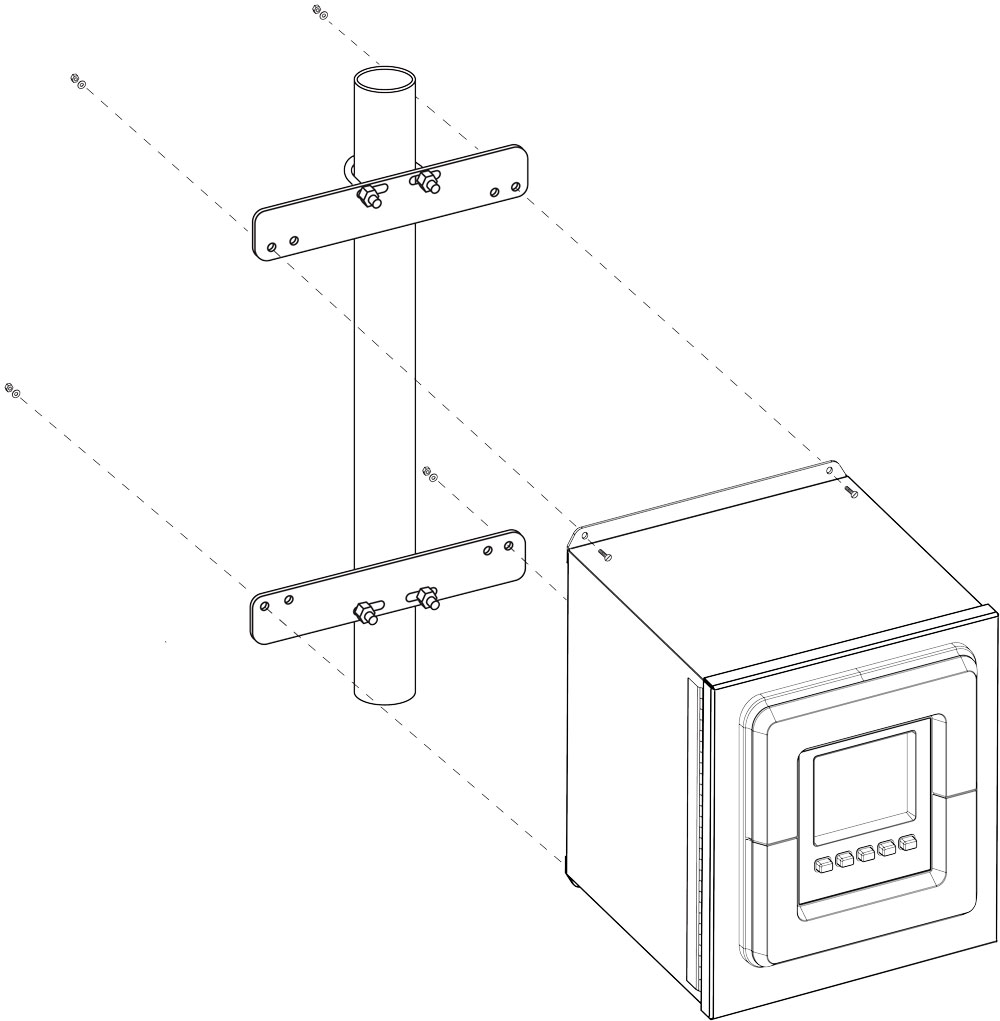

Installation of PDA6909 Mounted to Vertical Pipe

Figure 5. PDA2929 enclosure mounted to 2” pipe with PDA6909 pipe mounting kit.
Note: Other steel enclosures use the inner holes on the pipe mounting kit.

Ordering Information

ModelDescriptionPlate Dimensions Inch (mm)Weight lb (kg)
PDA6909Steel Pipe Mount Kit for PD9000-ENC
ConsoliDator+ Enclosures		13.0 x 1.70 x 0.90 (330 x 43 x 23)1.50 (0.68)
PDA6909-SSStainless Steel Pipe Mount Kit for PD9000-ENC
ConsoliDator+ Enclosures		13.0 x 1.70 x 0.90 (330 x 43 x 23)1.50 (0.68)

The PDA6909 may be used to mount the following PD9000-ENC enclosures to 1.5" or 2" pipes:

  • PDA1909
  • PDA1939
  • PDA3939
  • PDA2909
  • PDA2919
  • PDA2929


Choose Your Options

Configurations other than those specified above are available at a $250 adder. Consult factory for desired model number and price.
