The Vantageview PD6770 is a rugged, loop-powered meter with 1" display digits. The plastic NEMA 4X and IP66 field mountable enclosure is designed for demanding applications in the harshest environmental conditions. The meter derives all of its power from the 4-20 mA loop with a small 1 volt drop for easy installation in almost any system. The meter is programmed using four easy to access front-mounted potentiometers with no complex or difficult to read programming menus necessary for setup. The numeric display will read from -1000 to 1999 over a 2000 count user adjustable scaling span. The backlight option lets you see the display under any lighting condition and is powered from the 4-20 mA loop with no additional power supply required. The enclosure is provided with three threaded conduit holes and integrated pipe or wall mounting slotted flanges.


  • NEMA 4X, IP66 Field-Mount Loop-Powered Process Meter
  • 4-20 mA Input
  • 1 Volt Drop (4 Volt Drop with Backlight)
  • 1.0" (25.4 mm) 3½ Digits LCD Display; -1000 to 1999
  • Display Mountable at 0°, 90°, 180°, & 270°
  • HART® Protocol Transparent
  • Loop-Powered Backlight Option
  • Operating Temperature Range: -40 to 75°C (-40 to 167°F)
  • Zero & Span Potentiometer Adjustments for Easy Field Scaling
  • Conformal Coated PCBs for Dust and Humidity Protection
  • Wide Viewing Angle
  • Flanges for Wall or Pipe Mounting
  • Tag or Tamper Seal Loop
  • Three ¾" NPT Threaded Conduit Openings (Two Plugs Provided)
  • 2" U-Bolt Kits Available
  • Stainless Steel Tag Available
  • 3-Year Warranty

Why Use Loop-Powered Meters?

The most basic decision a user wishing to display a 4-20 mA signal on a digital display has to make is: should the meter be powered by line voltage or should it be powered by the 4-20 mA loop?

There are three main benefits of using loop-powered devices:

  • No additional power required
  • Easy wiring
  • Additional digital displays can easily be added in the same loop

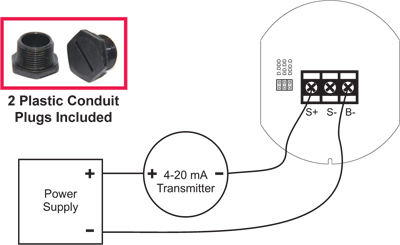

The following diagram illustrates how a loop-powered meter is wired. Notice there are only two connections made to the meter.

Loop-Powered Connections

For more information on loop-powered meters, check out Fundamentals of Loop-Powered Devices and Loop-Powered vs Line-Powered Meters white papers.


Display: 3½ digit LCD, 1" (25.4 mm); -1000 to 1999
Display Orientation: Display may be mounted at 90° increments up to 270° from default orientation.
Display Update Rate: 2.5 Updates/Second
Backlight: White; Loop-powered. Backlight can be enabled or disabled via alternative wiring of terminal block. Loop-powered backlight brightness will increase as the input signal current increases.
Display Overrange: Display reads 1 on the left most digit
Programming Method: Four (coarse and fine for zero and span) potentiometers accessed when the cover is removed.
Recalibration: Recommended at least every 12 months.
Normal Mode Rejection: 60 dB rejection ratio
Environmental: Operating Temperature Range:-40 to 75°C
Storage Temperature Range: -40 to 75°C
Relative Humidity: 0 to 90% non-condensing.
Printed circuit boards are conformally coated.
Connections: Screw terminals accept 12 to 22 AWG wire
Enclosure: NEMA 4X, IP66 plastic field enclosure, polycarbonate with UV stabilizer.
Color: grey
Window: Clear polycarbonate with UV stabilizer.
Three ¾" NPT threaded conduit openings.
Two ¾" NPT plastic conduit plugs included.
Tag or Tamper Seal Loop: Loops molded into base and cover of enclosure for tamper wire or tags.
Mounting: May be mounted directly to conduit. Two slotted flanges for wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe mounting.
Overall Dimensions: 5.67" x 5.25" x 4.18" (W x H x D) (144 mm x 133 mm x 106 mm)
Weight: 1.65 lbs (26.4 oz, .75 kg)
Warranty: 3 years parts & labor. See Warranty Information and Terms & Conditions for complete details.


Input: 4-20 mA
Accuracy: ±0.1% of full span ±1 count
Maximum Voltage Drop & Equivalent Resistance:
Without BacklightWith Loop-Powered Backlight
1 VDC @ 20 mA4 VDC @ 20 mA
50 Ω @ 20 mA200 Ω @ 20 mA
Temperature Drift: 150 PPM/°C from -40 to 75°C ambient
Decimal Point: User selectable decimal point
Calibration Range: 4 mA input: -1000 to +1000;
20 mA between 20 and 2000 counts greater than 4 mA display.
Two point linear display span.
Input Overload: Over current protection to 2 A max.
HART Transparency: The meter does not interfere with existing HART communications; it displays the 4-20 mA primary variable and it allows the HART communications to pass through without interruption.
The meter is not affected if a HART communicator is connected to the loop. The meter does not display secondary HART variables.
