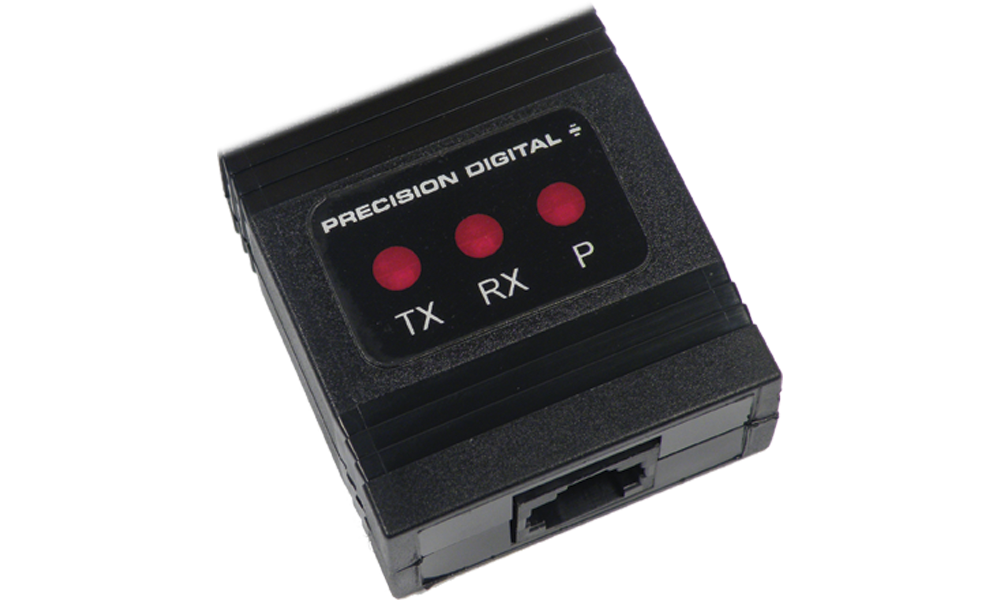

The PDA8006 Trident USB serial adapter is the perfect adapter to use with the Trident when the only serial communication required is for MeterView running on a PC. It is the least costly option as well. USB and meter to adapter cables are included.
Compatibility: USB
Connectors: USB and RJ45
Distance: Adapter to Trident meter: 7' (2.1 m) max; Adapter to computer: 6' (1,83 m) max
Connectors: USB and RJ45
Distance: Adapter to Trident meter: 7' (2.1 m) max; Adapter to computer: 6' (1,83 m) max
MeterView™ for Trident
MeterView software allows remote programming and data acquisition of the Trident series. The remote programming allows for all available meter settings to be programmed from a personal computer through an easy user-friendly interface. The data acquisition allows the user to gather readings from up to 100 meters at user-selected intervals and generate charts using common tools like Microsoft™ Excel.
Click here for more information about MeterView software.
Click here for a short video on the hardware requirements for MeterView.
Digital Panel Meters make a great front end to a PC-based data acquisition system. They are easy to set up, can be used for a wide range of inputs, will power the transmitter, and best of all provide a local display of the process. Precision Digital has the perfect package with its Trident Digital Panel Meters, a wide selection of serial adapters and converters and free MeterView software. Data is displayed on the PC and written to a file that could then be imported into a spreadsheet or other application.

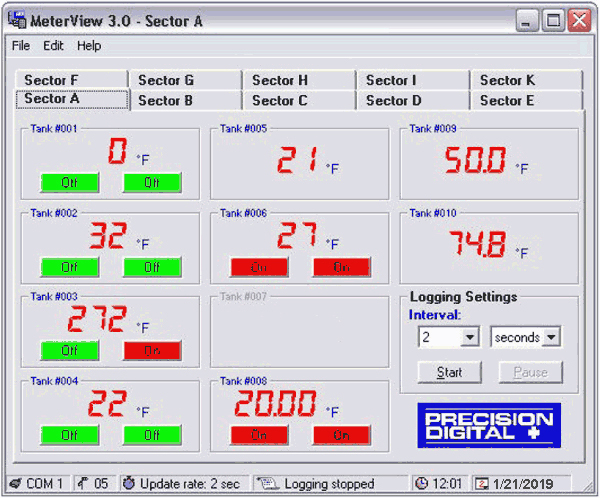

Data Logging up to 100 Trident Meters
Sample File Generated by MeterView™
Great for tank level monitoring!
Ordering Example: System consisting of 10 Tridents & MeterView
| Qty | Model | Description |
| 10 | PD765-6R2-10 | Trident with 2 Relays & 24 VDC Transmitter Supply |
| 10 | PDA7422 | Trident RS-485 Serial Adapter |
| 1 | PDA8485-I | USB to RS-422/485 Isolated Converter |
| 1 | PDA7503-2 | MeterView Software for 1-10 Meters |
Choose Your Options
Applicable Meter Types for PDC Enclosures
| Type A | Type B | Type C | Type D | Type E | Type F | Type G | Type H |
|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  |
| PD690 | PD542 PD543 | PD603 PD644 PD743 PD765 PD6602 PD6603 PD6604 PD6606 PD6607 PD6608 PD6622 PD6624 PD6626 PD6628 | PD138 PD154 PD158 PD520 | PD6000 PD6001 PD6060 PD6080 PD6081 PD6088 PD6089 PD6100 PD6200 PD6210 PD6262 PD6300 PD6310 PD6363 PD6400 PD7000 | PD530 | PD510 | PD420 |
