Meter Sold Separately
Meter Sold Separately

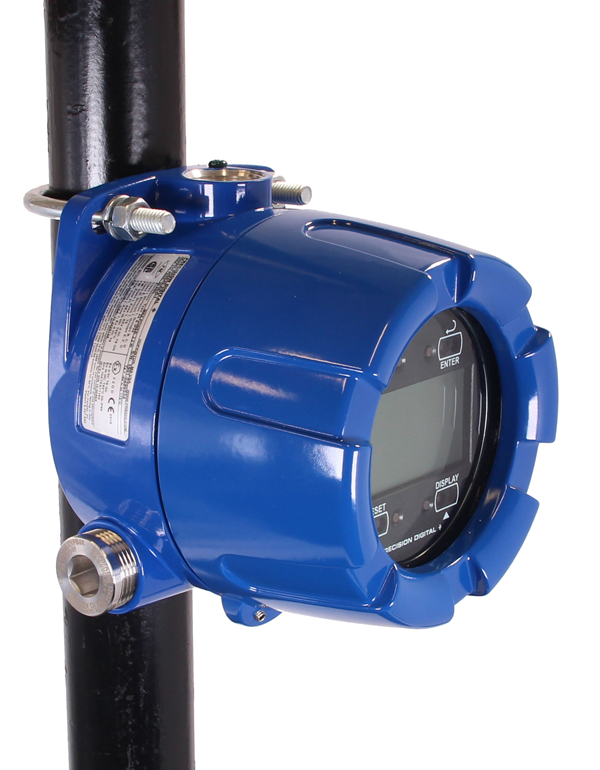

PDA6846 Pipe-Mount Kit Front View

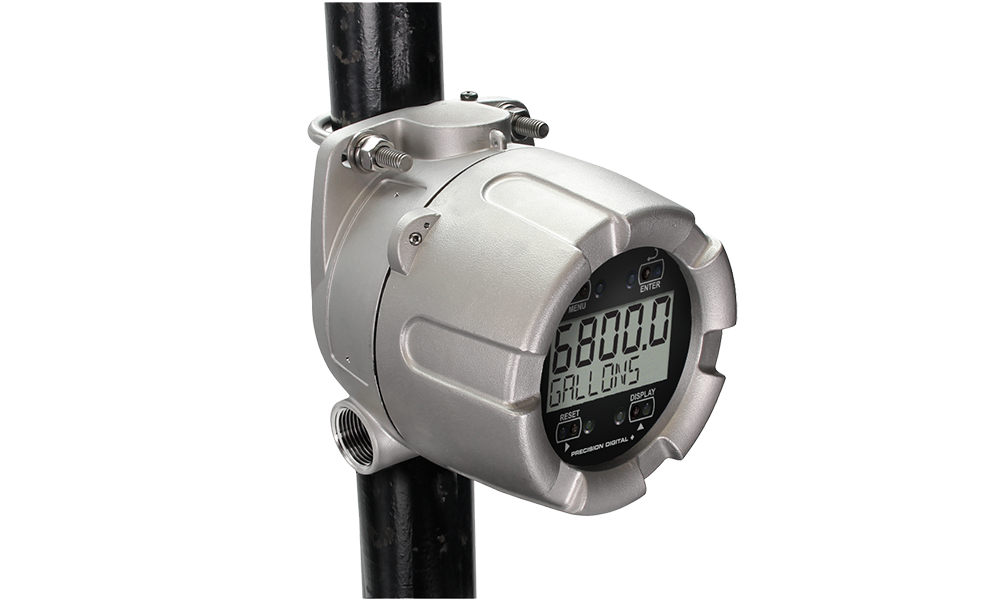

Mounting Front Angle View
PDA6846 Pipe-Mount Kit Rear View
Mounting Rear View

Key Features

  • Mounts Instruments to 1.5" or 2" Pipe
  • All Necessary Hardware Provided
  • 316 Stainless Steel


The PDA6846-SS U-Bolt Kit provides a convenient way to mount instruments to 1.5" or 2" pipes. The PDA6846-SS kit consists of one U-bolt and hardware. The U-bolt kit is made from 316 stainless steel and includes all necessary hardware to mount the instrument to the pipe.

Mounting Instructions

Orient the groove on the back of the instrument with the pipe and secure it to the pipe with the U-bolt and hardware provided.


  • All hardware is stainless steel
  • Two (each) washers, lock washers & nuts
  • One U-bolt

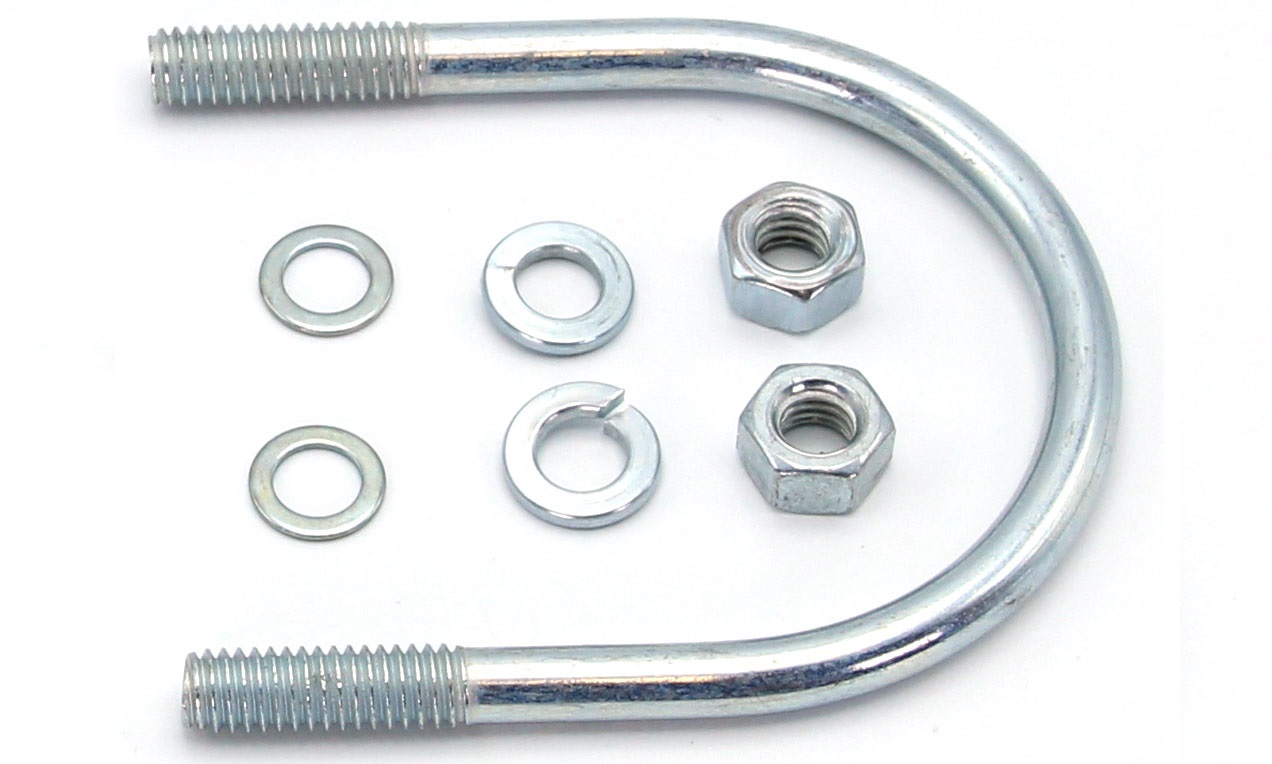

PDA6846 U-Bolt Kit Contents

Compatible Instruments

  • VantageView PD6700 Series Loop-Powered Meters
  • ProtEX-Pro PD6800 Series Explosion-Proof Loop-Powered Meters
  • ProtEX+ PD6900 Series Explosion-Proof Loop-Powered Meters
  • VantageView+ PD6900 Series Loop-Powered Meters

Choose Your Options

Configurations other than those specified above are available at a $250 adder. Consult factory for desired model number and price.
