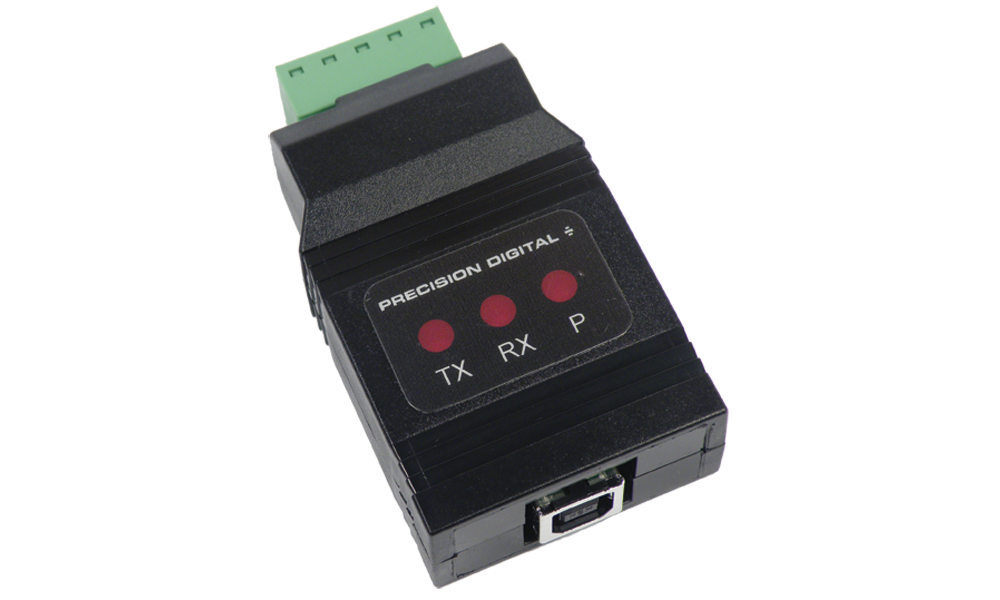

The PDA8485 USB to RS-485 converter converts USB to balanced, full or half-duplex RS-422 or RS-485 signals
Compatibility: USB 1.1, USB 2.0, EIA-422, and EIA-485
Connectors: Screw terminal connector and USB Type B
Drivers: Windows 98/2000/ME/XP/Vista/7/8, Linux 2.4 & greater
Distance: USB connection: 10' (3 m) max; RS-422/485 connection: 3,937' (1,200 m) max
Number of Units: Up to 31 RS-485 compatible devices
Power: USB port
Isolation: PDA8485-I: 1500 VAC between data lines; 700 VDC input/output-to-power. PDA8485-N: 1500 VAC between data lines only
Choose Your Options
Applicable Meter Types for PDC Enclosures
| Type A | Type B | Type C | Type D | Type E | Type F | Type G | Type H |
|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  |
| PD690 | PD542 PD543 | PD603 PD644 PD743 PD765 PD6602 PD6603 PD6604 PD6606 PD6607 PD6608 PD6622 PD6624 PD6626 PD6628 | PD138 PD154 PD158 PD520 | PD6000 PD6001 PD6060 PD6080 PD6081 PD6088 PD6089 PD6100 PD6200 PD6210 PD6262 PD6300 PD6310 PD6363 PD6400 PD7000 | PD530 | PD510 | PD420 |
