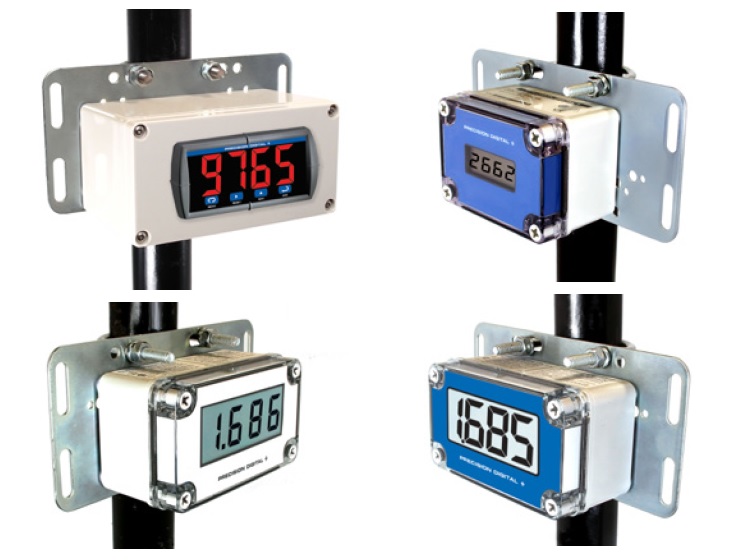

PDA6845-SS Mounted Front

Mounting Front View

PDA6845-SS Mounted Front

Mounting Front View

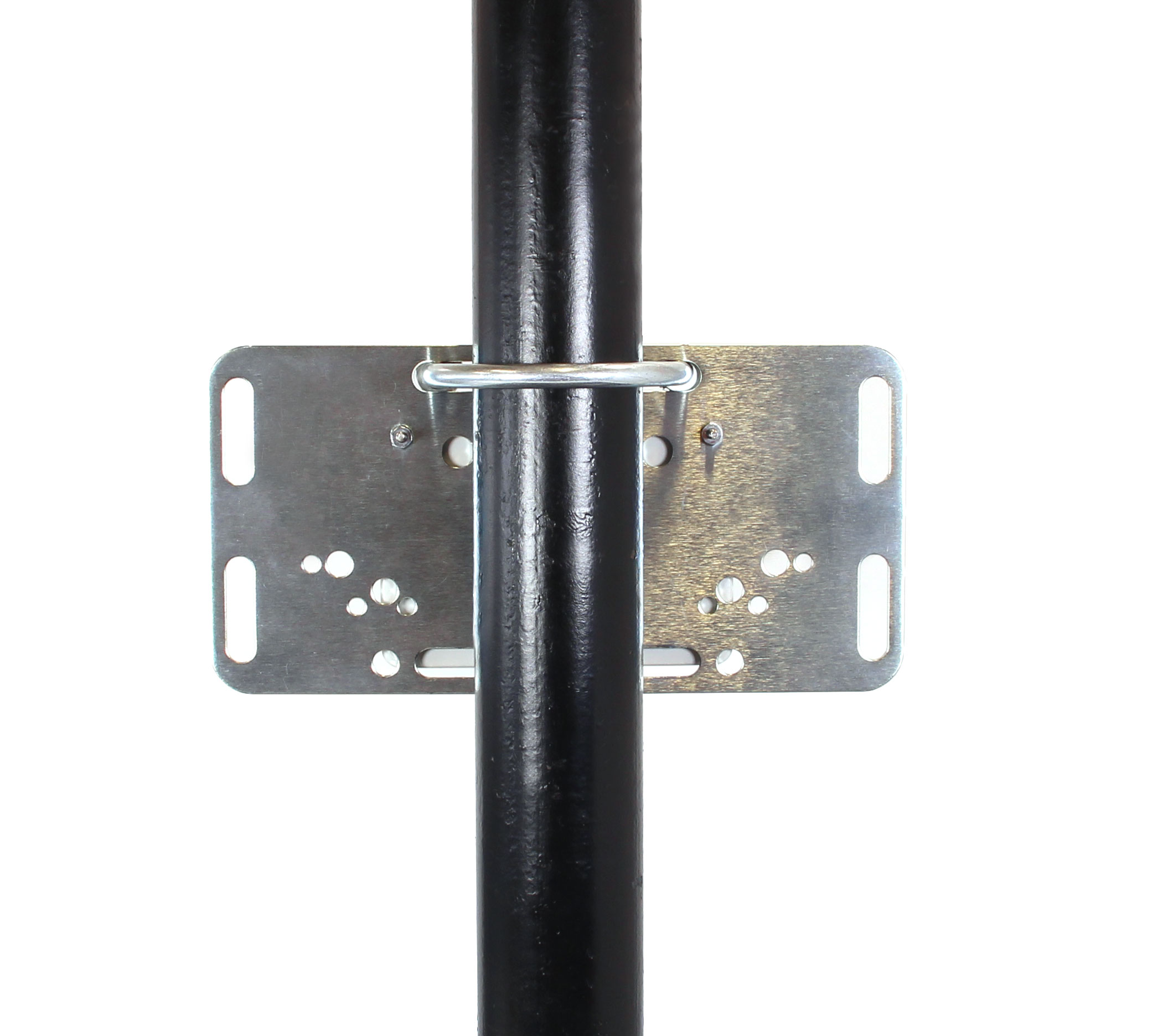

PDA6845-SS Mounted Back

Mounting Rear View


Key Features

  • Mounts PD662 and PD685 Loop-Powered Process Meters to 1.5" or 2" Pipe
  • Mounts PD421 Set Point Generators and PD461 Valve Positioners to 1.5" or 2" Pipe
  • Mounts PDA2801/02, PDA2811/12/13/14/15, and PDA3400 Series Enclosures to 1.5" or 2" Pipe
  • Suitable for Horizontal or Vertical Pipes
  • All Necessary Hardware Provided
  • 316 Stainless Steel

Overview

The PDA6845-SS provides a convenient way to mount Precision Digital Loop-Powered Process Meters, Set Point Generators, Valve Positioners, and Enclosures to horizontal or vertical 1.5" or 2" pipes. The mounting kit is made from 316 stainless steel and includes all necessary hardware to mount the enclosure to the pipe. See Mounting Holes Location table for specific meters and enclosures.

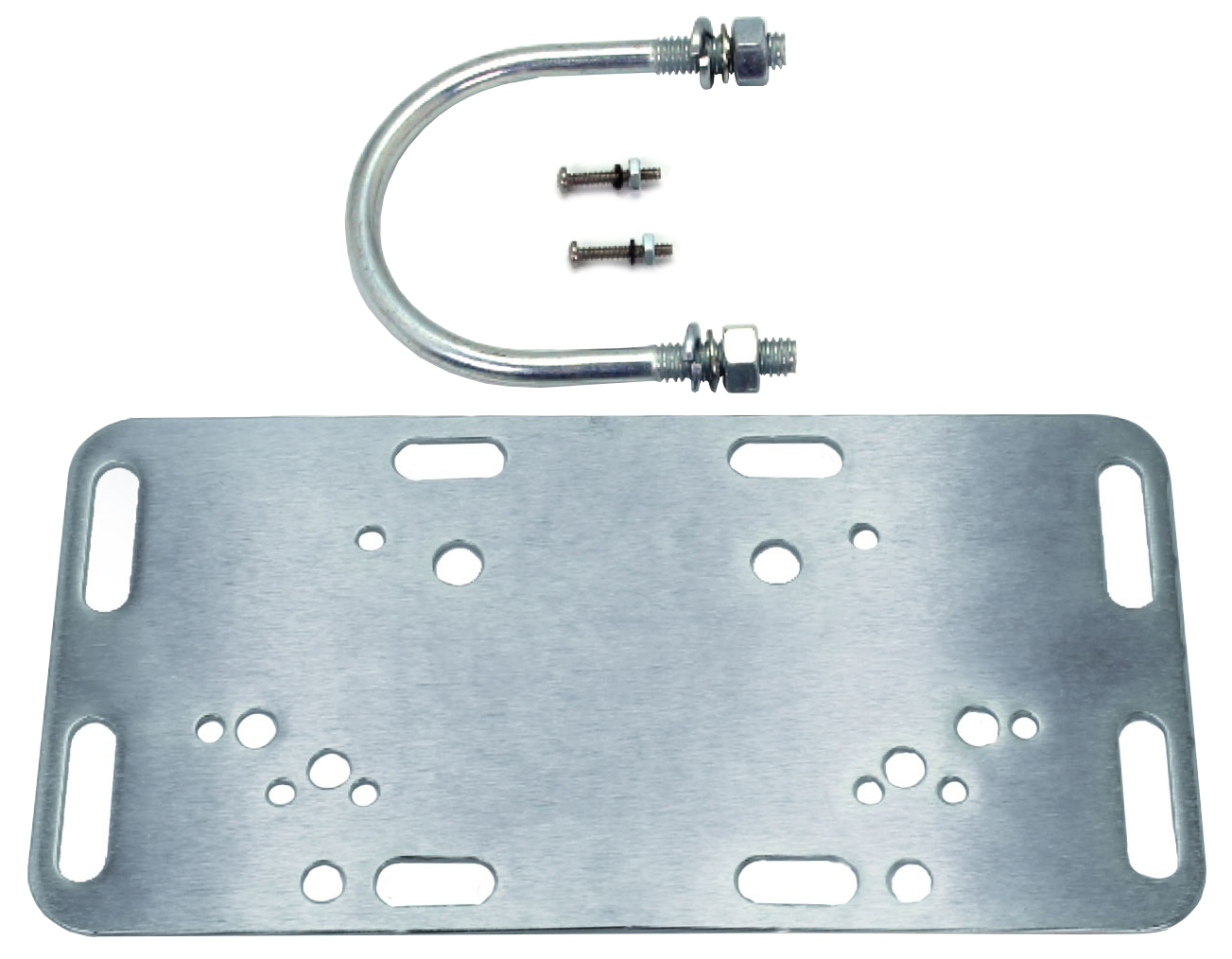

Contents

  • All hardware is stainless steel
  • One mounting plate
  • Two (each) bolts, washers, lock washers & nuts to mount enclosure to plate
  • One U-bolt, and two (each) washers, lock washers & nuts to mount plate to pipe
PDA6909 Mounting Kit Contents

Mounting Instructions

  1. Attach the mounting plate to the enclosure with the provided hardware. The holes for the enclosure mounting bolts are accessed by removing the enclosure lid. See Figure 1 for holes locations.
  2. Mount the plate to the pipe with the provided U-bolts and hardware.

Mounting Holes Location

Meter / EnclosureVertical Pipe Hole IDHorizontal Pipe Hole ID
PDA280113
PD68523
PD662/PD421/PD46133
PDA2811/1254
PDA3400 Series55

Units: Inches (mm)

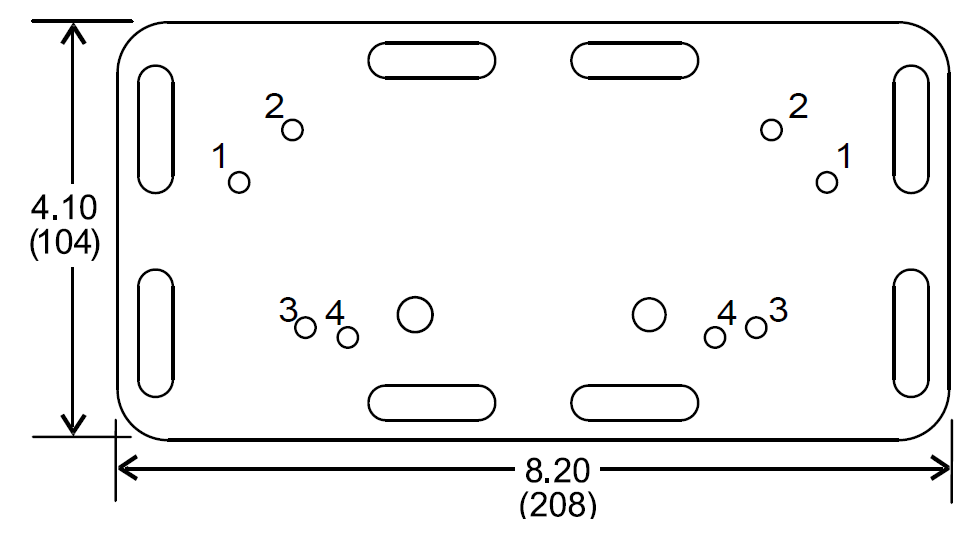

PDA6845-SS Mounting Plate Dimensions

Figure 1. Hole Location Table & Dimension Drawing: Inches (mm)

Notes:

  1. One PDA6845 mounting kit is needed for vertical pipe mounting.
  2. Two PDA6845 mounting kits are needed for horizontal pipe mounting.
  3. It is recommended that two PDA6845 mounting kits are used for mounting PDA2811/12/13/14/15 and PDA3400 Series enclosures, although it will still work with one.

Drawings

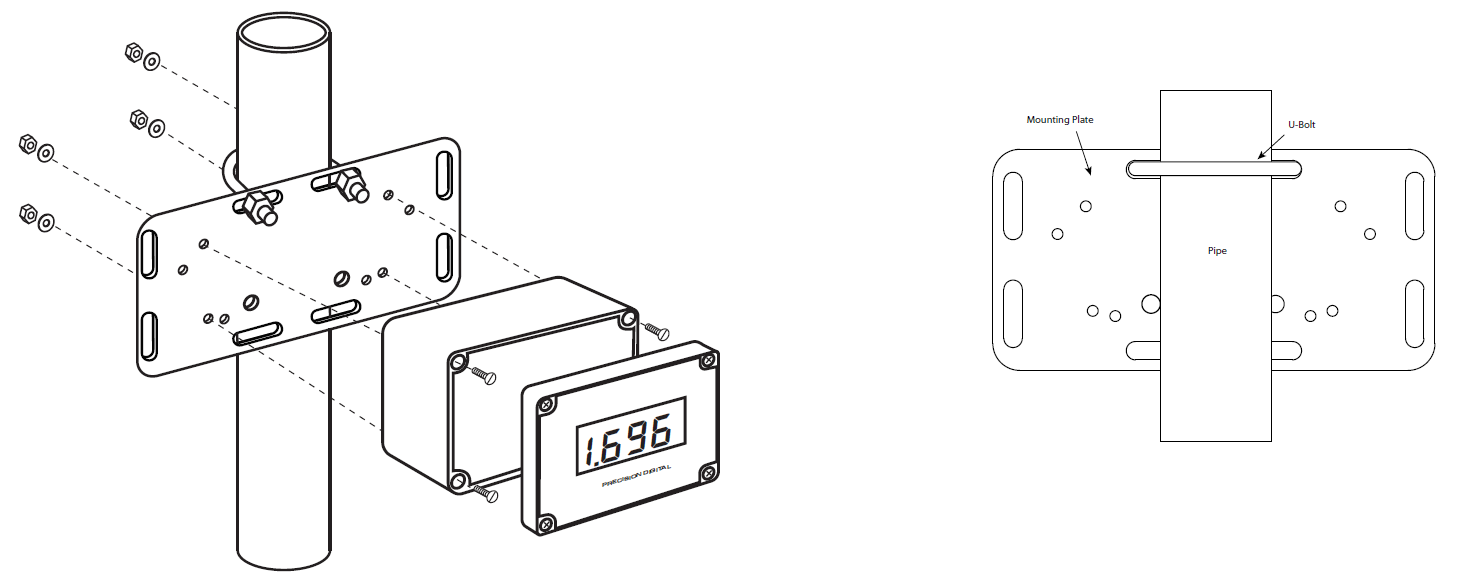

PDA6845-SS Vertical Mount Assembly
PDA6845-SS Vertical Mount Assembly Back View

Figure 2. One PDA6845-SS Mounting Kit used for Vertical Pipe

Note: Two mounting kits are reccommended for the PDA2811/12/13/14/15 and PDA3400 Series enclosures, although it will still work with one.

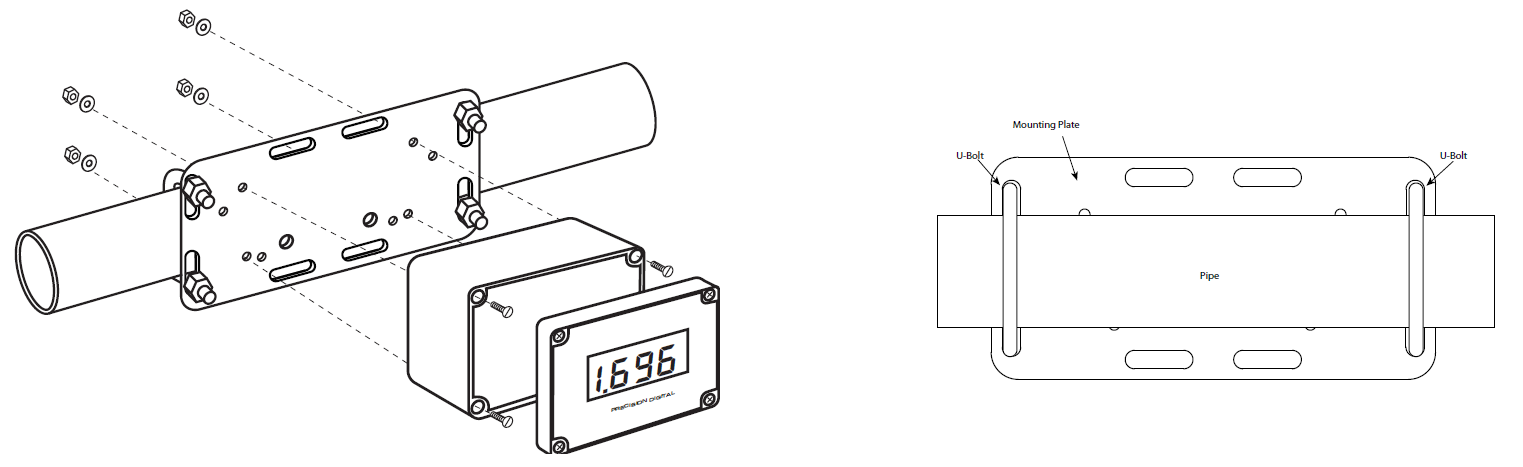

PDA6845-SS Horizontal Mount Assembly
PDA6845-SS Horizontal Mount Assembly Back View

Figure 3. Two PDA6845-SS Mounting Kits Used for Horizontal Pipe

Note: Other products mount in similar fashion.

Compatible Instruments/Enclosures

  • PD662 and PD685 Loop-Powered Process Meters
  • PD421 Set Point Generators
  • PD461 Valve Positioners
  • PDA2801/02, PDA2811/12/13/14/15, and PDA3400 Series Enclosures

Choose Your Options

Configurations other than those specified above are available at a $250 adder. Consult factory for desired model number and price.
