PDA2400 Series NEMA 4X Plastic Enclosures

PDA2400 Series Instruction Manual
Precision Digital is currently recommending the PDA3400 series of NEMA 4X fully enclosed field enclosures as an alternative to the PDA2400 series. For more information on the PDA3400 series, please look here. If necessary, please call for price and availability of PDA2400 series enclosures.

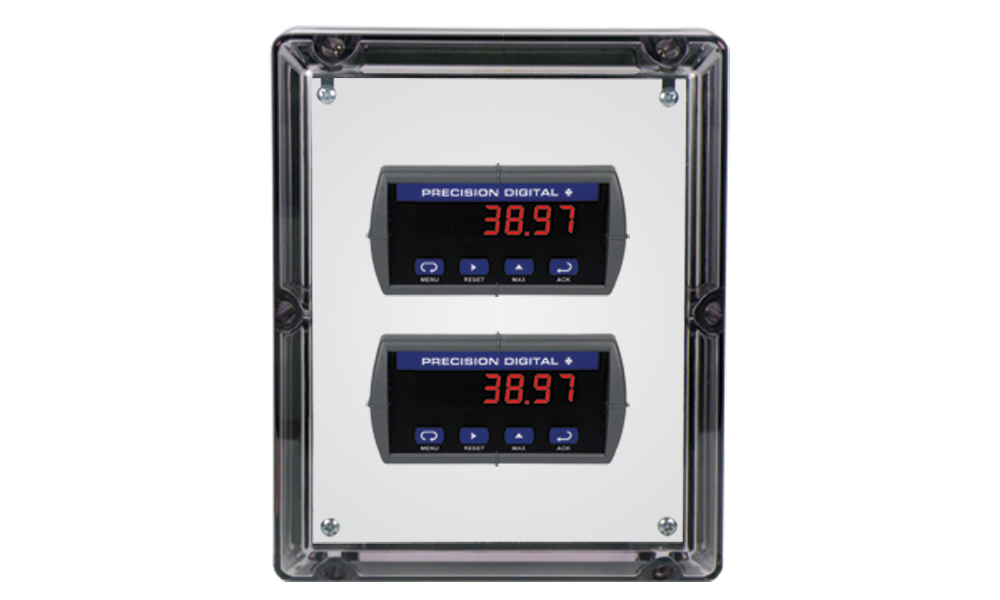

PDA2400 NEMA 4X enclosures provide a high degree of protection against the harsh operating environment of an industrial plant. Precision Digital’s meters are mounted inside the enclosure for maximum protection. The PDA2400 can house up to four 1/4 DIN meters or up to two 1/8 DIN meters in either horizontal or vertical orientation. A dual orientation enclosure for two 1/8 DIN devices is also available. The clear plastic cover is held in place with four screws.

Features

  • Meter Mounted Inside Cover
  • Mounting Plate
  • One to Four Meters
  • NEMA 4Xs
Model# of
Meters		Meter TypeOverall Outside Dimensions
(with brackets)
(H x W x D)		Inside Dimensions
(A x B x C)		Mounting Dimensions
(F x E)		Weight
PDA24071A, B, C, D, or E ?9.9 x 6.5 x 6.7
(251 x 165 x 170)		6.0 x 6.0 x 5.9
(152 x 152 x 151)		9.0 x 4.0
(228 x 102)		2.4
(1.1)
PDA24082B ?
PDA24093B ?13.9 x 8.5 x 6.7
(352 x 216 x 170)		10.0 x 8.0 x 5.9
(254 x 203 x 151)		13.0 x 6.0
(330 x 152)		4.1
(1.8)
PDA24104B ?
PDA24112A, B, C, D, or E ?
PDA24123A ?
PDA241421 A, B, C, or E & 1 D ?
PDA24154A ?15.9 x 10.5 x 7.7
(403 x 267 x 195)		12.0 x 10.0 x 6.9
(305 x 254 x 176)		15.0 x 8.0
(381 x 203)		5.6
(2.5)

Choose Your Options

Configurations other than those specified above are available at a $250 adder. Consult factory for desired model number and price.

Select the right enclosure
