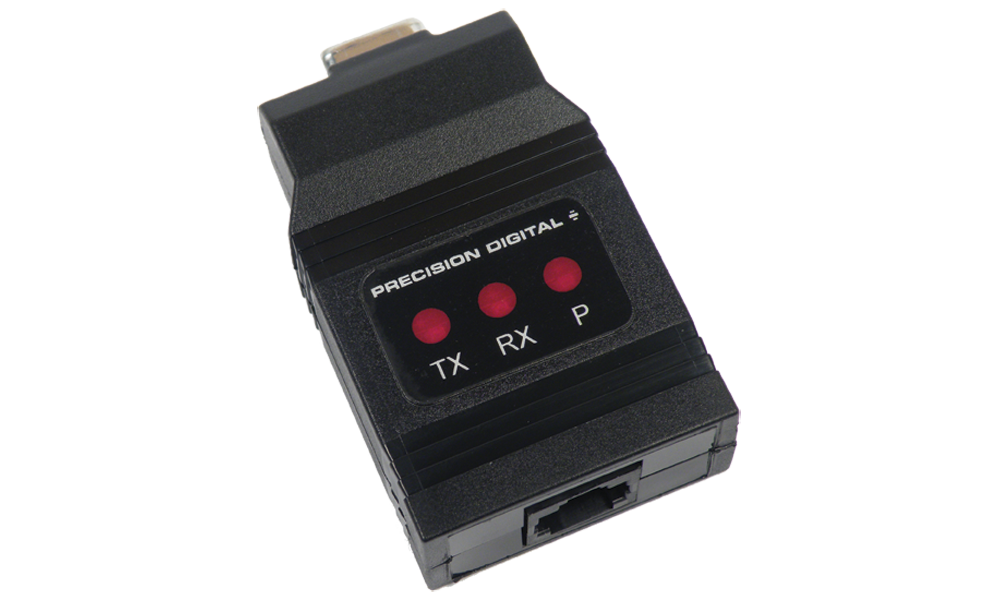

The PDA1232 converts the serial output of the ProVu meter to an unbalanced, full-duplex RS-232 signal. The RS-232 port has a female DB9 connector with pins 2 (RX output), 3 (TX input), and 5 (Signal Ground). Pins 7 (RTS) and 8 (CTS) are tied together, and pins 1 (CD), 4 (DTR), and 6 (DSR) are tied together. The adapter is powered by the ProVu meter M-Link connection. The PDA1232 has three diagnostic LEDs: a Power (P) LED to show when the adapter is powered properly, a Transmit Data (TX) LED to show when the adapter is sending data out from the PC side, and a Receive Data (RX) LED to show when the adapter is receiving data from the ProVu meter.

Cable: 3' (0.9 m) standard modular cable provided with PDA1232 and PDA1485. Also sold separately
Compatibility: EIA-232
Connectors: PC compatible 9-pin D subminiature connector (DB9) and RJ11 (adapter to meter)
Cable: 6’ (1.8 m) standard Cat5e cable provided with adapter
Distance: Adapter to ProVu meter: 6’ (1.8 m) max; Adapter to computer: 50’ (15 m) max; serial interface cable not provided
Power: Powered by ProVu meter M-Link connection
Status Indication: Separate LEDs for Power (P), Transmit (TX), and Receive (RX)

Choose Your Options

Configurations other than those specified above are available at a $250 adder. Consult factory for desired model number and price.
