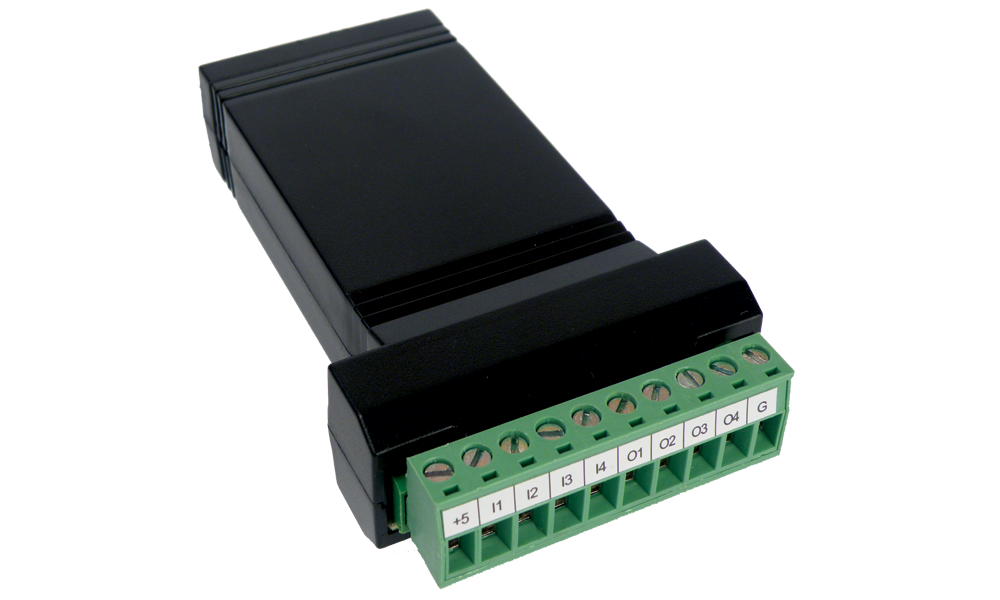

The PDA1044 digital I/O external expansion module adds four digital inputs and four digital outputs to any ProVu meter. Up to two digital I/O expansion modules may be added to each meter, for a total of eight (8) additional digital inputs and outputs per meter. External digital inputs function similarly to the F4 digital input on most ProVu models. They can be configured to trigger events (e.g. acknowledge/reset alarms, reset max and/or min values, disable/enable all output relays), provide specific menu access, or mimic front keys. Digital outputs can be used to remotely monitor alarm relay states or the states of a variety of actions and functions executed by the meter.

General

System: Up to 2 modules for a total of 8 inputs & 8 outputs. Note: The jumper located between the RJ45 connectors must be removed on the second module in order for the system to recognize it as module #
Digital Input Logic High: 3 to 5 VDC
Digital Input Logic Low: 0 to 1.25 VDC
Digital Output Logic High: 4.75 to 5 VDC
Digital Output Logic Low: 0 to 0.4 VDC
Source Current: 10 mA maximum output current
Sink Current: 1.5 mA minimum input current
+5V terminal: To be used as pull-up for digital inputs only. Connect normally open pushbuttons across +5 V & DI1-4
Cable: Standard CAT5e cable; provided with module. Note: to ensure optimum performance use only supplied cables
Connectors: RJ45; identical and interchangeable. Removable screw terminal blocks that accept 12 to 22 AWG wire
Tightening Torque: Screw terminal connectors: 5 lb-in (0.56 Nm)
Enclosure: ABS-94HB material, UL94HB (Flame-Class Rating)
Overall Dimensions: 2.286” x .924” x 3.624” (W x H x D), 58.06 mm x 23.47 mm x 92.05 mm (W x H x D)
Power: ProVu meter M-LINK connection
Weight: 2.2 oz (62 g)
