ConsoliDator+ Configuration Software

Free ConsoliDator+ Configuration Software

Overview

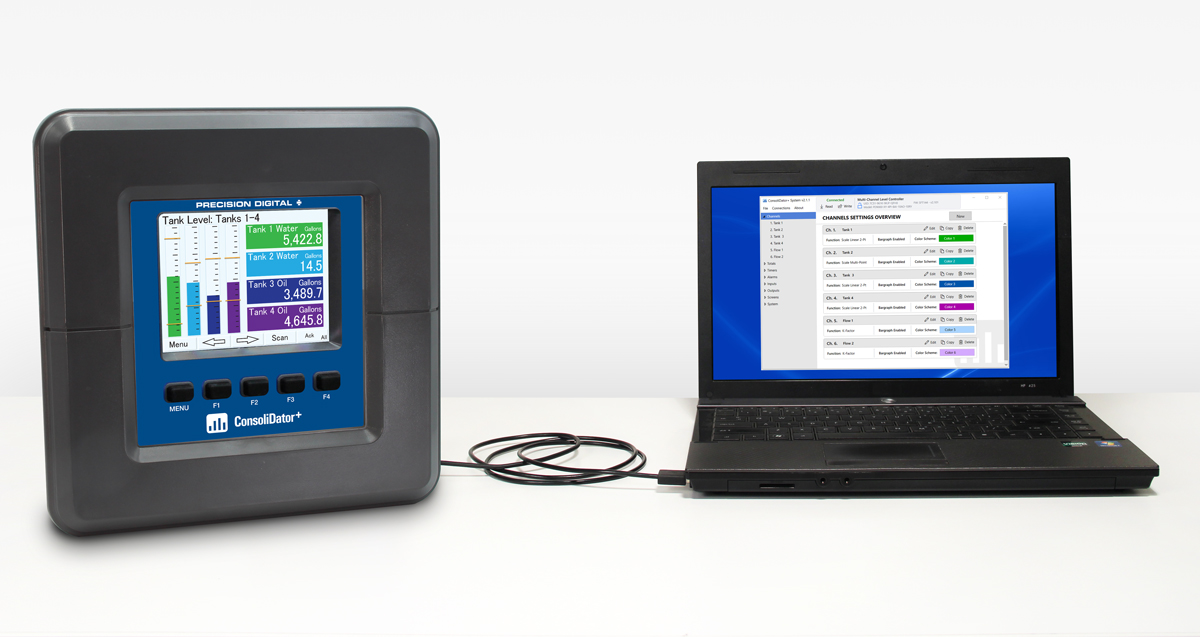

The easiest and quickest way to program your ConsoliDator+ multivariable controller is to use the FREE ConsoliDator+ configuration software. The ConsoliDator+ configuration software is intuitive, and most customers can get their controller programmed as they like without even looking in the manual. Once your controller is programmed the way you want it, you can wire it up for your application per the instructions in this manual and install it. If you find that you need to adjust the programming after the controller is installed, you can use the front panel soft keys and the instructions in the manual to do so.

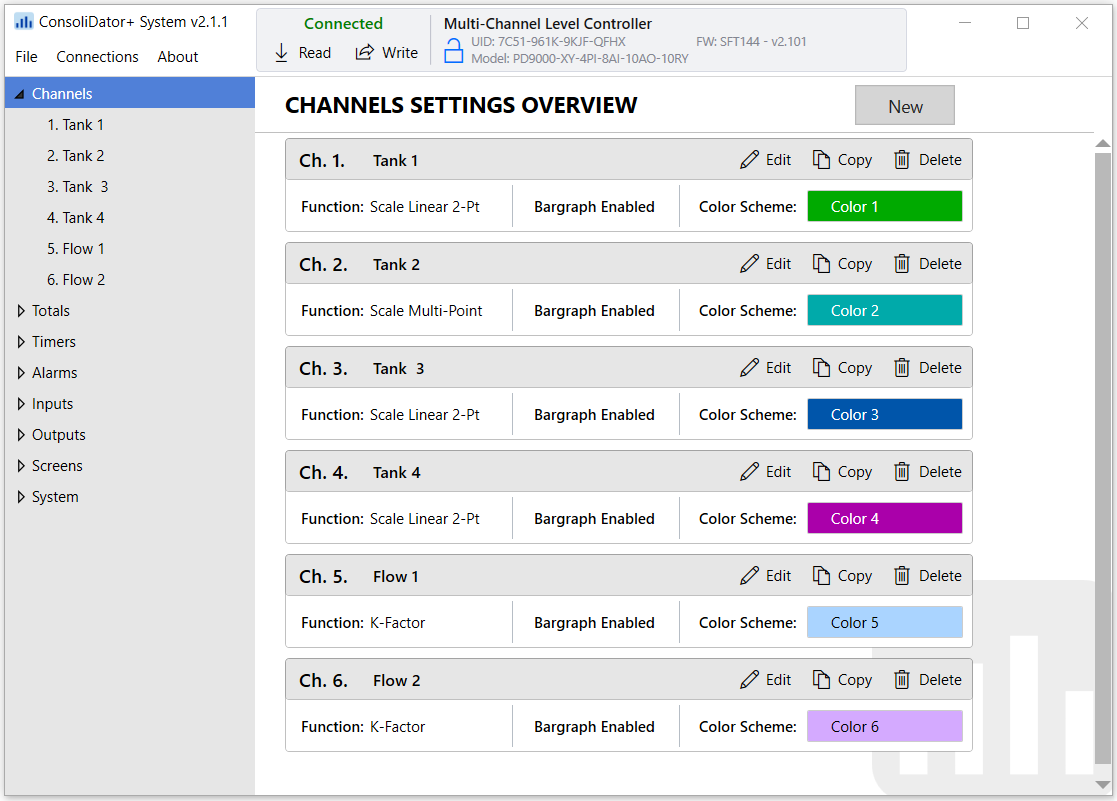

ConsoliDator+ Software Channel Settings Screen

Channel Settings

  • Enter Display Tag Name for Channel
  • Select a Function
  • Select Input
  • Select Units
  • Select Decimal Position
  • Select Color Scheme for Text, Background, and Bargraph
  • Check Box to Display Bargraph
  • Enter Scaling for Bargraph
ConsoliDator+ Software Channel Settings Screen

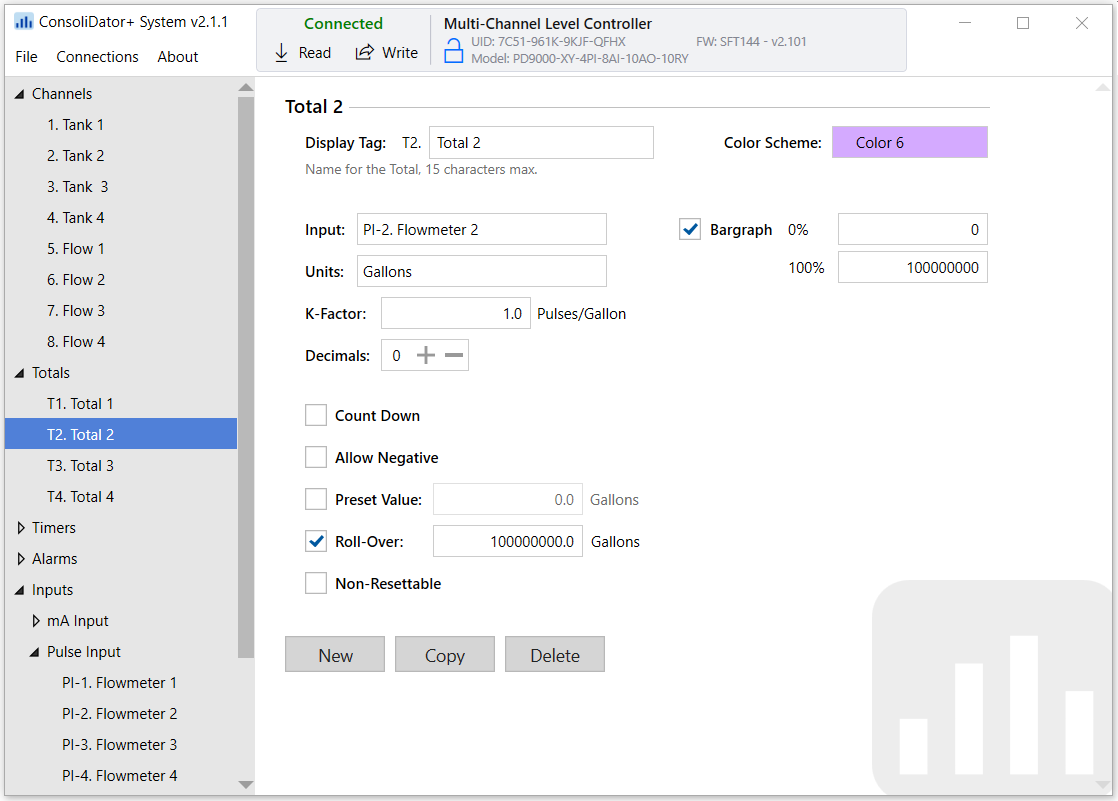

Totals Settings

  • Enter Display Tag Name for Total
  • Select Input
  • Enter Units
  • Enter K-Factor Value
  • Set Decimal Point
  • Check Box for Countdown, Allow Negative, Preset Value and Enter Value, Roll-Over and Enter Value, and Non-Resettable
  • Select a Color Scheme for Text, Background, and Bargraph
  • Check Box to Display Bargraph
  • Enter Scaling for Bargraph
ConsoliDator+ Software Totals Settings Screen

Timers Settings

  • Enter Display Tag Name for Timer
  • Select Input
  • Select Power Up Option
  • Select Error Option
  • Select Reset Option and Enter Value
  • Select Start Option and Enter Value
  • Select Stop Option and Enter Value
  • Set Decimal Point
  • Select Color Scheme for Text, Background, and Bargraph
  • Check Box to Display Bargraph
  • Set Scaling for Bargraph

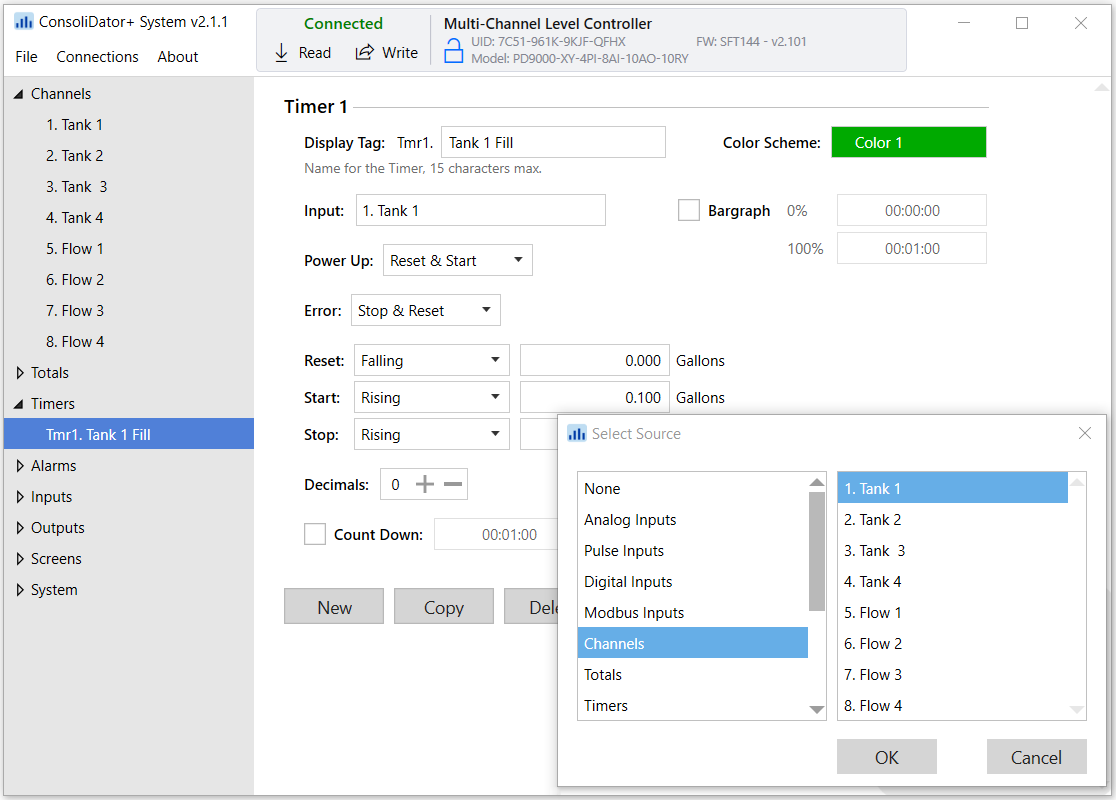

ConsoliDator+ Software Timers Settings Screen

Alarm Settings

  • Enter Display Tag Name for Alarm
  • Select Alarm Type
  • Select Input
  • Enter Set and Reset Points
  • Select Color Scheme for Text, Background, and Bargraph
  • Check Box to turn On/Off Sound Horn, Alert!, Automatic, or Ack Anytime
  • Select Break: Alarm Off, Alarm On, Stay As Is
  • Enter Value for On Delay and Off Delay
  • Enter Name for Alarm Color Profile
  • Check Box for Alarm to Flash
ConsoliDator+ Software Alarm Settings Screen

Inputs Settings

  • Enter Display Tag Name for Input Channel
  • Select Filter Time
  • Enter Bypass Value
  • Check Box for Glitch Filter
  • Check Box for Break Below and Set mA Value
  • Check Box to Disable Input Channel

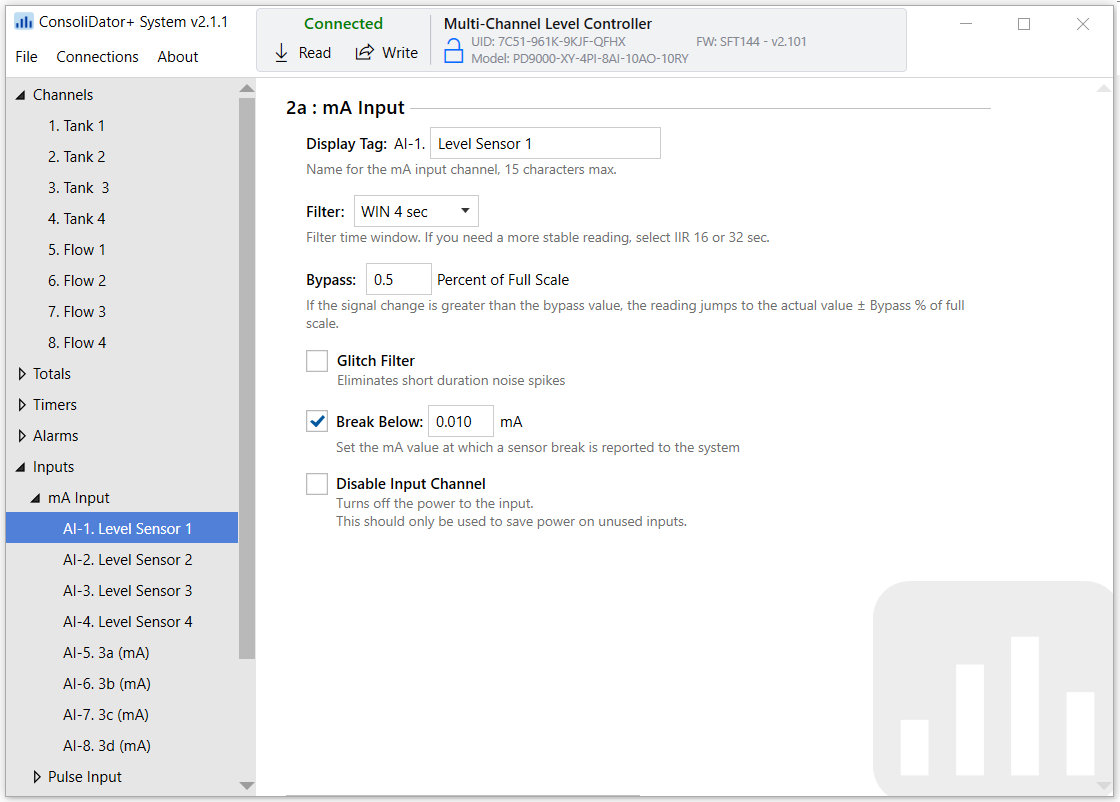

ConsoliDator+ Software Inputs Settings Screen

Outputs Settings

  • Enter Display Tag Name for Output Channel
  • Select Input Source
  • Check Box for Fail-Safe

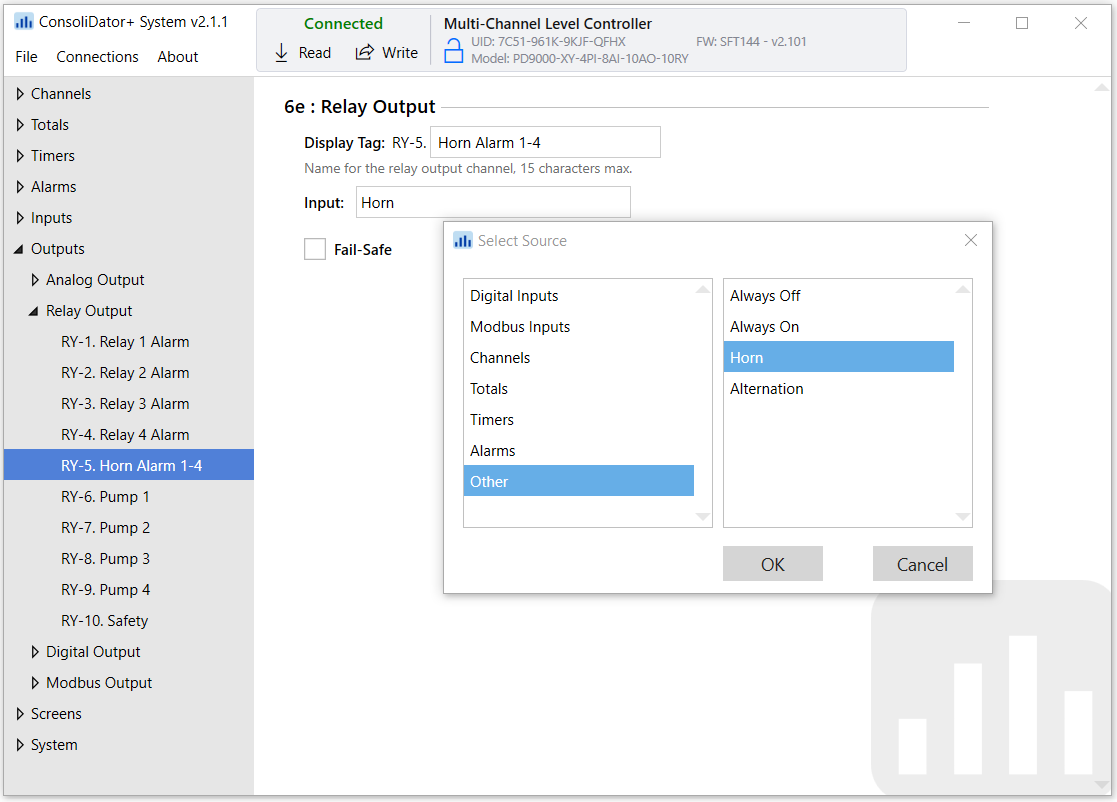

ConsoliDator+ Software Outputs Settings Screen

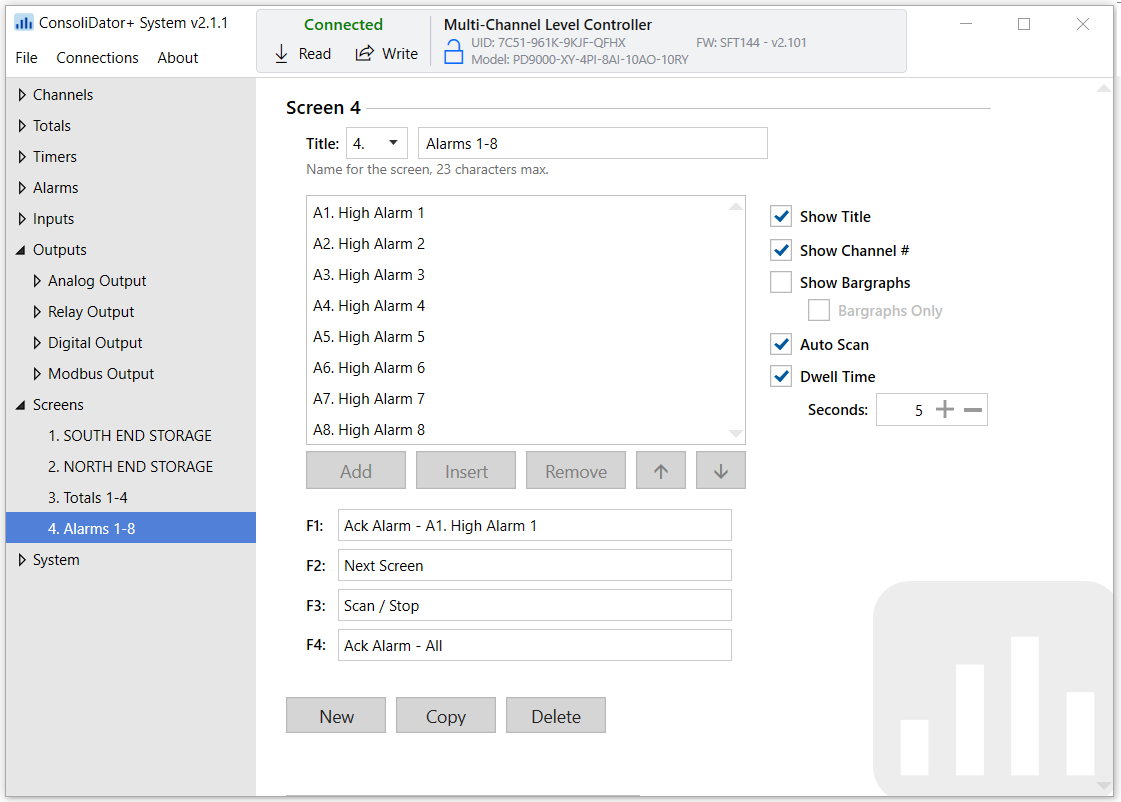

Screens Settings

  • Enter Title Name for Screen
  • Check Box to Show Title
  • Check Box to Show Channel Number
  • Check Box to Display Bargraph and/or Bargraph Only
  • Check Box to Auto Scan
  • Check Box for Dwell Time and Enter Dwell Time
ConsoliDator+ Software Screens Settings Screen

System Display Settings

  • Set Backlight Brightness
  • Enter Display Refresh Rate
  • Check Box to Show Commas
  • Select Color Scheme for Text, Background, and Bargraph
  • Check Box to Show Alarm Condition Using Alarm Color Settings

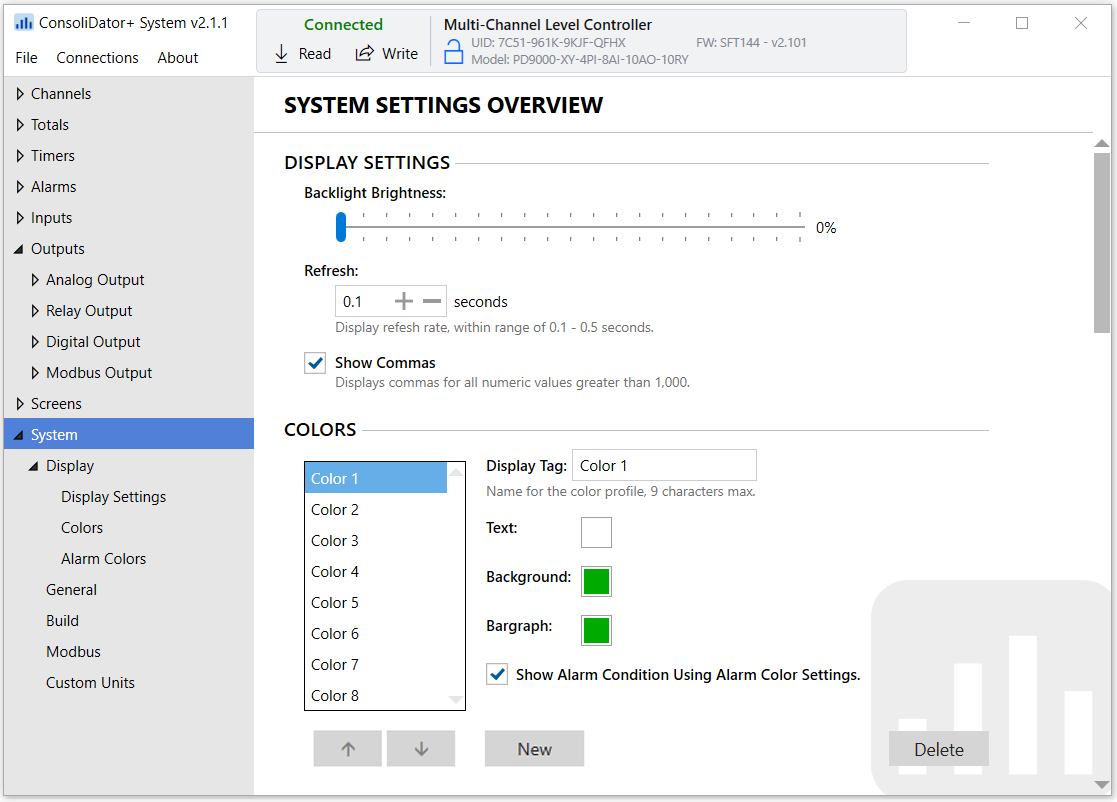

ConsoliDator+ Software System Display Settings Screen

General / Date & Time Settings

  • Enter Device Tag Name
  • Check Box for Enable Buzzer and Select Buzzer Sound
  • Set Date and Time or Check Box to Use System Date and Time
  • Click on the Gray Buttons to Load Defaults, Set Password, or Clear Password

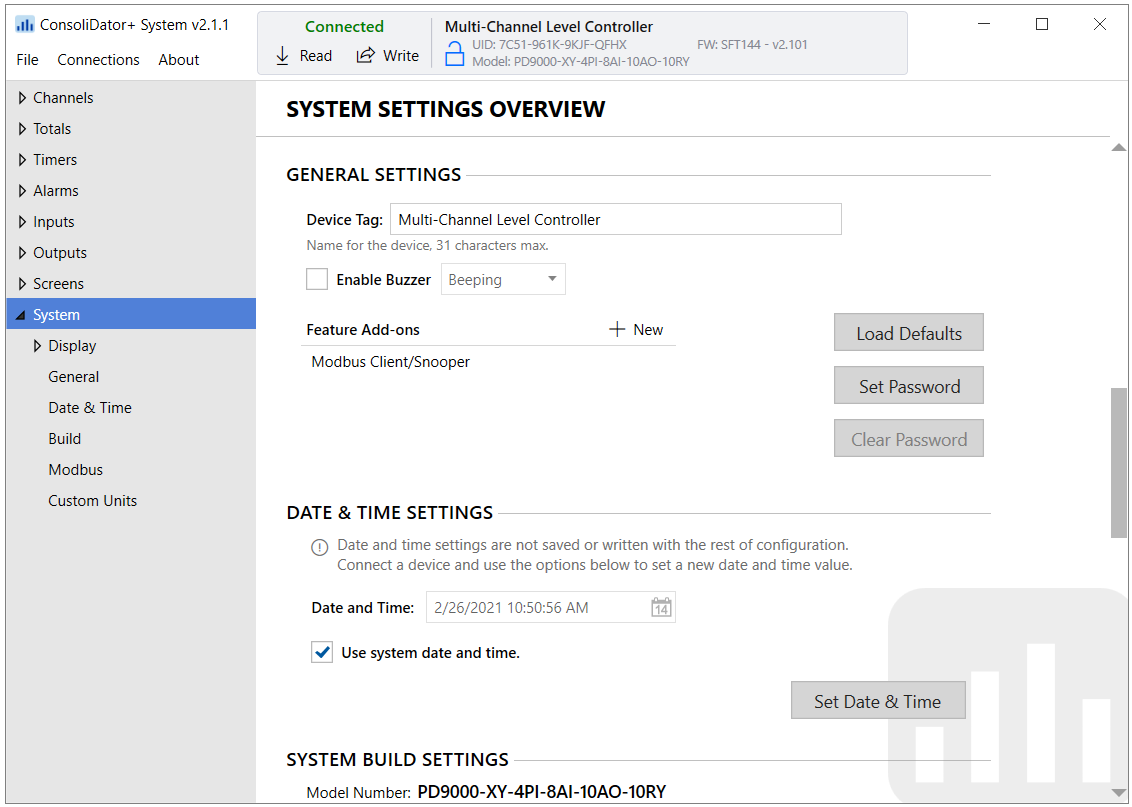

ConsoliDator+ Software System General and Build Settings Screen

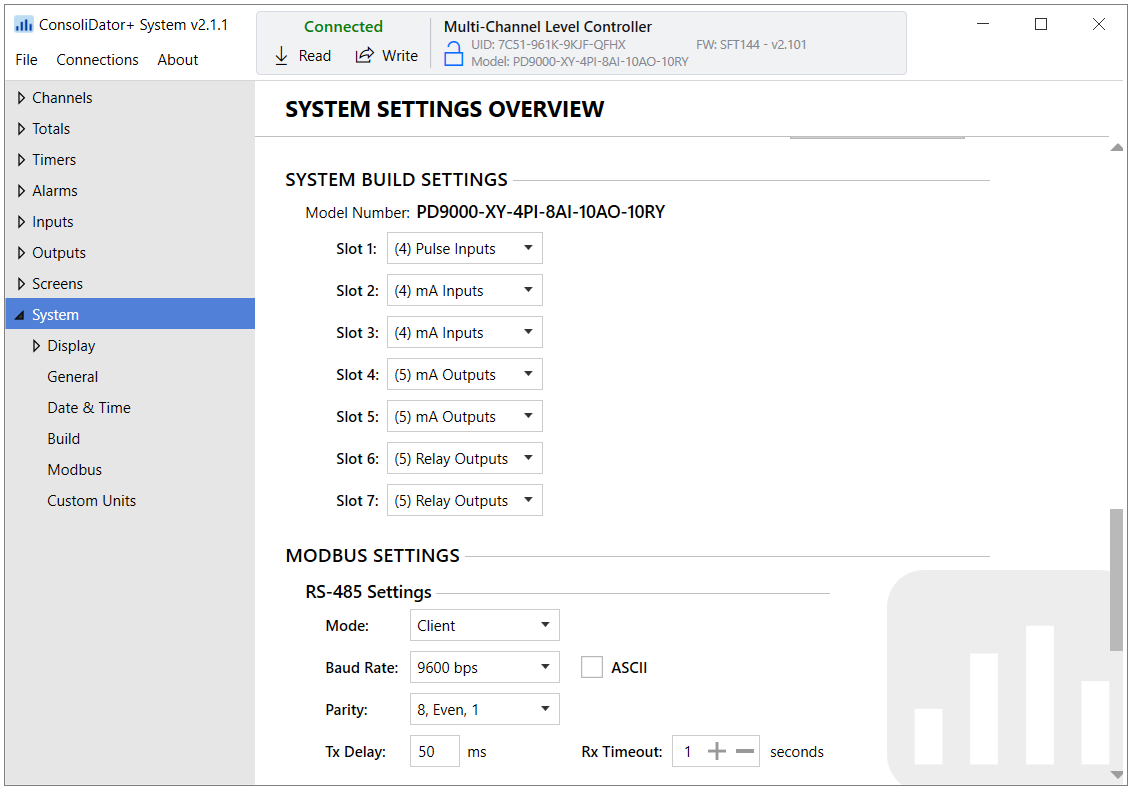

System Build Settings

  • Shows Model Number of the Connected Controller
  • Shows Slot Numbers and Input/Output Cards Installed on the Connected Controller
ConsoliDator+ Software System General and Build Settings Screen

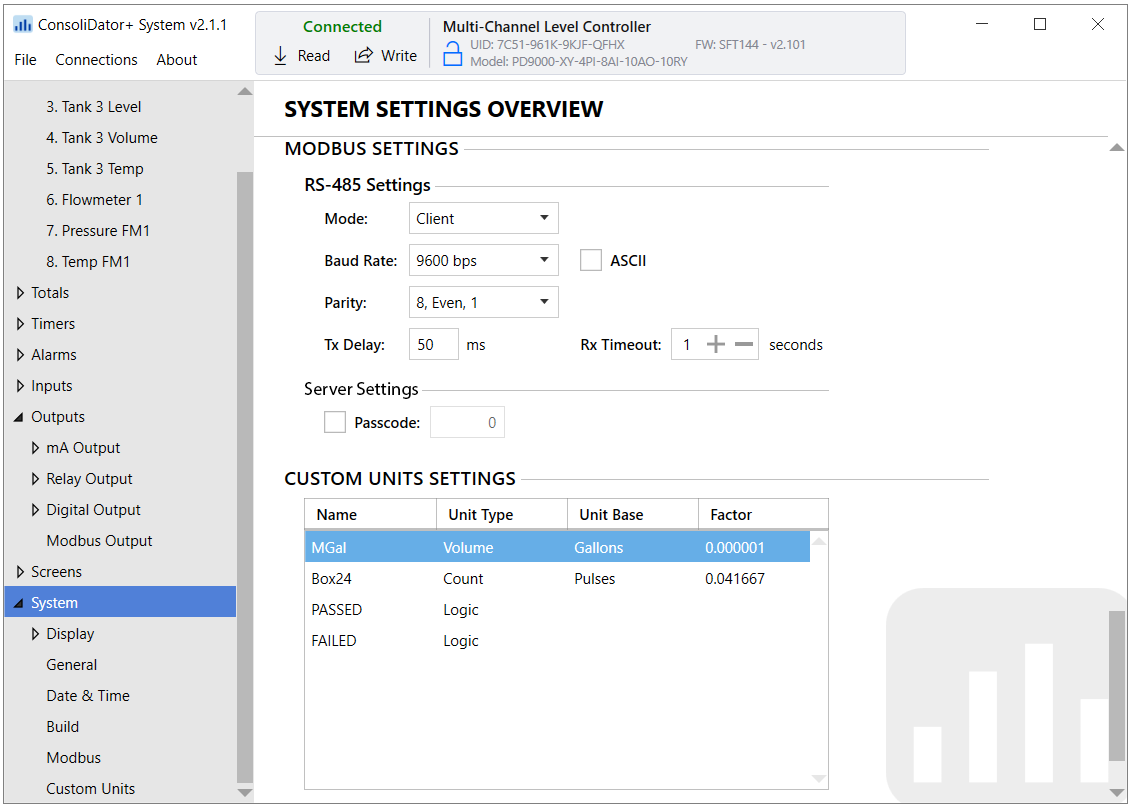

Modbus Settings

  • Select Modbus Mode
  • Select Baud Rate
  • Select Parity
  • Enter a Value in ms for Tx Delay
  • Click on the Plus or Minus Symbol to Increase or Decrease Seconds for Rx Timeout
  • Check the Box for Passcode and Enter a Number for Server Settings
ConsoliDator+ Software Modbus Settings Screen

Custom Units Settings

  • View or Add Custom Units
  • Enter a Label for Unit
  • Select a Unit Type
  • Select Unit Base
  • Enter a Value for Factor

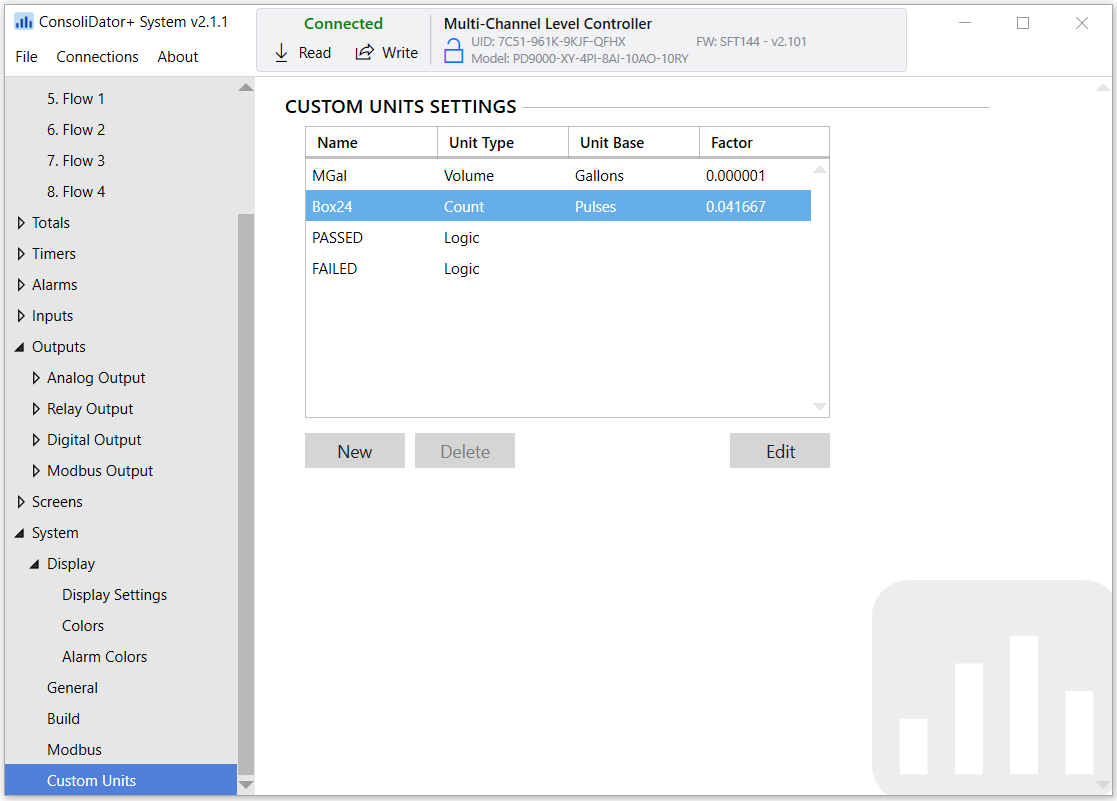

ConsoliDator+ Software Custom Units Settings Screen

Specifications

System Requirements: Windows® 7, 10
Compatability: One software version for all models
Connection: Micro-USB
Configuration: Configure inputs and outputs, channels, totals, timers, alarms, etc. Configure bargraph and panel colors for normal operation, and colors for alarm indication. Save controller settings file on PC for programming other controllers or to restore settings.

Click here to download ConsoliDator+ Software version 2.2 (.zip)*
Click here to download ConsoliDator+ Software version 2.1 (.zip)*
Click here to download ConsoliDator+ Software version 2.0 (.zip)*
Click here to download ConsoliDator+ Software version 1.0 (.zip)*

*The ConsoliDator+ software version must be used with the corresponding firmware version (e.g. Software v2.2 & Firmware v2.2)
