Features
- 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
- 4-20 mA, ± 10 V, TC & RTD Field Selectable Inputs
- 4-Digit Display, 0.56" (14.2 mm) or 1.20" (30.5 mm)

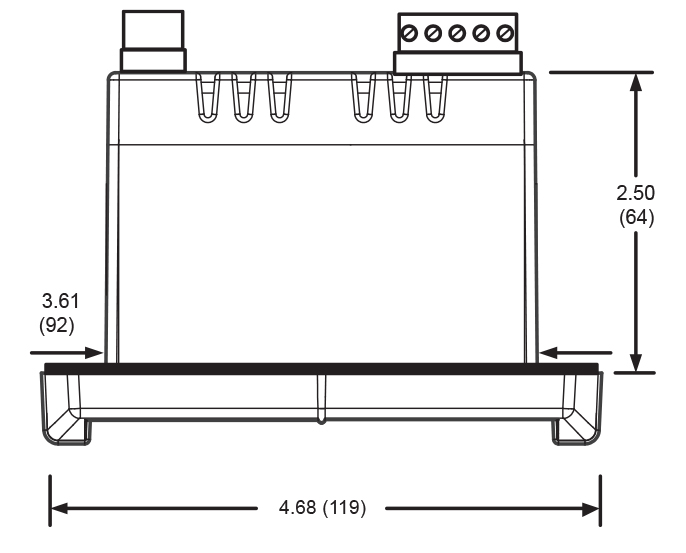

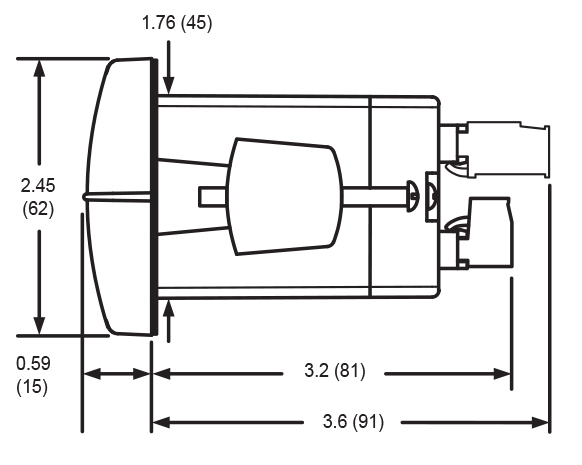

- Shallow Depth Case Extends Only 3.6" (91.4 mm) Behind Panel
- 24 VDC @ 200 mA Transmitter Power Supply
- 2 Relays + Isolated 4-20 mA Output Options
- Free PC-Based MeterViewTM Programming & Monitoring Software • No Assembly Required
- Sunlight Readable Display
- Operating Temperature Range: -40 to 65°C (-40 to 150°F)
- UL & C-UL Listed. E160849; UL 508 Industrial Control Equipment
- Input Power Options: 85-265 VAC or 12-36 VDC
- Duplex Pump Controller with Alternation Capability
- External Contacts for Remote Button Operation (Trident X2 Only)
- USB, RS-232, & RS-485 Serial Communication Adapters Options
- Modbus RTU Communication Protocol Standard
- Copy Meter Settings to Other Trident Meters
- Max/Min Display
- High & Low Alarms with Multiple Reset Actions

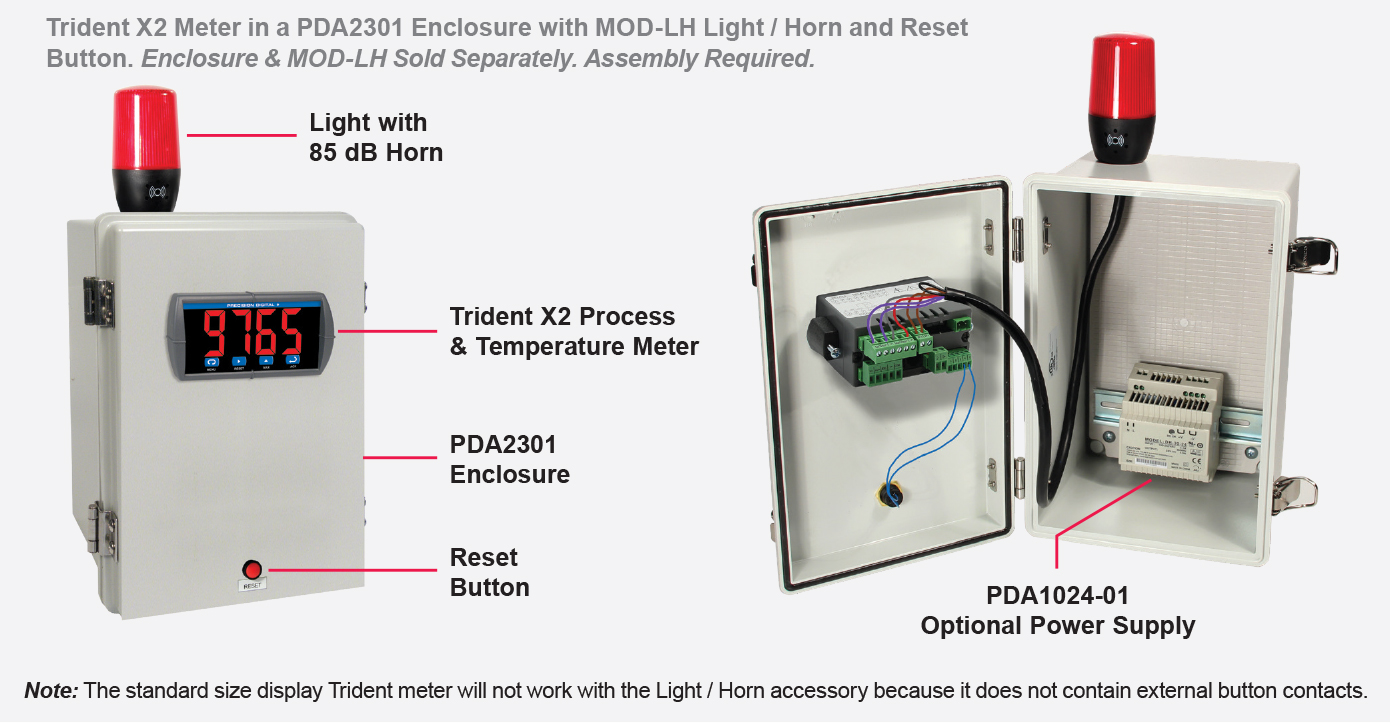

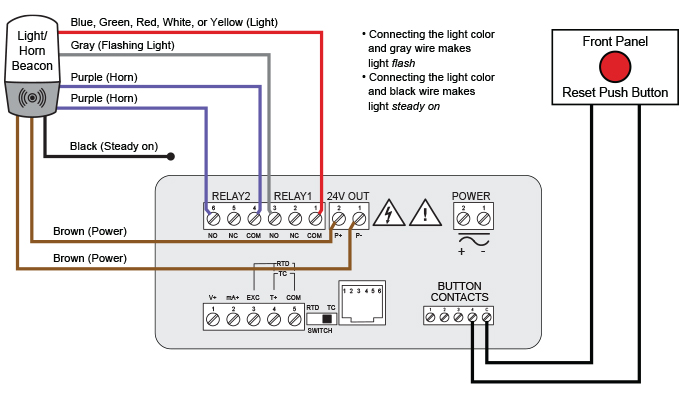

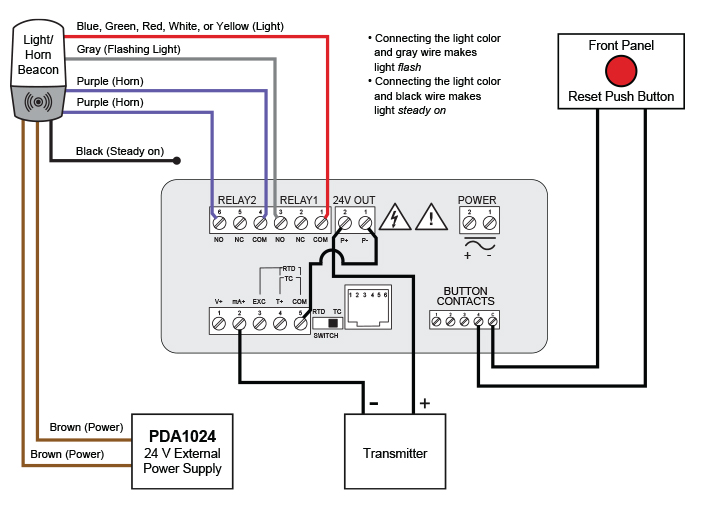

- Light / Horn & Reset Button Accessory for Trident X2
- Control Station Accessory For Remote Operation of Trident X2
- 3-Year Warranty
Overview
Front

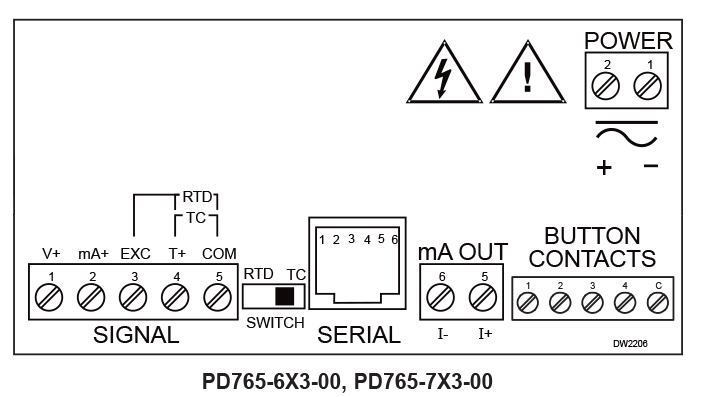

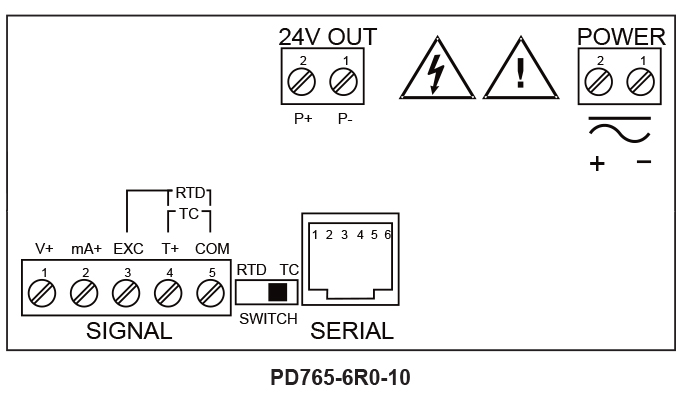

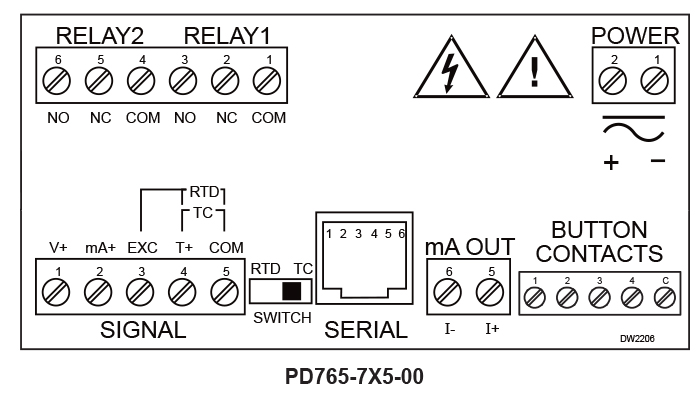

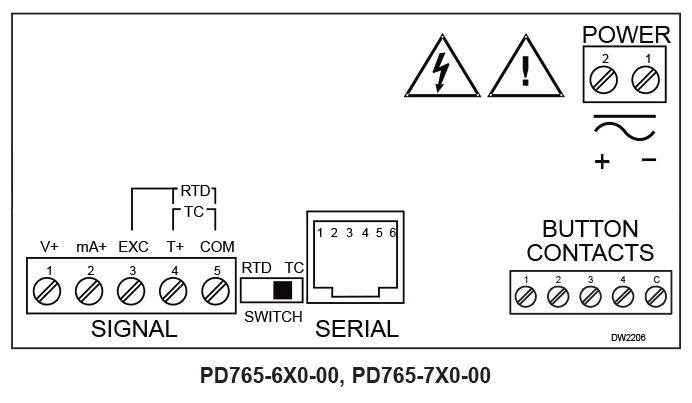

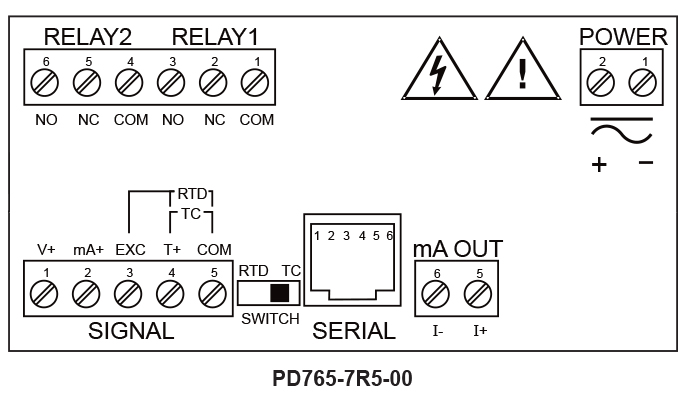

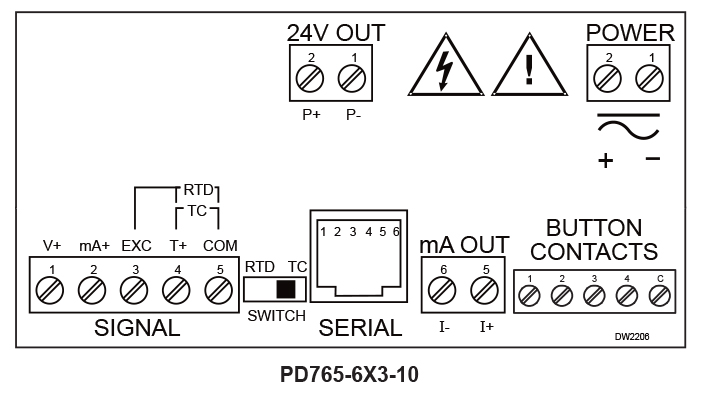

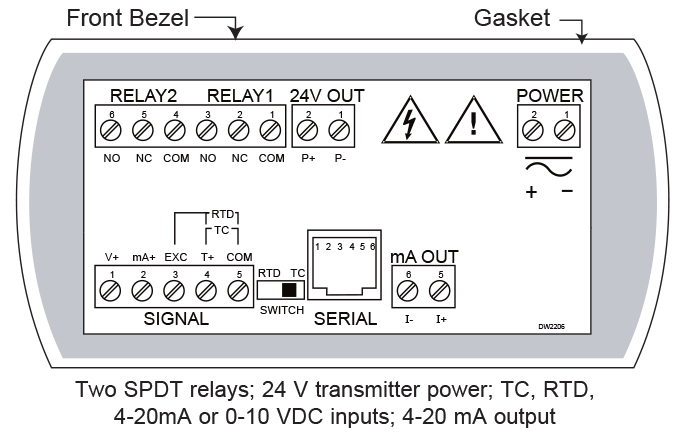

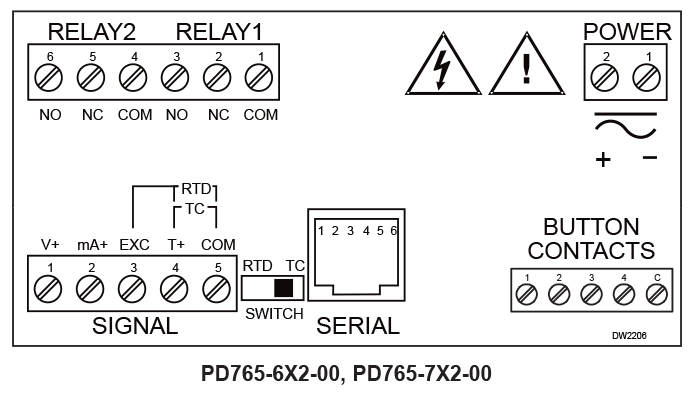

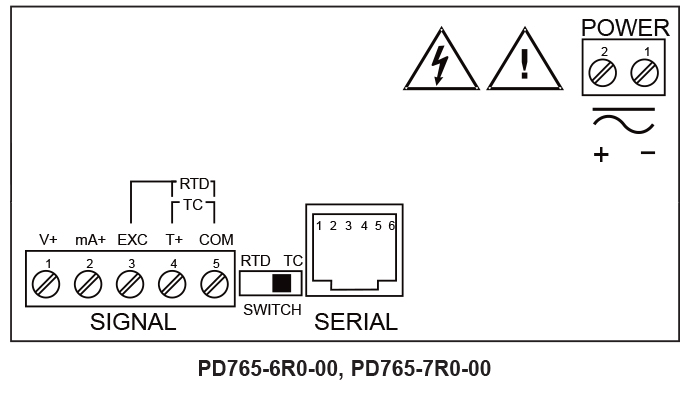

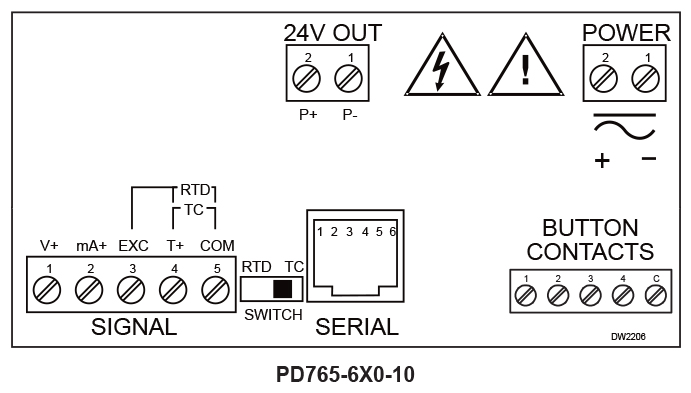

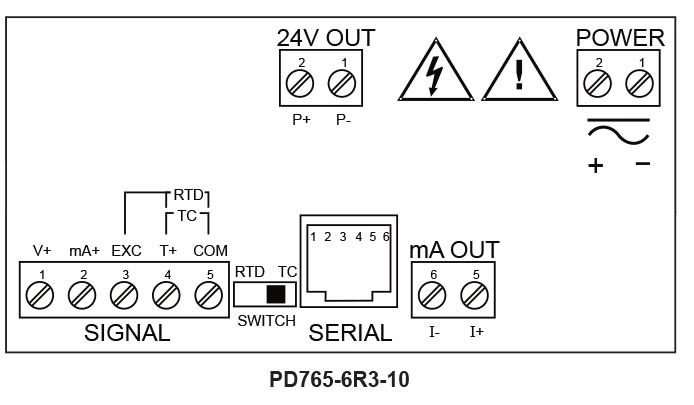

Trident and Trident X2 Connections (rear view)

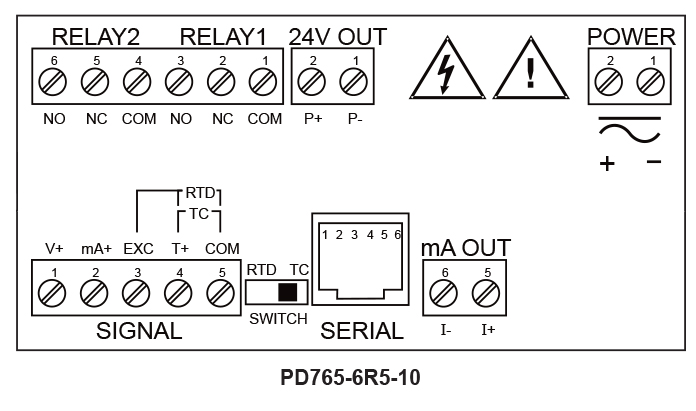

PD765-6R5-10 (Trident)
Two SPDT relays; 24 V transmitter power; TC, RTD, 4-20mA or 0-10 VDC inputs; 4-20 mA output

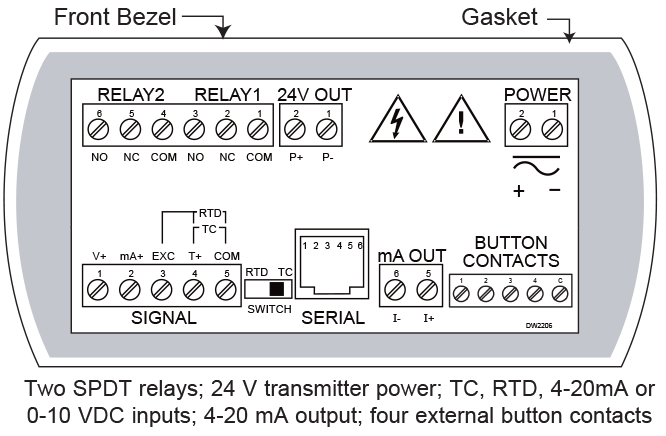

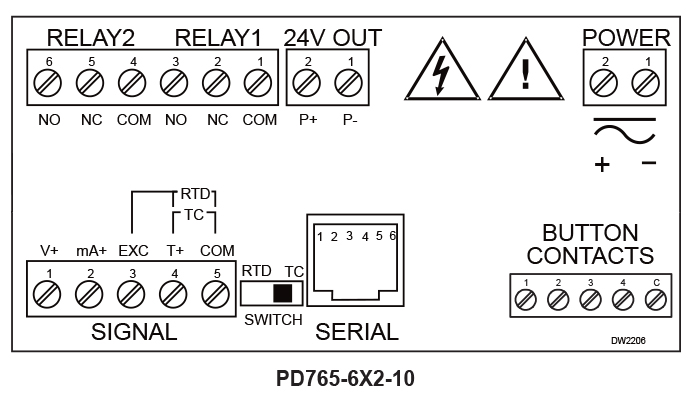

PD765-6X5-10 (Trident X2)
Two SPDT relays; 24 V transmitter power; TC, RTD, 4-20mA or 0-10 VDC inputs; 4-20 mA output; four external button contacts
The Only 1/8 DIN Process & Temperature Meter You Will Ever Need
The PD765 Trident digital panel meter is one of the most versatile digital panel meters on the market and will satisfy a wide variety of process and temperature applications. The Trident can be field programmed to accept process voltage (0-5V, 1-5V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples.
One of the Trident’s most useful features is its ability to provide 24 VDC to power the transmitter’s 4-20 mA signal. It is housed in a shallow-depth, 1/8 DIN enclosure that features a NEMA 4X front panel and convenient mounting hardware. There are two power options for the Trident: 85 to 265 VAC or 12-36 VDC and the AC powered version can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four front panel pushbuttons, free MeterViewTM software or using the Copy function.
Two relays and isolated 4-20 mA output options increase the utility of the Trident meter. The relays can be used for alarm or control applications. The 4-20 mA output provides an isolated retransmission of the input signal; especially useful for temperature inputs like thermocouples and RTDs.
The display height on the standard Trident meter is 0.56" (14.2 mm) and on the Trident X2 the display height is an astounding 1.2" (30.5 mm). The Trident X2 can be read easily from distances of up to 30 feet!
The intensity of the display on both versions of the Trident can be adjusted to compensate for various lighting conditions, including direct sunlight.
Both meters are available with all Trident features, although only the Trident X2 includes four external button contacts.
Table of Contents:
Process & Temperature Inputs
The Trident is factory calibrated to accept 4-20 mA, ±10 VDC, type J, K, T, or E thermocouples and 100 Ω platinum RTDs. Process inputs can be scaled with or without applying an input for virtually any engineering units. Temperature inputs can be programmed to display in degrees Fahrenheit or Celsius and the type K thermocouple can display up to 2300°F.
Current & Voltage Inputs
Setting up the meter to accept a current or voltage input could not be easier. All setup is performed with the front panel buttons and there are no switches or jumpers to deal with.
Transmitter Powered by Internal Supply (optional)
Transmitter Powered by External Supply
Current Overload Protection
To protect the instrument from unexpected current overload, the current input circuit contains a resettable fuse. The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.
Thermocouple & RTD Inputs
Setting up the Trident to accept a thermocouple or RTD input is simply a matter of setting a switch at the rear of the case and selecting the input type from the menu. The meter accepts J, K, T, or E type thermocouples as well as two, three, or four-wire 100 Ω platinum RTDs.
Temperature Inputs
The Trident meter accepts J,K,T or E thermocouples and 100 Ω platinum RTDs. For the T thermocouple and RTD, the user can display temperature to 1° or 0.1° resolution and the Type K thermocouple to 2300°F. In addition, these meters will operate down to -40°C with only mininal loss of accuracy.
| Type | Range | Acc (0-65°C) | Acc (-40-0o°C) | Resolution |
| J | -58° to 1382°F -50° to 750°C | ±2°F ±1°C | ±5°F ±3°C | 1° |
| K | -58° to 2300°F -50° to 1260°C | ±2°F ±1°C | ±4°F ±2°C | 1° |
| T | -292° to 700°F -180° to 371°C | ±2°F ±1°C | ±13°F ±7°C | 1° or 0.1° |
| E | -58° to 1700°F -50° to 927°C | ±2°F ±1°C | ±11°F ±6°C | 1° |
| RTD | -328o° to 1382°F -200° to 750°C | ±1°F ±1°C | ±5°F ±3°C | 1° or 0.1° |

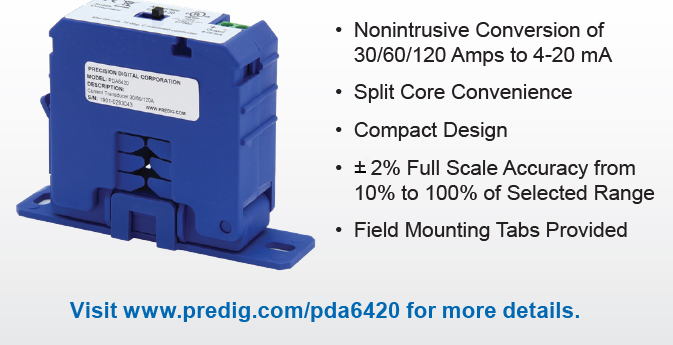

Display AC Current on a Trident Meter with the PDA6420 AC Current Transducer

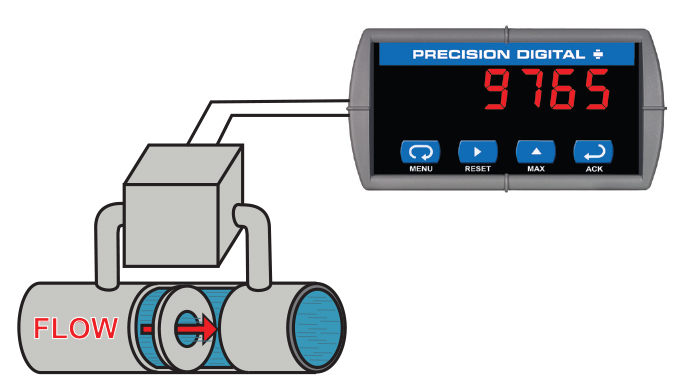

Display Flow Rate From a DP Transmitter
DP Flow via Square Root Extraction
In this application, the PD765 is displaying flow rate by extracting the square root from the 4-20 mA signal from a differential pressure transmitter. The user selectable low-flow cutoff feature gives a reading of zero when the flow rate drops below a user selectable value.
Back to topIsolated Transmitter Power Supplies
24 V @ 200 mA Transmitter Power Supply
One of the most useful features of the Trident PD765 is its built-in, isolated, 24 V @ 200 mA power supply to power the transmitter. This feature saves money by eliminating an external power supply and also simplifies wiring. The following diagrams illustrate how to wire the Trident so it will power the transmitter:
24 V @ 40 mA 4-20 mA Output Power Supply
Not only can the PD765 power the 4-20 mA input signal, but an additional power supply of 24 V @ 40 mA is available on select models to power the 4-20 mA output.
Resettable Fuse Prevents Current Overload
Another very useful aspect of the Trident is that the current input is protected against current overload by a resettable fuse. The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.
Isolated 4-20 mA Transmitter Output
The Trident's isolated 4-20 mA output option converts the Trident into a transmitter / loop isolator with a digital display; perfect for temperature applications!
Other Uses for Transmitter Power Supplies
The most common use for these two power supplies is for the 200 mA transmitter power supply to power the field transmitter and 40 mA power supply to power the 4-20 mA output from the meter. However, these two power supplies can be used in other ways. For instance, some level transmitters require the use of a heated lens. The Trident’s 200 mA power supply could be used to power both the heated lens and the 4-20 mA signal from the transmitter.
External Power Supply for the Loop

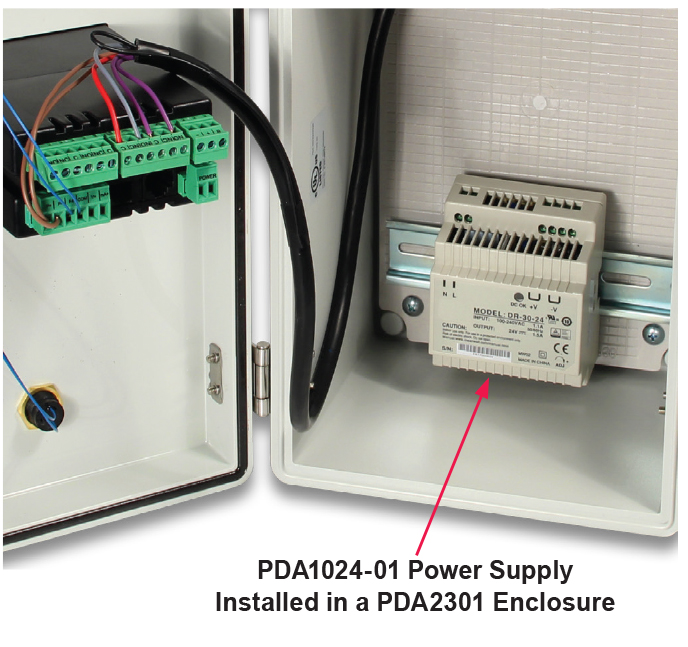

For applications that require an external transmitter power supply, the same Trident is used and merely wired in a different fashion as the following diagrams illustrate:
24 VDC Transmitter Power Supply
Precision Digital offers the PDA1024-01 for applications that require more than the 200 mA power that the Trident can provide.
Specifications
Input Voltage: 85-264 VAC; 120-370 VDC
Output Voltage: 21.6-26.4 VDC; ±10% 1.5 A rated current. See output rating table below.
Input Frequency: 47-63 Hz
AC Current: 115 VAC: 0.88 A; 230 VAC: 0.48 A
Dimensions: 3.07" x 3.66" x 2.20" (78 mm x 93 mm x 56 mm) (W x H x D)
Advanced Display Features
Four Full Digits
The display on the Trident is four full digits which means it can display numbers up to 9999. Many digital panel meters have displays of only 31⁄2 digits which means they can display only to 1999. In practical terms, this means the Trident can display type K thermocouples to 2300°F and 4-20 mA signals up to 9,999.
Front Panel LEDs
The meter is supplied with two alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication.
Sunlight Readable Display
The intensity of the display on both versions of the Trident can be adjusted to compensate for various lighting conditions, including direct sunlight. In the advanced menu features menu, you can choose from eight levels of intensity depending on the visibility conditions.
The following diagram illustrates how to set the intensity on the Trident process and temperature meter:

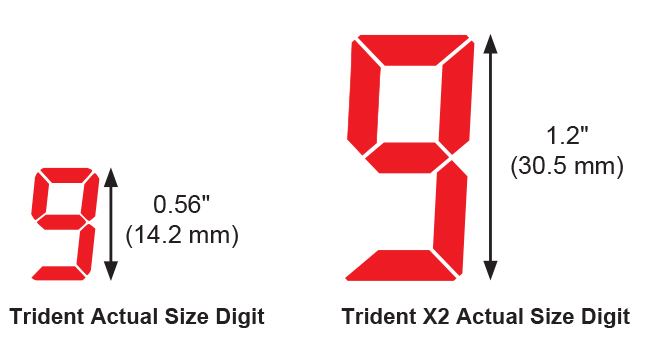

Two Display Sizes
The display height on the standard Trident meter is 0.56" (14.2 mm) and on the Trident X2 the display height is an astounding 1.2" (30.5 mm). The Trident X2 can be read easily from distances of up to 30 feet!

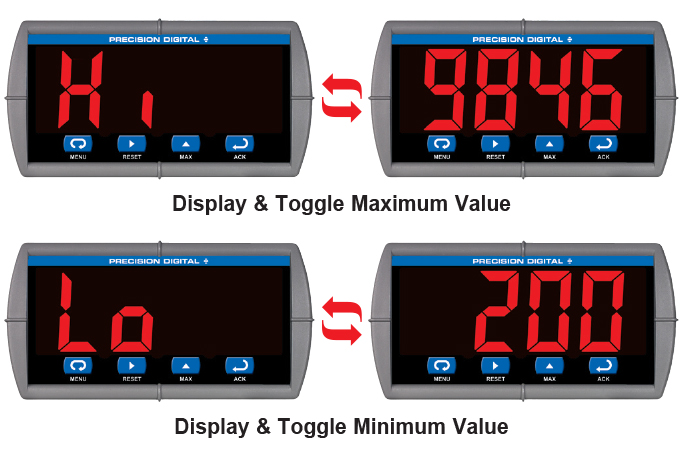

Display & Toggle Maximum / Minimum Reading
The main function of the front panel buttons during operation is to display the maximum and minimum readings reached by the process or temperature inputs. The Trident allows you to toggle between the maximum and minimum readings of the process values. To display the maximum and minimum readings since the last reset/power-up, use the Up arrow/Max button.
Back to topQuick & Easy Scale & Programming Methods
The Trident is easily setup and programmed using the simple four-button programming method. The meter can also be programmed using a PC and Precision Digital’s free MeterViewTM software or “cloned” with the Copy function. There is only one switch on the entire meter, no jumpers, and no need to ever open the case.

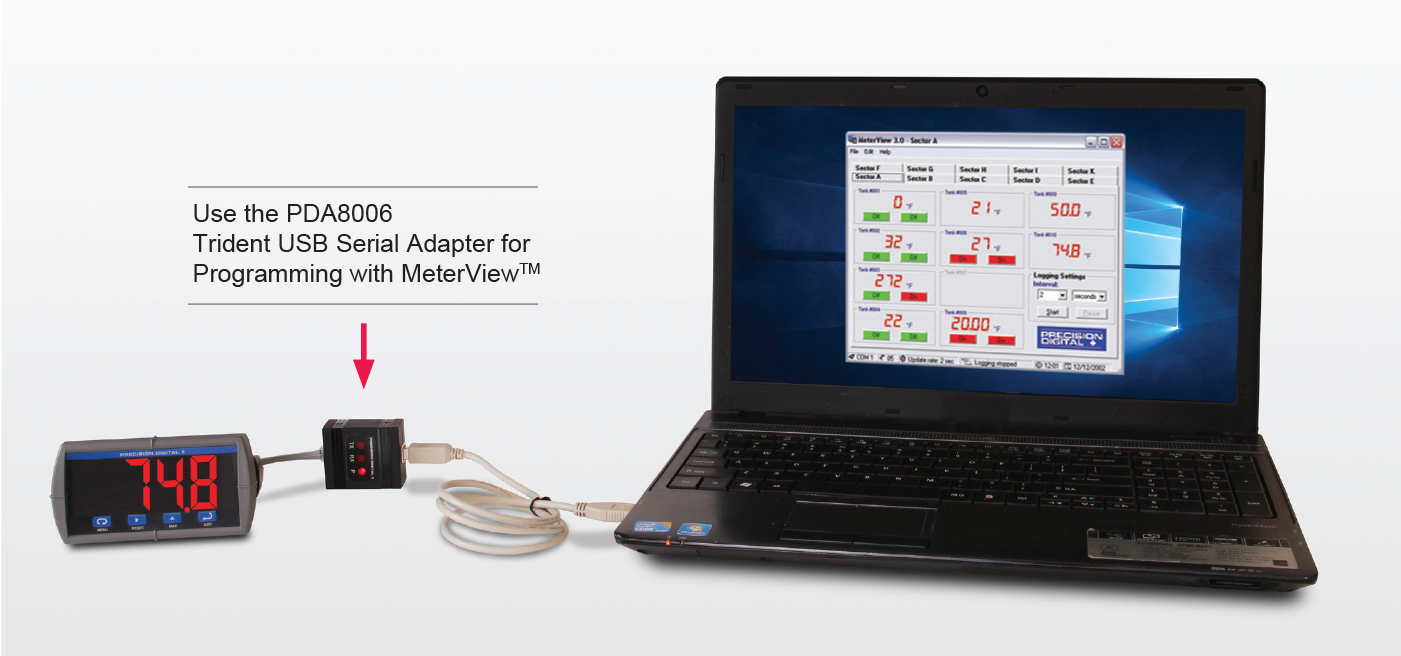

Free PC-Based MeterView™ Software
Note: Trident meter is not powered from USB connection and requires external power to be programmed.
MeterView™ software allows all PD765 Trident setup parameters to be programmed from a PC and to save the configuration settings to a file for reporting or programming other meters. For programming purposes, MeterView software connects to the Trident meter via the low-cost PDA8006 USB serial adapter pictured above.

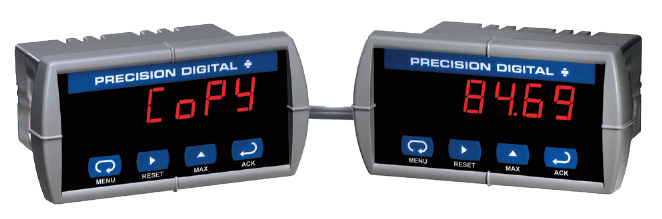

Meter Copy
The Copy function is used to copy (or clone) all the settings from one Trident meter to other Trident meters in less than 10 seconds. The Copy function is a standard feature on all Trident meters. The Copy feature does not require a serial communication adapter, it only requires the optional cable assembly (PDA7420).

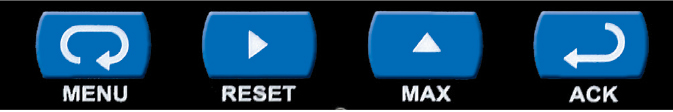

Programming with Four Front Panel Buttons
The Trident’s four front panel buttons keep the user in control of the programming process. To see how simple it is to program the Trident, check out the Virtual Meter at www.predig.com/tvm.
Programming From a PC with MeterView™
Precision Digital’s free MeterView™ software allows all PD765 Trident setup parameters to be programmed from a PC and to save the configuration settings to a file for reporting or programming other meters. For programming purposes, MeterView software connects to the Trident meter via the low-cost PDA8006 USB serial adapter. Below are examples of the various windows used to configure, scale, set relays / alarms, and program other advanced features.

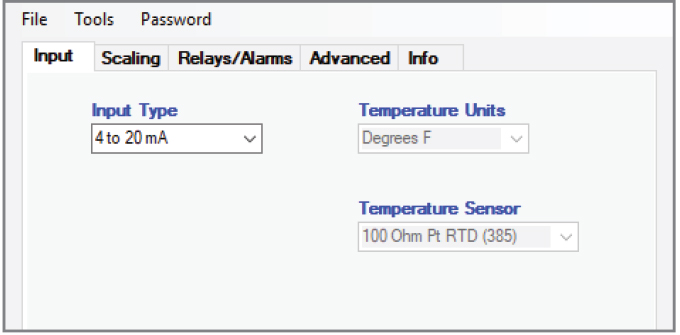

Configure Input
- Input type
- Temperature units
- Sensor type

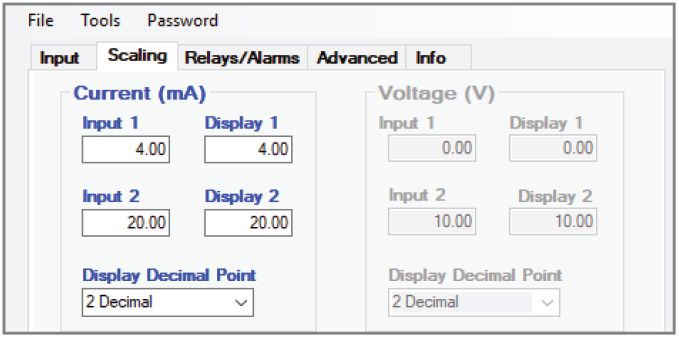

Meter Scaling
- Scale input
- Decimal point
- No cryptic codes
- Simple to use

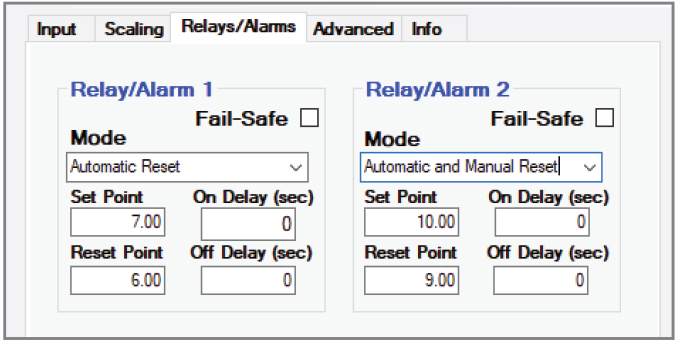

Set Relays/Alarms
- Select reset mode
- Set/reset points
- Fail-safe operation
- On & off delays
Advanced Settings
- Password
- Filter & bypass
- Transmit delay
- Display intensity level
- Function type
- Analog output scaling
- Sensor break

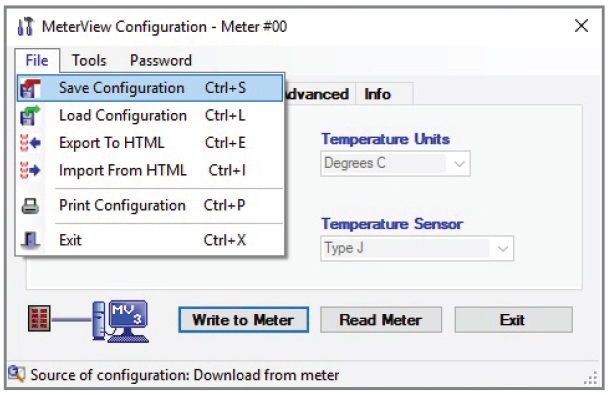

Save/Retrieve Configuration
MeterView™ software allows all PD765 Trident setup parameters to be programmed from a PC and to save the configuration settings to a file for reporting or programming other meters. For programming purposes, MeterView software connects to the Trident meter via the low-cost PDA8006 USB serial adapter.
Data Acquisition
Digital panel meters make a great front end to a PC-based data acquisition system. They are easy to set up, can be used for a wide range of inputs, will power the transmitter, and best of all provide a local display of the process. Precision Digital has the perfect package with its Trident Digital Panel Meters, a wide selection of serial adapters and converters and free MeterView™ software. Data is displayed on the PC and written to a file that could then be imported into a spreadsheet or other application.

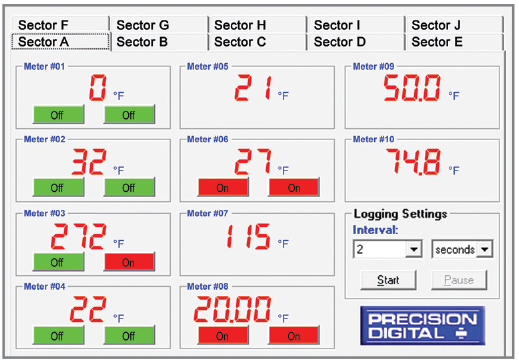

Data Logging up to 100 Trident Meters

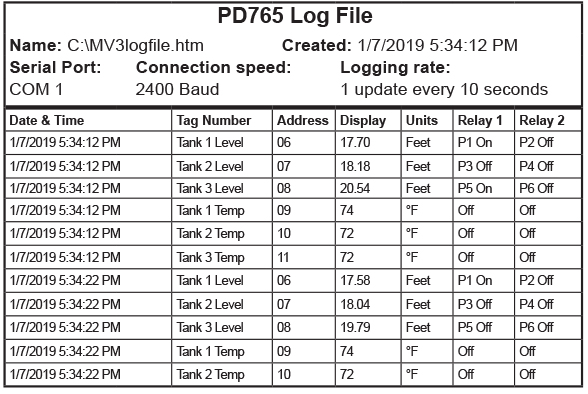

Sample File Generated by MeterView™
Relays for Alarm & Control Applications
Adding relays to the Trident meter turns it into a sophisticated alarm device as well as a powerful, yet simple, alternative to a more complicated PLC system for control applications. One such application would be pump control using the Trident’s relays in pump alternation mode. The Trident can be equipped with two 3 A Form C (SPDT) internal relays. Relays are highly user-configurable as the following MV screen shot indicates:
MeterView™ Software Specifications
System Requirements: Windows® 95/98/ME/NT4/2000/XP/ Vista/7*/ Windows® 10
Communications: RS-232 adapter or RS-485 adapters with an RS-232 to RS-485 or USB to RS-485 converter may be used for communicating with the meters.
Number of Meters: Up to 100 meters simultaneously with addressing capability; minimum scan time for 100 meters: 60 sec
Meter Address: 00 to 99
Baud Rate: 300 bps to 19,200 bps; selection must match the baud rate selected in the meters.
Screen Update Rate: Dependent on system and meter settings. Rates of up to 10 meters/second are attainable at 19,200 bps.
Configuration: Configure meter settings one meter at a time.
Configuration Report: Save configuration to PDC file format or export to HTML for printing, cloning, or restoring meter.
Logging Interval: 2 seconds to 60 hours or manual
Manual Logging: Data saved to file when Log button is pressed.
Data Logging Report: Log data to HTML file format. All enabled meters are logged to a single file.
Alarm Notification: Pop-up message indicates new alarm condition. Alarm alert notification may be disabled.
Event Log: Important events are logged with date and time stamp.
Relay/Alarm Status: Indicate relay/alarm status with customized color and message label. Relay status indication may be disabled.
Units & Tag Number: Show engineering units and tag number information; these settings are not saved to the meter.
Relay Acknowledge: Relays may be acknowledged by clicking on corresponding Relay Status button. Meters must be set up for manual reset and Relay Mode must be enabled in MeterView™.
*Note: Windows 32-bit operating systems only
Back to top4-20 mA Output & Relays
Isolated 4-20 mA Analog Output
There are several uses for the Trident’s isolated 4-20 mA output. For temperature applications, the isolated 4-20 mA output option turns the Trident X2 meter into a temperature transmitter with a huge display! For 4-20 mA input applications the isolated 4-20 mA output turns the Trident meter into a signal isolator with the convenience of local display of the process variable. The 4-20 mA output can also be reversed scaled.
Linear 4-20 mA Analog Output
For applications where the input was linearized by the Trident, the 4-20 mA output will represent that linearized value.
Convert Temperature Inputs to 4-20 mA Output with the PD765
The Trident X2, with the appropriate options, can be used as an isolated temperature transmitter with a big display by converting the thermocouple or RTD input into an isolated 4-20 mA output.
The 4-20 mA output can be reversed scaled such that 4 mA represents the high value and 20 mA represents the low value. For instance, a 4-20 mA output signal could be generated as the meter went from 100.0 to 0.0.
PD765 Provides 500 V of Isolation on the Output
The inputs and outputs of the PD765 Trident are electrically isolated to prevent ground loops and make wiring easier. All inputs, outputs and power supplies are fully isolated from one another.
Connections
The Trident can provide 40 mA at 24 VDC to power the 4-20 mA output signal or an external power supply can be used:

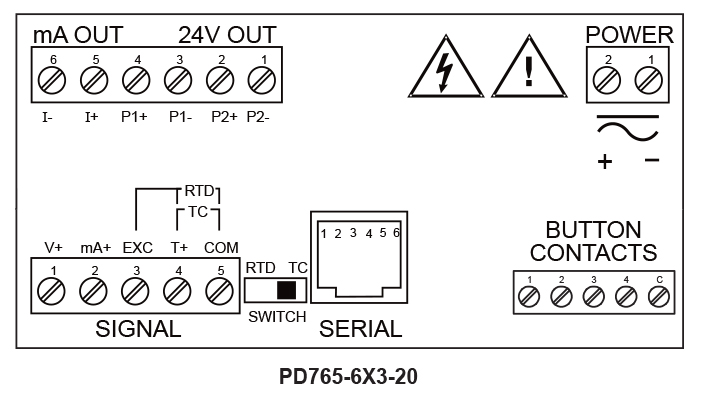

4-20 mA Output & Input Signal Powered by Meter
4-20 mA Output Powered Externally
The 4-20 mA output can either be programmed using the front panel push buttons or free MeterView™ software.

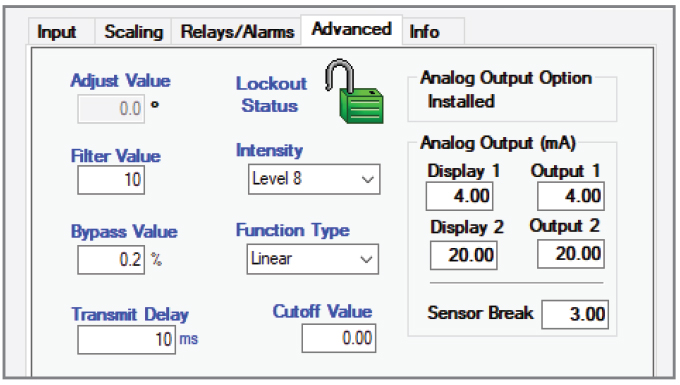

MeterView™ Software Programming
When a meter is programmed as shown to the
left, the output will be 4.00 mA when the
display reads 0.0 and the output will be 20.00
mA when the display reads 150.0.
The meter can be set up for reverse scaling
as shown to the left: the output will be 4.00
mA when the display reads 150.0 and the output
will be 20.00 mA when the display reads 0.0
Sensor Break: Analog output value when TC or
RTD sensor break is detected.
Relays for Alarm & Control Applications
Adding relays to the Trident meter turns it into a sophisticated alarm device as well as a powerful, yet simple, alternative to a more complicated PLC system for control applications. One such application would be pump control using the Trident’s relays in pump alternation mode. The Trident can be equipped with two 3 A Form C (SPDT) internal relays. The relays are highly user-configurable as the following screen shot from MeterView™ indicates:

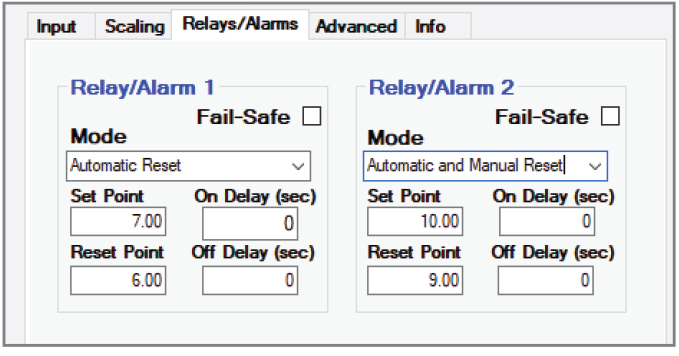

Setting Set and Reset Points (HI / LO Alarms)
All relays are independent of each other and may be programmed as high or low alarms with user desired set and reset points. Setting a set point above a reset point results in a high alarm and setting a set point below a reset point results in a low alarm. Alarms have 0 – 100% deadband and set and reset points may be set anywhere in the range of the meter.
Resetting the Relays (Mode in MV)
All relays are independent of each other and may be programmed to reset (Mode in MV) in the following ways:
- Automatic: Alarm will reset automatically once the alarm condition has cleared.
- Automatic/Manual: Alarm will reset automatically once the alarm condition has cleared but can also be reset using the ACK front panel button* at any time.
- Latching: Alarm must be reset manually and can be done so at any time. Press the ACK front panel button* at any time to clear the alarm.
- Latching with Reset after Cleared: Alarm must be reset manually and can only be done so after the alarm condition has cleared. Press the ACK front panel button* after the alarm condition has cleared to reset the alarm.

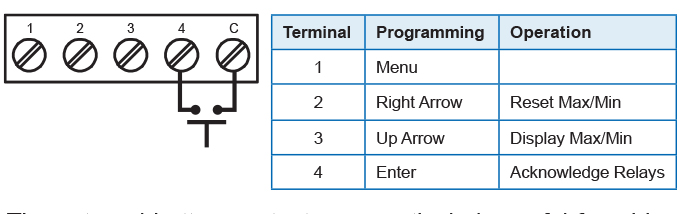

* Or by connecting an external button to terminal 4 on the external button contacts. (Trident X2 models only)
Time Delay (On and Off)
In many applications it is desirable to wait before turning off or on a relay – such as waiting for a process to settle before taking action. Each relay on the Trident PD765 can be programmed independently with on and off time delays of 0 to 999.9 seconds to achieve this.
Relays Auto Initialization
When power is applied to the meter, the front panel LEDs and alarm relays will reflect the state of the input to the meter.
Signal Loss Relay Operation (Sensor Break)
The meter can be programmed so that when it detects a break in the RTD or thermocouple signal, the relay will go to either the alarm or non-alarm state.
Note: This does not apply to voltage or 4-20 mA signals.
User Selectable Fail-Safe Operation
All relays are independent of each other and may be programmed for user selectable fail-safe operation. With the fail-safe feature activated, the relays will transfer to the alarm state on power loss to the meter.

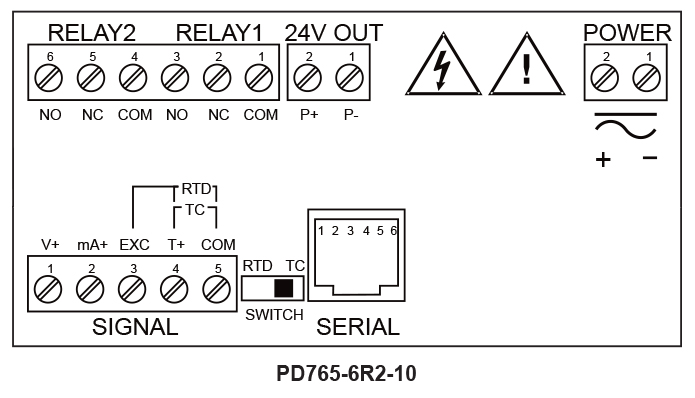

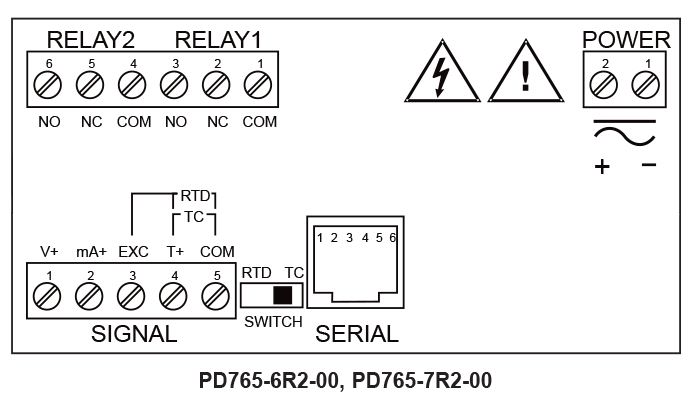

Relay Connections
Relay connections are made to a six-terminal connector labeled RELAY1 and RELAY2.

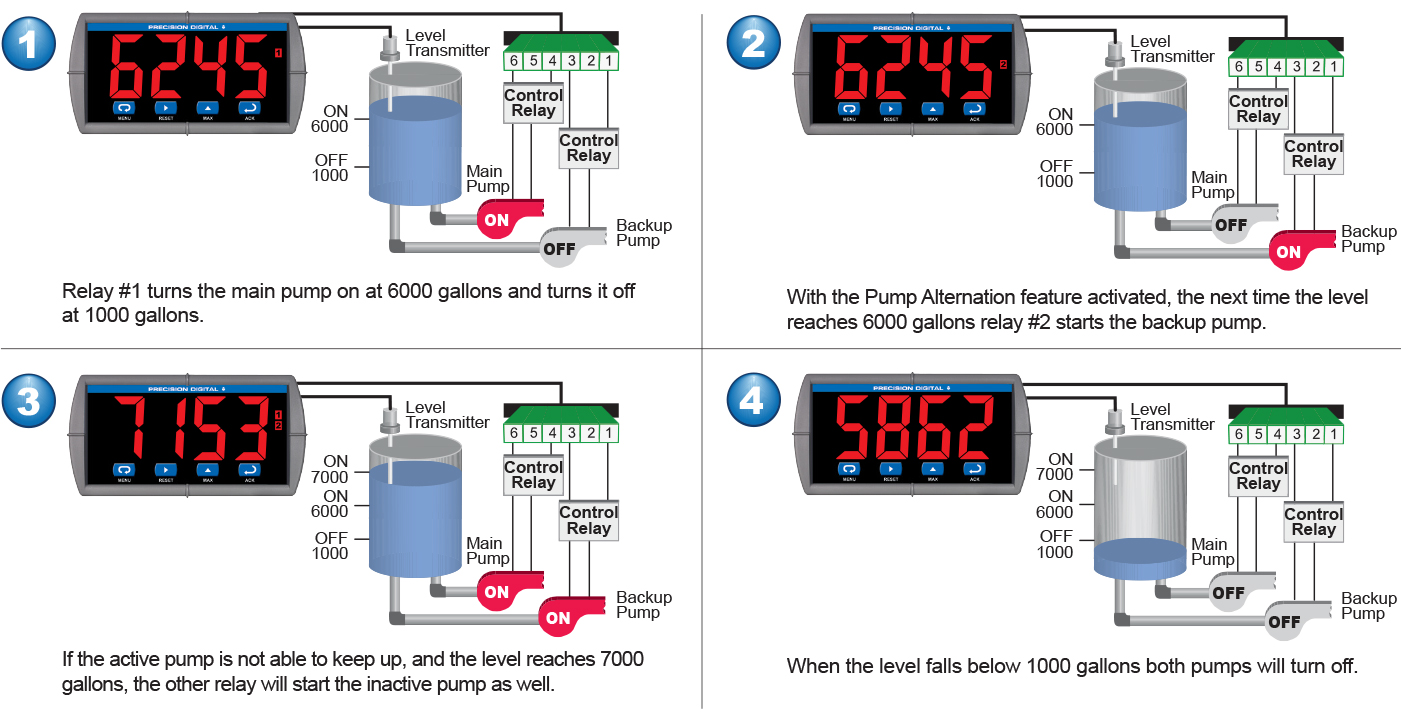

Pump Controller with Dual-Pump Alternation
The PD765 can be used as a low-cost pump controller when comvined with a continuous level transmitter. One of the most common pump control applications is shown below: controlling and alternating two pumps. The goal is to control the level between 1000 and 6000 gallons. The main pump turns on when the level reaches 6000 gallons and pumps down to 1000 gallons and then shuts the pump off. The next cycle, the backup pump turns on at 6000 gallons and shuts off at 1000 gallons. If at any time the active pump can't keep the level below 7000 gallons, the other pump would come on also.
Back to topSerial Communications
Serial Adapters & Converters*
Precision Digital provides a variety of serial communication devices to interface the Trident meter with other devices.
PDA7420
Trident Meter Copy Cable
PDA7232
Trident RS-232 Serial Adapter
PDA7422
Trident RS-485 Serial Adapter
PDA8006
USB Serial Adapter for Programming Meter with MeterView Software
PDA8485-I
USB to RS-422/485 Isolated Converter
PDA7485-I
RS-232 to RS-422/485 Isolated Converter
PDA8232-N
USB to RS-232 Non-Isolated Converter
*All adapters and converters are sold separately and supplied with appropriate cables.

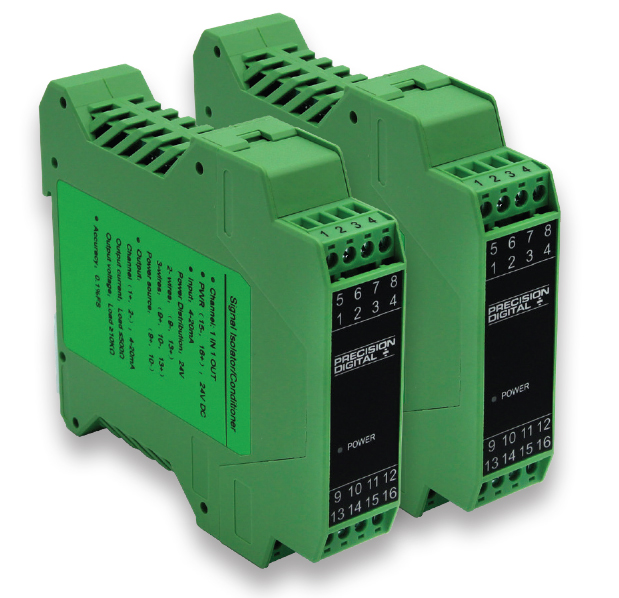

Back to topSignal Splitter And Conditioner Accesories

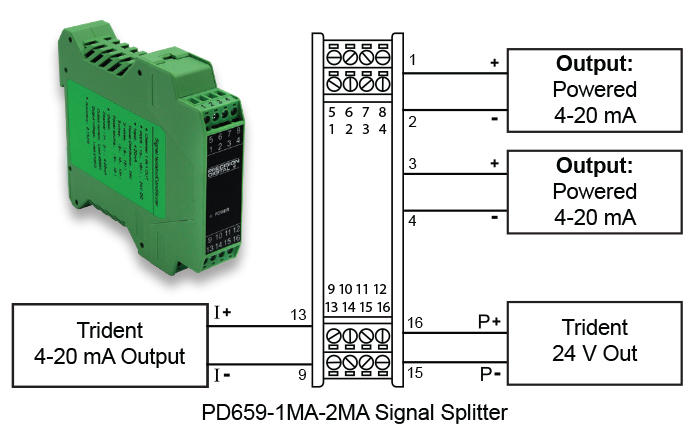

Precision Digital offers signal splitter and conditioner accessories to increase the utility of the Trident meter. There is a model that splits the 4-20 mA output from the Trident meter into two isolated 4-20 mA outputs and there is a model that converts the 4-20 mA output from the Trident into a 0-10 VDC signal.
Features
• DIN Rail Mounting • 1500 V Isolation • 0.1% FS Accuracy • Operating Temperature Range: -4 to 131°F (-20 to 55°C)Split the Trident’s 4-20 mA Output into Two 4-20 mA Signals

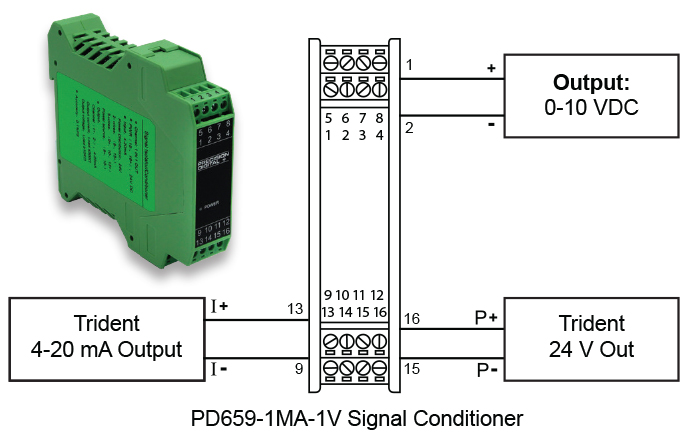

Convert the Trident’s 4-20 mA Output into a 0-10 VDC Signal

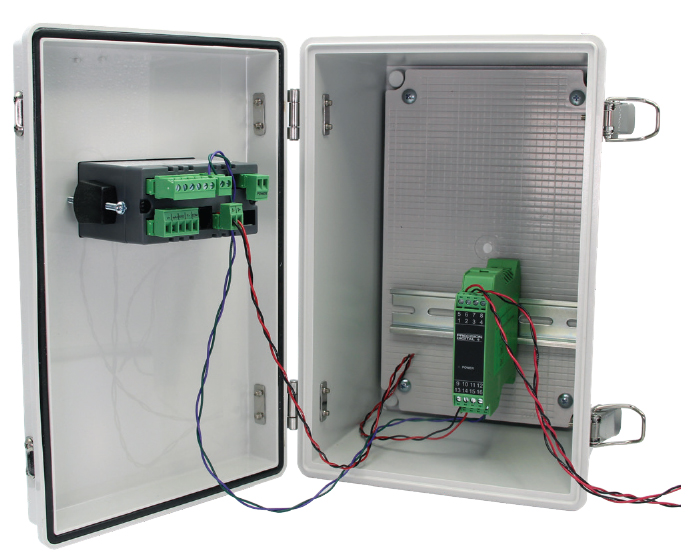

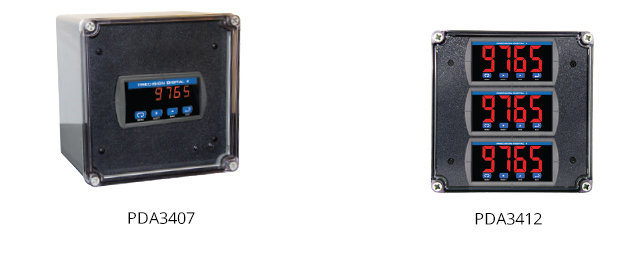

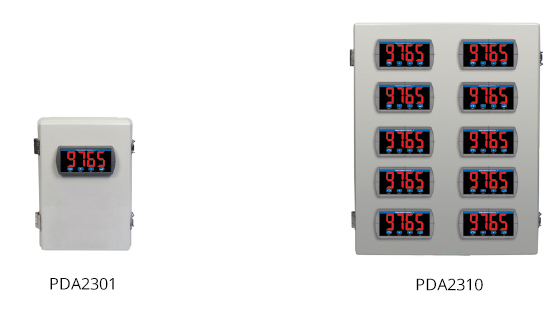

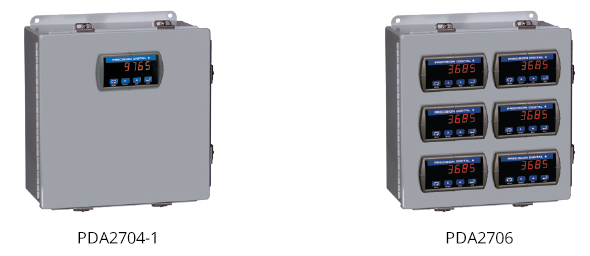

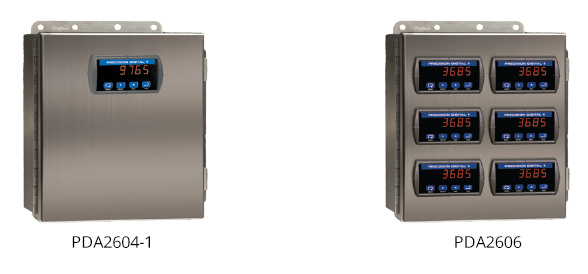

Mount the Meter and the Splitter / Conditioner in a NEMA 4X Enclosure
The Trident meter and the Splitter are mounted in a PDA2301 enclosure with backplane and DIN Rail. See page 16 for details on enclosures offered by Precision Digital Corp.
Back to topPhysical Features
The PD765 Trident is designed for ease-of-use in industrial applications. It is housed in a shallow depth case and includes a NEMA 4X front panel, wide operating temperature range, removable screw terminal connectors, snap in place mounting brackets, forgiving panel cutout requirement, and UL Listing for electrical safety. All of these features are backed by a 3-year warranty.
Wide Operating Temperature Range
The Trident can operate from -40 to 65°C (-40 to 150°F) meaning it can be installed in a wide variety of indoor and outdoor industrial applications. And over this range, the Trident will drift no more than 0.005% of calibrated span/°C max from 0 to 65°C ambient and 0.01% of calibrated span/°C max from -40 to 0°C ambient. See page 24 for details.

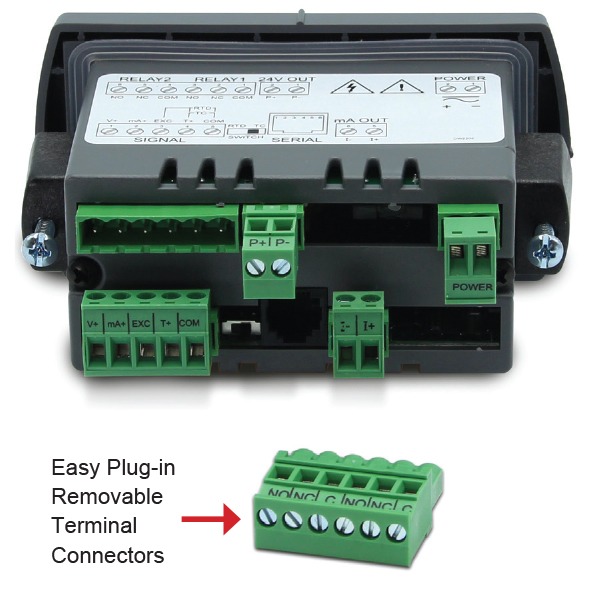

Removable Screw Terminal Connectors
Industrial applications require screw terminal connections for easy field wiring and the Trident goes one step further in convenience by making them removable also.

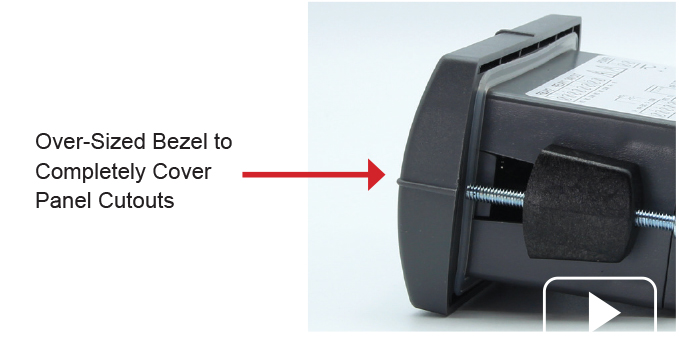

Forgiving Panel Cutout Requirement
The Trident's bezel has been oversized to allow for not perfectly executed panel cutouts where NEMA 4X seal is not required.

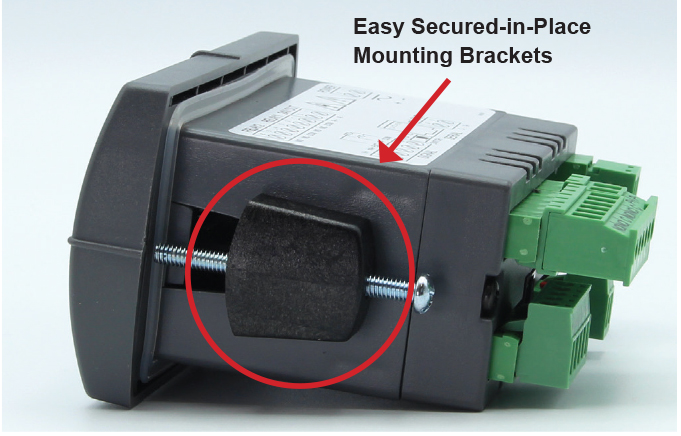

Secured-in-Place Rugged Mounting Brackets
If you’re installing the Trident outdoors in the hot or cold weather, the last thing you want to do is fumble around with mounting brackets that don’t stay in place. The Trident's mounting brackets can be easily secured into place and then screwed down to the panel. These brackets are rugged so they can be tightened to the panel to provide a solid NEMA 4X seal.
Type 4X / NEMA 4X Front Panel

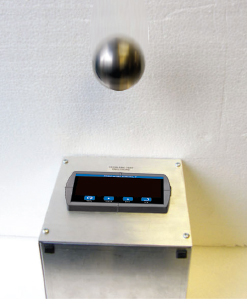

Not only does the Trident’s front panel UL Type 4X approval indicate it is waterproof, but it also indicates it is rugged. Part of the UL Type 4X test is to drop a 2-inch solid stainless steel ball from 8 feet on top of the meter’s faceplate.
Back to topVideos To Watch

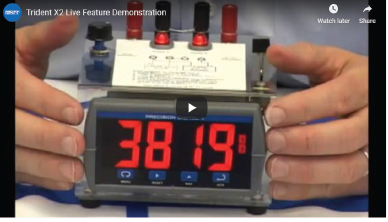

Trident Live Feature Demonstration
Watch a simulation of a level application with the Trident X2 meter.

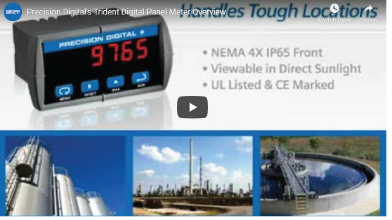

Trident Overview
Learn how the Trident can satisfy a wide variety of applications.
Back to topOperational Features
Front Buttons & External Button Contacts
The main function of the front panel buttons during operation is to display the maximum and minimum readings reached by the process or temperature inputs as well as acknowledge relays.
1. Three Front Panel Button Operations
The following buttons can perform these functions:
2. External Button Contacts Available on Trident X2
The Trident X2 is equipped with four external button contacts that can be used to remotely operate the Trident X2’s front- panel buttons. For instance, these button contacts can be used to program the meter and to remotely acknowledge/reset the relays:
The external button contacts are particularly useful for wiring up a remote button to reset the relays as shown here:
Plastic Control Stations for Trident X2
The PDA2360 series of plastic control stations provide a convenient way to remotely program the Trident X2 meter via its four external button contacts. In addition, they also provide a means to acknowledge the relays with a remotely mounted button.
- Complete Pre-Assembled Stations
- Normally Open (NO) Spring Return Plastic Bezel Pushbuttons
- Trigger Action Turn to Release Pushbutton (PDA2360-E only)
- Control Station for Remote Operation of Light / Horn
- IP65 / NEMA 4, 4X and 13 Rated
- Wall Mountable
| PDA2360 Series Control Stations | |
| Model | Description |
| PDA2360-E | Emergency Stop Button |
| PDA2361-A | 1 Black Ack Button |
| PDA2361-Q | 1 Black Silence Button |
| PDA2364-MRUE | 4 Black Buttons: Menu, Right, Up, Enter |
Four-Position Control Station for Remote Operation of Trident PD765 X2 Buttons
The Trident PD765 X2's four programming and operations buttons can be remotely controlled by using the PDA2364-MRUE 4-button control station accessory as shown in the diagram below.
Back to topNEMA 4 & 4X Field Enclosures
Precision Digital offers a variety of rugged enclosures that provide a high degree of protection against harsh operating environments. Thermoplastic and stainless steel NEMA 4X, and painted steel NEMA 4 enclosures for up to 10 Trident meters are available. In addition, Precision Digital offers a Light / Horn that can be mounted to most of these enclosures to provide visual and audible indication of alarms. Many enclosures also have sufficient space to house Precision Digital’s model PDA1024-01 24 V power supply, signal splitters /isolators/conditioners and other devices.
Plastic Enclosures (Externally Mounted)
PDA2300 Series (Covers with Hinge & Latch)
This is Precision Digital’s most economical line of enclosures for the Trident. The meter mounts through a hinged cover with a SS latch allowing for easy access to meter wiring. Enclosures are available for 1 through 10 Tridents. The enclosure is large enough to mount the PDA1024-01 24 V transmitter supply in.
PDA2800 Series (Covers with Screws)
This is Precision Digital’s smallest line of enclosures for the Trident. The meter mounts through the cover that screws to the base of the enclosure. Available for 1 and 2 Tridents.
Plastic Enclosures (Internally Mounted)
PDA3400 Series (Covers with screws)
This is Precision Digital’s only line of enclosures for the Trident where the meter is fully housed inside the enclosure. Enclosures are available for 1, 2 and 3 Tridents.
Stainless Steel Enclosures (Externally Mounted)
PDA2600 Series (Covers with Hinge & Latch)
This is Precision Digital’s stainless steel line of enclosures for the Trident. The meter mounts through a hinged cover with a SS latch allowing for easy access to meter wiring. Enclosures are available for 1 through 6 Tridents.
Steel Enclosures (Externally Mounted)
PDA2700 Series (Covers with Hinge & Latch)
This is Precision Digital’s painted steel line of enclosures for the Trident. The meter mounts through a hinged cover with a latch allowing for easy access to meter wiring. Enclosures are available for 1 through 6 Tridents.
Back to topLight / Horn & Reset Button Mounted to Enclosure
Overview
Precision Digital offers a wide variety of NEMA 4 and NEMA 4X enclosures that can be equipped with MOD-LH Light / Horn and Reset Button. When MOD-LH is ordered, the accompanying enclosure on the order comes with the holes pre-drilled for the Light / Horn and the Reset Button and the user performs the mounting and wiring. Meter and enclosure are sold separately. The Light / Horn and the Reset Button can also be ordered as separate items and the user performs all hole-drilling, mounting and wiring as desired. The light and horn can be controlled independently of each other via separate relays on the Trident X2 meter; and since the meter's relays can be reset in a variety of ways, there are several ways the Light / Horn option can operate. For instance, the horn can be programmed to silence at any time via the Reset Button or front panel button on the Trident X2, and light to reset automatically when the alarm clears as the following table illustrates:
| Relay # | Connected to | Typical reset method (user selectable) |
| 1 | Flashing Light(1) | Auto reset |
| 2 | Horn | Silence with Reset Button at any time |
1. Light can be wired to flash or stay steady on
2. See page 11 for additional ways the relays can be programmed
Note: The Light / Horn accessory is powered from the 200 mA transmitter power supply; so when it is installed, there is less power available for the transmitter. See MOD-LH Light / Horn, Transmitter Power Supply specification on page 21 for details.
Dimensions Units: Inches (mm)
Back to topPDA1024-01 24 VDC DIN Rail Power Supply
For transmitters and sensors that require more than the 200 mA power that the Trident X2 can provide, use Precision Digital’s PDA1024-01 24 VDC power supply as shown here.
Input Voltage: 85-264 VAC; 120-370 VDC
Output Voltage: 21.6-26.4 VDC; ±10% 1.5 A rated current.
Input Frequency: 47-63 Hz
AC Current: 115 VAC: 0.88 A; 230 VAC: 0.48 A
Inrush Current: 115 VAC: 15 A; 230 VAC: 30 A cold start
Connections: Two screw terminals for +V, two screw terminals for V-
Setup, Rise Time: 115 VAC: 100 ms, 30 ms; 230 VAC: 100 ms, 30 ms at full load
Hold Time: 115 VAC: 21 ms; 230 VAC: 100 ms, 30 ms at full load
Overload Protection: 105-160% rated output power. Constant current limiting, recovers automatically after fault condition is removed
Over Voltage Protection: Shut down o/p voltage, re-power on to recover
Operating Temperature: -20 to 60°C (-4 to 140°F)
Working Humidity: 20% to 90% RH non-condensing
Storage Temperature, Humidity: -40° to 85°C (-40 - 185°F), 10% to 95% RH
Temperature Coefficient: ±0.03%/°C (0 to 50°C)
Vibration: 10-500 Hz, 2G 10 min./1 cycle, period for 60 min. each along X, Y, Z axes
Safety Standards: UL60950-1, TUV EN60950-1 Approved, Design refer to EN50178
Withstand Voltage: I/P-O/P:3 KVAC
Isolation Resistance: I/P-O/P:100M Ohms / 500 VDC
EMC: Compliance to EN55011,EN55022 (CISPR22) Class B, EN61000-3-2,-3 EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-1, EN61204-3 Light industry, Criteria A
MTBF: 441.5K hrs min. MIL-HDBK-217F (25°C)
Dimensions: 3.07" x 3.66" x 2.20" (78 mm x 93 mm x 56 mm) (W x H x D)
Warranty: 1 year parts & labor
Wiring Connections for MOD-LH Models
The following diagrams are for the MOD-LH models with a single color light using an internal power supply and using an external power supply.
Using Trident X2's Internal Power Supply
Using External Power Supply (PDA1024-01)
Back to topCalibrator & Signal Generator
PD9501 Multi-Function Calibrator
Overview
This PD9501 Multi-Function Calibrator has a variety of signal measurement and output functions, including voltage, current, thermocouple, and RTD.
Main Function
Voltage Signal: 0-30 V, 0-25 mV, 0-100 mV output and measurement.
Current Signal: Active and passive 0-25 mA, 4-20 mA output and measurement.
Thermocouple: K, E, J, T, R, B, S, N output and measurement. Note: Output Range Starts from 0°C RTD: PT100 output and measurement.
Ohms: Output and measurement
Features
- Measure and Source T/Cs, RTDs, Ohms, Current, Voltage
- Compact & Lightweight
- Battery or USB Powered
- Descriptive LCD Display
- 24 V Power to Drive the Transmitter
- Auto Stepping & Auto Ramping
- Selective Auto Off Mode
- LCD includes an LED backlight

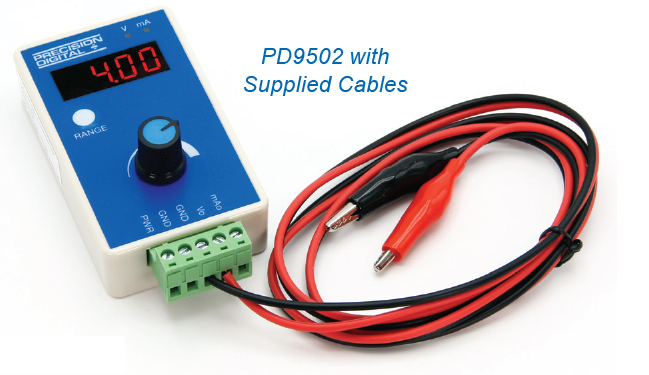

PD9502 4-20 mA / 0-10 VDC Low-Cost Signal Generator
Overview

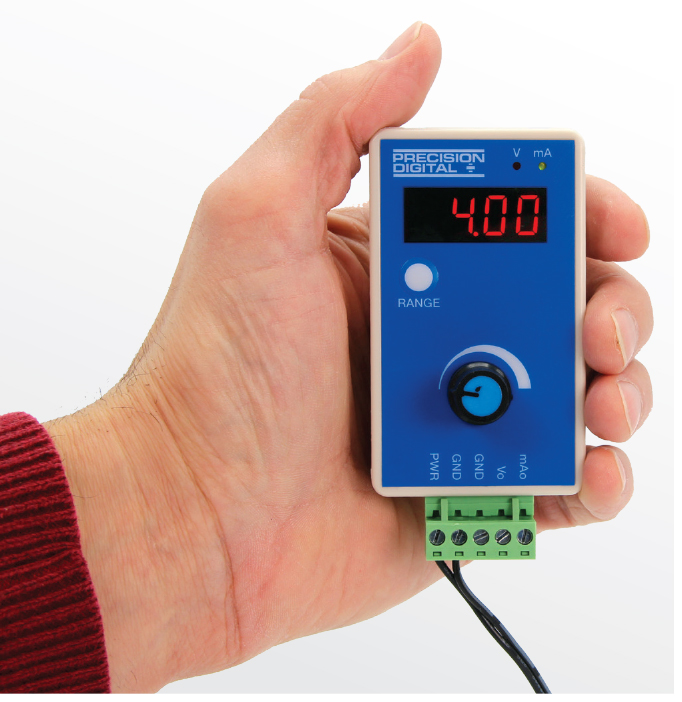

The PD9502 is a low-cost, compact, simple to use 4-20 mA or 0-10 VDC signal generator. It can easily be set for 0-20 mA, 4-20 mA, 0-10 V or 2-10 V ranges. Signal adjustment is made with a one-turn knob. A 15-27 VDC wall plug is provided with the instrument. Optional USB power bank is available.
Features
- 0-20 / 4-20 mA or 0-10 / 2-10 VDC Ranges
- Low-Cost
- Simple to Use
- Compact Size
- 4-Digit LED Display
- One-Turn Adjustment Knob
- ±05 %±1 Count Accuracy
- Power 15-27 VDC or USB Power Bank
Dimensions Units: Inches (mm)
Notes:
1. Panel cutout required: 1.772 x 3.622 (45 x 92)
2. Panel thickness: 0.040 – 0.250 (1.0 – 6.4)
3. Mounting brackets lock in place for easy mounting
Back to topConnections
Note: The Trident PD765 does not have external button contacts like the PD765 X2, so it cannot be used with the Light / Horn accessory.
Back to top
