- House up to 10 Instruments
- Horizontal, Vertical or No Cutouts
- 1/4, 1/8, and 1/16 DIN Cutout(s) Pre-Cut
- NEMA 4X
- Hinged Door
- Stainless Steel Cover Latches
- Instruments Mounted in Cover
- Sub-Panels Available
- Mounting Hardware Provided
- PDA1024-01 24 VDC Power Supply Available
- UL Listed
- Light / Horn & Button

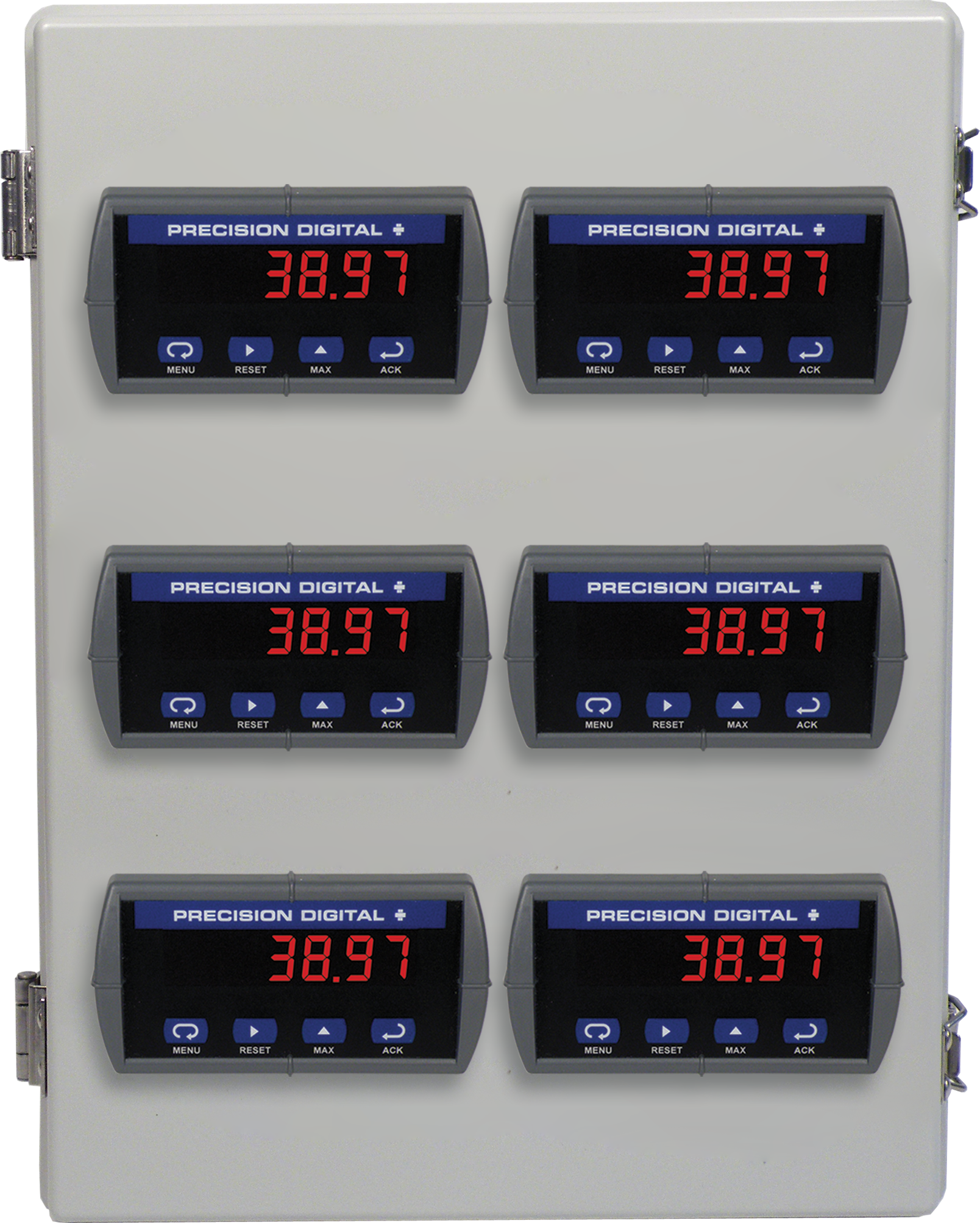

The PDA2300 series of economical plastic NEMA 4X enclosures for meters and controllers provides a convenient way to mount up to ten Precision Digital meters / controllers to walls and other vertical structures. Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply.
Sub-panels are available to mount additional devices to the base of the enclosure. These enclosures come pre-cut with horizontal or vertical 1/4, 1/8, or 1/16 DIN cutouts, or they can be ordered with no cutouts. The instruments are mounted in the door of the enclosure thus allowing for programming and operation of the instrument. Mounting hardware is provided. The door is hinged and secured with stainless steel latches. Enclosures, meters/controllers and accessories are ordered and packaged separately.
The PDA2300 enclosures include four mounting flanges and four screws for your convenience. Using the included screws and a phillips head screwdriver simply assemble each flange in the four threaded screw holes on the back of the enclosure as shown in the example below. Now the enclosure is ready to be easily mounted to a wall.
The PDA2301 series enclosures with supplied mounting flanges installed
The PDA2300 series enclosures is supplied with 4 screws and 4 mounting flanges
Cover Securing Method
The cover is secured using stainless steel clasps.
The PDP2303, PDP2308, PDP2310 sub-panels provide a convenient way to mount additional items to the base of the enclosure. They can be drilled to accept screws for easy mounting of relays, contactors, securing wiring clips, or installing other internal devices. See chart below for compatibility.
PDP2303: 7.87" × 11.81"
(200 mm × 300 mm)
PDP2308: 11.81" × 15.75"
(300 mm × 400 mm)
PDP2310: 14.1" × 18.0"
(358 mm × 458 mm)
Material: ABS Plastic
Mounting hardware is included.
|1/8 DIN Horizontal Cutouts|
|1/8 DIN Vertical Cutouts|
|1/4 DIN Vertical Cutouts|
|1/16 DIN Vertical Cutouts|
PDA1024-01 24 VDC Power Supply for DIN Rail
The PDA1024-01 is a DIN rail mounted 24 VDC, 1.5 A power supply.
Output Voltage: 21.6 ~ 26.4 VDC; ±10% 1.5A rated current.
3.07" x 3.66" x 2.20"
(78 mm x 93 mm x 56 mm)
(W x H x D)
PDA-SSTAG Stainless Steel
PDA-SSTAG is a laser etched stainless steel tag accessory for any Precision Digital meters / controllers. The tag features custom text for equipment identification, instruction, or whatever else is needed in your facility. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need it.
PDX18DIN-FILLER 1/8 DIN Cutout Filler
The PDX18DIN-FILLER NEMA 4X 1/8 DIN cutout filler is used to cover up empty 1/8 DIN cutouts and maintain the NEMA 4X rating to the panel or enclosure. It consists of a generic bezel with a black faceplate, as well as mounting brackets, gasket, etc.
PDA-BUTTON Momentary Pushbutton
The PDA-BUTTON Series are IP67 fully sealed momentary pushbuttons that can be used for a variety of applications, such as resetting the manually-resettable relays on various Precision Digital meters. They are available with red, black and green buttons.
The button comes with 9 pre-printed message labels the user can affix under the button: RESET, BATCH, ACK, TARE, SILENCE, STOP, START, PAUSE, START/STOP.
MOD-BUTTON Pushbutton with Hole Drilled in Enclosure
When this is ordered, the enclosure comes pre-drilled with a hole for pushbutton to be installed by user. Enclosure is sold separately. The pushbutton is centered on the cover of the enclosure about an inch off the bottom. For mounting in different locations, order items separately and drill holes and mount as desired. Other pushbutton colors are available.
PDA2300 Series Enclosure with Light / Horn
PDA2301 Enclosure Shown with a ProVu Meter and MOD-LH Light / Horn and Button. Meter & MOD-LH Sold Separately. Assembly Required.
Light / Horn Accessories
Precision Digital offers the PDA-LH, a Light / Horn that can be mounted to any PDA2300 series enclosures by the user. This Light / Horn can be wired to flash or stay steady on and the horn is rated at 85 dB. The light and horn can be controlled independently of each other via separate relays on the meter / controller such that the horn can be programmed to silence via a button mounted to the enclosure and the light can be programmed to stay on until the alarm clears.
The light / horn and button are all rated NEMA 4X or IP65. The following table illustrates a typical way the Light / Horn accessory can be wired and programmed using the four relays on the ProVu meter:
|Relay #||Connected to||Typical reset method|
|1||Flashing Light(1)||Auto reset|
|2||Horn||Silence with button at any time|
|3||User Device||As user desires|
|4||User Device||As user desires|
1. Light can be wired to flash or stay steady on
- The Light / Horn accessory is powered from the 200 mA transmitter power supply; so when it is installed, there is less power available for the transmitter. See MOD-LH Series manual for details.
MOD-LH Light / Horn Accessories
When the MOD-LH is ordered, the enclosure comes pre-drilled with holes for the Light / Horn and Button to be installed by user. Meter / controller and enclosure are sold separately. The Light / Horn hole is in the back left corner of the enclosure and the button is centered on the cover of the enclosure about an inch off the bottom. For mounting in different locations, order items separately and drill holes and mount as desired. Other light and button colors are available.
