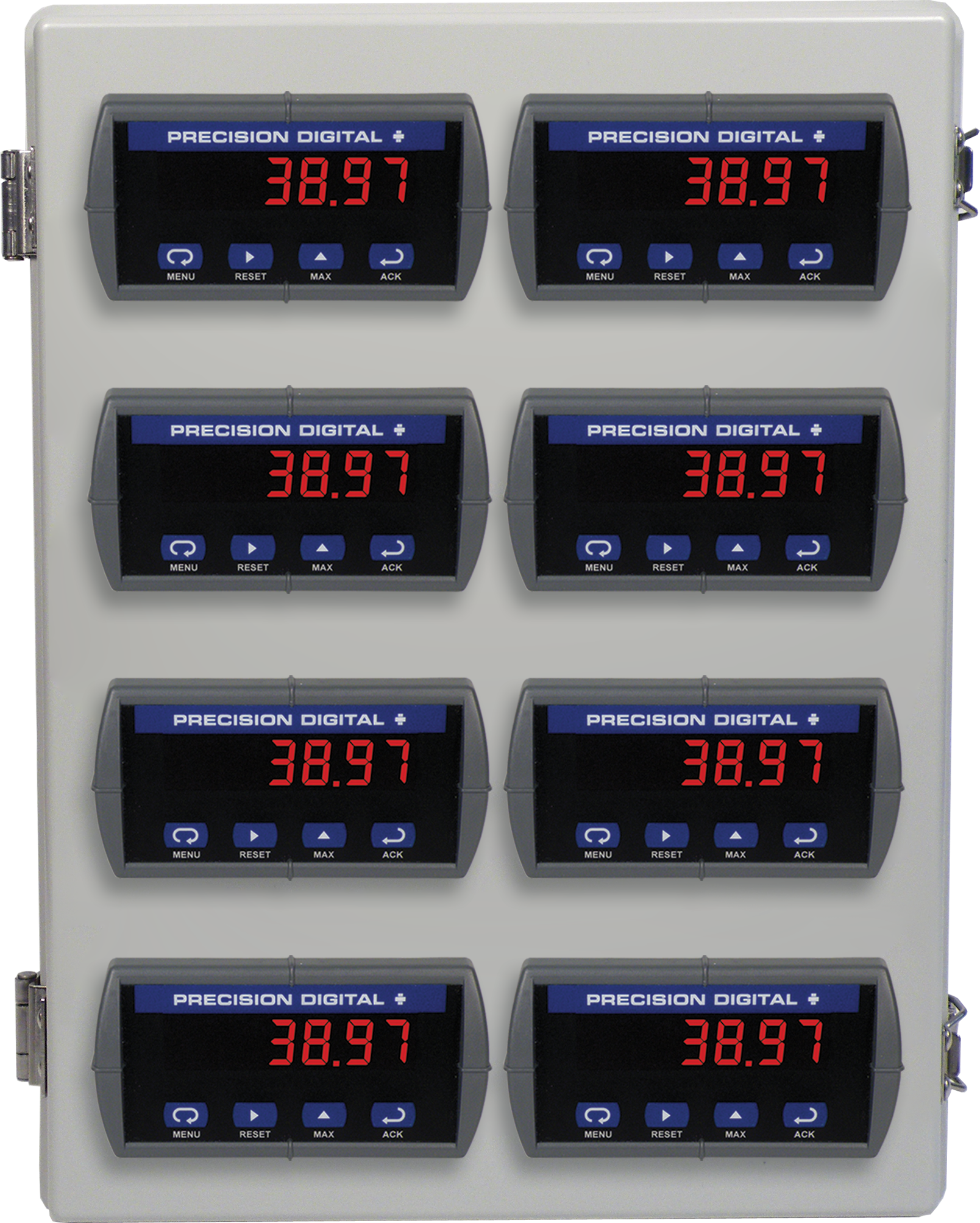

Model: PDA2308

PDA2300 Series NEMA 4X Plastic Enclosures

UL Listing
SKU: PDA2308
Product Type: NEMA 4X Enclosure
Materials: Plastic
Cutouts: Eight (8)
Meter Mounting: Through front panel
Orientation: Horizontal
Approvals: UL/C-UL
Warranty: 1 year
Product Family: PDA2300
Product category: Enclosures
Product Application: Enclosures
Cover Method: Hinge / Hasp
Cutout DIN Size: 1/8 DIN
Applicable Meter Types: A, B, C, E

Features

  • House up to 10 Instruments
  • Plastic
  • Horizontal, Vertical or No Cutouts
  • 1/4, 1/8, and 1/16 DIN Cutout(s) Pre-Cut
  • NEMA 4X
  • Hinged Door
  • Stainless Steel Cover Latches
  • Instruments Mounted in Cover
  • Sub-Panels Available
  • Mounting Hardware Provided
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed
  • Light/Horn & Button

Overview

The PDA2300 series of economical plastic NEMA 4X enclosures for meters and controllers provides a convenient way to mount up to ten Precision Digital meters / controllers to walls and other vertical structures. Many of these enclosures also have room for additional devices like a light/horn and a 24 V transmitter power supply.

Sub-panels are available to mount additional devices to the base of the enclosure. These enclosures come pre-cut with horizontal or vertical 1/4, 1/8, or 1/16 DIN cutouts, or they can be ordered with no cutouts. The instruments are mounted in the door of the enclosure thus allowing for programming and operation of the instrument. Mounting hardware is provided. The door is hinged and secured with stainless steel latches. Enclosures, meters/controllers and accessories are ordered and packaged separately.

Wall Mounting

The PDA2300 enclosures include four mounting flanges and four screws for your convenience. Using the included screws and a phillips head screwdriver simply assemble each flange in the four threaded screw holes on the back of the enclosure as shown in the example below. Now the enclosure is ready to be easily mounted to a wall.

PDA2300 series with mounting flanges

The PDA2301 series enclosures with supplied mounting flanges installed

PDA2300 screws and mounting flanges

The PDA2300 series enclosures is supplied with 4 screws and 4 mounting flanges

Cover Securing Method

The cover is secured using stainless steel clasps.

PDA2300 cover

Accessories

Sub-Panels

The PDP2303, PDP2308, PDP2310 sub-panels provide a convenient way to mount additional items to the base of the enclosure. They can be drilled to accept screws for easy mounting of relays, contactors, securing wiring clips, or installing other internal devices. See chart below for compatibility.

sub-panels
Sub-Panel Specifications

Size:
PDP2303: 10.5" × 6.5"
(266 mm x 166 mm)
PDP2308: 14.4" × 10.4"
(365 mm x 265 mm)
PDP2310: 18.0" × 14.1"
(458 mm x 358 mm)
Material: ABS Plastic
Mounting hardware is included.

ModelPDP2303PDP2308PDP2310
1/8 DIN Horizontal Cutouts
PDA2301
PDA2302
PDA2303
PDA2304
PDA2304-1
PDA2304-2
PDA2304-3
PDA2305
PDA2306
PDA2307
PDA2308
PDA2309
PDA2310
PDA2312
1/8 DIN Vertical Cutouts
PDA2301-V
PDA2302-V
PDA2303-V
PDA2304-V
PDA2305-V
PDA2306-V
PDA2322
1/4 DIN Vertical Cutouts
PDA2301-4
PDA2302-4
1/16 DIN Vertical Cutouts
PDA2301-16
PDA2302-16
No Cutouts
PDA2303-B
PDA2308-B
PDA2310-B

PDA1024-01 24 VDC Power Supply for DIN Rail

PDA1024-01 24 VDC Power Supply for DIN Rail

The PDA1024-01 is a DIN rail mounted 24 VDC, 1.5 A power supply.

Specifications

Output Voltage: 21.6 ~ 26.4 VDC; ±10% 1.5A rated current.
Dimensions:
3.07" x 3.66" x 2.20"
(78 mm x 93 mm x 56 mm)
(W x H x D)

PDA-SSTAG Stainless Steel
Tags

PDA-SSTAG Stainless Steel Tags

PDA-SSTAG is a laser etched stainless steel tag accessory for any Precision Digital meters / controllers. The tag features custom text for equipment identification, instruction, or whatever else is needed in your facility. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need it.

PDX18DIN-FILLER 1/8 DIN Cutout Filler

PDX18DIN-FILLER 1/8 DIN Cutout Filler

The PDX18DIN-FILLER NEMA 4X 1/8 DIN cutout filler is used to cover up empty 1/8 DIN cutouts and maintain the NEMA 4X rating to the panel or enclosure. It consists of a generic bezel with a black faceplate, as well as mounting brackets, gasket, etc.



PDA-BUTTON Momentary Pushbutton

PDA-BUTTON Momentary Pushbutton

The PDA-BUTTON Series are IP67 fully sealed momentary pushbuttons that can be used for a variety of applications, such as resetting the manually-resettable relays on various Precision Digital meters. They are available with red, black and green buttons.

Button Labels
Button Labels

The button comes with 9 pre-printed message labels the user can affix under the button: RESET, BATCH, ACK, TARE, SILENCE, STOP, START, PAUSE, START/STOP.



MOD-BUTTON Pushbutton with Hole Drilled in Enclosure

When this is ordered, the enclosure comes pre-drilled with a hole for pushbutton to be installed by user. Enclosure is sold separately. The pushbutton is centered on the cover of the enclosure about an inch off the bottom. For mounting in different locations, order items separately and drill holes and mount as desired. Other pushbutton colors are available.

MOD-BUTTON Pushbutton with Hole Drilled in Enclosure


PDA2300 Series Enclosure with Light/Horn

Transform Precision Digital meters and controllers housed in an enclosure into an efficient display, control, and alarm system with the MOD-LH series. It provides a light/horn to boost visibility of alarm conditions, a button that connects to the meter's digital input to control or reset the alarms, and hole drilling on the enclosure for both the light/horn and button to make user installation and wiring quick and easy. Enclosure and meter are sold separately.

The MOD-LH series is compatible with a wide range of Precision Digital NEMA 4 and NEMA 4X enclosures as well as meters and controllers including the ProVu, Trident, Loop Leader, and ConsoliDator+ Series.

Overall, the MOD-LH series is a simple solution for Precision Digital meters housed in an enclosure that adds audible and visual ways to indicate critical alarms.

MOD-LH Series

ProVu Meter Shown in a PDA2301 Enclosure with MOD-LHRB1 Red Light/Horn and Button. Meter & Enclosure Sold Separately. Assembly Required.

What's Included
Check mark Light/Horn

Light/Horn

Check mark Button

Button and 9 Labels

Check mark Enclosure Drilling

Hole Drilling on Enclosure

X mark Meter

Meter

X mark Enclosure

Enclosure

X mark Installation

Installation and Wiring

Meter and enclosure sold separately. User installation and wiring required.



Dimensions
Light/Horn
Light/Horn Dimensions
Button
Button Dimensions



PDA18DINSH Stainless Steel Sun Hood for 1/8 DIN Panel Meters

PDA18DINSH Sun Shade

Meter & Enclosure Sold Separately. Assembly Required.

The PDA18DINSH Sun Hood improves the readability of 1/8 DIN digital panel meters when they are mounted in direct sunlight by shading the instrument from the sun.

The Sun Hood is made from 18 gauge 316 stainless steel and mounts between the 1/8 DIN digital panel meter and the panel. In addition, a gasket is provided that installs between the Sun Hood and the panel to provide a NEMA 4X seal to the panel. The whole assembly is held in place by the panel meter’s mounting brackets.



Dimensions
Units: Inches (mm)
PDA18DINSH Sun Hood Dimensions

PDA18DINSH Overall Dimensions

PDA18DINSH Sun Hood 1/8 DIN Cutout

PDA18DINSH 1/8 DIN Cutout

Note: These specifications apply to the entire product series and may contain information that is not relevant to this particular model number.

General

Material: Thermoplastic Polyester
Color: Gray
Instruments: Houses up to 10 meters / controllers
Instrument Mounting Method: Through cover
Cover Mounting Method: Hinge / Hasp
Ratings: NEMA 4X
Approvals: UL, C-UL
Operating Temperature: -40 to 120°C
Warranty: 1 year

Instrument Types

Type Instruments
C PD603, PD644, PD743, PD765, PD6602, PD6603, PD6604, PD6606, PD6607, PD6608, PD6622, PD6624, and PD6626, and PD6628
D PD138, PD154, PD158, and PD520
E PD6000, PD6001, PD6060, PD6080, PD6081, PD6088, PD6089, PD6100, PD6200, PD6210, PD6262, PD6300, PD6310, PD6310-WM, PD6363, PD6400, and PD7000
F PD530
G PD510

Features

Available 1 Required

Model# of CutoutsInstrument Type
CDEFG
Fits
PDA1024-01
Fits
Light/Horn
1/8 DIN Horizontal Cutouts
PDA23011

YesYes
PDA23022

YesYes
PDA23033

YesYes
PDA23044

YesYes
PDA2304-11

YesYes
PDA2304-22

YesYes
PDA2304-33

YesYes
PDA23055

YesYes
PDA23066

YesYes
PDA23122

YesYes
PDA23077

YesYes
PDA23088

YesYes
PDA23099

YesYes
PDA231010

YesYes
1/8 DIN Vertical Cutouts
PDA2301-V1

YesYes
PDA2302-V2

YesYes
PDA23222

YesYes
PDA2303-V3

YesYes
PDA2304-V4

YesYes
PDA2305-V5

YesYes
PDA2306-V6

YesYes
1/4 DIN Cutouts
PDA2301-41

YesYes
PDA2302-42

YesYes
1/16 DIN Cutouts
PDA2301-161

YesYes
PDA2302-162

YesYes
No Cutouts
PDA2303-BNone
N/A
YesYes
PDA2308-BNone
N/A
YesYes
PDA2310-BNone
N/A
YesYes

Dimensions

Units: Inches (mm)

Small Enclosures

small enclosure dimensions

Weight: 3.15 lbs (1.43 kg)

Dimensions for: PDA2301, PDA2301-4, PDA2301-16, PDA2301-V, PDA2302, PDA2302-4, PDA2302-16, PDA2302-V, PDA2303, PDA2303-B, PDA2322.


Medium Enclosures

medium enclosure dimensions

Weight: 5.50 lbs (2.49 kg)

Dimensions for: PDA2303-V, PDA2304, PDA2304-V, PDA2304-1, PDA2304-2, PDA2304-3, PDA2305, PDA2305-V PDA2306, PDA2306-V, PDA2307, PDA2308, PDA2308-B, PDA2312.


Large Enclosures

large enclosure dimensions

Weight: 8.75 lbs (3.97 kg)

Dimensions for: PDA2309, PDA2310, PDA2310-B.
