Product Type: NEMA 4X Enclosure
Cutouts: One (1)
Meter Mounting: Through front panel
Warranty: 1 year
Product Family: PDA2300
Product Category: Enclosures
Product Application: Enclosures
Cover Method: Hinge / Hasp
Cutout DIN Size: 1/8 DIN
Applicable Meter Types: A, B, C, E
- House up to 10 Meters
- Horizontal, Vertical or No Cutouts
- 1/8 DIN Cutout(s) Pre-Cut
- NEMA 4X
- Hinged Door
- Stainless Steel Cover Latches
- Meter Mounted in Cover
- Sub-Panels Available
- Mounting Hardware Provided
- PDA1024-01 24 VDC Power Supply Available
- UL Listed
- Light / Horn & Reset Button

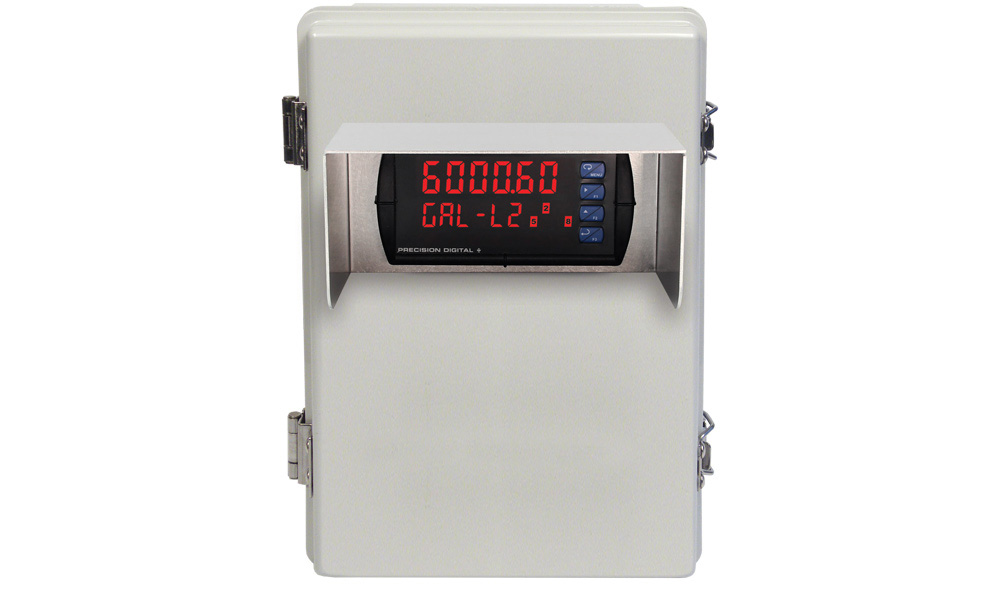

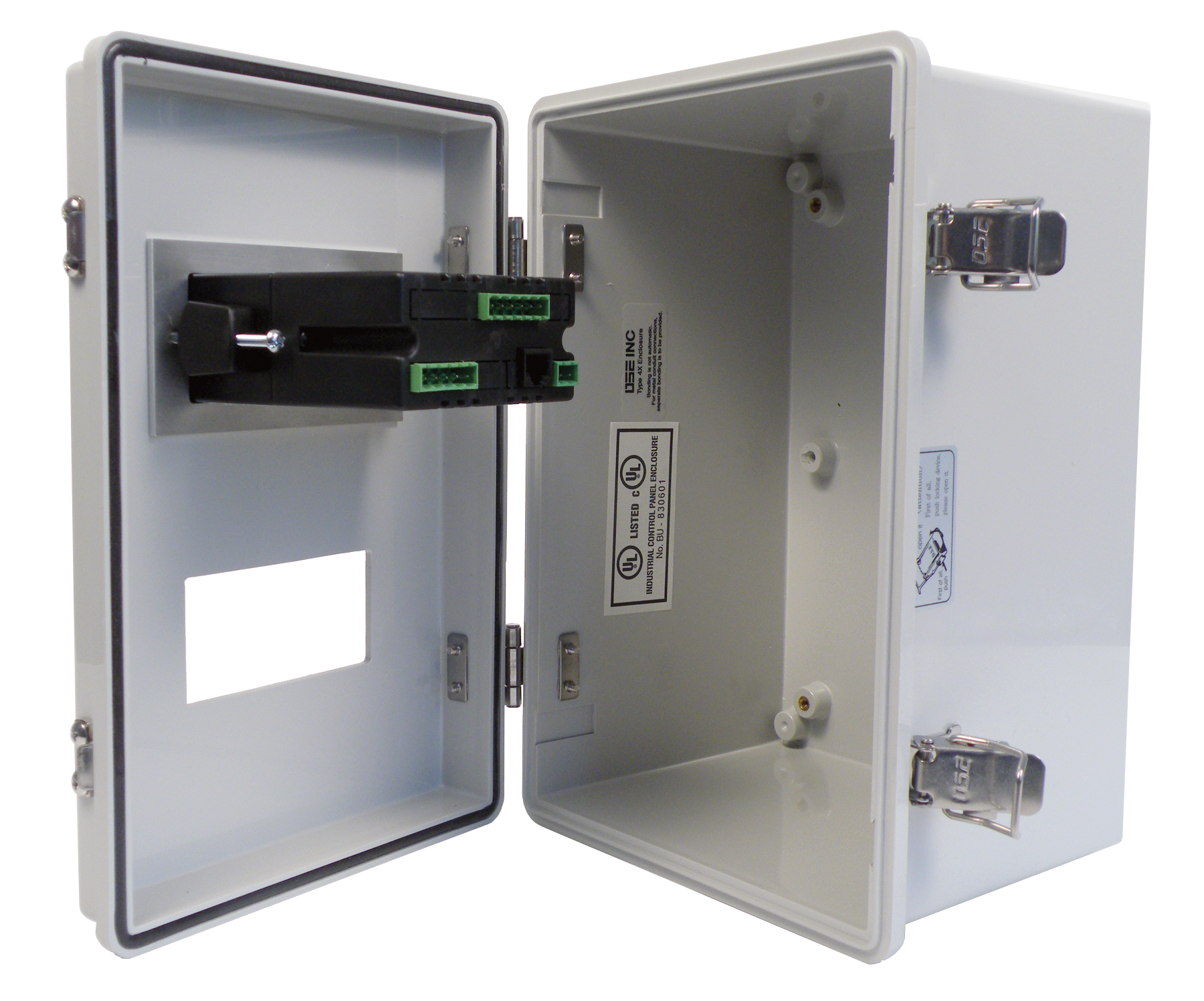

The PDA2300 series of economical plastic NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provides a convenient way to mount up to ten Precision Digital meters to walls and other vertical structures. Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply. Sub-panels are available to mount additional devices to the base of the enclosure. These enclosures come pre-cut with horizontal or vertical 1/8 DIN cutouts or they can be ordered with no cutouts. The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter. Mounting hardware is provided. The door is hinged and secured with stainless steel latches. Enclosures, meters and accessories are ordered and packaged separately.
The PDA2300 enclosures include four mounting flanges and four screws for your convenience. Using the included screws and a phillips head screwdriver simply assemble each flange in the four threaded screw holes on the back of the enclosure as shown in the example below. Now the enclosure is ready to be easily mounted to a wall.
The PDA2301 series enclosures with supplied mounting flanges installed
The PDA2300 series enclosures is supplied with 4 screws and 4 mounting flanges
COVER SECURING METHOD
The cover is secured using stainless steel clasps.
The PDP2303, PDP2308, PDP2310 sub-panels provide a convenient way to mount additional items to the base of the enclosure. They can be drilled to accept screws for easy mounting of relays, contactors, securing wiring clips, or installing other internal devices. See chart below for compatibility.
PDP2303: 7.87" × 11.81"
(200 mm × 300 mm)
PDP2308: 11.81" × 15.75"
(300 mm × 400 mm)
PDP2310: 14.1" × 18.0"
(358 mm × 458 mm)
Material: ABS Plastic
Mounting hardware is included.

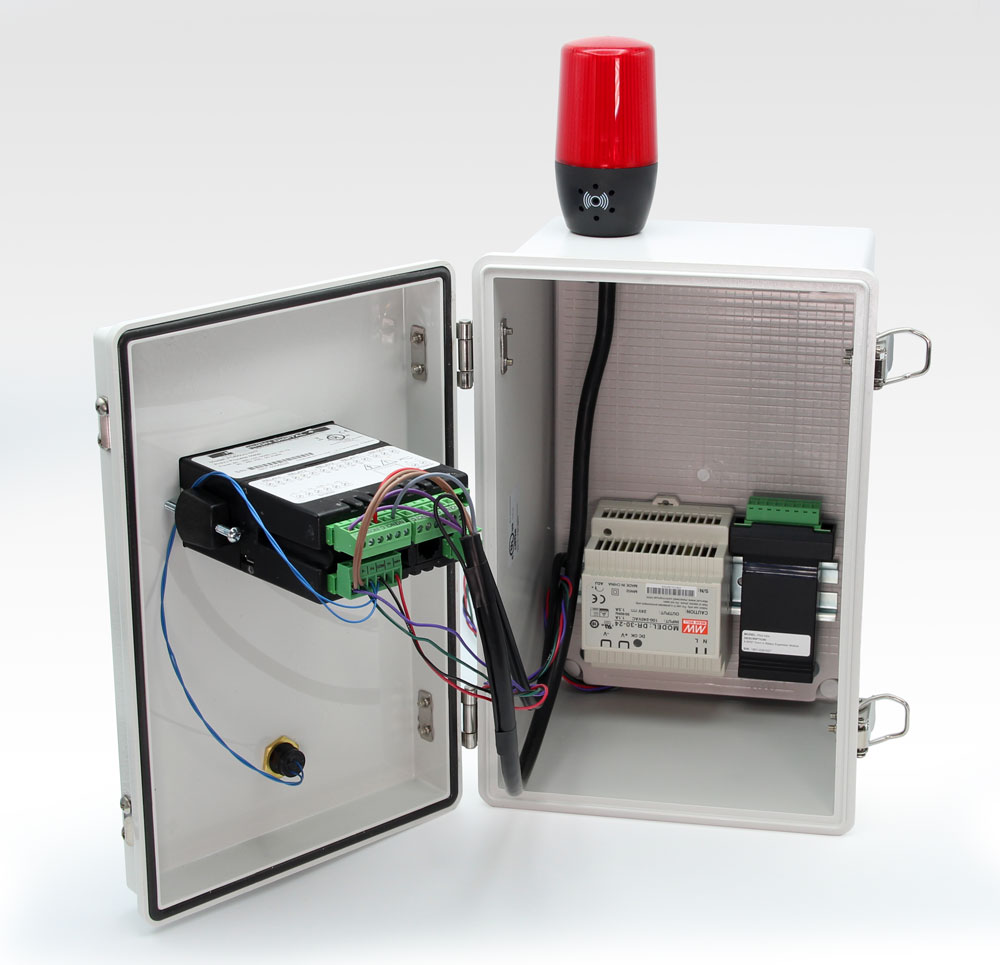

PDA1024-01 24 VDC Power Supply for DIN Rail
The PDA1024-01 is a DIN rail mounted 24 VDC, 1.5 A power supply.
Output Voltage: 21.6 ~ 26.4 VDC; ±10% 1.5A rated current.
Dimensions: 3.07" x 3.66" x 2.20"
(78 mm x 93 mm x 56 mm) (W x H x D)
PDA-SSTAG Stainless Steel Tags
PDA-SSTAG is a laser etched stainless steel tag accessory for any of your Precision Digital meters. The tag features custom text for equipment identification, instruction, or whatever else is needed in your facility. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need it.
PDX18DIN-FILLER 1/8 DIN Cutout Filler
The NEMA 4X 1/8 DIN cutout filler is used to cover up empty 1/8 DIN cutouts and maintain the NEMA 4X rating to the panel or enclosure. It consists of a generic bezel with a black faceplate, as well as mounting brackets, gasket, etc.
PDA2300 Series Enclosure with Light / Horn

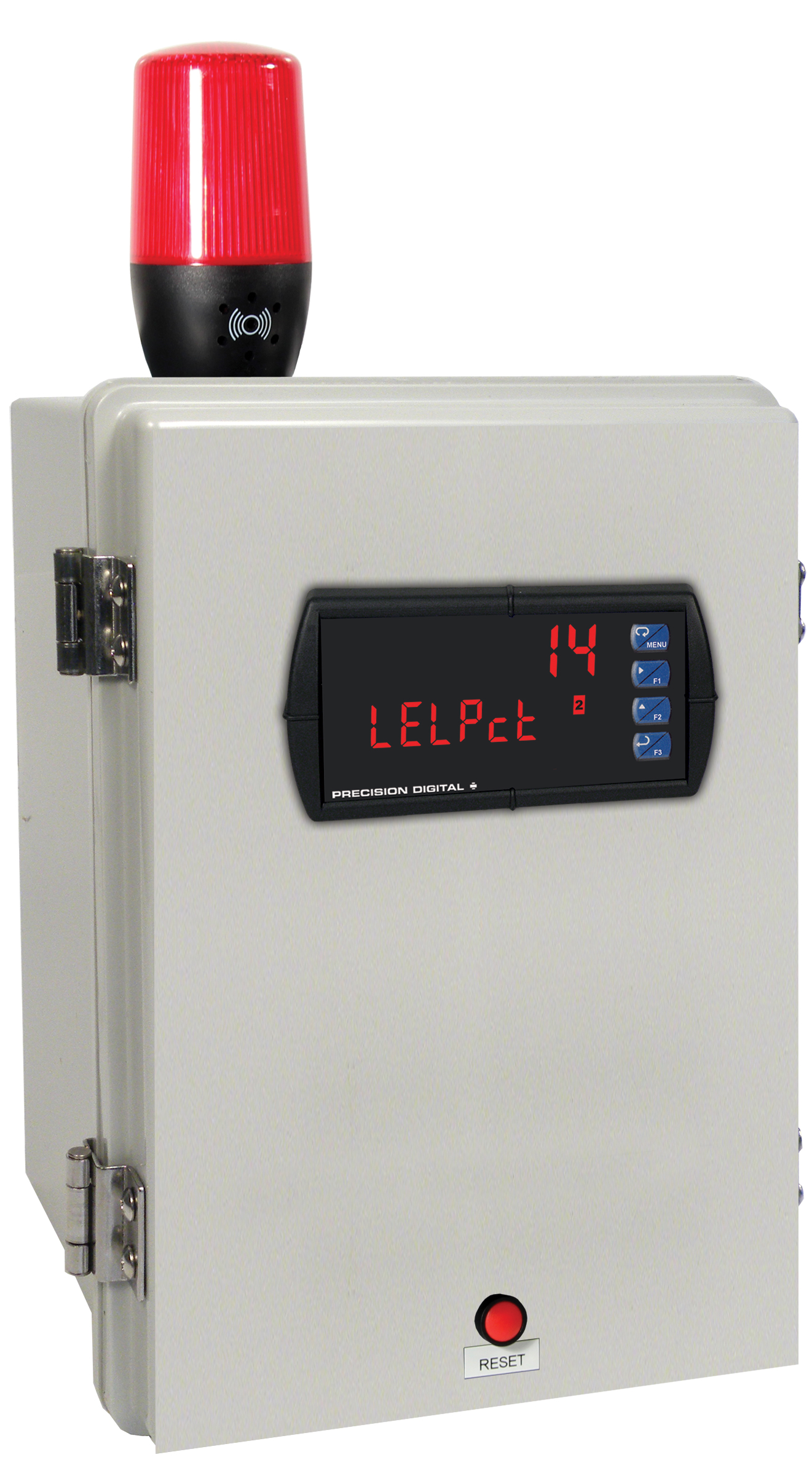

PDA2301 Enclosure Shown with a ProVu Meter and MOD-LH Light / Horn and Reset Button. Meter & MOD-LH Sold Separately. Assembly Required.
Light / Horn Accessories
Precision Digital offers a Light / Horn that can be mounted to any PDA2300 series enclosures by the user. This Light / Horn can be wired to flash or stay steady on and the horn is rated at 85 dB. The light and horn can be controlled independently of each other via separate relays on the meter such that the horn can be programmed to silence via a button mounted to the enclosure and the light can be programmed to stay on until the alarm clears.
The light / horn and reset button are all rated NEMA 4X or IP65. The following table illustrates a typical way the Light / Horn accessory can be wired and programmed using the four relays on the ProVu meter:
|Relay #||Connected to||Typical reset method|
|1||Flashing Light(1)||Reset automatically after alarm clears|
|2||Horn||Silence with Reset Button at any time|
|3||User Device||As user desires|
|4||User Device||As user desires|
1. Light can be wired to flash or stay steady on
- The Light / Horn accessory is powered from the 200 mA transmitter power supply; so when it is installed, there is less power available for the transmitter. See MOD-LH and MOD-LHX2 Series manuals for details.
- See MOD-LHX2 manual for typical wiring diagrams using the Trident X2 meter, which has a capacity of only two relays.
MOD-LH & MOD-LHX2 Light / Horn Accessories
When these are ordered, the enclosure comes pre-drilled with holes for the Light / Horn and Reset Button to be installed by user. Meter and enclosure are sold separately. The Light / Horn hole is in the back left corner of the enclosure and the Reset button is centered on the side of the enclosure about an inch off the bottom. For mounting in different locations, order items separately and drill holes and mount as desired. Other light and button colors are available.
Light / Horn Dimensions Units: Inches (mm)
Note: These specifications apply to the entire product series and may contain information that is not relevant to this particular model number.
Material: Thermoplastic Polyester
Meters: Houses up to 10 meters
Meter Mounting Method: Through cover
Cover Mounting Method: Hinge / Hasp
Ratings: NEMA 4X
Approvals: UL, C-UL
Operating Temperature: -40 to 120°C
Warranty: 1 year
1/8 DIN Meter Types
|B||PD542, PD543, and PD562|
|C||PD603, PD644, PD743, PD765, PD6602, PD6603, PD6604, PD6606, PD6607, PD6608, PD6622, PD6624, and PD6626, and PD6628.|
|D||PD138, PD154, and PD158|
|E||PD6000, PD6001, PD6060, PD6080, PD6081, PD6088, PD6089, PD6100, PD6200, PD6210, PD6262, PD6300, PD6310, PD6310-WM, PD6363, PD6400, and PD7000|
• Available ⊙ 1 Required
|Model||# of Meters||1/8 DIN Meter Type|
Units: Inches (mm)
Weight: 3.15 lbs (1.43 kg)
Dimensions for: PDA2301, PDA2301-V, PDA2302, PDA2302-V, PDA2303, PDA2303-B, PDA2322.
Weight: 5.50 lbs (2.49 kg)
Dimensions for: PDA2303-V, PDA2304, PDA2304-V, PDA2304-1, PDA2304-2, PDA2304-3, PDA2305, PDA2305-V PDA2306, PDA2306-V, PDA2307, PDA2308, PDA2308-B, PDA2312.
Weight: 8.75 lbs (3.97 kg)
Dimensions for: PDA2309, PDA2310, PDA2310-B.
Note: This tab applies to the entire product series and may contain information that is not relevant to this particular model number.
