- 1/8 DIN Loop-Powered Process Meters with Type 4X, NEMA 4X, IP65 Front
- 4-20 mA Input Displayed with ±0.02% FS Accuracy
- 1.5 Volt Drop (4.5 Volt Drop with Backlight) 0.7" (17.8 mm) 5 Alphanumeric Characters Top Display
- 0.4" (10.2 mm) 8 Alphanumeric Characters Bottom Display
- 20-Segment Bargraph with Numeric Percent Indication, Optional
- Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel
- (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
- (2) Optional Loop-Powered Solid State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
- Stopwatch & Timer Functions to Drive Relays & Open Collectors
- Optional Isolated 4-20 mA Analog Output
- Relay Pump Alternation Based on Level and Runtime
- Display Relay Runtime & Cycle Count via Relay Info Menu
- Round Horizontal Tank Function; Just Enter Diameter & Length
- 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
- Free PC-Based MeterView XL USB Programming Software
- HART® Protocol Transparent

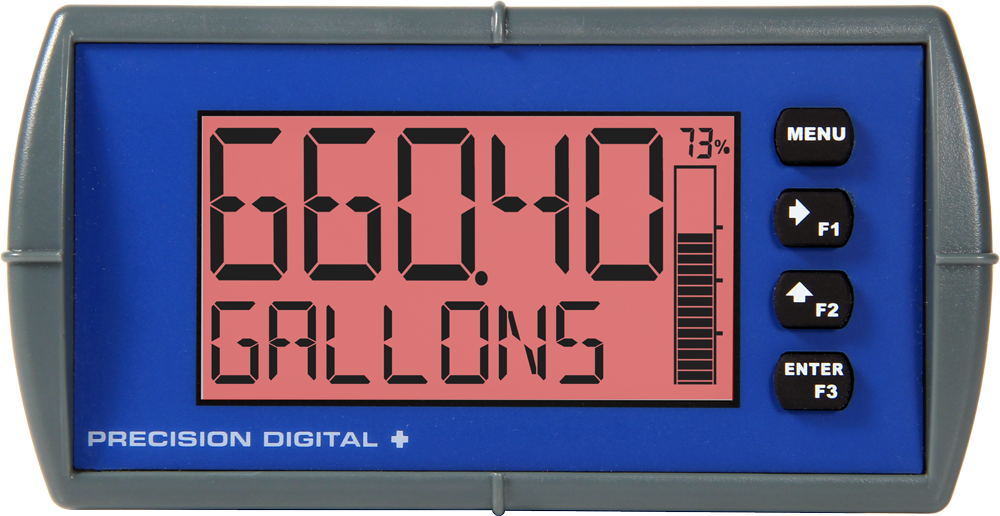

- Loop-Powered Backlight with Red Backlight for Alarm Conditions
- Safe Area Operating Temperature Range: -40 to 167°F (-40 to 75°C)
- Conformal Coated PCBs for Dust & Humidity Protection
- Password Protection
- UL & C-UL Listed as Intrinsically Safe and Nonincendive
- ATEX and IECEx Certified as Intrinsically Safe
- Wide Assortment of NEMA 4X Enclosures for up to Ten Meters
- Light / Horn & Reset Button Accessory
- Control Station Accessory for Remote Operation of Instrument
- Stainless Steel Sun Hood Accessory Available
- 3-Year Warranty
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300
- Accessories
- Annunciators & Scanners
- Calibrators, Signal Isolators, Splitters, & Generators
- Control Stations
- Custom Enclosure Assembly
- Demo Units
- Digital Panel Meters
- Enclosures
- Explosion-Proof
- Field-Mount Indicators
- Industrial Wireless
- Intrinsically Safe
- Large Display
- Light/Horn
- Loop-Powered Meters
- Modbus Displays
- Modifications
- Multi-Channel Controllers
- Process Value Alarm Enclosure Assembly
- Sun Hoods
- Subpanel Wiring Assembly
- Temperature Controllers
- Level
- Level (Feet & Inches)
- Process
- Pressure
- Temperature
- Flow Rate/Totalizer
- Pump Control
- Chemical Bulk Storage
- Strain Gauge
- Load Cell
- Hazardous Area
- Industrial Wireless
- Batch Control
- PID Control
- Modbus
- Annunciator
- Calibration
- Data Logging
- Signal Conditioning
- Signal Generation
- Signal Isolating
- Signal Splitting
- High Current
- Speed
- Weight

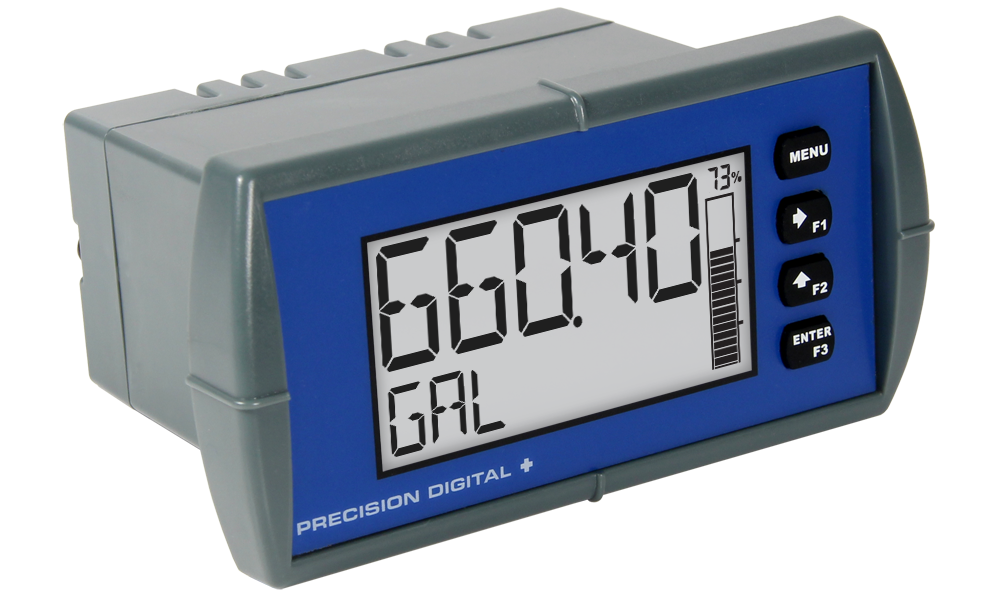

Loop Leader Intrinsically Safe & Nonincendive Loop-Powered Process Meter

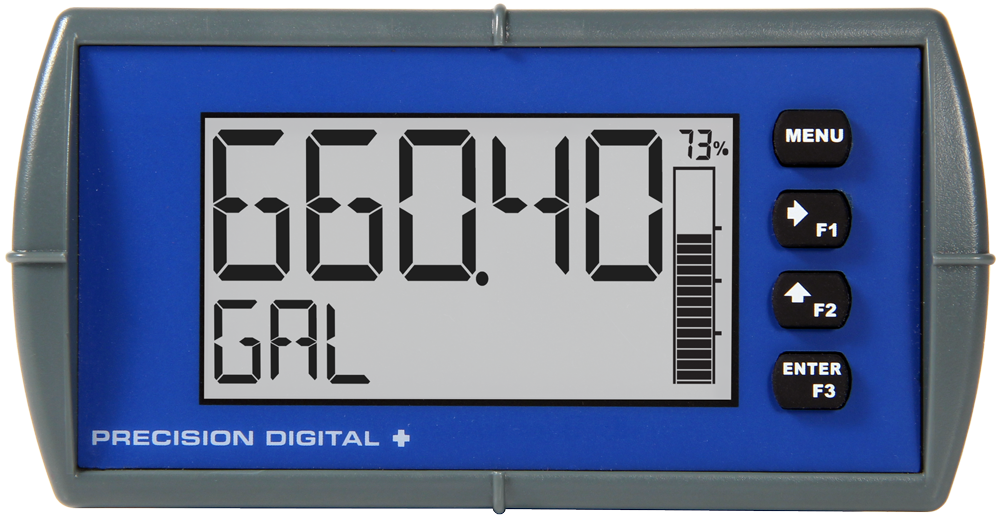

PD6606 Left
Models in stock
from $413.00

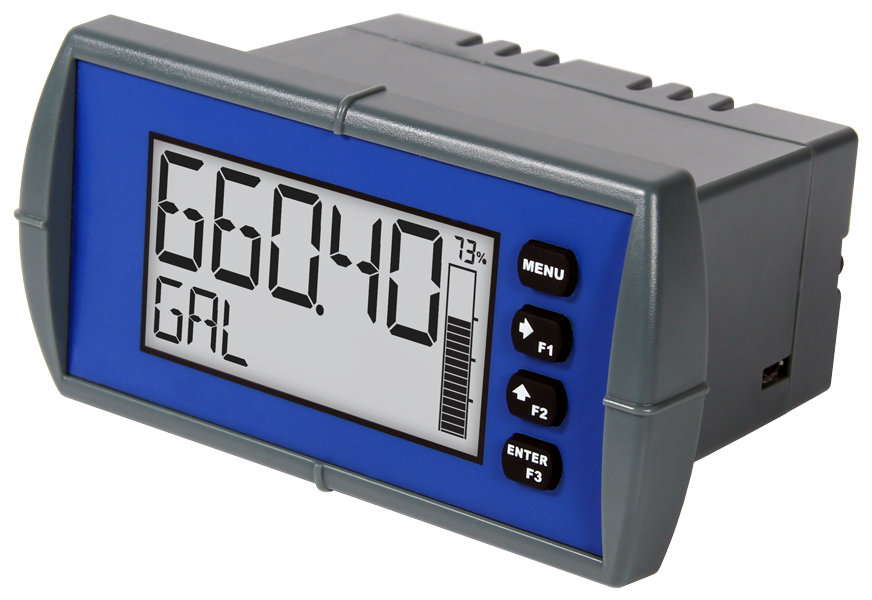

The PD6606 Loop Leader is an intrinsically safe and nonincendive loop-powered 1/8 DIN digital panel meter for displaying any 4-20 mA process signal in hazardous areas without requiring a separate power supply. It features a dual-line LCD with a 5-digit alphanumeric top display for the process variable and an 8-digit alphanumeric bottom display for engineering units, a tag, or a custom message. As the agency-approved process display model in the Loop Leader series, the PD6606 is ideal for local indication where a clear, informative readout is needed in hazardous areas. It also features a Type 4X/NEMA 4X/IP65 front and two-color backlighting for excellent visibility in demanding environments. A built-in micro USB connection allows the meter to be programmed with free MeterView XL software. The PD6606 comes standard with two open collector outputs and one digital input, and models are available with two solid-state relays and an isolated 4-20 mA output. The PD6606 is UL and C-UL Listed as Intrinsically Safe and Nonincendive, and ATEX and IECEx Certified as Intrinsically Safe.
Why Should You Buy:
- Loop-Powered
- Intrinsically Safe & Nonincendive
- Free Programming Software
- Flashing Red Display / Message on Alarm
- Decimal Display
- Discrete and Analog Output Options
The PD6606 Loop Leader is an intrinsically safe and nonincendive loop-powered 1/8 DIN digital panel meter for displaying any 4-20 mA process signal in hazardous areas. Its dual-line LCD provides clear local indication, with a 5-digit alphanumeric top display for the process variable and an 8-digit alphanumeric bottom display for engineering units, a tag, or a custom message. As the agency-approved process display model in the Loop Leader series, the PD6606 is a strong fit for applications that need a compact, informative meter for local process indication in hazardous areas.

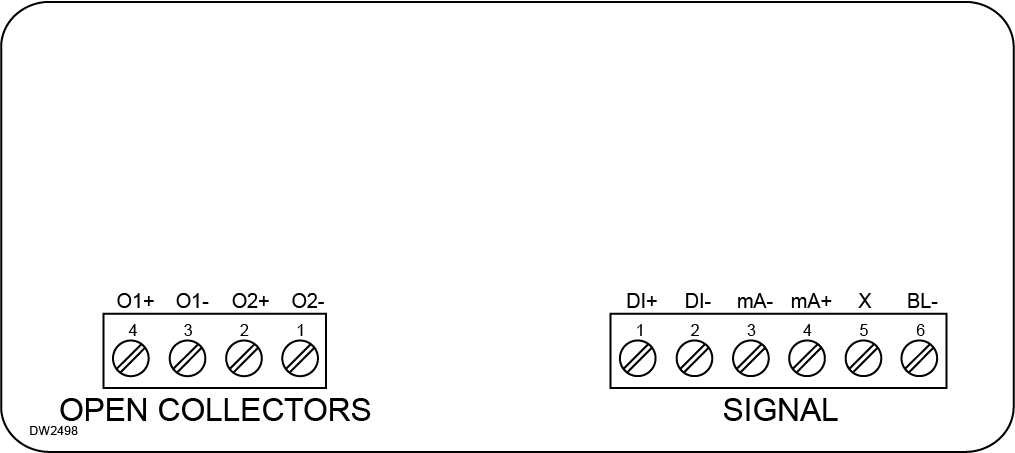

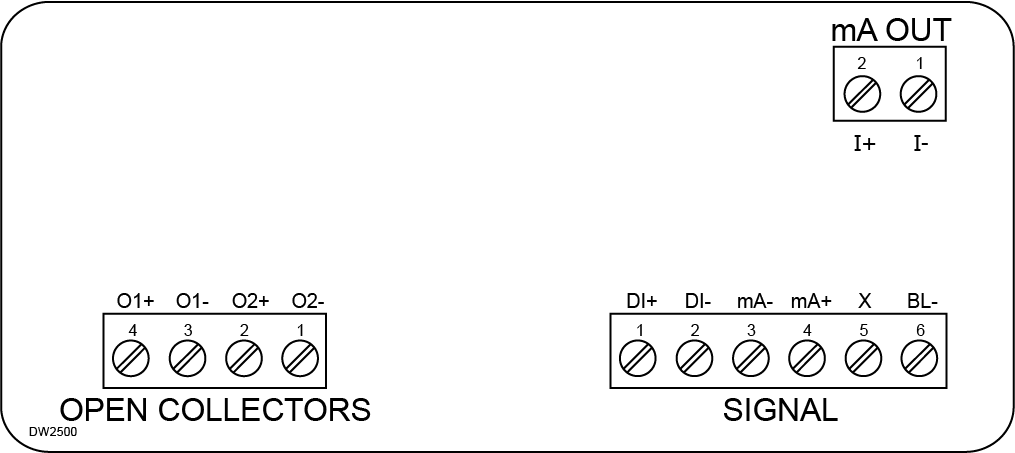

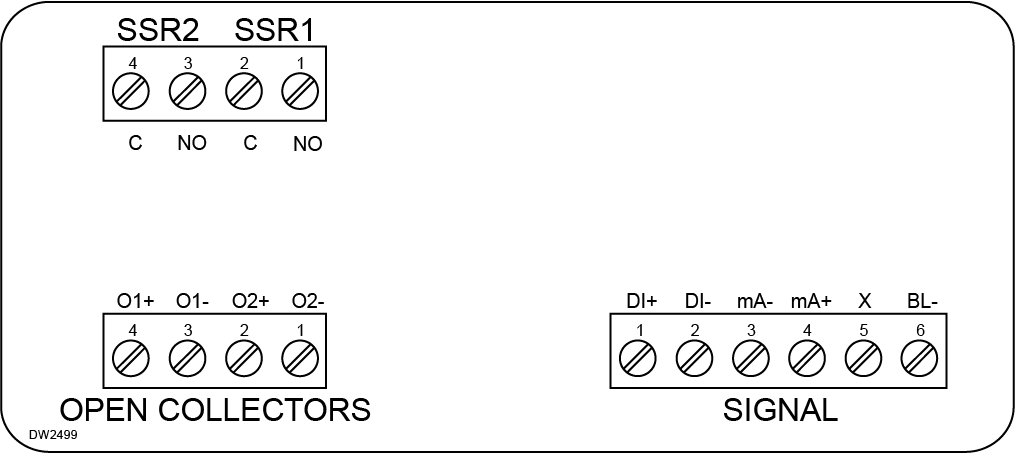

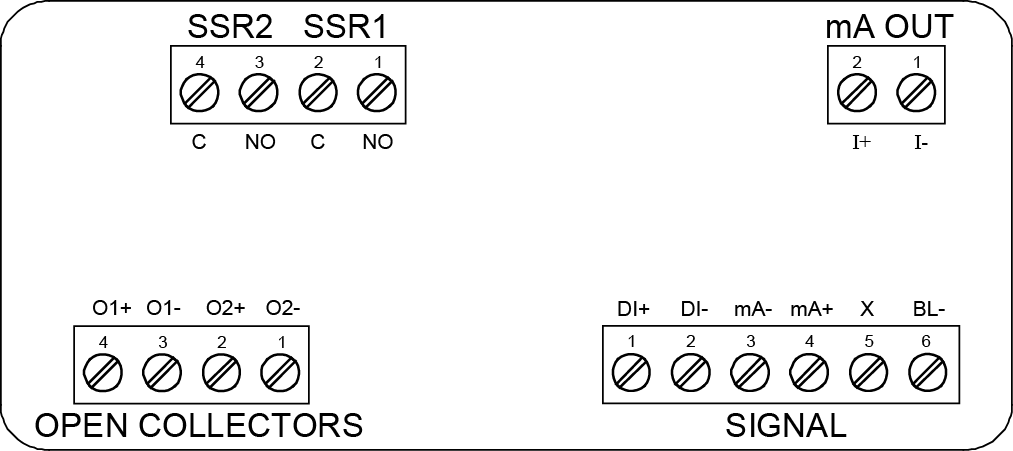

The PD6606 features a Type 4X/NEMA 4X/IP65 front for protection in wet and dirty environments and two-color backlighting for enhanced visibility and alarm indication. A built-in micro USB connection allows the meter to be programmed using free, PC-based MeterView XL software. The meter comes standard with two open collector outputs and one digital input, and models are available with two solid-state relays and an isolated 4-20 mA output for added alarm, control, and retransmission capability. The PD6606 is UL and C-UL Listed as Intrinsically Safe and Nonincendive, and ATEX and IECEx Certified as Intrinsically Safe.

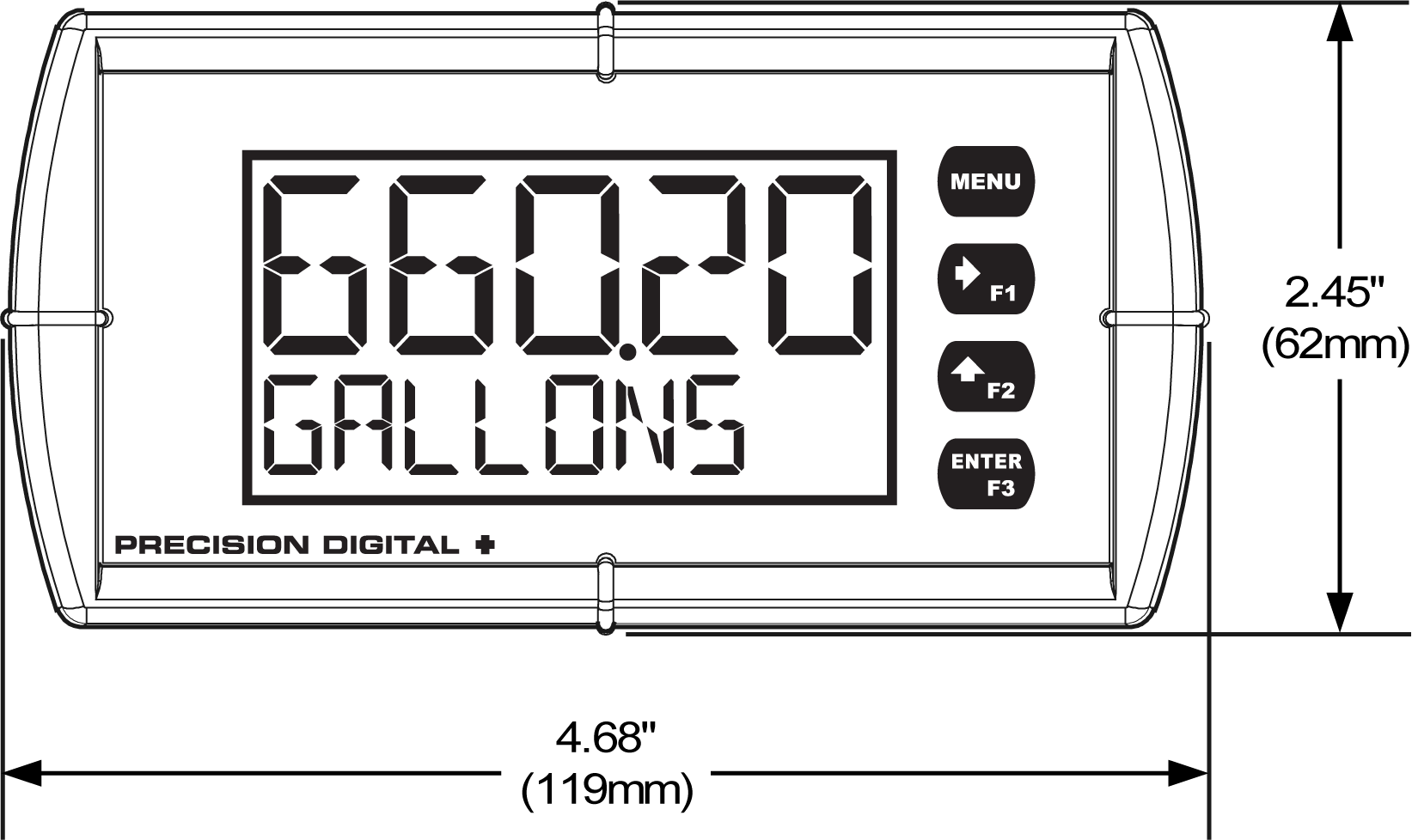

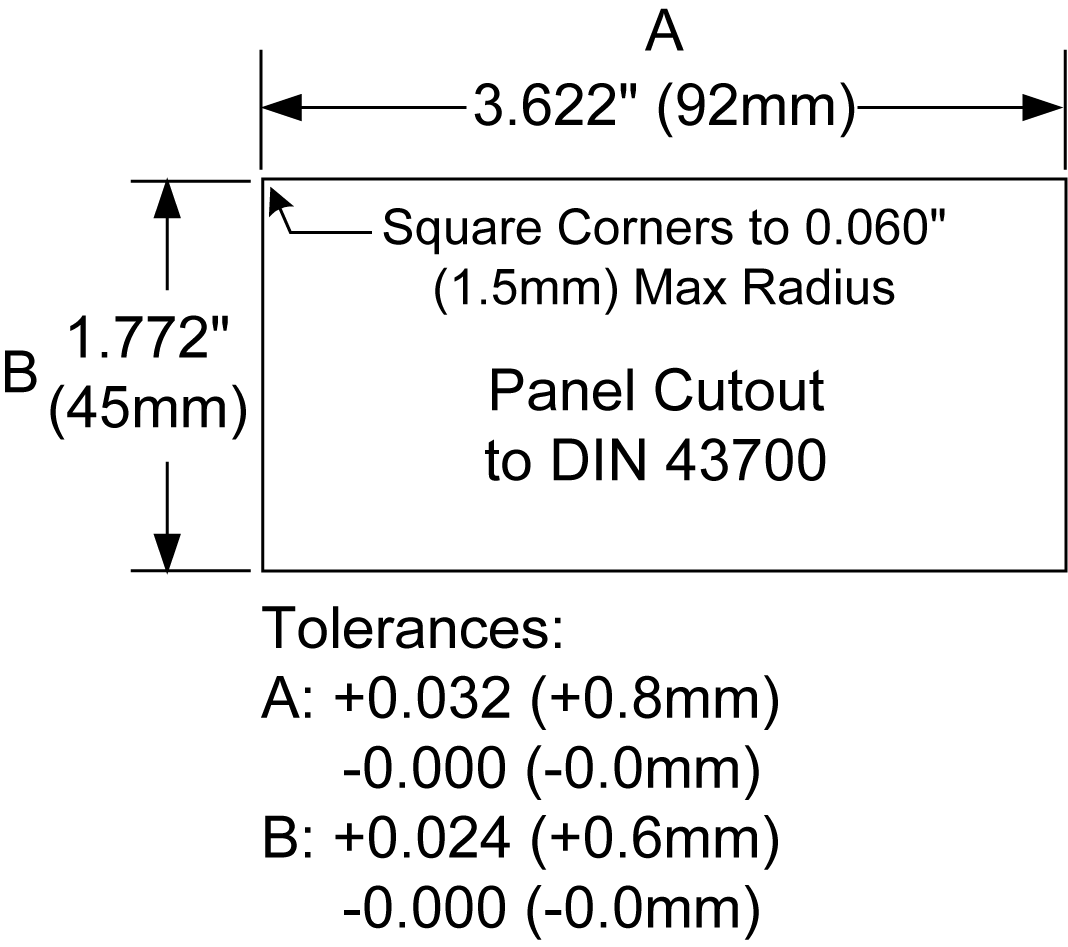

Inches (mm)
× ![Enlarged View]()
Documentation & Resources
Certifications (9)
PD6600 Series ATEX Approval
415KB
UL Certificate E160849 - Electrical
54KB
UL Certificate E160849 - Electrical (Canada)
55KB
UL Certificate E494837 - Hazardous Area
57KB
UL Certificate E494837 - Hazardous Area (Canada)
58KB
UL Certificate E494837 - Zoned Hazardous Area
58KB
UL Certificate E494837 - Zoned Hazardous Area (Canada)
58KB
PD6600 Series IECEx Approval
415KB
EU Declaration of Conformity
109KB

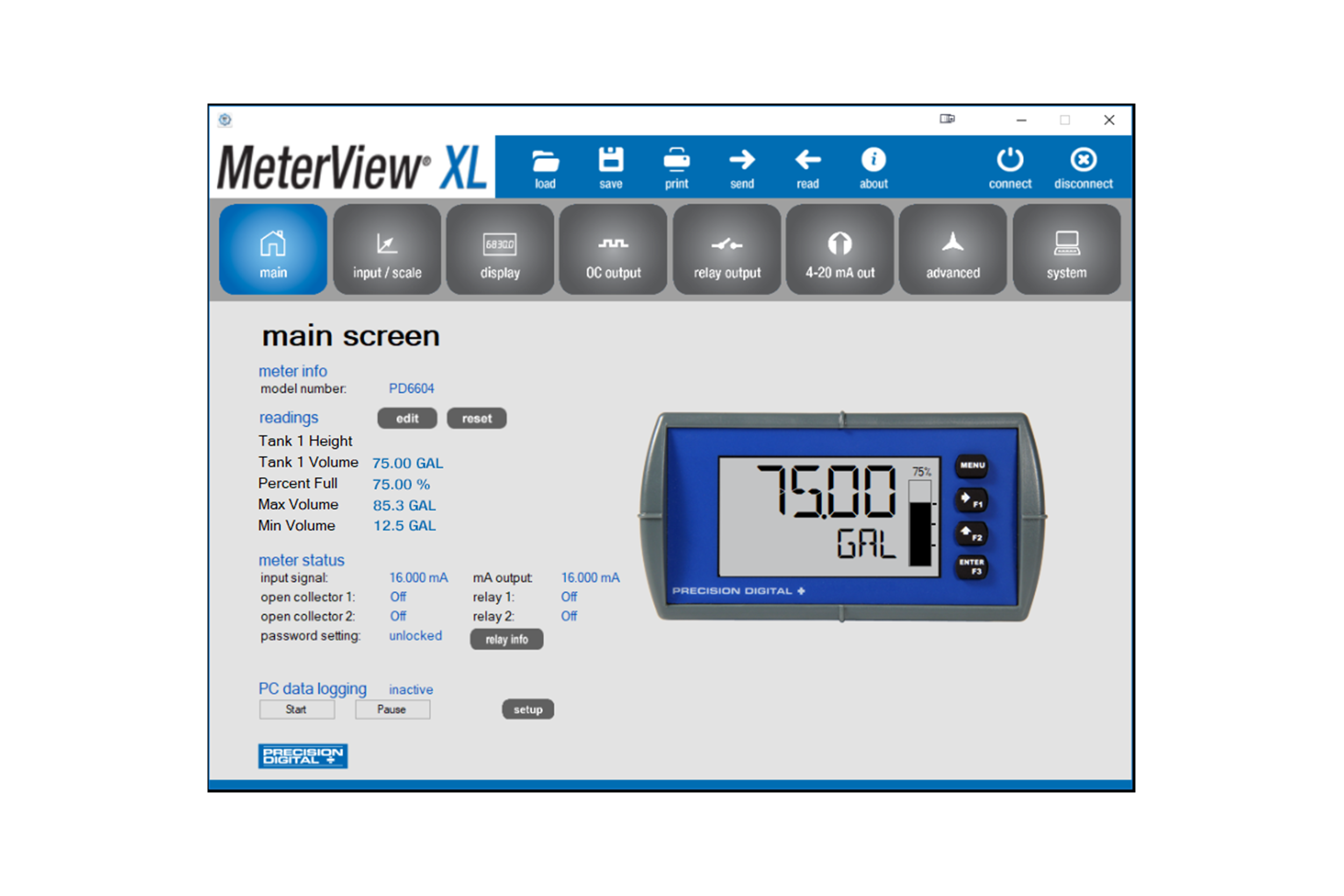

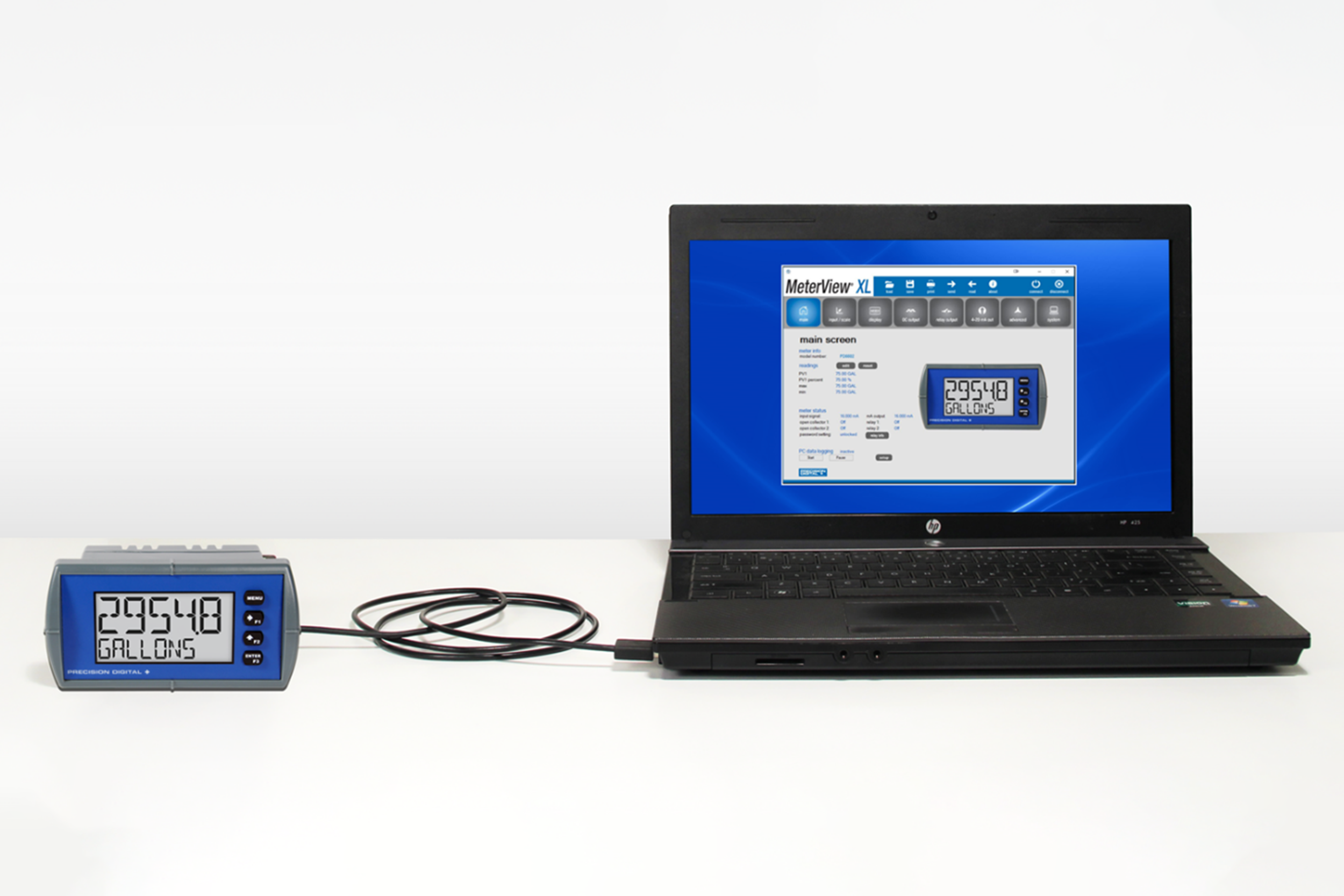

MeterView XL software connects directly to the meter via a micro USB cable and is available for programming and setup of Loop Leader, Loop Leader+, ProtEX+, and VantageView+ series process meters and flow rate/totalizers. MeterView XL software is used to program parameters for a wide variety of applications such as tank level, pump alternation, rate/totalizing, batch control, and more. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. When connected to the PC, the meter is powered by the USB connection, so no additional power is needed during programming.
IMPORTANT!
Uninstall previous versions before downloading and running the latest version.
MeterView XL software can be installed on any Microsoft Windows 10/11 computer. Connect one end of a USB cable to the meter and the other end to the computer. The meter is powered via USB, so there is no need to wire anything before programming it. USB connection is intended for configuration purposes only.
General
Availability
System Requirements
Microsoft Windows 10/11
Communications
USB 2.0 (Standard USB A to USB B) Cable not provided
Configuration
Configure all parameters on the meter. Configure meters one at a time.
Configuration Files
Generate with or without meter connected; Save to file for later use.
USB Power Connection
The meter is powered by the USB connection during programming.
There is no need to apply external power.
Note: The meter will not be damaged if external power is applied to it during programming.
Compatibility
Programs created for Loop Leader and Loop Leader+ may be run on either meter. Programs created for VantageView+ and ProtEX+ can be run on either meter. No other program sharing is permissible.
Latest Version
2.1.1

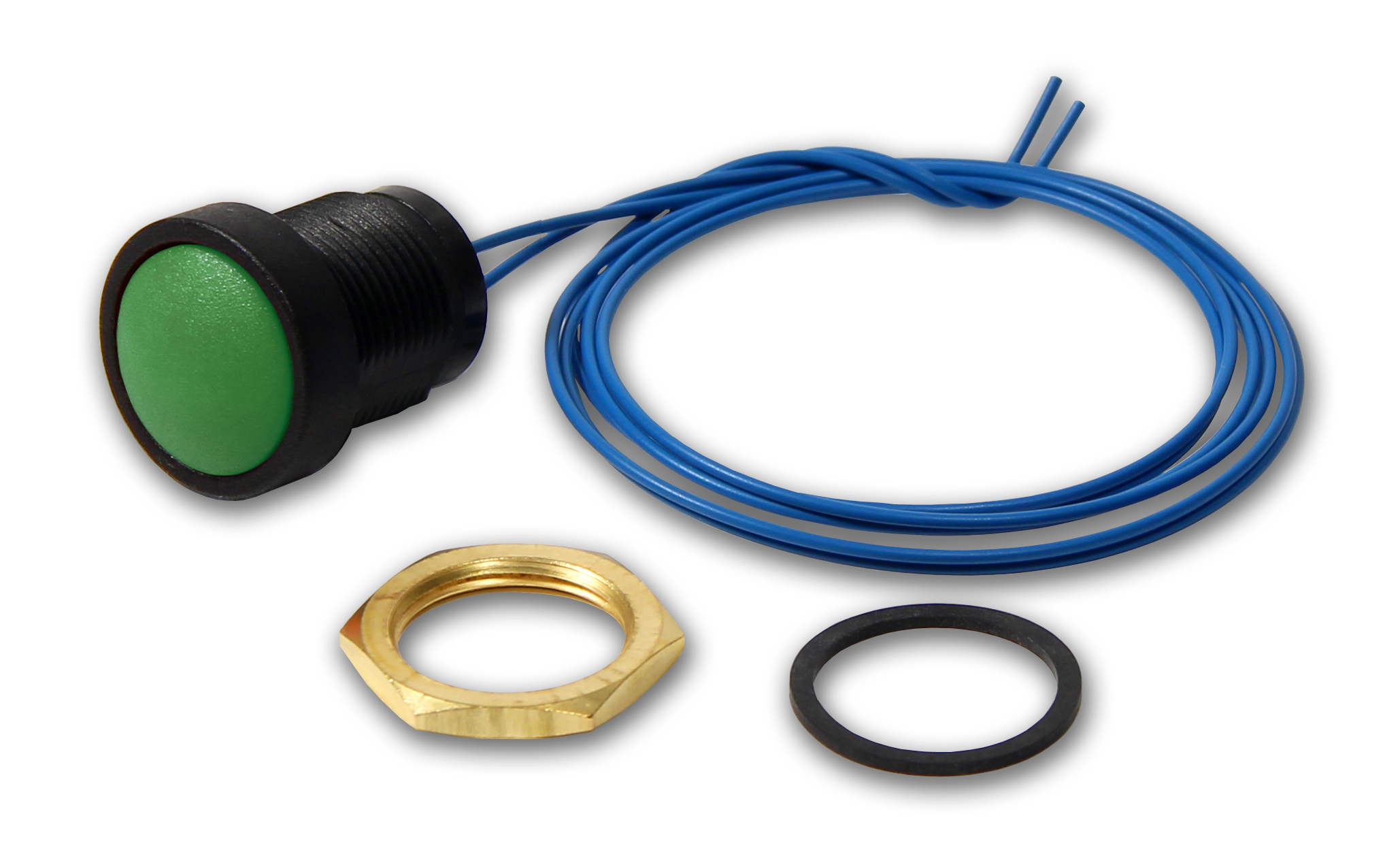

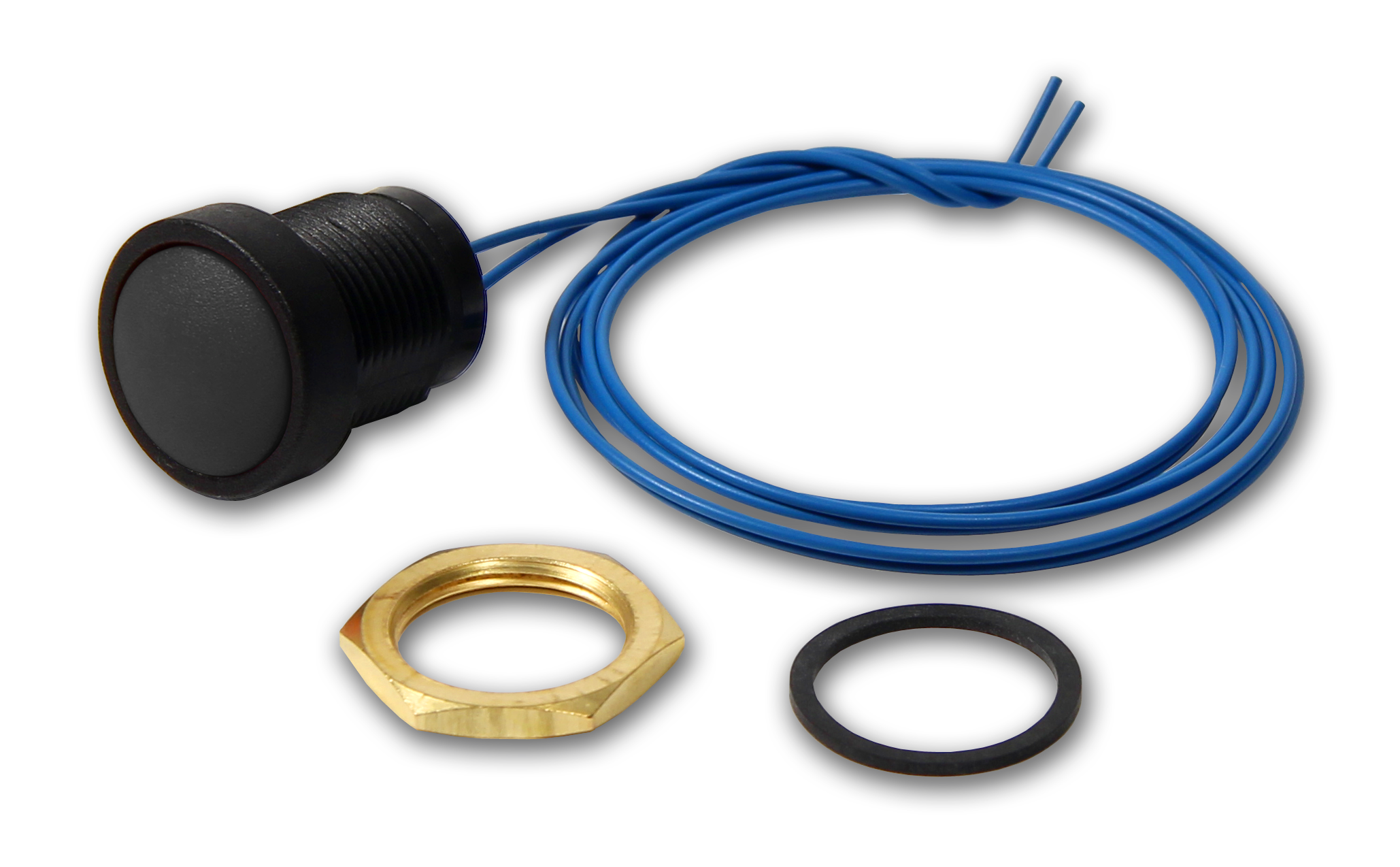

MOD-LH3LCB1-RYG
Modification: Three Color Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LH5CB1
Modification: Five Color Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHBB1
Modification: Blue Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHGB1
Modification: Green Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHRB1
Modification: Red Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHWB1
Modification: White Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHYB1
Modification: Yellow Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.

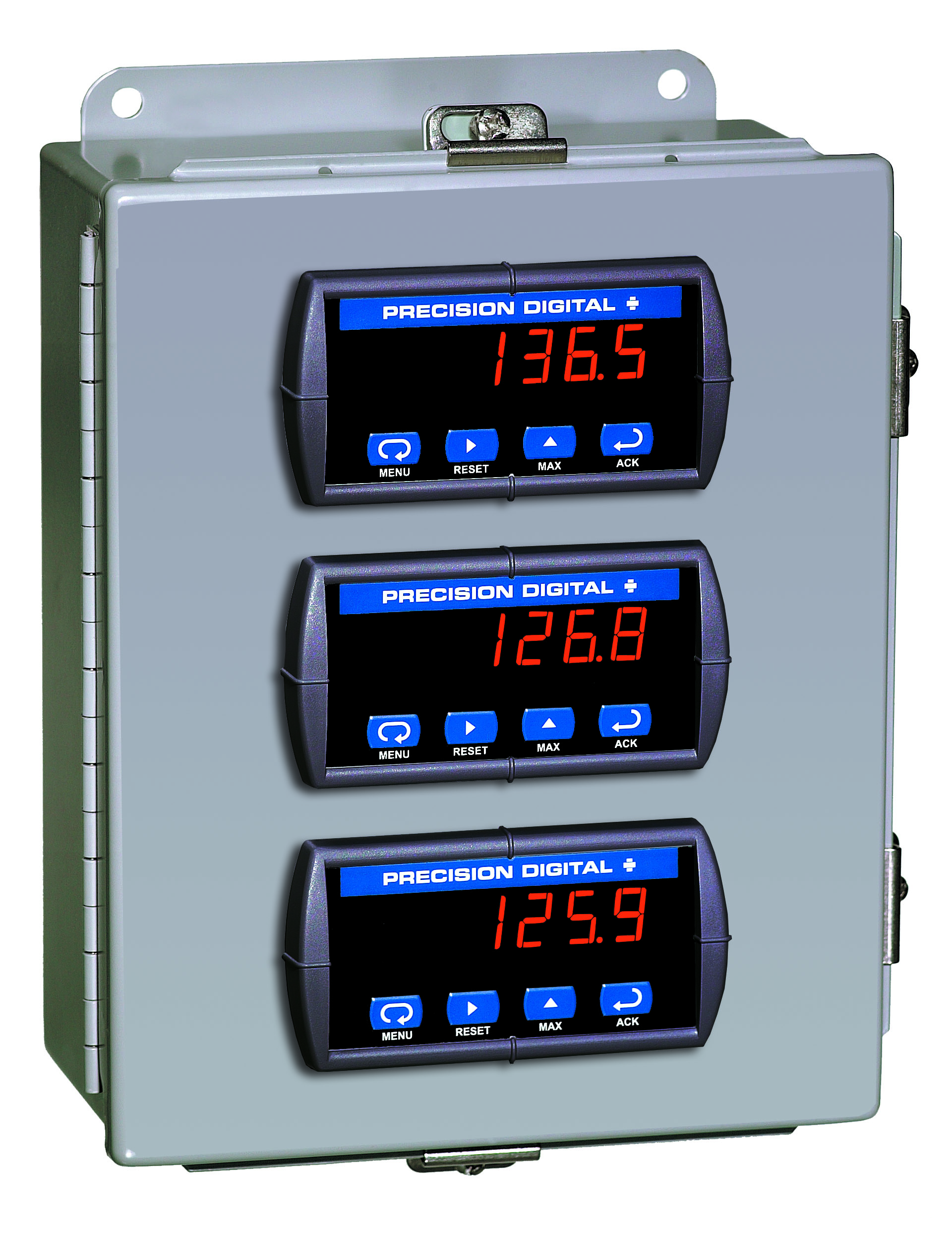

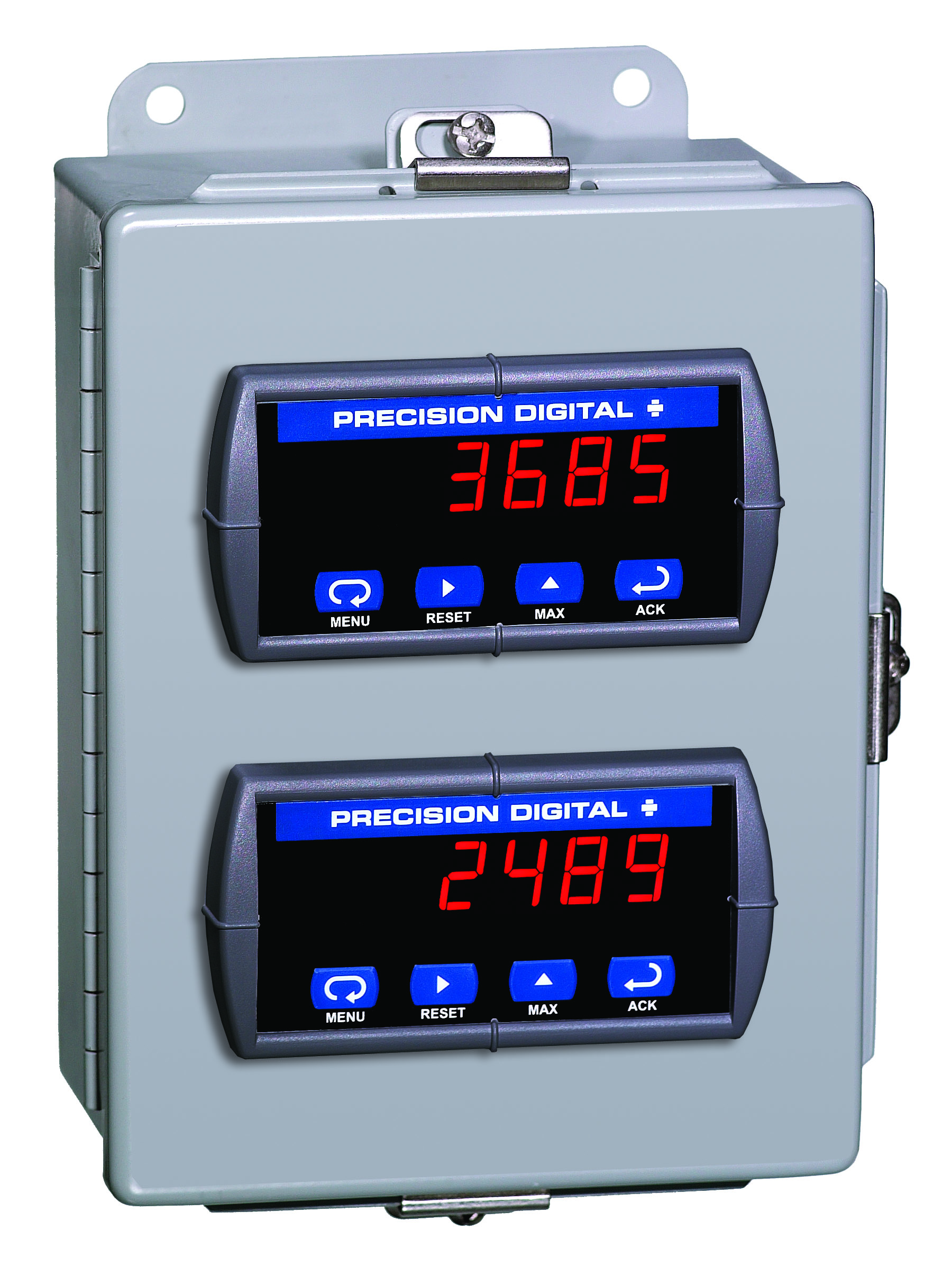

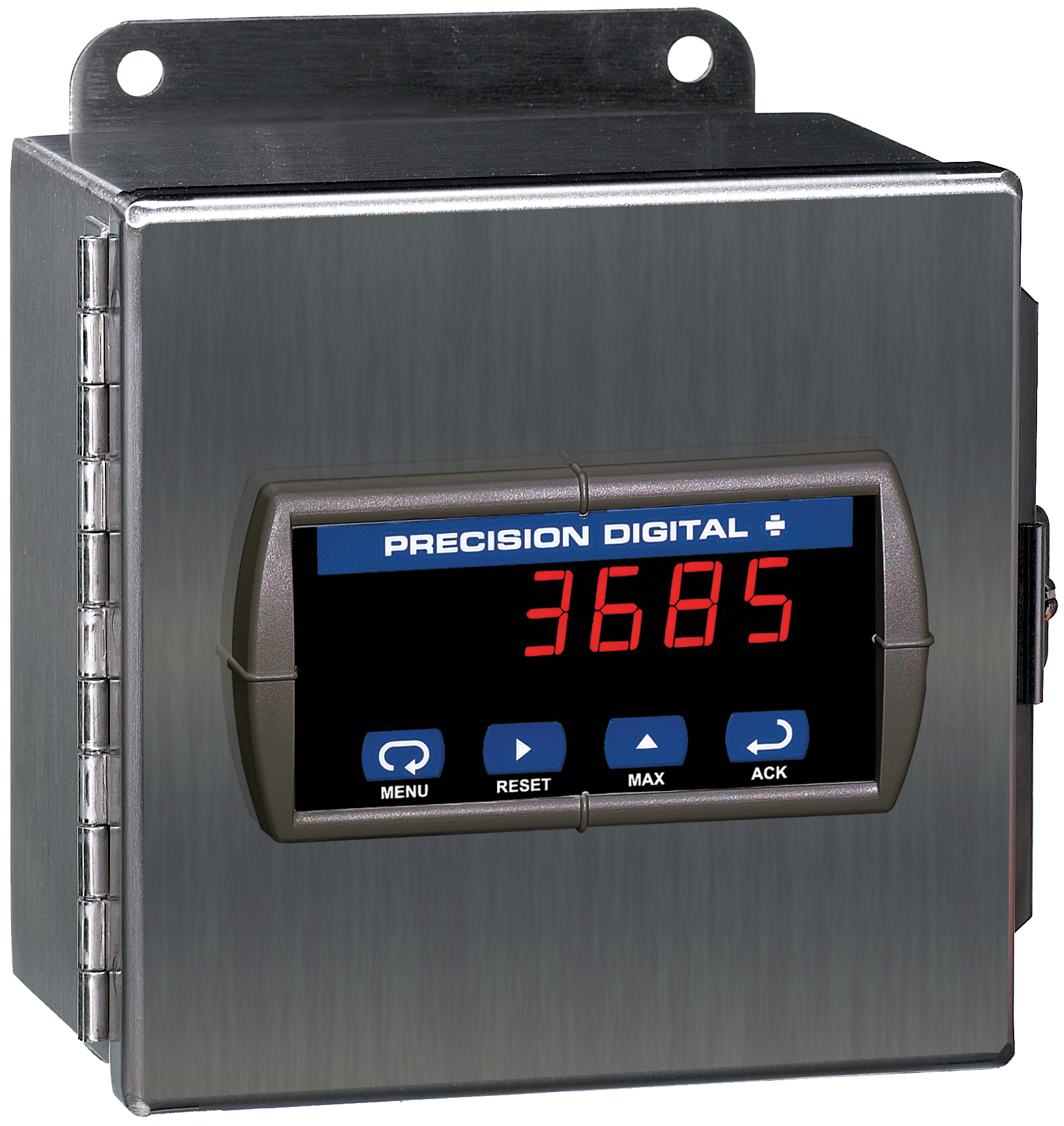

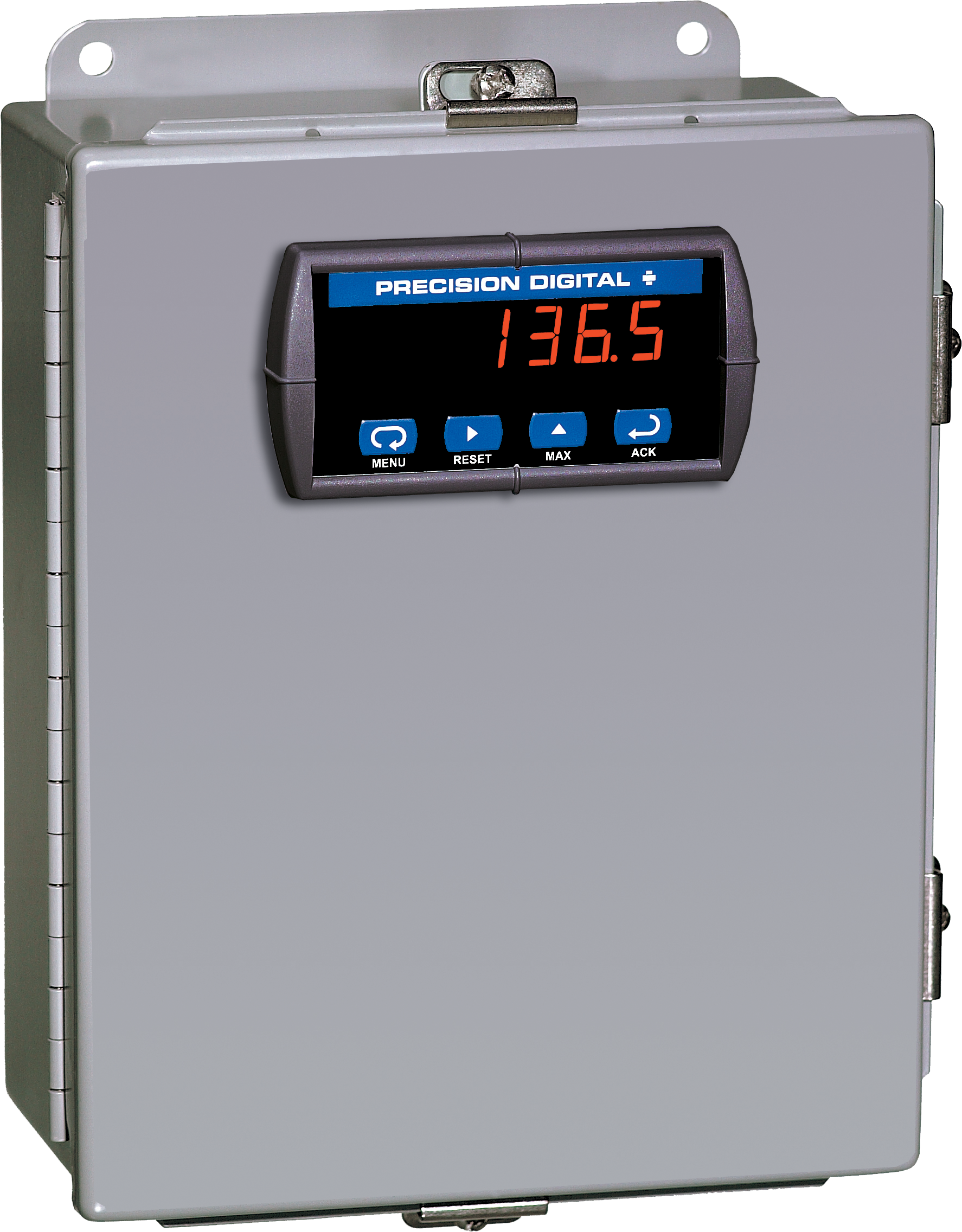

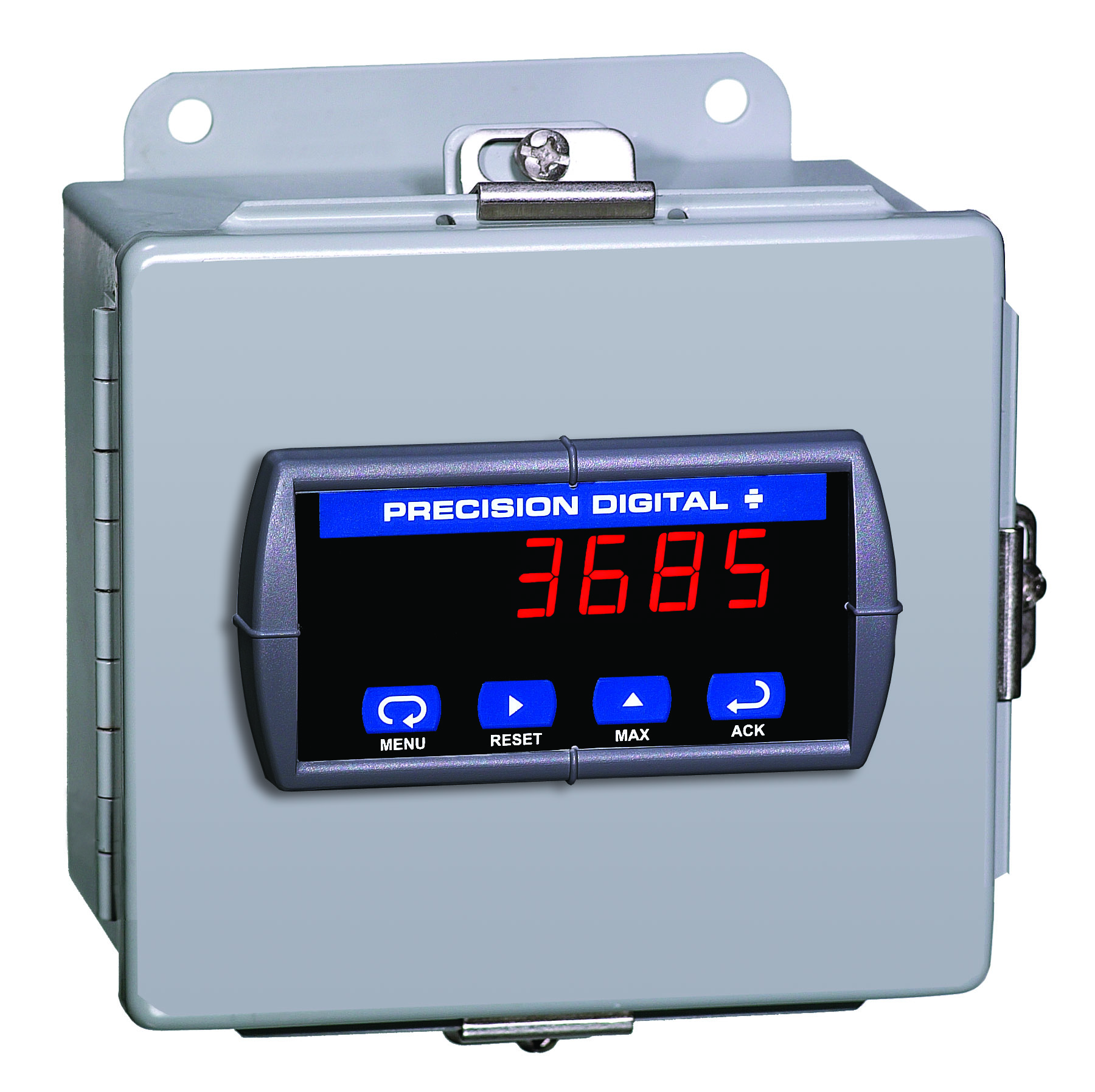

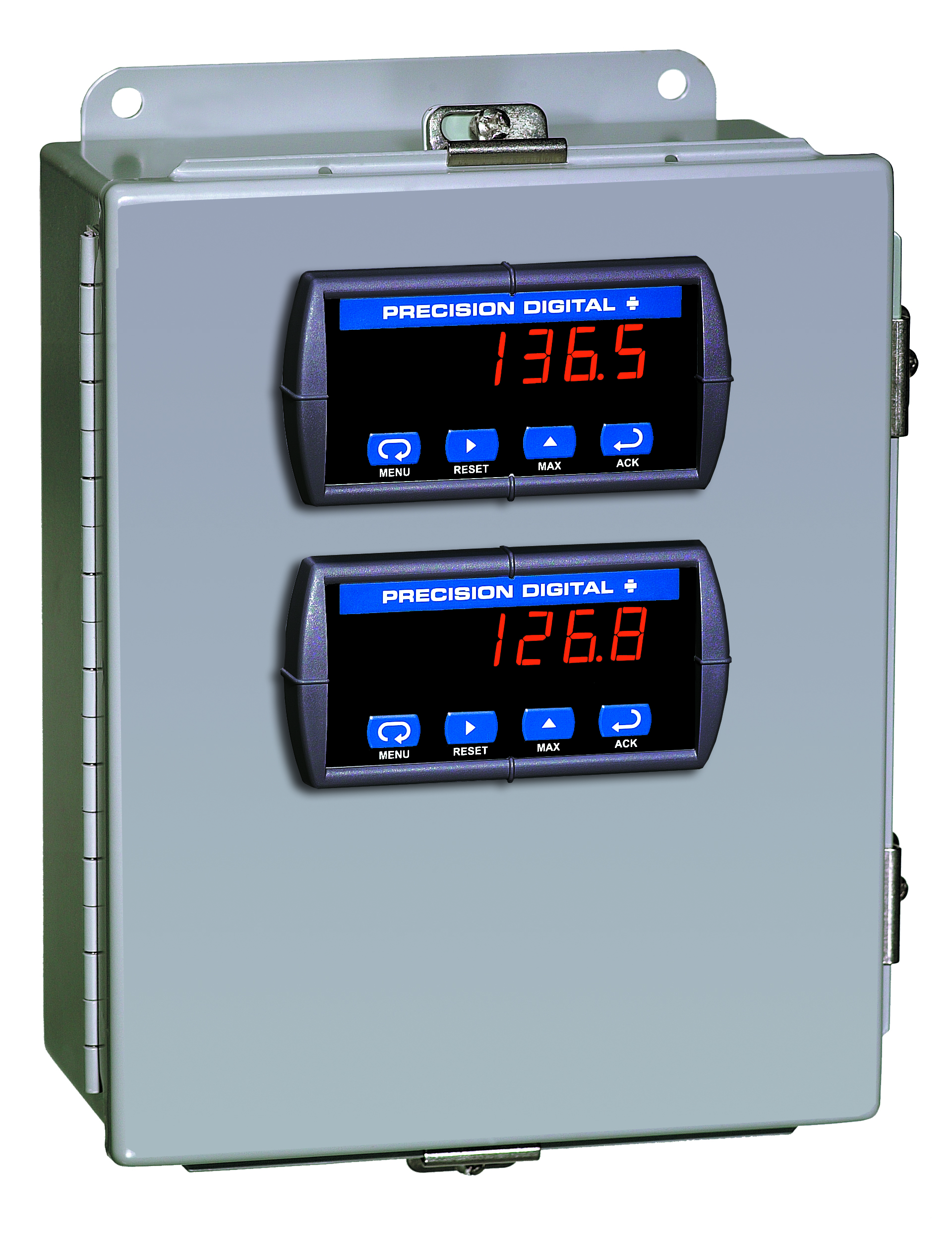

PDA2322

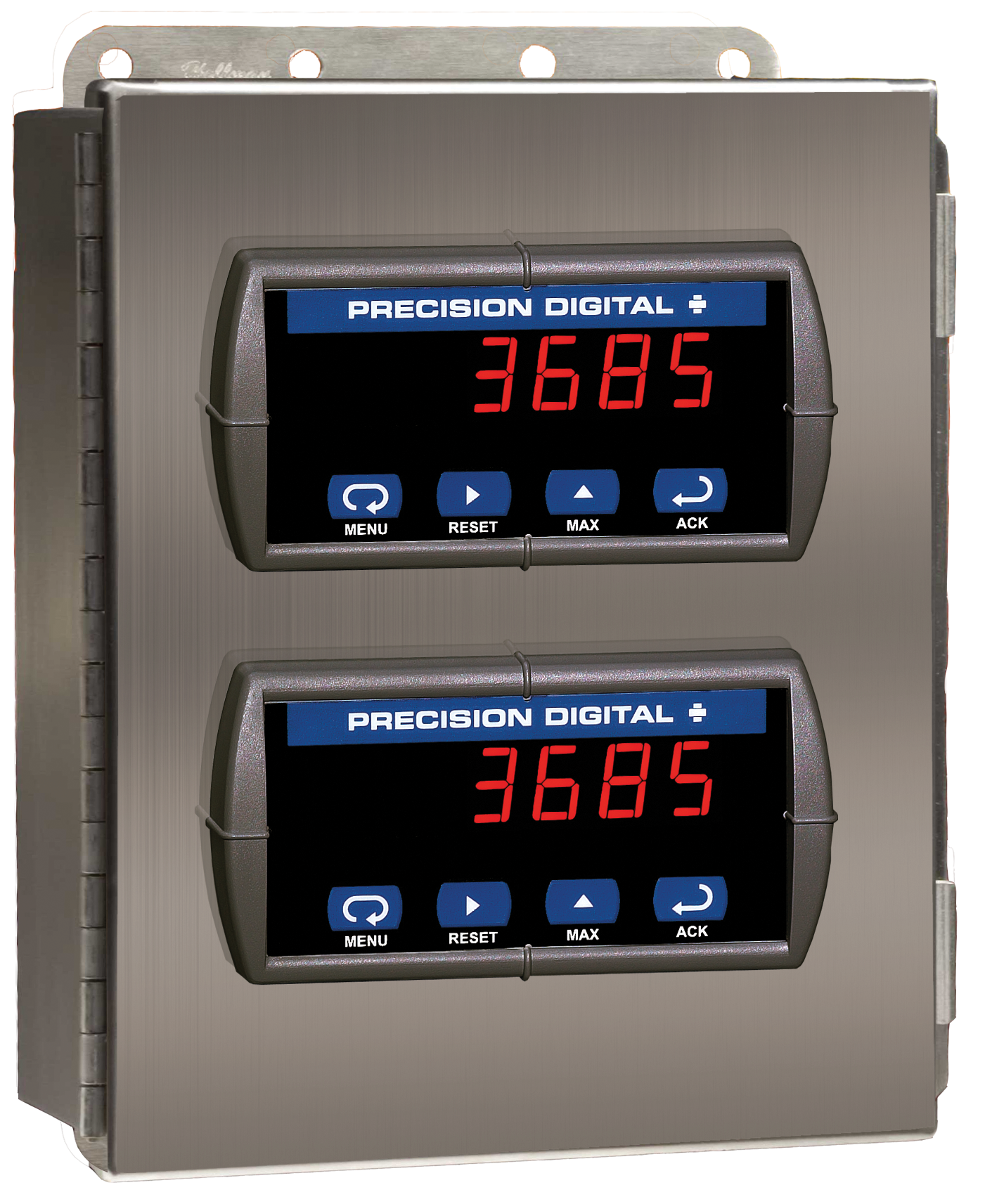

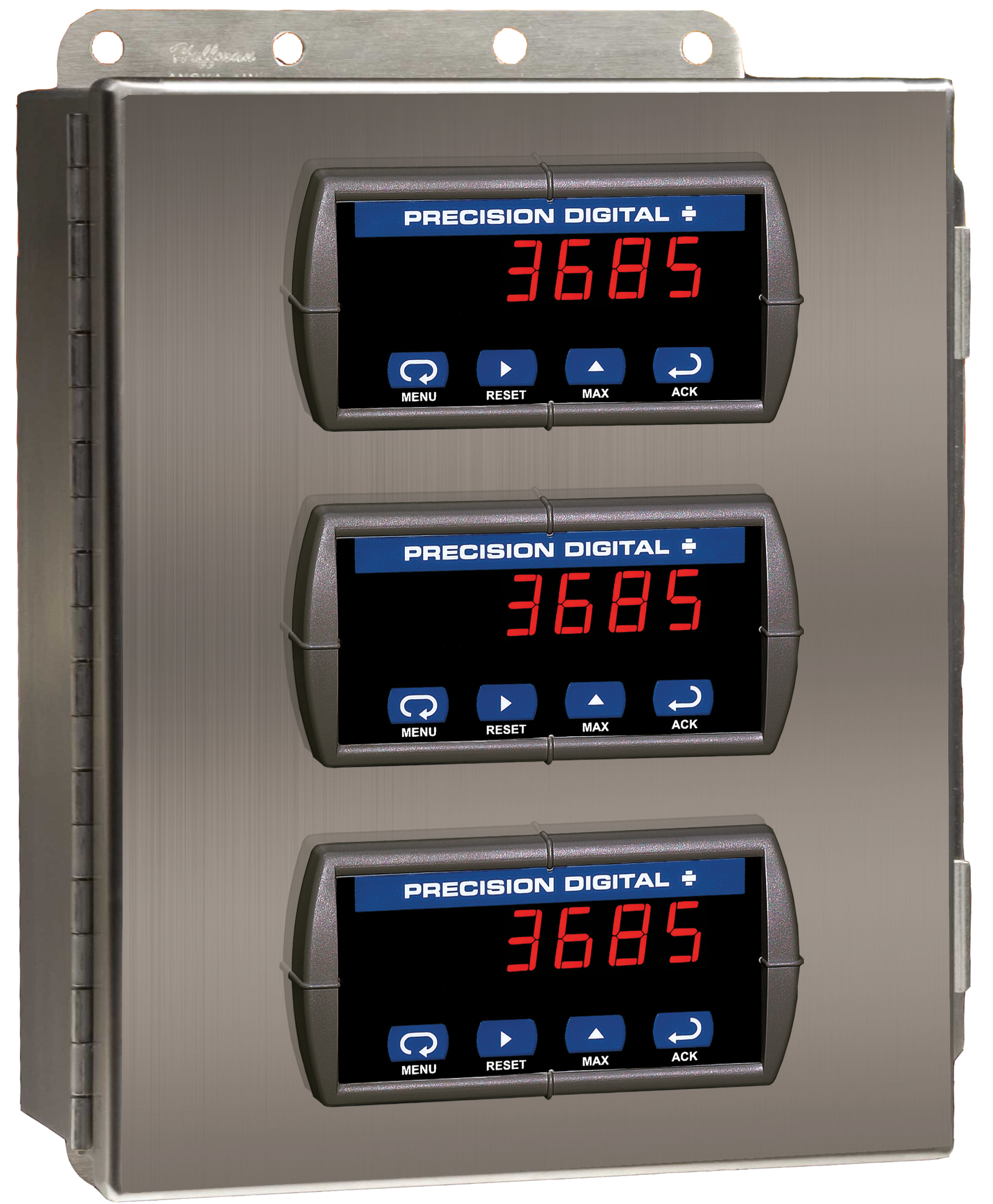

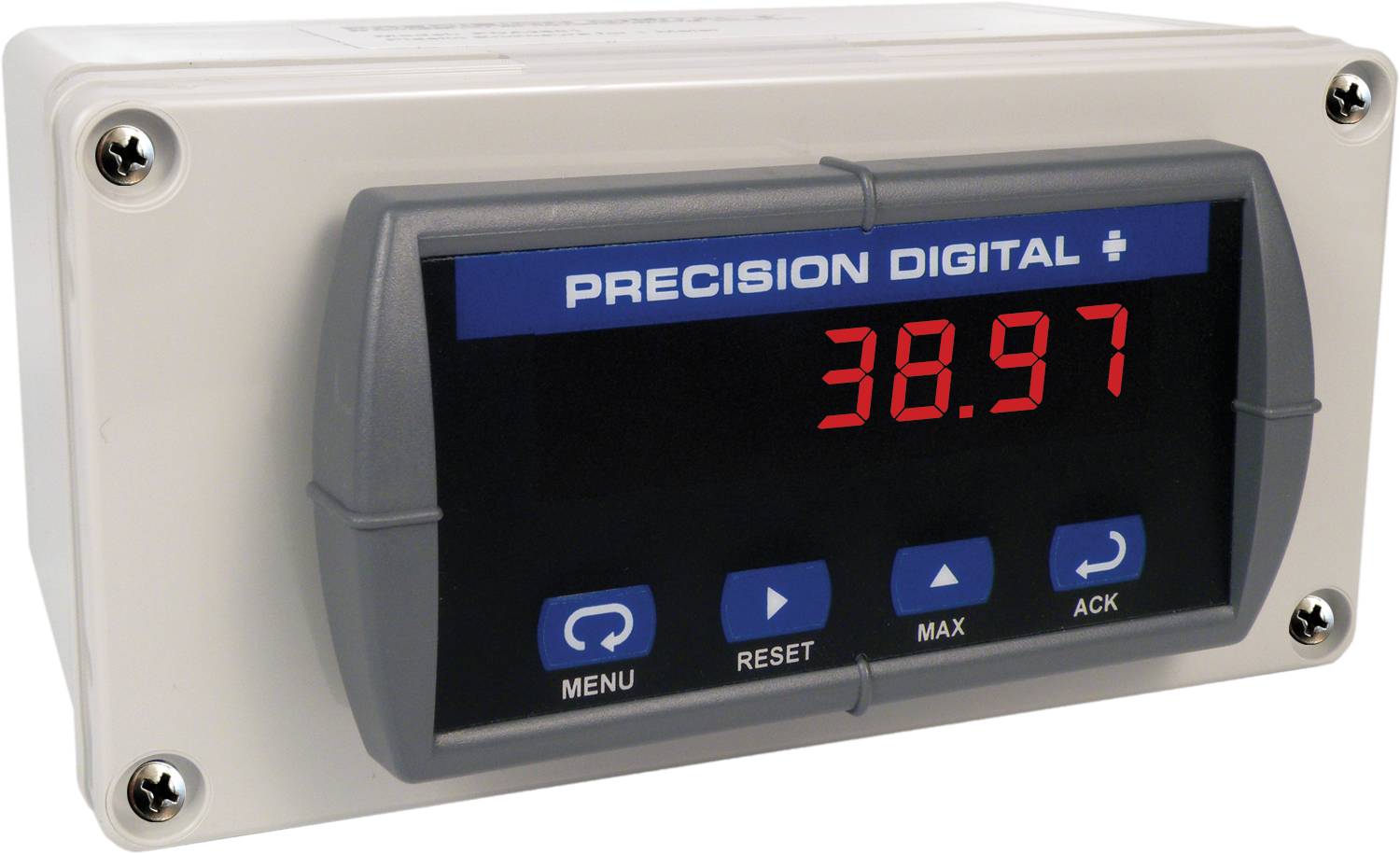

Plastic UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
