Precision Digital Corporation
PD6200

ProVu Analog Input Flow Rate/Totalizer

PD6200 Left

Model

PD6200-6R0

Product Type

ProVu 1/8 DIN Flow Rate/Totalizer Digital Panel Meter

Input(s)

4-20 mA, ± 10 V, (Field Selectable)

Number of Inputs

1

Display

Dual Line, Red LED, 7 Segments, 6 Digits (-99999 to 999999)

Power

85-265 VAC, 90-265 VDC

Transmitter Power

24 VDC @ 200 mA

Output(s)

None

Operating Temperature Range

-40 to 65°C (-40 to 149°F)

Serial Communications

RS-232 & RS-485 Modbus External Adapters (sold separately)

Math Functions

None

External Modules Available

4-Relay, Digital I/O

Front Panel

UL Type 4X, IP65, NEMA 4X

DIN Size

1/8 DIN

Weight

10 oz (269 g)

Approvals

UL & C-UL Listed. E160849; UL 508 Industrial Control Equipment, CE

Warranty

3 Years

$500.00

Model Details

PD6200-6R0

5 In Stock
VIEW ALL MODELS

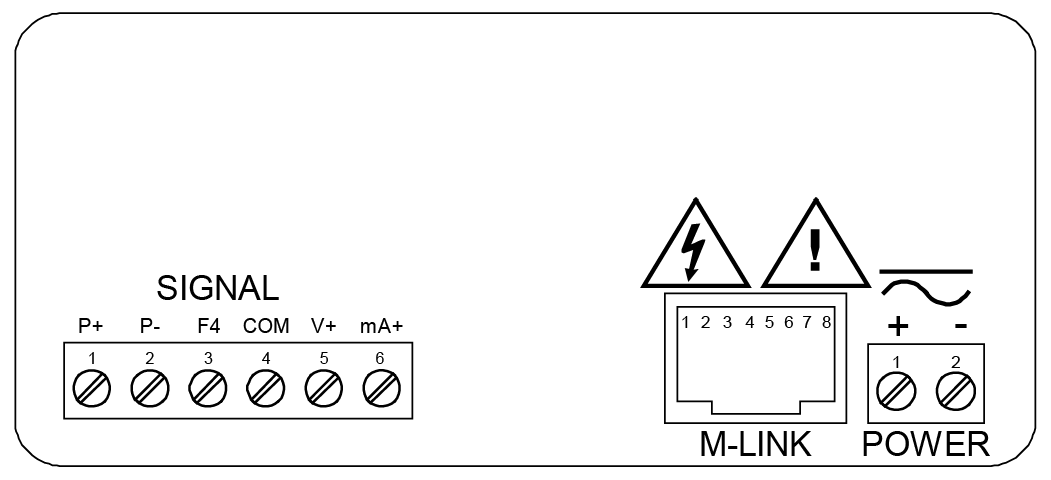

Connections
PD6200-##0 Connectors Label
Dimensions

Inches (mm)

Side View
Side View
Top View
Top View
Panel Cutout Dimensions
Panel Cutout Dimensions
× Enlarged View
