- Dual-Input Process Meter with Math Functions
- Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
- 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
- Large Dual-Line 6-Digit Display, 0.60" & 0.46"
- Optional SunBright Display Models for Outdoor Applications
- NEMA 4X, IP65 Front
- Universal 85-265 VAC, or 12-24 VDC Input Power Models
- Isolated 24 VDC @ 200 mA Transmitter Power Supply
- Programmable Display & Function Keys
- 32-Point, Square Root, or Exponential Linearization
- Multi-Pump Alternation Control

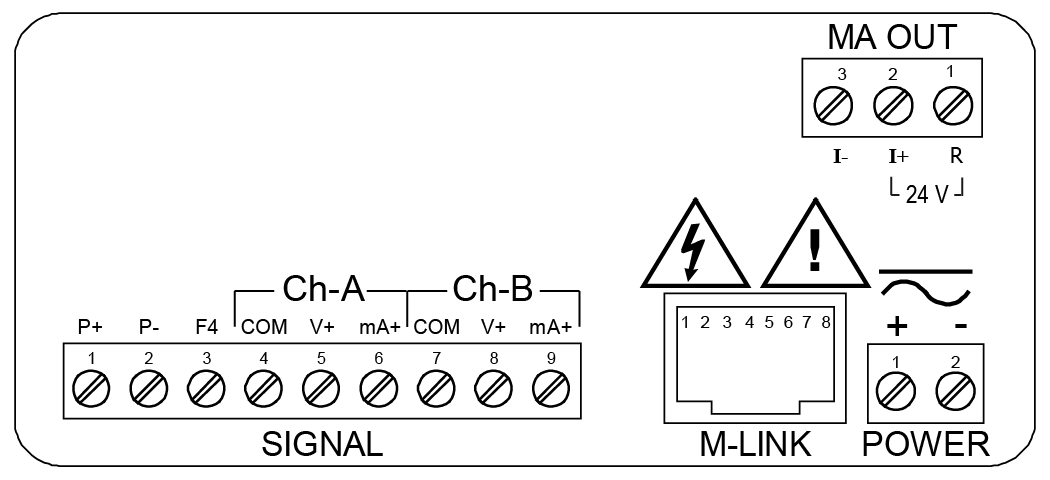

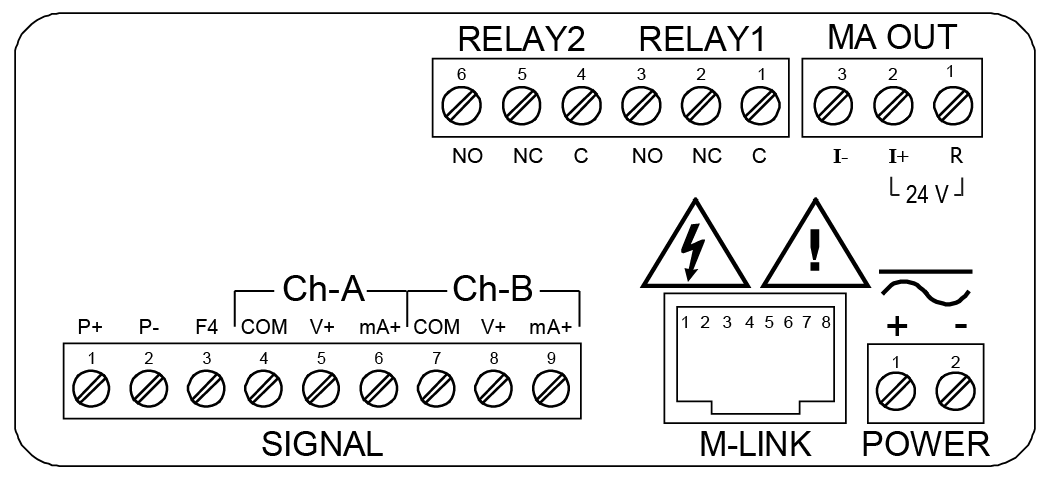

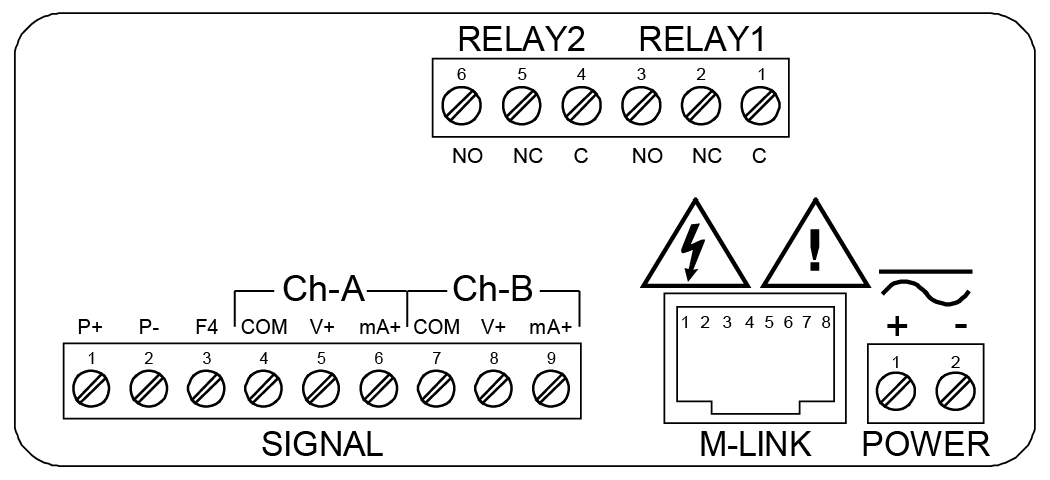

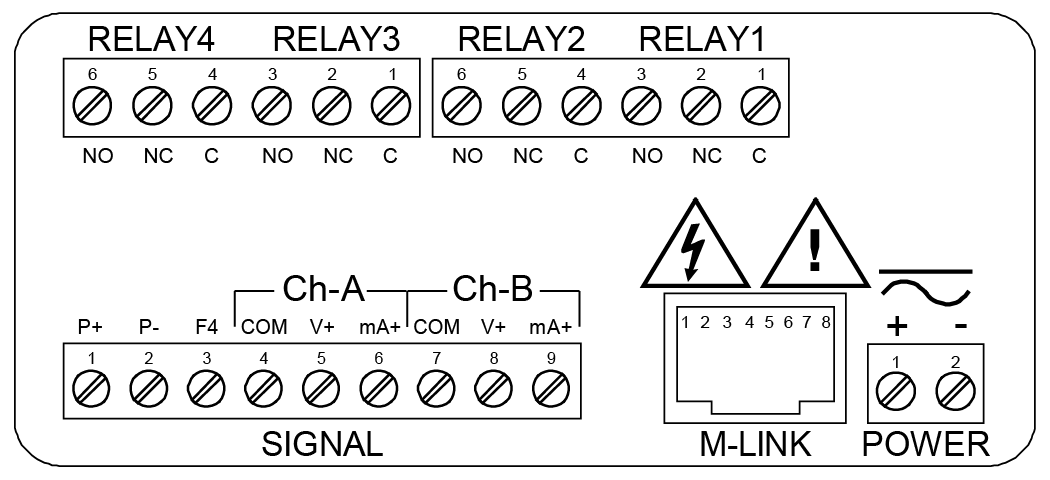

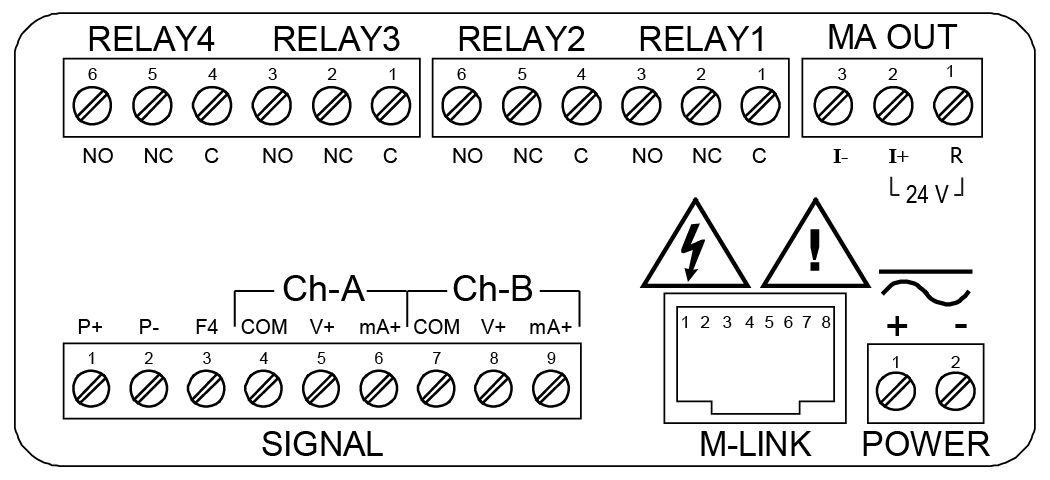

- 2 or 4 Relays + Isolated 4-20 mA Output Options
- External 4-Relay & Digital I/O Expansion Modules
- USB, RS-232, & RS-485 Serial Communication Options
- Modbus RTU Communication Protocol Standard
- On-Board Digital Input
- Onboard USB and MeterView® Pro Programming Software
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300
- Accessories
- Annunciators & Scanners
- Calibrators, Signal Isolators, Splitters, & Generators
- Control Stations
- Custom Enclosure Assembly
- Demo Units
- Digital Panel Meters
- Enclosures
- Explosion-Proof
- Field-Mount Indicators
- Industrial Wireless
- Intrinsically Safe
- Large Display
- Light/Horn
- Loop-Powered Meters
- Modbus Displays
- Modifications
- Multi-Channel Controllers
- Process Value Alarm Enclosure Assembly
- Sun Hoods
- Subpanel Wiring Assembly
- Temperature Controllers
- Level
- Level (Feet & Inches)
- Process
- Pressure
- Temperature
- Flow Rate/Totalizer
- Pump Control
- Chemical Bulk Storage
- Strain Gauge
- Load Cell
- Hazardous Area
- Industrial Wireless
- Batch Control
- PID Control
- Modbus
- Annunciator
- Calibration
- Data Logging
- Signal Conditioning
- Signal Generation
- Signal Isolating
- Signal Splitting
- High Current
- Speed
- Weight
ProVu Dual Analog Input Process Digital Panel Meter
PD6060 Left
Models in stock
from $564.00
The PD6060 is a member of the ProVu series of 1/8 DIN digital panel meters that accepts two inputs of either a process current (4-20 mA) or process voltage (0-5V, 1-5V, etc.) signal. It displays these signals on a dual line, 6-digit display that is available with an optional Sunbright sunlight readable LEDs. The meter can be customized such that these two inputs are displayed in a variety of ways, including both at the same time with tags or the result of math functions performed on one or both of the inputs. Like all ProVu meters, the PD6060 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. The PD6060 can also be equipped with up to four internal relays, a 4-20 mA analog output, and Modbus serial communications. The PD6060 includes a 24 V DC power supply to drive the transmitters. ProVu meters can be programmed via the front panel pushbuttons or free MeterView Pro software.
Why Should You Buy:
- Dual Analog Inputs
- Math Functions
- USB Programming
The PD6060 is a member of the ProVu series of 1/8 DIN digital panel meters that accepts two inputs of either a process current (4-20 mA) or process voltage (0-5V, 1-5V, etc.) signal. It displays these signals on a dual line, 6-digit display that is available with an optional Sunbright® sunlight readable LEDs. The meter can be customized such that these two inputs are displayed in a variety of ways, including both at the same time with tags or the result of math functions performed on one or both of the inputs. Like all ProVu meters, the PD6060 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. The PD6060 can also be equipped with up to four internal relays, a 4-20 mA analog output, and Modbus® serial communications. The PD6060 includes a 24 V DC power supply to drive the transmitters. ProVu meters can be programmed via the front panel pushbuttons or free MeterView® Pro software.
Inches (mm)
× ![Enlarged View]()
Documentation & Resources
Product Information (3)
Modbus Register Tables (1)
Configure, monitor, or datalog ProVu, Helios, or ProtEX-MAX meters using the PC-based MeterView Pro (MVP) software. MVP is available here as a free download and makes complete meter configuration simple and fast. Copying one meter configuration to another, as well as saving or retrieving a meter configuration file, is a snap. MVP's linearization utility makes even a 32-point linearization task clear and easy to do.
Also included is a basic meter monitor and data logger for use with the meter. Of course, with the inclusion of the powerful Modbus protocol, custom programs can be made even more versatile.
IMPORTANT!
Uninstall previous versions before downloading and running the latest version.
MeterView Pro software can be installed on any Microsoft Windows 10/11 computer. Connect one end of a USB cable to the meter and the other end to the computer. The meter is powered via USB, so there is no need to wire anything before programming it. USB connection is intended for configuration purposes only.
General
System Requirements
Microsoft Windows 10/11
Availability
Communications
Onboard USB (firmware version 4.0 or higher), RS-232 Adapter, or RS-485 Adapter
Reports
Data logging: Save as CSV file format.
Configuration: Save as PDC file format or print configuration
Baud Rate
300 - 19,200 bps
Configuration
One meter at a time
Protocol
Modbus RTU (requires ProVu firmware version 2.0 or higher)
Latest Version
4.1.8
MOD-LH3LCB1-RYG
Modification: Three Color Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LH5CB1
Modification: Five Color Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHBB1
Modification: Blue Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHGB1
Modification: Green Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHRB1
Modification: Red Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHWB1
Modification: White Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
MOD-LHYB1
Modification: Yellow Light/Horn and Reset Button with Holes Drilled for Light/Horn and Reset Button in Enclosure. Enclosure & meter sold separately and assembly required by user.
PDA2322
Plastic UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
PDA2604-1C
Stainless Steel UL Type 4X Enclosure with (1) Centered Horizontal 1/8 DIN Cutout
PDA2604-2C
Stainless Steel UL Type 4X Enclosure with (2) Centered Horizontal 1/8 DIN Cutouts
PDA2604-3C
Stainless Steel UL Type 4X Enclosure with (3) Centered Horizontal 1/8 DIN Cutouts
PDA2622
Stainless Steel UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
PDA2821
Plastic UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
PDA3414
Plastic UL Type 4X Enclosure with (1) Vertical and (1) Horizontal 1/8 DIN Cutouts
