Precision Digital Corporation

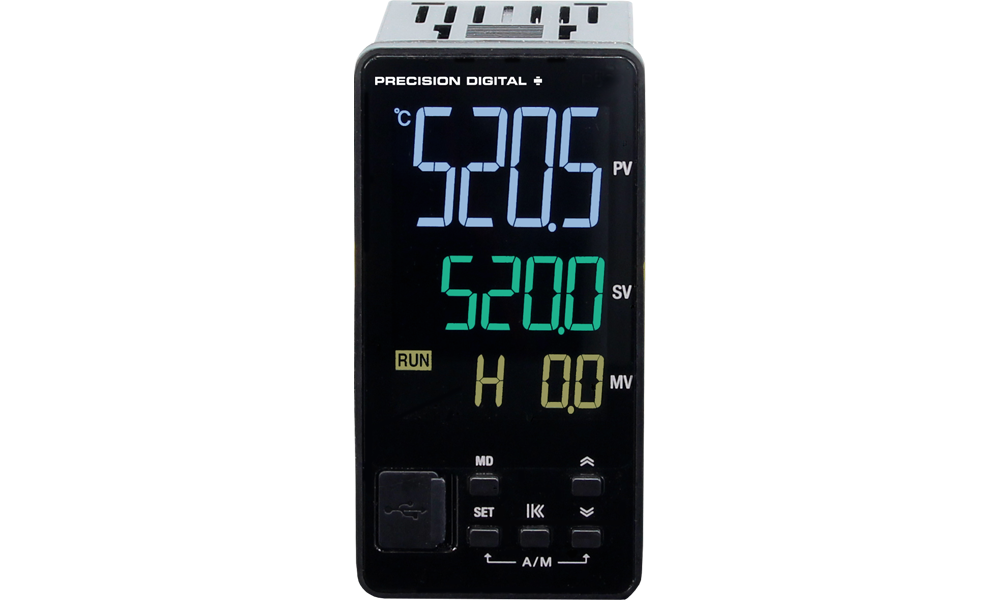

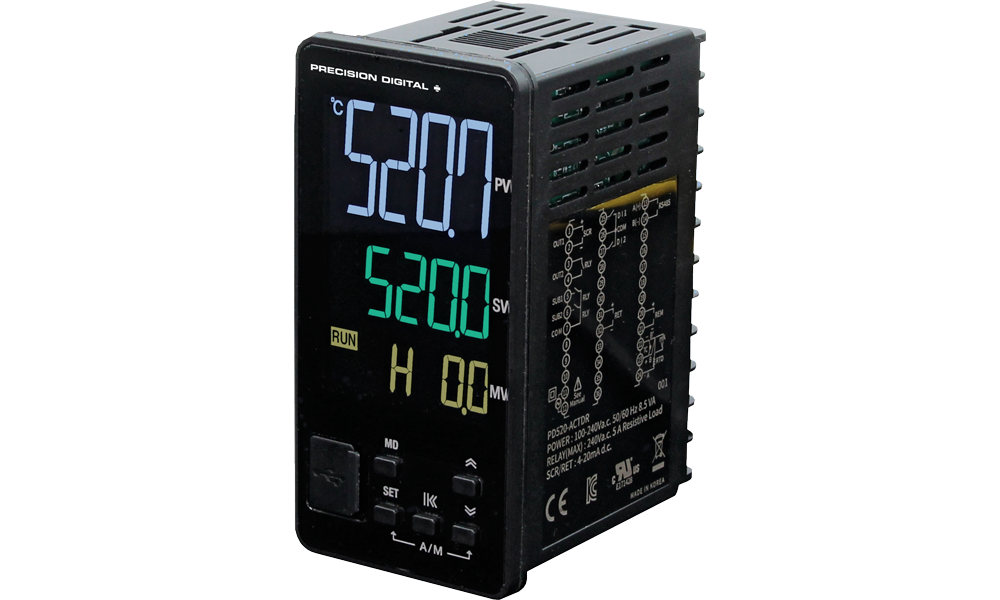

PD520

SuperNova 1/8 DIN (V) PID Process & Temperature Controllers

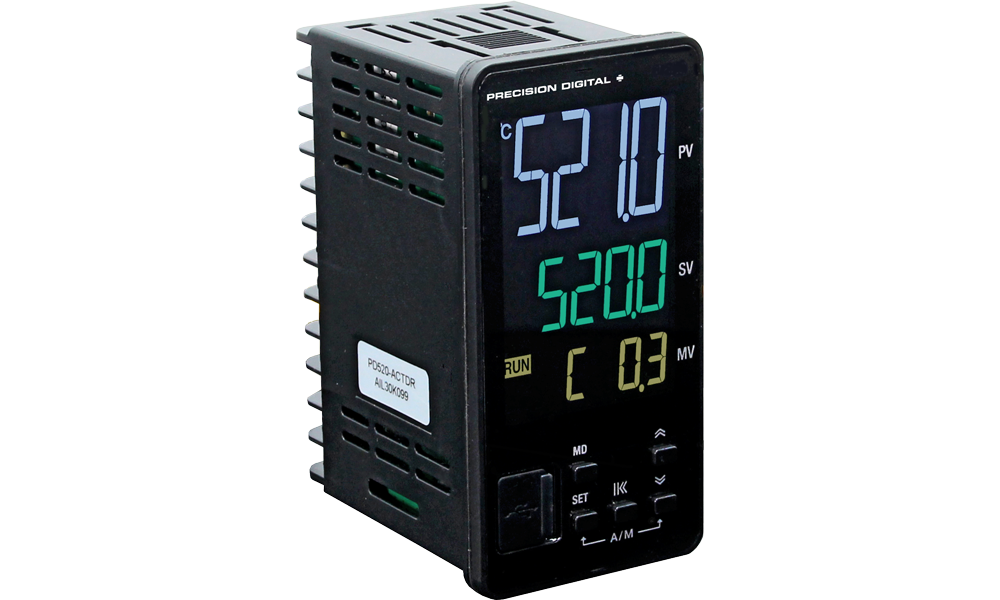

PD520 Left

Model

PD520-A

Product Type

SuperNova 1/8 DIN Auto-Tune PID Controller

Input(s)

4-20 mA, ± 10 V, Thermocouple, RTD (Field Selectable)

Number of Inputs

1

Display

Three Lines, 4 Digits, White, Green, & Amber Reverse Polarity LCD

Power

100-240 VAC

Transmitter Power

None

Output(s)

(1) Control Current (SCR), (1) H&C Cooling Control Relay, (2) Alarm Relays

Operating Temperature Range

-10 to 50°C (14 to 122°F)

Serial Communications

None

Front Panel

IP65

DIN Size

1/8 DIN (Vertical)

Weight

7 oz (202 g)

Approvals

UL & C-UL Recognized Process Control Equipment; Electrical – Component, CE

Warranty

1 Year

$310.00

Model Details

PD520-A

50 In Stock
VIEW ALL MODELS

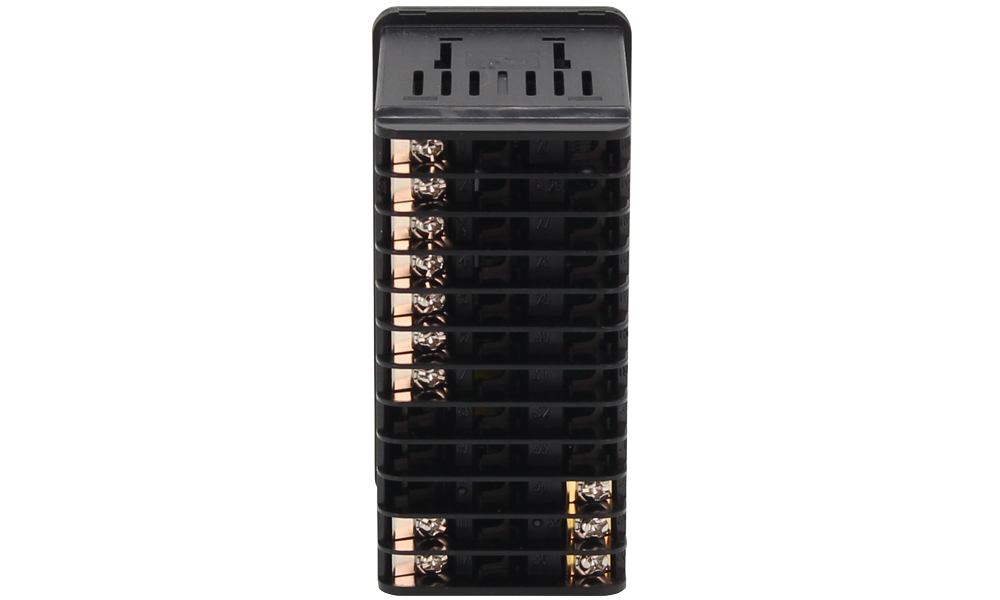

Connections
Connector Labeling for PD520-R
Dimensions

Inches (mm)

SuperNova Dimensions
SuperNova Dimensions
