Steel UL Type 4 Enclosure with (2) Vertical 1/8 DIN Cutouts
Model
PDA2702-V
Product Type
Steel UL Type 4 Enclosure with (2) Vertical 1/8 DIN Cutouts
Material
Painted Steel
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
None
Applicable Meter Types
D (Vigilante II/SuperNova Vertical 1/8 DIN Panel Meter)
Cutouts
(2) Vertical 1/8 DIN Cutouts
Cover Securing Method
Hinge / Latch
Fits PDA1024-01
No
Sun Hood Compatible
No
Light/Horn Compatible
Yes
Overall Dimensions
6.9" x 9.5" x 3.5" (176 mm x 241 mm x 89 mm) (W x H x D)
Weight
5.4 lbs (2.4 kg)
Approvals
UL, CSA
Warranty
1 Year
$629.00

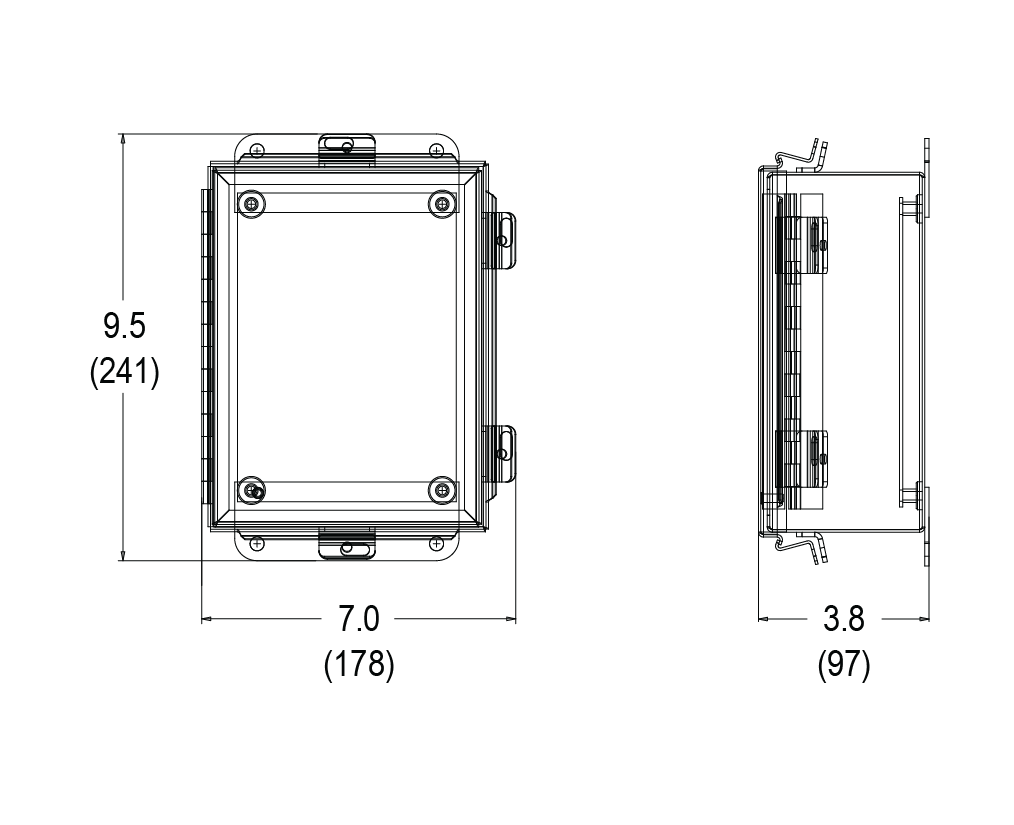

Inches (mm)
