Steel UL Type 4 Enclosure with (3) Vertical 1/8 DIN Cutouts
Model
PDA2703-V
Product Type
Steel UL Type 4 Enclosure with (3) Vertical 1/8 DIN Cutouts
Material
Painted Steel
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
PDP2503
Applicable Meter Types
D (Vigilante II/SuperNova Vertical 1/8 DIN Panel Meter)
Cutouts
(3) Vertical 1/8 DIN Cutouts
Cover Securing Method
Hinge / Latch
Fits PDA1024-01
No
Sun Hood Compatible
No
Light/Horn Compatible
Yes
Overall Dimensions
8.9" x 11.5" x 4.0" (227 mm x 292 mm x 102 mm) (W x H x D)
Weight
8.2 lbs (3.7 kg)
Approvals
UL, CSA
Warranty
1 Year
$699.00

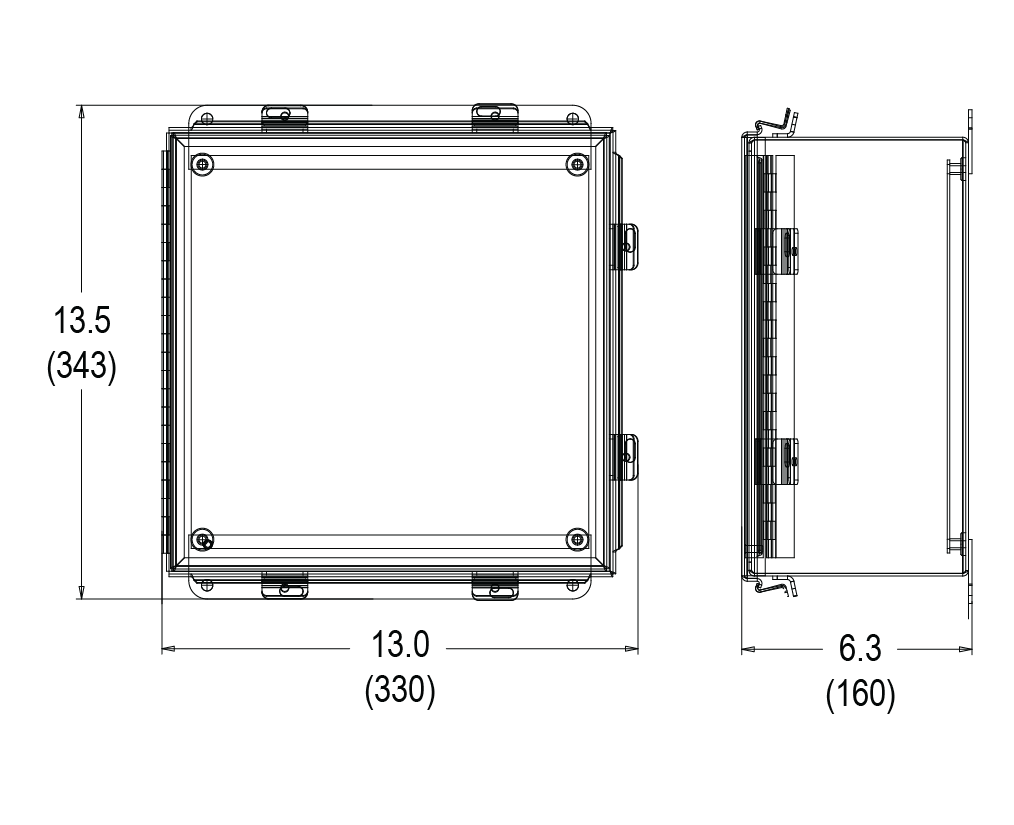

Inches (mm)
