Steel UL Type 4 Enclosure with (1) Vertical 1/8 DIN Cutout
PDA2701-V
Model
PDA2701-V
Product Type
Steel UL Type 4 Enclosure with (1) Vertical 1/8 DIN Cutout
Material
Painted Steel
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
None
Applicable Meter Types
D (Vigilante II/SuperNova Vertical 1/8 DIN Panel Meter)
Cutouts
(1) Vertical 1/8 DIN Cutout
Cover Securing Method
Hinge / Latch
Fits PDA1024-01
No
Sun Hood Compatible
No
Light/Horn Compatible
Yes
Overall Dimensions
6.9" x 7.5" x 4.0" (176 mm x 191 mm x 102 mm) (W x H x D)
Weight
3.8 lbs (1.7 kg)
Approvals
UL, CSA
Warranty
1 Year
$519.00

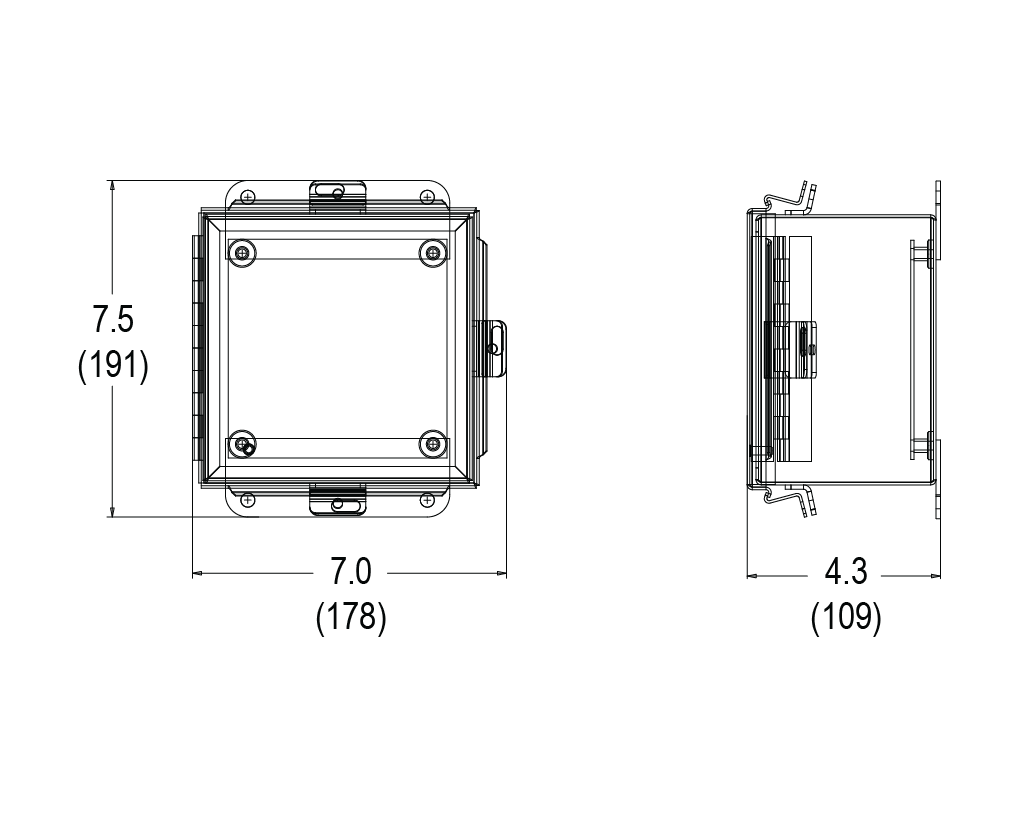

Inches (mm)
