Model: PDA2604-V

PDA2600 Series Stainless Steel UL Type / NEMA 4X Enclosures

UL Listing Canadian Standards Association
SKU: PDA2604-V
Product Type: UL Type / NEMA 4X Enclosure
Materials: Stainless Steel
Cutouts: Four (4)
Meter Mounting: Through front panel
Orientation: Vertical
Approvals: UL/C-UL, CSA
Warranty: 1 year
Product Family: PDA2600
Product Category: Enclosures
Product Application: Enclosures
Cover Method: Hinge / Screw
Cutout DIN Size: 1/8 DIN
Applicable Meter Types: D

Features

  • House up to 6 Meters
  • 16-Gauge Type 304 Stainless Steel
  • 14-Gauge Type 304 Stainless Steel
  • 1/8 DIN Cutout(s) Pre-Cut
  • Horizontal, Vertical, or No Cutouts
  • UL Type 4, 4X and 12
  • NEMA 4, 4X, 12, and 13
  • Cover Secured with Screwed Latches
  • Hinged Door
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Holes Integral to Enclosure
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed, CSA Certified
  • Light/Horn & Button

Overview

The PDA2600 series of stainless steel UL Type / NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to six Precision Digital meters to walls and other vertical structures. Many of these enclosures also have room for additional devices like a Light/Horn and a 24 V transmitter power supply. These enclosures come pre-cut with horizontal or vertical 1/8 DIN cutouts or they can be ordered with no cutouts. The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter. No additional mounting hardware other than screws is needed. The door is hinged and secured with latches. Enclosures, meters and accessories are ordered and packaged separately.

Wall Mounting

The PDA2600 enclosures include integral mounting flanges attached at the top and bottom of the enclosure that can be used to mount the enclosures to a wall.

Wall mounting

Mounting flange for wall mounting

Cover Securing Method

The cover is secured in place with screwed latches.

Cover Securing Method

Accessories

Sub-Panels

Sub-Panels

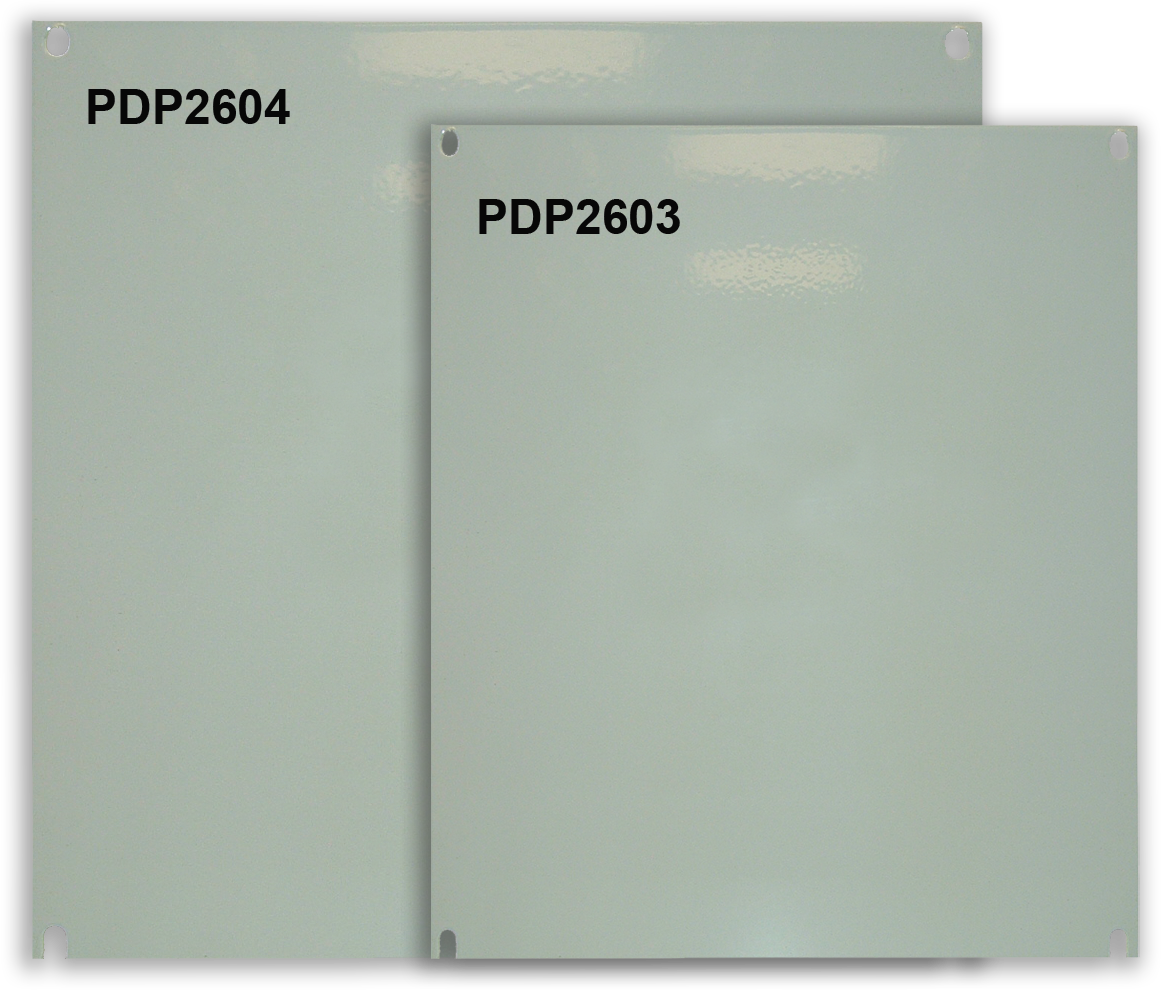

The PDP2603 & PDP2604 sub-panels provide a convenient way to mount additional items to the base of the enclosure. They can be drilled to accept screws for easy mounting of relays, contactors, securing wiring clips, or installing other internal devices. See chart below for compatibility.

Sub-Panel Specifications

Size:
PDP2603: 8.75" × 6.88"
(222 mm × 175 mm)
PDP2604: 10.75" × 10.88"
(273 mm × 276 mm)
Thickness: 14 gauge
Material: Stainless steel
Mounting hardware is included.

ModelPDP2603PDP2604
Horizontal Cutouts
PDA2601
PDA2602
PDA2603
PDA2603-1
PDA2603-2
PDA2604
PDA2604-1
PDA2604-1C
PDA2604-2
PDA2604-2C
PDA2604-3
PDA2604-3C
PDA2605
PDA2606
Vertical Cutouts
PDA2601-V
PDA2602-V
PDA2603-V
PDA2604-V
PDA2605-V
PDA2606-V
PDA2622
No Cutouts
PDA2603-B
PDA2606-B

PDA1024-01 24 VDC Power Supply for DIN Rail

PDA1024-01 24 VDC Power Supply for DIN Rail

The PDA1024-01 is a DIN rail mounted 24 VDC, 1.5 A power supply.

Specifications

Output Voltage: 21.6 ~ 26.4 VDC; ±10% 1.5A rated current.
Dimensions:
3.07" x 3.66" x 2.20"
(78 mm x 93 mm x 56 mm)
(W x H x D)

PDA-SSTAG Stainless Steel
Tags

PDA-SSTAG Stainless Steel Tags

PDA-SSTAG is a laser etched stainless steel tag accessory for any Precision Digital meters / controllers. The tag features custom text for equipment identification, instruction, or whatever else is needed in your facility. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need it.

PDX18DIN-FILLER 1/8 DIN Cutout Filler

PDX18DIN-FILLER 1/8 DIN Cutout Filler

The PDX18DIN-FILLER NEMA 4X 1/8 DIN cutout filler is used to cover up empty 1/8 DIN cutouts and maintain the NEMA 4X rating to the panel or enclosure. It consists of a generic bezel with a black faceplate, as well as mounting brackets, gasket, etc.



PDA2600 Series Enclosure with Light/Horn

Transform Precision Digital meters and controllers housed in an enclosure into an efficient display, control, and alarm system with the MOD-LH series. It provides a light/horn to boost visibility of alarm conditions, a button that connects to the meter's digital input to control or reset the alarms, and hole drilling on the enclosure for both the light/horn and button to make user installation and wiring quick and easy. Enclosure and meter are sold separately.

The MOD-LH series is compatible with a wide range of Precision Digital UL Type / NEMA 4 & 4X enclosures as well as meters and controllers including the ProVu, Trident, Loop Leader, and ConsoliDator+ Series.

Overall, the MOD-LH series is a simple solution for Precision Digital meters housed in an enclosure that adds audible and visual ways to indicate critical alarms.

MOD-LH Series

ProVu Meter Shown in a PDA2301 Enclosure with MOD-LHRB1 Red Light/Horn and Button. Meter & Enclosure Sold Separately. Assembly Required.

What's Included
Check mark Light/Horn

Light/Horn

Check mark Button

Button and 9 Labels

Check mark Enclosure Drilling

Hole Drilling on Enclosure

X mark Meter

Meter

X mark Enclosure

Enclosure

X mark Installation

Installation and Wiring

Meter and enclosure sold separately. User installation and wiring required.



Dimensions
Light/Horn
Light/Horn Dimensions
Button
Button Dimensions



PDA18DINSH Stainless Steel Sun Hood for 1/8 DIN Panel Meters

PDA18DINSH Sun Shade

Meter & Enclosure Sold Separately. Assembly Required.

The PDA18DINSH Sun Hood improves the readability of 1/8 DIN digital panel meters when they are mounted in direct sunlight by shading the instrument from the sun.

The Sun Hood is made from 18 gauge 316 stainless steel and mounts between the 1/8 DIN digital panel meter and the panel. In addition, a gasket is provided that installs between the Sun Hood and the panel to provide a NEMA 4X seal to the panel. The whole assembly is held in place by the panel meter’s mounting brackets.



Dimensions
Units: Inches (mm)
PDA18DINSH Sun Hood Dimensions

PDA18DINSH Overall Dimensions

PDA18DINSH Sun Hood 1/8 DIN Cutout

PDA18DINSH 1/8 DIN Cutout

Note: These specifications apply to the entire product series and may contain information that is not relevant to this particular model number.

General

Material: PDA2601: 16-gauge, Type 304 SS; PDA2602-2606: 14-gauge, Type 304 SS
Color: Stainless steel: unpainted, smooth brushed finish
Meters: Houses up to 6 meters
Meter Mounting Method: Through cover
Cover Mounting Method: Hinge / latch
Ratings: UL Type 4, 4X and 12 / NEMA 4, 4X, 12, and 13
Approvals: UL, CSA
Warranty: 1 year

1/8 DIN Meter Types

Type Meters
B PD542, PD543, and PD562
C PD603, PD644, PD743, PD765, PD6602, PD6603, PD6604, PD6606, PD6607, PD6608, PD6622, PD6624, and PD6626, and PD6628.
D PD138, PD154, and PD158
E PD6000, PD6001, PD6060, PD6080, PD6081, PD6088, PD6089, PD6100, PD6200, PD6210, PD6262, PD6300, PD6310, PD6310-WM, PD6363, PD6400, and PD7000

Features

Available 1 Required

Model# of Meters1/8 DIN Meter Type
BCDE
DIN
14116
Fits
PDA1024-01
Fits
Light/Horn
Horizontal Cutouts
PDA26011


NoYes
PDA26022


NoYes
PDA26033


NoYes
PDA2603-11


NoYes
PDA2603-22


NoYes
PDA26044


YesYes
PDA2604-11


YesYes
PDA2604-1C1


YesYes
PDA2604-22


YesYes
PDA2604-2C2


YesYes
PDA2604-33


YesYes
PDA2604-3C3


YesYes
PDA26055


YesYes
PDA26066


YesYes
Vertical Cutouts
PDA2601-V1


NoYes
PDA2602-V2


NoYes
PDA26222

NoYes
PDA2603-V3


YesYes
PDA2604-V4


YesYes
PDA2605-V5


YesYes
PDA2606-V6


YesYes
No Cutouts
PDA2603-B N/ANoYes
PDA2606-B N/AYesYes

Dimensions

Units: Inches (mm)

Extra Small Enclosures

Extra Small Enclosures

Weight: 3.8 lbs (1.7 kg)

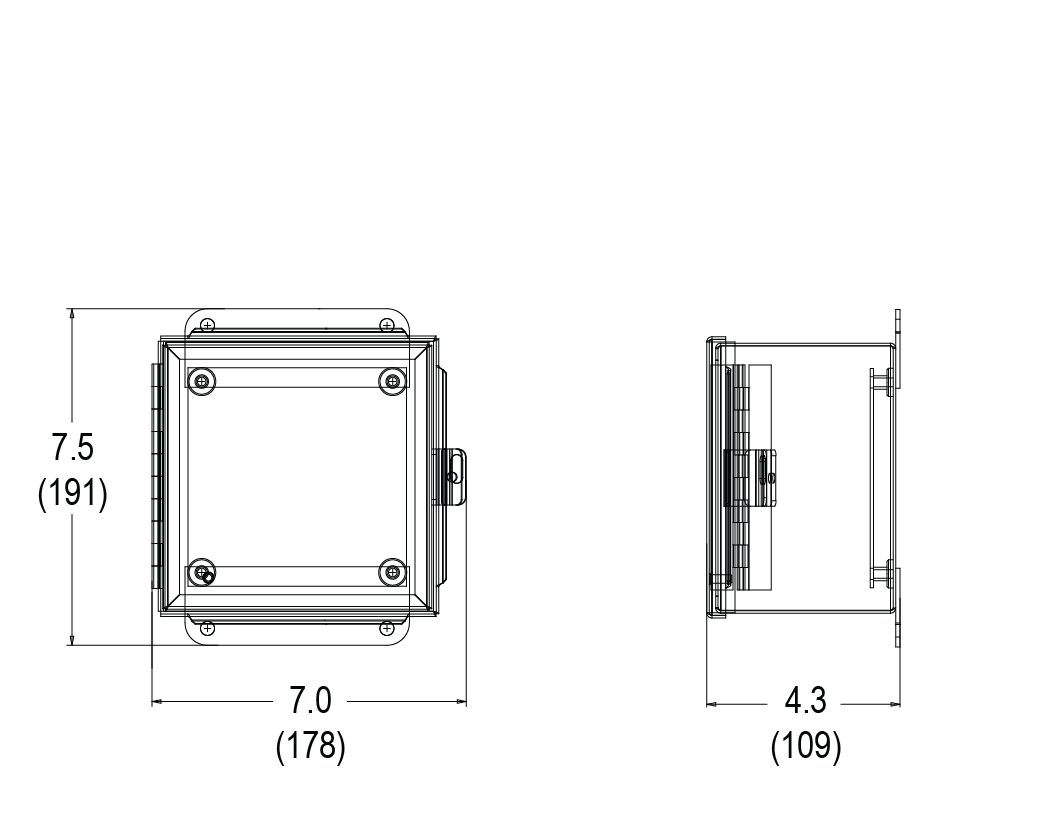

Dimensions for: PDA2601, PDA2601-V.


Small Enclosures

Small Enclosures

Weight: 5.1 lbs (2.3 kg)

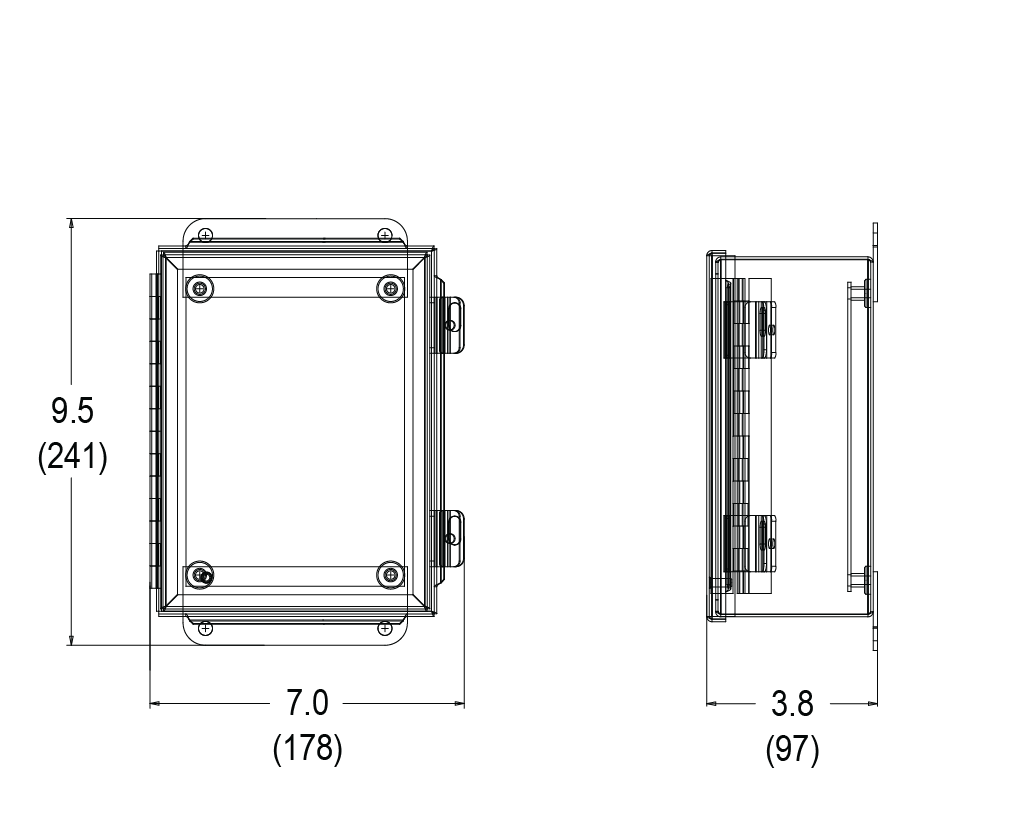

Dimensions for: PDA2602, PDA2602-V, PDA2622.


Medium Enclosures

Medium Enclosures

Weight: 7.9 lbs (3.6 kg)

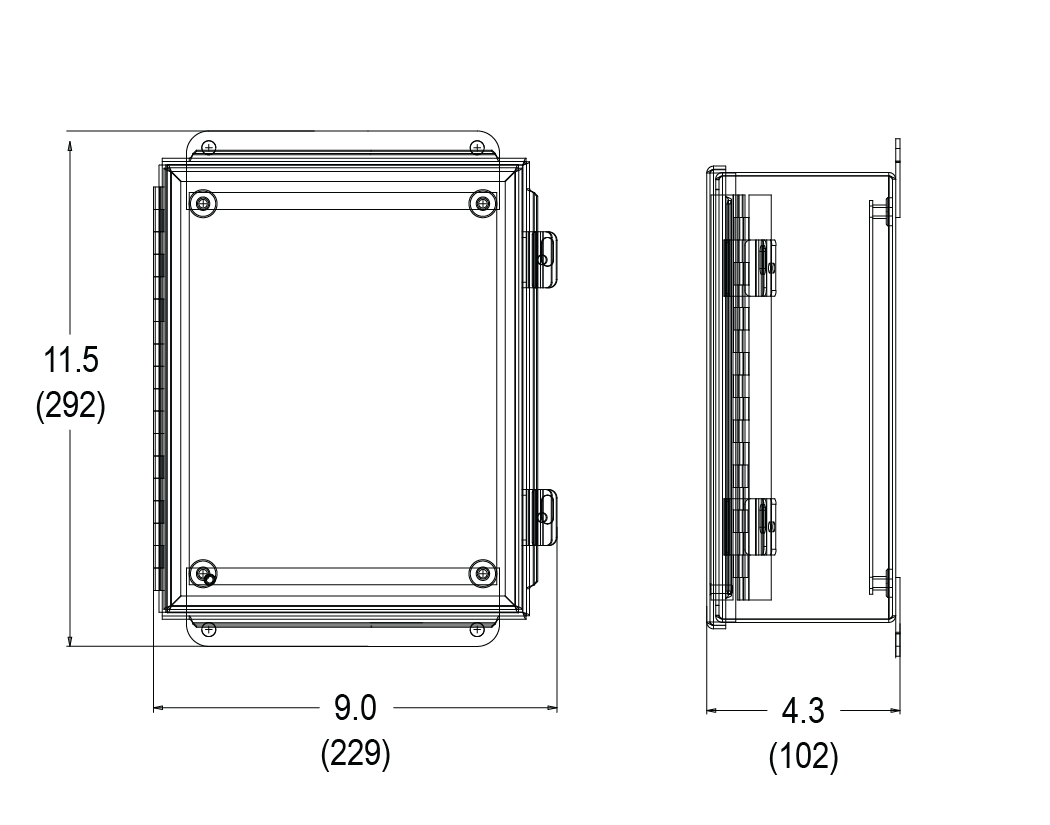

Dimensions for: PDA2603, PDA2603-1, PDA2603-2, PDA2603-B.


Large Enclosures

Large Enclosures

Weight: 13.9 lbs (6.3 kg)

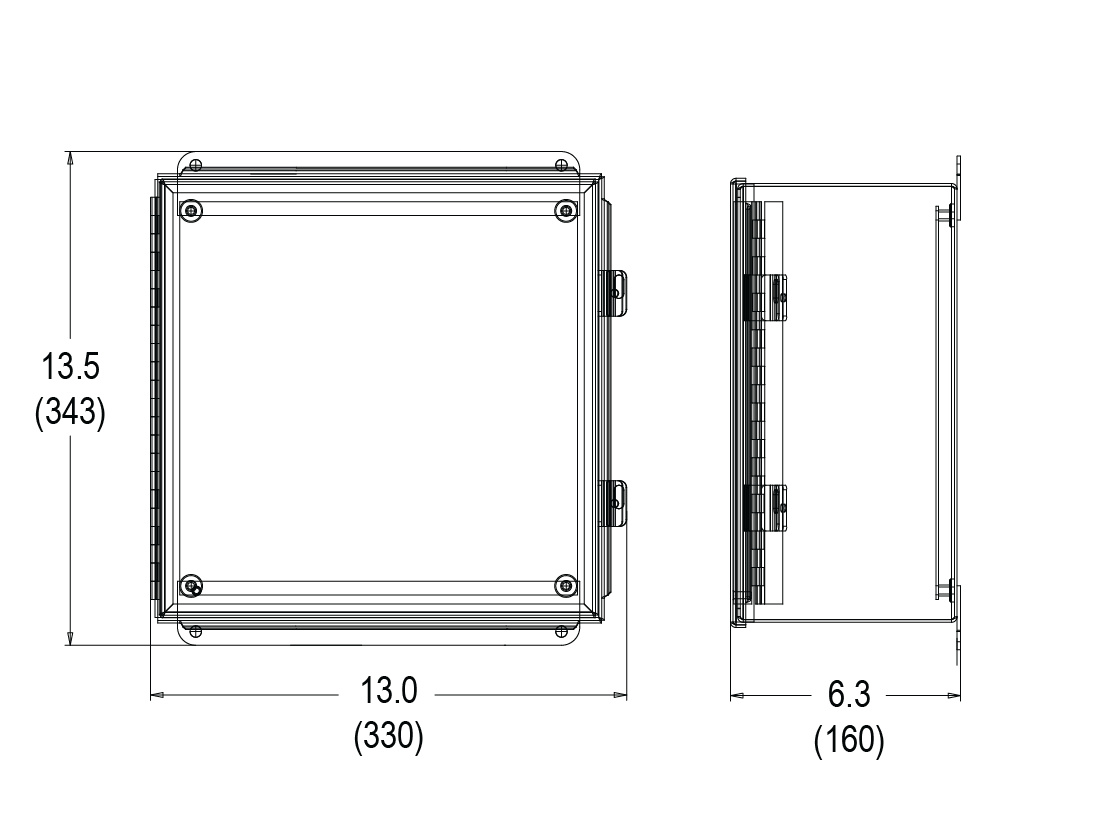

Dimensions for: PDA2603-V, PDA2604, PDA2604-1, PDA2604-1C, PDA2604-2, PDA2604-2C, PDA2604-3, PDA2604-3C, PDA2604-V, PDA2605, PDA2605-V, PDA2606, PDA2606-B, PDA2606-V.


Download free 3D CAD files

Note: This tab applies to the entire product series and may contain information that is not relevant to this particular model number.
