Model: PDA2801-V

PDA2800 Series Low-Cost Plastic NEMA 4X

PDA2801-V Enclosure
UL Listing
SKU: PDA2801-V
Product Type: NEMA 4 Enclosure
Materials: Plastic
Cutouts: One (1)
Inside Dimensions: 3.0" x 6.1" x 3.2"
Meter Mounting: Through front panel
Orientation: Vertical
Approvals: UL/C-UL
Warranty: 1 year
Conduit Hole Location: Bottom
Product Family: PDA2800
Product Category: Enclosures
Product Application: Enclosures
Cover Method: Screws
Cutout DIN Size: 1/8 DIN
Applicable Meter Types: D

Features

  • House up to 4 Instruments
  • Plastic
  • 1/4, 1/8, and 1/16 DIN Cutout(s) Pre-Cut
  • 1/2" Conduit Hole
  • NEMA 4X (PDA2801, PDA2802 NEMA 4)
  • Instruments Mounted in Cover
  • Cover Held in Place with Screws
  • UL, C-UL Listed
  • PDA2801, PDA2802 Mounting Holes Through Enclosure
  • PDA2811 - PDA2821 Mounting Hardware Provided
  • Light/Horn & Button
  • Pipe Mounting Kit Options

Overview

The PDA2800 series of economical small footprint plastic NEMA 4 & 4X enclosures provide a convenient way to mount up to four Precision Digital meters / controllers to walls and other vertical structures. The PDA2811 and PDA2821 enclosures also have room for a light/horn accessory. These enclosures come pre-cut with horizontal or vertical 1/4, 1/8, or 1/16 DIN cutouts or they can be ordered with no cutouts. Models with cutouts for PD420 / PD460 are also available. All enclosures are provided with a ½" conduit hole in the base of the enclosure. The instruments are mounted in the cover of the enclosure thus allowing for programming and operation of the instrument. No additional mounting hardware other than screws is needed. The cover is secured with four screws. Optional pipe mounting kits are available for mounting the enclosures to 2" pipes. Enclosures, meters/controllers and accessories are ordered and packaged separately.

Wall Mounting

The PDA2801 and PDA2802 use four screws (not included) that go through the back of the enclosure for quick and easy wall mounting. The PDA2811, PDA2812, PDA2813, PDA2814, PDA2815 and PDA2821 enclosures include four mounting flanges and four screws. Using the screws and a phillips head screwdriver simply assemble each flange in the four threaded screw holes on the back of the enclosure as shown in the example below.

Wall mounting

PDA2811 - PDA2815 enclosure with supplied mounting flanges installed

Back of enclosure

PDA2801 - PDA2802 with screws through back of enclosure for wall mounting



Cover Securing Method

The cover is secured with four screws.

Cover securing method


Accessories

PDA6845-SS 2" Pipe Mounting Kit

PDA6845-SS 2 Inch Pipe Mounting Kit

The PDA6845-SS pipe mounting kit provides convenient ways to mount PDA2800 enclosures to 2" pipes. The kit can be oriented either horizontally (as shown) or vertically (to accommodate 1/8 DIN vertical instruments.)

PDA-SSTAG Stainless Steel
Tags

PDA-SSTAG Stainless Steel Tags

PDA-SSTAG is a laser etched stainless steel tag accessory for any Precision Digital meters / controllers. The tag features custom text for equipment identification, instruction, or whatever else is needed in your facility. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need it.

PDX18DIN-FILLER 1/8 DIN Cutout Filler

PDX18DIN-FILLER 1/8 DIN Cutout Filler

The PDX18DIN-FILLER NEMA 4X 1/8 DIN cutout filler is used to cover up empty 1/8 DIN cutouts and maintain the NEMA 4X rating to the panel or enclosure. It consists of a generic bezel with a black faceplate, as well as mounting brackets, gasket, etc.



PDA-BUTTON Momentary Pushbutton

PDA-BUTTON Momentary Pushbutton

The PDA-BUTTON Series are IP67 fully sealed momentary pushbuttons that can be used for a variety of applications, such as resetting the manually-resettable relays on various Precision Digital meters. They are available with red, black and green buttons.

Button Labels
Button Labels

The button comes with 9 pre-printed message labels the user can affix under the button: RESET, BATCH, ACK, TARE, SILENCE, STOP, START, PAUSE, START/STOP.



MOD-BUTTON Pushbutton with Hole Drilled in Enclosure

When this is ordered, the enclosure comes pre-drilled with a hole for pushbutton to be installed by user. Enclosure is sold separately. The pushbutton is centered on the cover of the enclosure about an inch off the bottom. For mounting in different locations, order items separately and drill holes and mount as desired. Other pushbutton colors are available.

MOD-BUTTON Pushbutton with Hole Drilled in Enclosure


PDA2800 Series Enclosures with Light/Horn

Transform Precision Digital meters and controllers housed in an enclosure into an efficient display, control, and alarm system with the MOD-LH series. It provides a light/horn to boost visibility of alarm conditions, a button that connects to the meter's digital input to control or reset the alarms, and hole drilling on the enclosure for both the light/horn and button to make user installation and wiring quick and easy. Enclosure and meter are sold separately.

The MOD-LH series is compatible with a wide range of Precision Digital NEMA 4 and NEMA 4X enclosures as well as meters and controllers including the ProVu, Trident, Loop Leader, and ConsoliDator+ Series.

Overall, the MOD-LH series is a simple solution for Precision Digital meters housed in an enclosure that adds audible and visual ways to indicate critical alarms.

MOD-LH Series

Trident Meter and Minimux II Scanner Shown in a PDA2801 Enclosure with MOD-LHRB1 Red Light/Horn and Button. Meter & Enclosure Sold Separately. Assembly Required.

What's Included
Check mark Light/Horn

Light/Horn

Check mark Button

Button and 9 Labels

Check mark Enclosure Drilling

Hole Drilling on Enclosure

X mark Meter

Meter

X mark Enclosure

Enclosure

X mark Installation

Installation and Wiring

Meter and enclosure sold separately. User installation and wiring required.



Dimensions
Light/Horn
Light/Horn Dimensions
Button
Button Dimensions



PDA18DINSH Stainless Steel Sun Hood for 1/8 DIN Panel Meters

PDA18DINSH Sun Shade

Meter & Enclosure Sold Separately. Assembly Required.

The PDA18DINSH Sun Hood improves the readability of 1/8 DIN digital panel meters when they are mounted in direct sunlight by shading the instrument from the sun.

The Sun Hood is made from 18 gauge 316 stainless steel and mounts between the 1/8 DIN digital panel meter and the panel. In addition, a gasket is provided that installs between the Sun Hood and the panel to provide a NEMA 4X seal to the panel. The whole assembly is held in place by the panel meter’s mounting brackets.



Dimensions
Units: Inches (mm)
PDA18DINSH Sun Hood Dimensions

PDA18DINSH Overall Dimensions

PDA18DINSH Sun Hood 1/8 DIN Cutout

PDA18DINSH 1/8 DIN Cutout

Note: These specifications apply to the entire product series and may contain information that is not relevant to this particular model number.

General

Material: Thermoplastic Polyester
Color: Gray
Instruments: Houses 1 or 2 meters / controllers
Instrument Mounting Method: Through cover
Cover Mounting Method: Screws
Ratings: NEMA 4X (PDA2801, PDA2802 NEMA 4)
Approvals: UL, C-UL
Operating Temperature: -40 to 120°C
Warranty: 1 year

Instrument Types

Type Instruments
C PD603, PD644, PD743, PD765, PD6602, PD6603, PD6604, PD6606, PD6607, PD6608, PD6622, PD6624, and PD6626, and PD6628
D PD138, PD154, PD158, and PD520
E PD6000, PD6001, PD6060, PD6080, PD6081, PD6088, PD6089, PD6100, PD6200, PD6210, PD6262, PD6300, PD6310, PD6310-WM, PD6363, PD6400, and PD7000
F PD530
G PD510
H PD420, and PD460

Features

Available 1 Required

Model# of CutoutsInstrument Type
CDEFGH
Conduit HoleFits
PDA1024-01
Fits
Light/Horn
1/8 DIN Horizontal Cutouts
PDA28011

YesNoNo
PDA28111

YesNoYes
PDA28122

YesNoYes
1/8 DIN Vertical Cutouts
PDA2801-V1

YesNoNo
PDA2811-V1

YesNoNo
PDA2812-V1

YesNoYes
PDA28212

YesNoYes
1/4 DIN Cutouts
PDA2811-41

YesNoYes
1/16 DIN Cutouts
PDA2801-161

YesNoNo
PDA2802-162

YesNoNo
PDA2811-161

YesNoYes
PDA2812-162

YesNoYes
PDA2813-163

YesNoYes
PDA2814-164

YesNoYes
PD420/PD460 Cutouts
PDA28021

YesNoNo
PDA28142

YesNoNo
PDA2815<3>

YesNoNo
No Cutouts
PDA2801-B NoneN/ANoNoNo
PDA2812-B NoneN/ANoNoYes

Dimensions

Units: Inches (mm)

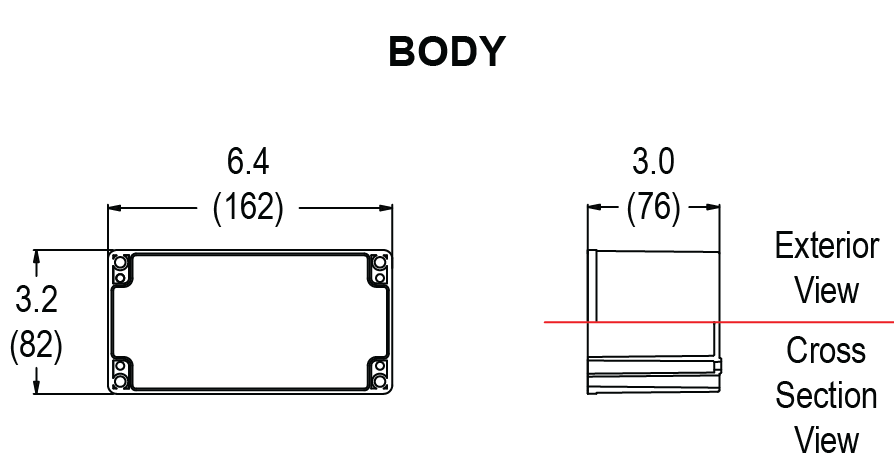

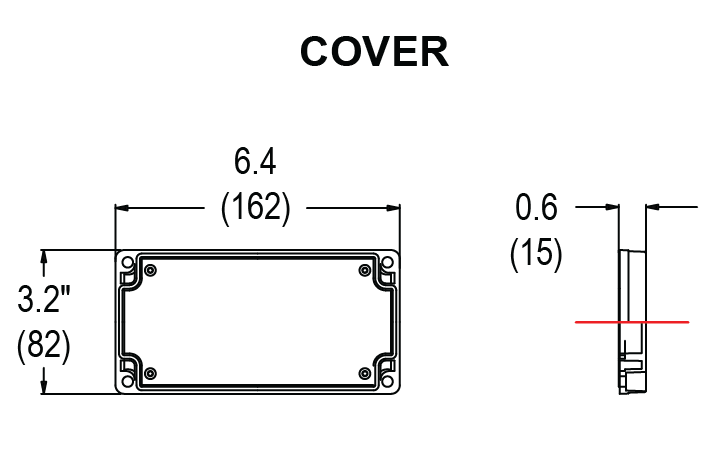

Small Enclosures

PDA2801 Enclosure

Weight: 0.60 lbs (0.27 kg)
Dimensions for: PDA2801, PDA2801-16, PDA2801-V, PDA2802, and PDA2802-16


Medium Enclosures

PDA2811/2812 Enclosures

Weight: 1.75 lbs (0.79kg)
Dimensions for: PDA2811, PDA2811-4, PDA2811-16, PDA2811-V, PDA2812, PDA2812-16, PDA2812-V, PDA2813-16, PDA2814, PDA2814-16, and PDA2815


Large Enclosure

PDA2821 Enclosure

Weight: 2.80 lbs (1.27 kg)
Dimensions for: PDA2821


Download free 3D CAD files

Note: This tab applies to the entire product series and may contain information that is not relevant to this particular model number.
