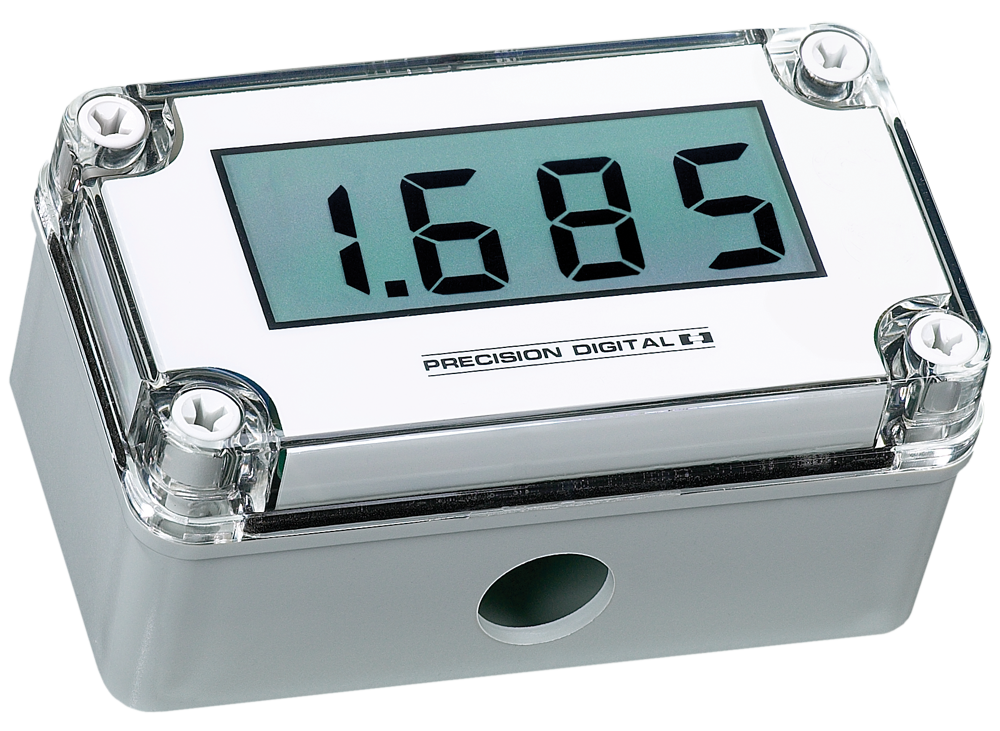

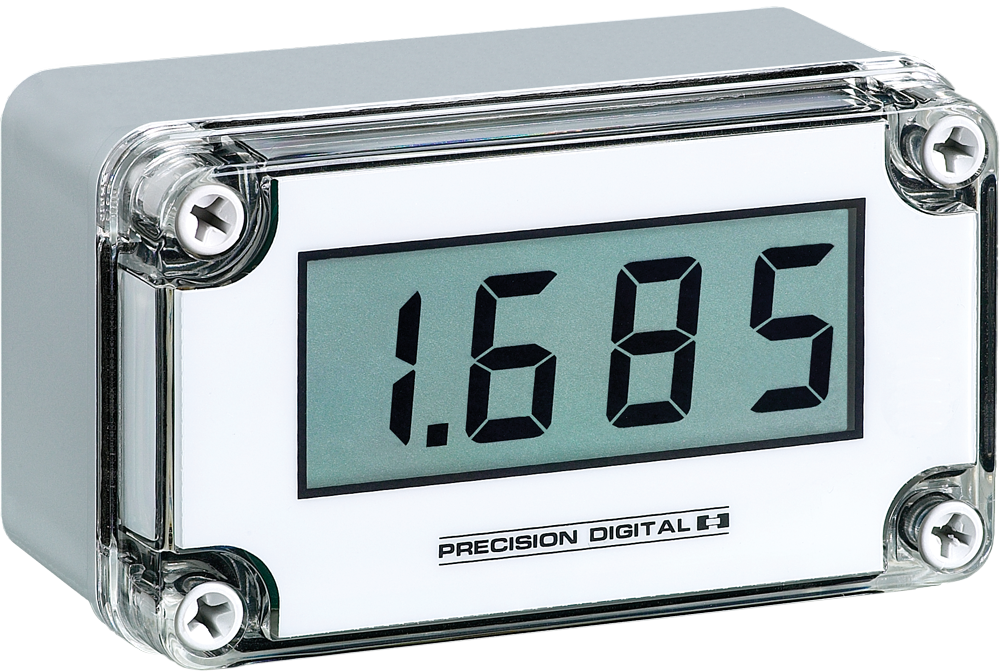

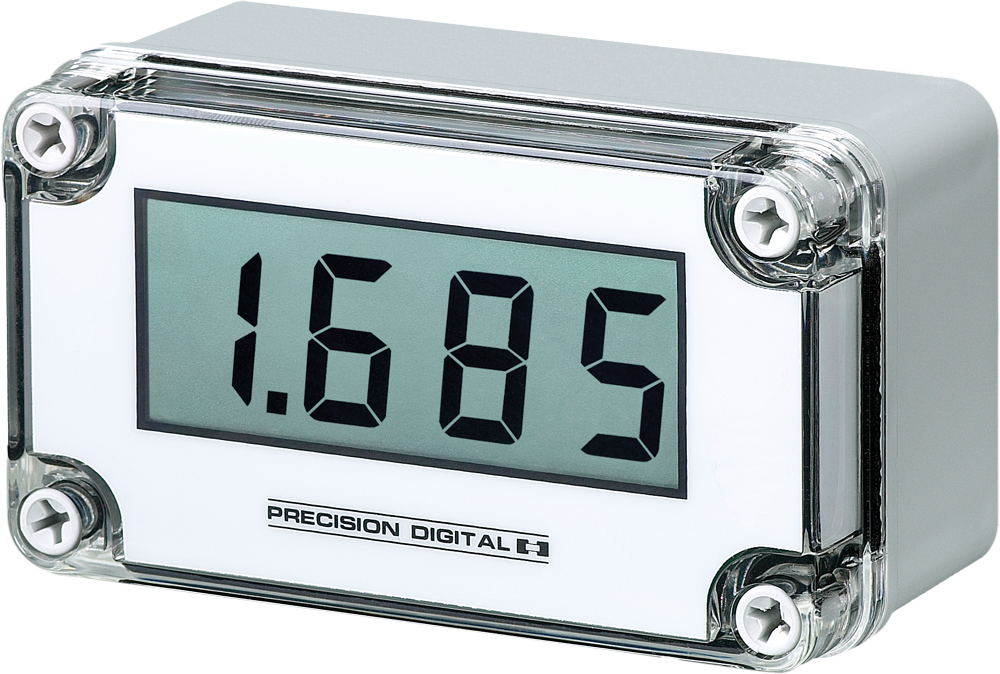

Intrinsically Safe Type 4X, IP67 Loop-Powered Meter
Intrinsically Safe Type 4X, IP67 Loop-Powered Meter
Model
PD685
Product Type
NEMA 4X Loop-Powered Indicator
Input(s)
4-20 mA
Number of Inputs
1
Display
Backlit LCD, 7 Segments, 3 1/2 Digits (-1999 to 1999), 1.10" (27.9 mm) High
Power
Loop-Powered
Operating Temperature Range
-40 to 75°C (-40 to 167°F)
Installation Temperature Range
-40 to 75°C (-40 to 167°F)
Enclosure Material
Plastic
Enclosure Rating
IP67, CSA Type 4X, NEMA 4X
Conduits (Number) & Size
(1) 1/2" Hole
Weight
12 oz (340 g)
Approvals
ATEX (IS), IECEx (IS), cCSAus (NI), cCSAus (IS), CE
Warranty
3 Years
$229.00

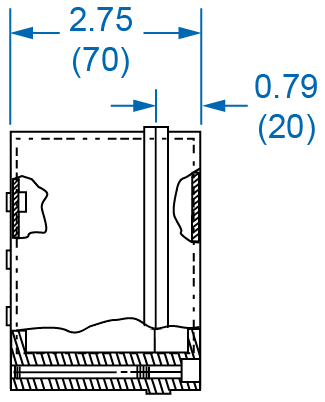

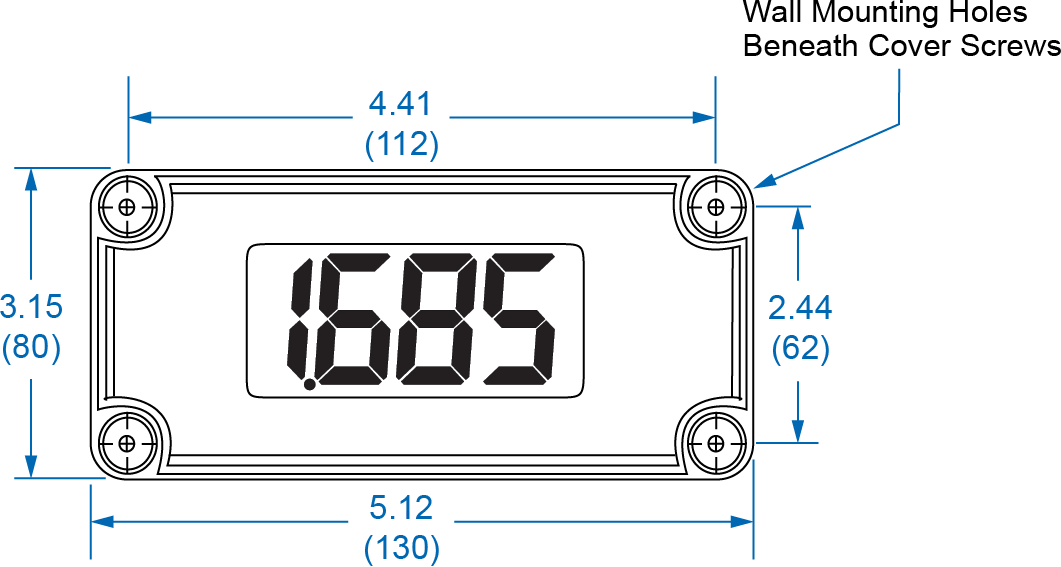

Inches (mm)
