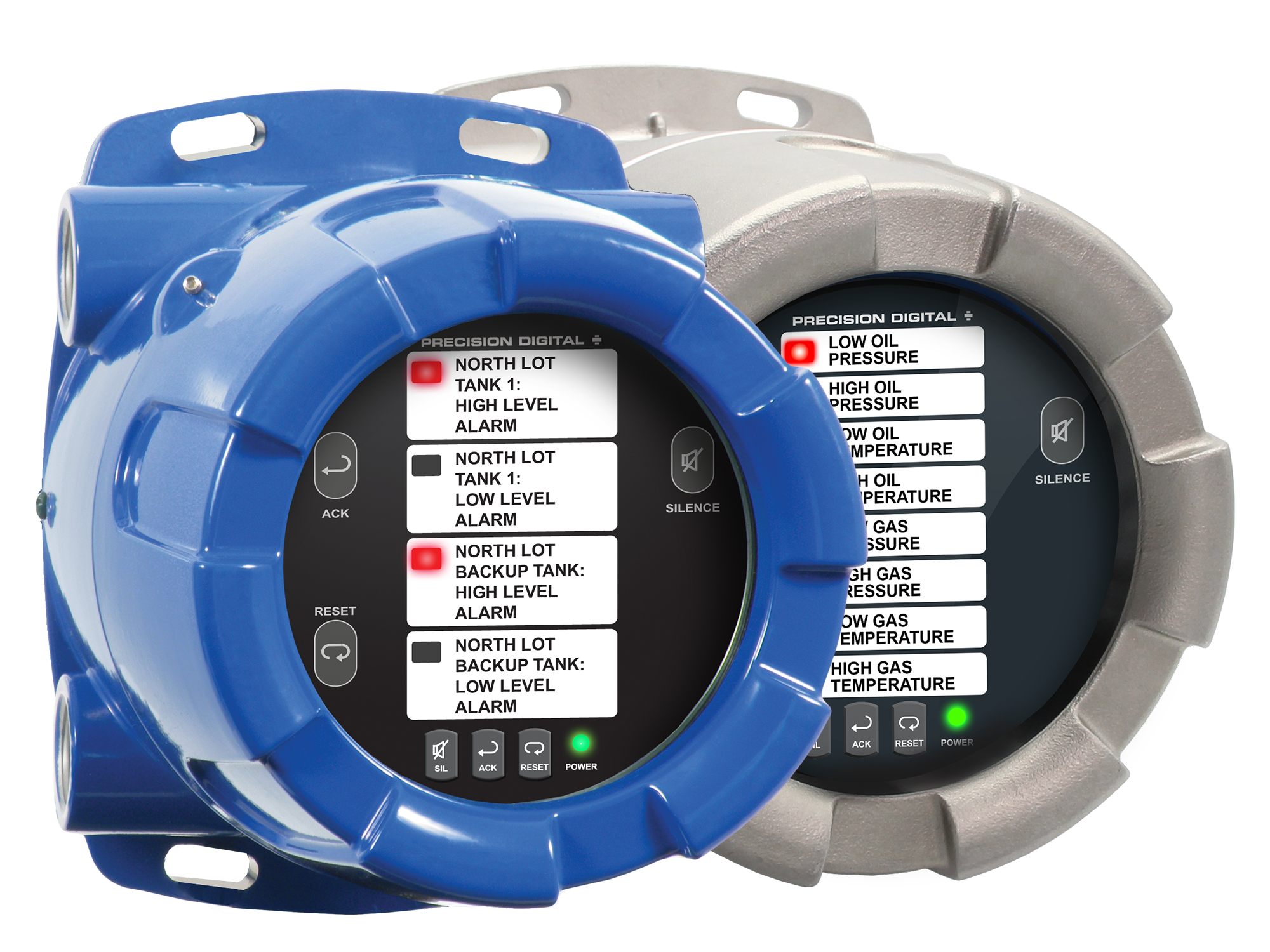

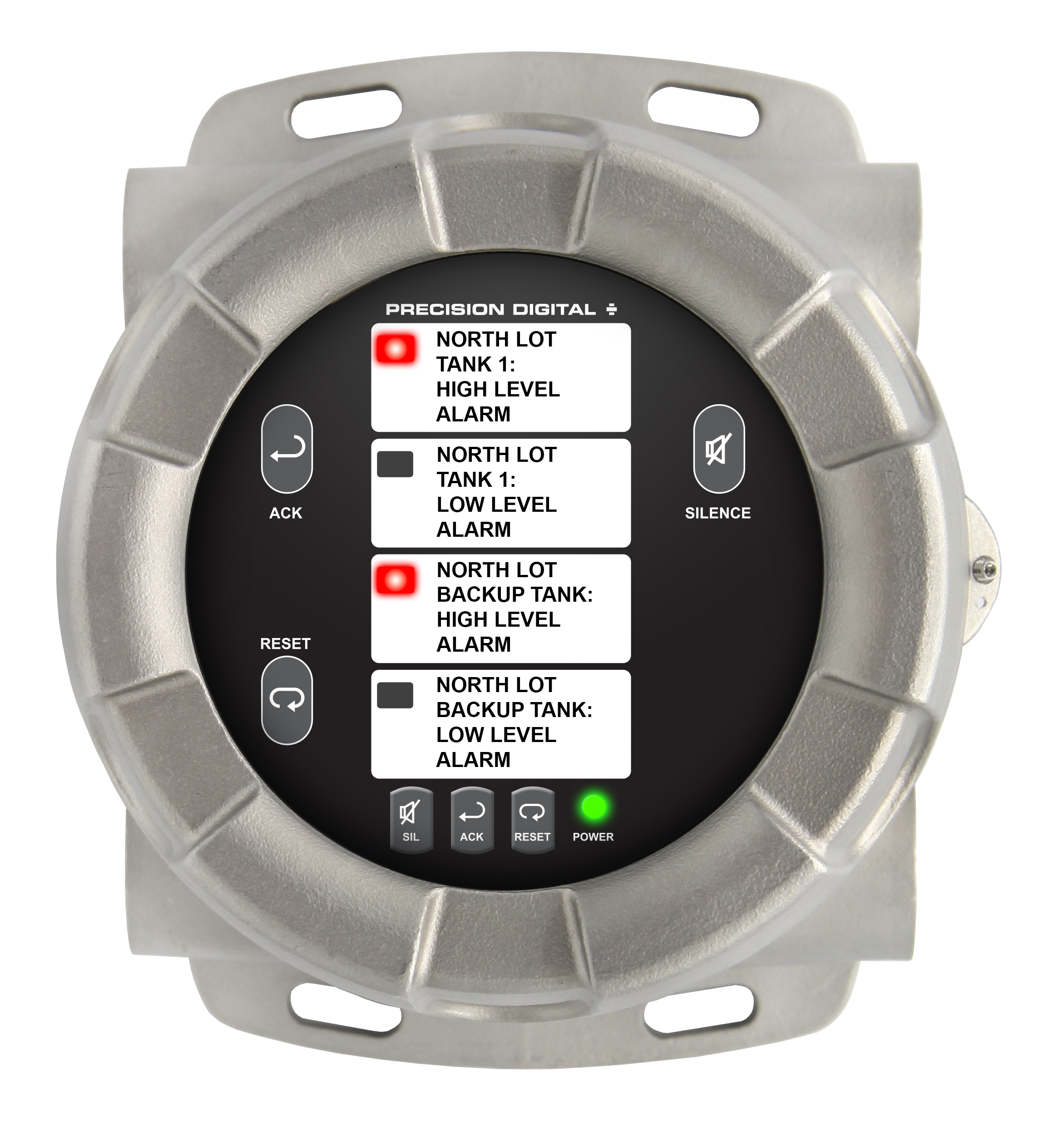

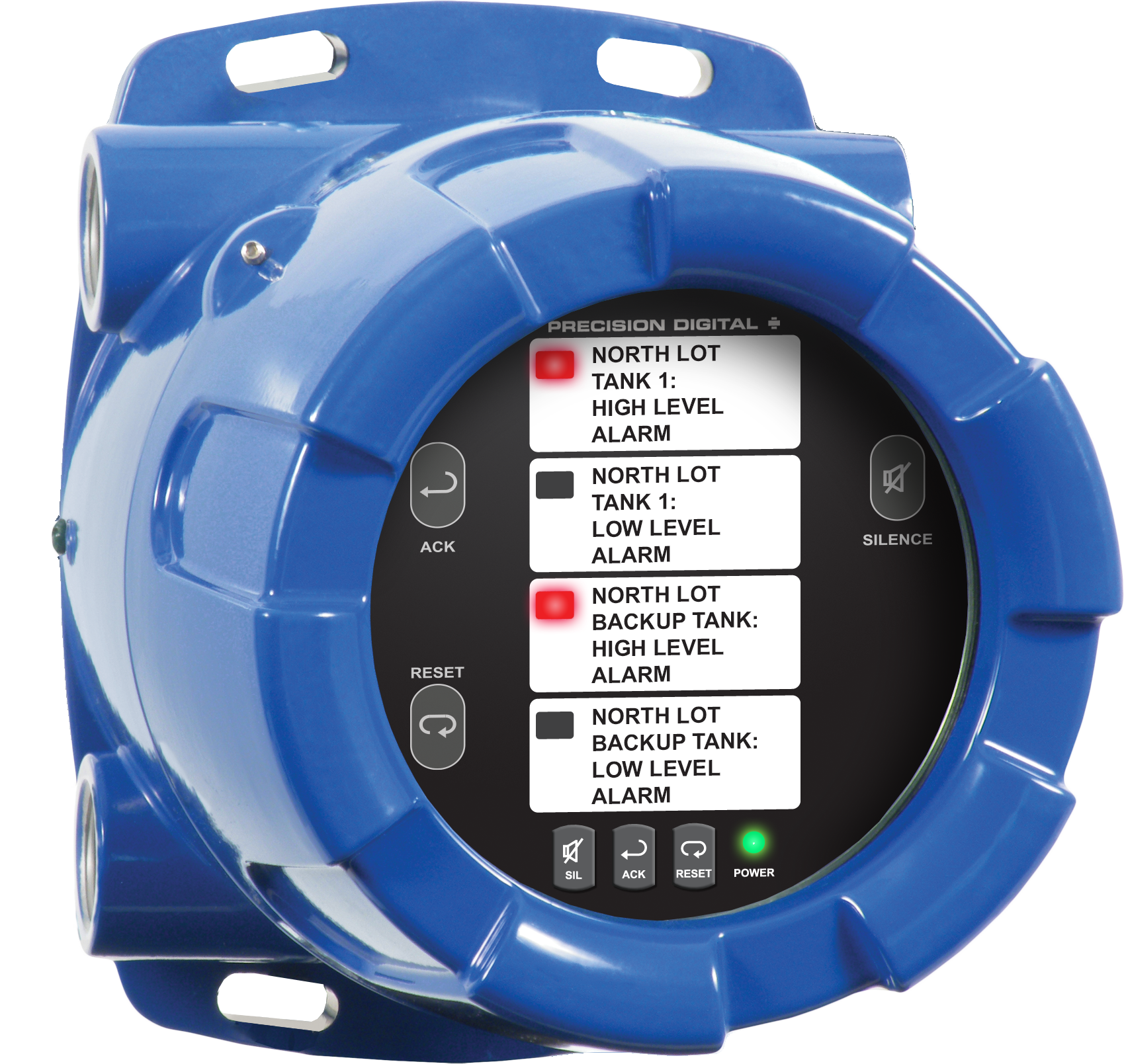

ProtEX-MAX Explosion-Proof Alarm Annunciators
PD8-150 Series - Available in Aluminum or Stainless Steel Enclosures
Model
PD8-154-6R2-1
Product Type
ProtEX-MAX Explosion-Proof Alarm Annunciator, 4 Inputs
Input(s)
Switch, Transistor, Logic Level
Number of Inputs
4
Display
4 Alarmed Channels: Red LED
Power
85-265 VAC, 90-265 VDC
Output(s)
(2) Relays
Operating Temperature Range
-55 to 65ºC (-67 to 149°F)
External Modules Available
None
Enclosure Material
Aluminum
Enclosure Rating
IP68, Explosion-Proof, NEMA 4X
Conduits (Number) & Size
(4) 3/4" NPT
Weight
14.7 lbs (6.7 kg)
Approvals
IECEx (XP), ATEX (XP), CSA (XP), CE
Warranty
3 Years
$1508.00
Inches (mm)
