- Large Display NEMA 4X, IP65 Loop-Powered Wall & Pipe Mounted Meters
- 4-20 mA Input Displayed with ±0.02% FS Accuracy
- 2.1 Volt Drop Maximum
- 2.8" (71 mm) 5 Alphanumeric 14-Segment Characters Top Display
- 1.5" (39 mm) 8 Alphanumeric 14-Segment Characters Bottom Display
- 20-Segment Bargraph with Numeric Percent Indication
- (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
- (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
- Stopwatch & Timer Functions to Drive Relays & Open Collectors
- Optional Isolated 4-20 mA Analog Output
- Relay Pump Alternation Based on Level and Runtime
- Display Relay Runtime & Cycle Count via Relay Info Menu
- Round Horizontal Tank Function; Just Enter Diameter & Length
- 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
- Free PC-Based MeterView XL USB Programming Software
- Externally DC Powered Backlight with Red Backlight for Alarm Conditions
- Operating Temperature Range: -40 to 75°C (-40 to 167°F)
- Conformal Coated PCBs for Dust & Humidity Protection
- Pipe Mounting Kit Available
- Stainless Steel Sun Hood Accessory Available
- 3-Year Warranty
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300
- Accessories
- Annunciators & Scanners
- Calibrators, Signal Isolators, Splitters, & Generators
- Control Stations
- Custom Enclosure Assembly
- Demo Units
- Digital Panel Meters
- Enclosures
- Explosion-Proof
- Field-Mount Indicators
- Industrial Wireless
- Intrinsically Safe
- Large Display
- Light/Horn
- Loop-Powered Meters
- Modbus Displays
- Modifications
- Multi-Channel Controllers
- Process Value Alarm Enclosure Assembly
- Sun Hoods
- Subpanel Wiring Assembly
- Temperature Controllers
- Level
- Level (Feet & Inches)
- Process
- Pressure
- Temperature
- Flow Rate/Totalizer
- Pump Control
- Chemical Bulk Storage
- Strain Gauge
- Load Cell
- Hazardous Area
- Industrial Wireless
- Batch Control
- PID Control
- Modbus
- Annunciator
- Calibration
- Data Logging
- Signal Conditioning
- Signal Generation
- Signal Isolating
- Signal Splitting
- High Current
- Speed
- Weight
Loop Leader+ Large Display Loop-Powered Process Meter
PD4-6604 Left
Models in stock
from $1412.00
The PD4-6604 Loop Leader+ is a loop-powered large display meter for 4-20 mA signals, built to provide clear visibility and flexible operation in safe area applications. Its dual-line display shows the process variable on the top line, with units, a tag, or a custom message on the bottom line, plus a bargraph with percentage indication for added at-a-glance information. Available in display-only or relay and analog output models, it also includes open collector outputs, remote contacts, and free MeterView XL software via micro USB for programming and setup.
Why Should You Buy:
- 2.8" Dual-Line Backlit LCD Display
- Loop-Powered
- Flashing Red Display / Message on Alarm
- Free Programming Software
- Decimal Display
- Bargraph
- Discrete and Analog Output Options
The PD4-6604 Loop Leader+ loop-powered large display meter can be installed virtually anywhere to provide convenient and informative display of any 4-20 mA signal. One of the most convenient features of this instrument is its large, dual-line display. The 2.8" 5-digit top display is used to display the process variable while the 1.5" 8-character alphanumeric bottom display can be used to display the units of measure, a tag, or custom message. Further enhancing the display is a 20-segment bargraph that also includes a numeric value of the percentage the bargraph represents.
Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters.

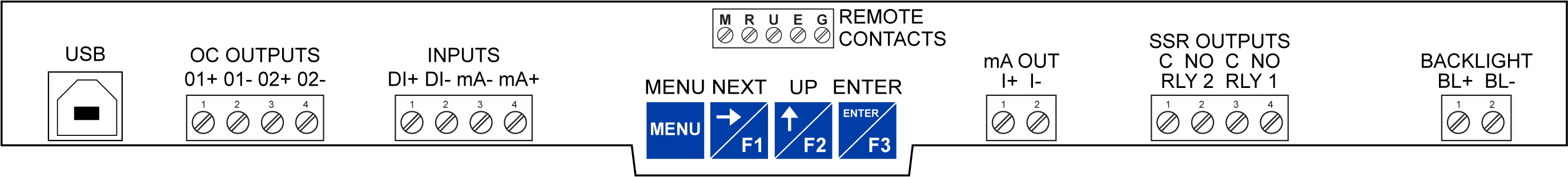

The PD4-6604 is available in two configurations: Display only and with two solid-state relays and 4-20 mA analog output. All models come equipped with two open collector outputs and remote contacts. The open collector outputs are useful for alarm indication. The remote contacts can be used to remotely operate the four programming buttons, to acknowledge the relays, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, on/off control, or pump alternation.
For hazardous area versions of these instruments please click here.
Inches (mm)
× ![Enlarged View]()
Documentation & Resources
Product Information (2)
Certifications (1)
MeterView XL software connects directly to the meter via a micro USB cable and is available for programming and setup of Loop Leader, Loop Leader+, ProtEX+, and VantageView+ series process meters and flow rate/totalizers. MeterView XL software is used to program parameters for a wide variety of applications such as tank level, pump alternation, rate/totalizing, batch control, and more. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. When connected to the PC, the meter is powered by the USB connection, so no additional power is needed during programming.
IMPORTANT!
Uninstall previous versions before downloading and running the latest version.
MeterView XL software can be installed on any Microsoft Windows 10/11 computer. Connect one end of a USB cable to the meter and the other end to the computer. The meter is powered via USB, so there is no need to wire anything before programming it. USB connection is intended for configuration purposes only.
General
Availability
System Requirements
Microsoft Windows 10/11
Communications
USB 2.0 (Standard USB A to USB B) Cable not provided
Configuration
Configure all parameters on the meter. Configure meters one at a time.
Configuration Files
Generate with or without meter connected; Save to file for later use.
USB Power Connection
The meter is powered by the USB connection during programming.
There is no need to apply external power.
Note: The meter will not be damaged if external power is applied to it during programming.
Compatibility
Programs created for Loop Leader and Loop Leader+ may be run on either meter. Programs created for VantageView+ and ProtEX+ can be run on either meter. No other program sharing is permissible.
Latest Version
2.1.1
