Key Features
- Mounts Enclosures to 1.5" or 2" Pipe
- Suitable for Horizontal or Vertical Pipes
- All Necessary Hardware Provided
- Available in Steel and 316 Stainless Steel
Overview
The PDA6545 and PDA6545-SS provide a convenient way to mount Precision Digital PDA3400 series and PDA2811, PDA2812, PDA2414, and PDA2415 enclosures to horizontal or vertical 1.5" or 2" pipes. The mounting kits are available in zinc plated steel and 316 stainless steel and include all necessary hardware to mount the enclosure to the pipe.
Mounting Instructions
- Attach the mounting plate to the enclosure with the provided hardware. The holes for the enclosure mounting bolts are accessed by removing the enclosure lid.
- Mount the plate to the pipe with the provided U-bolts and hardware.
Contents

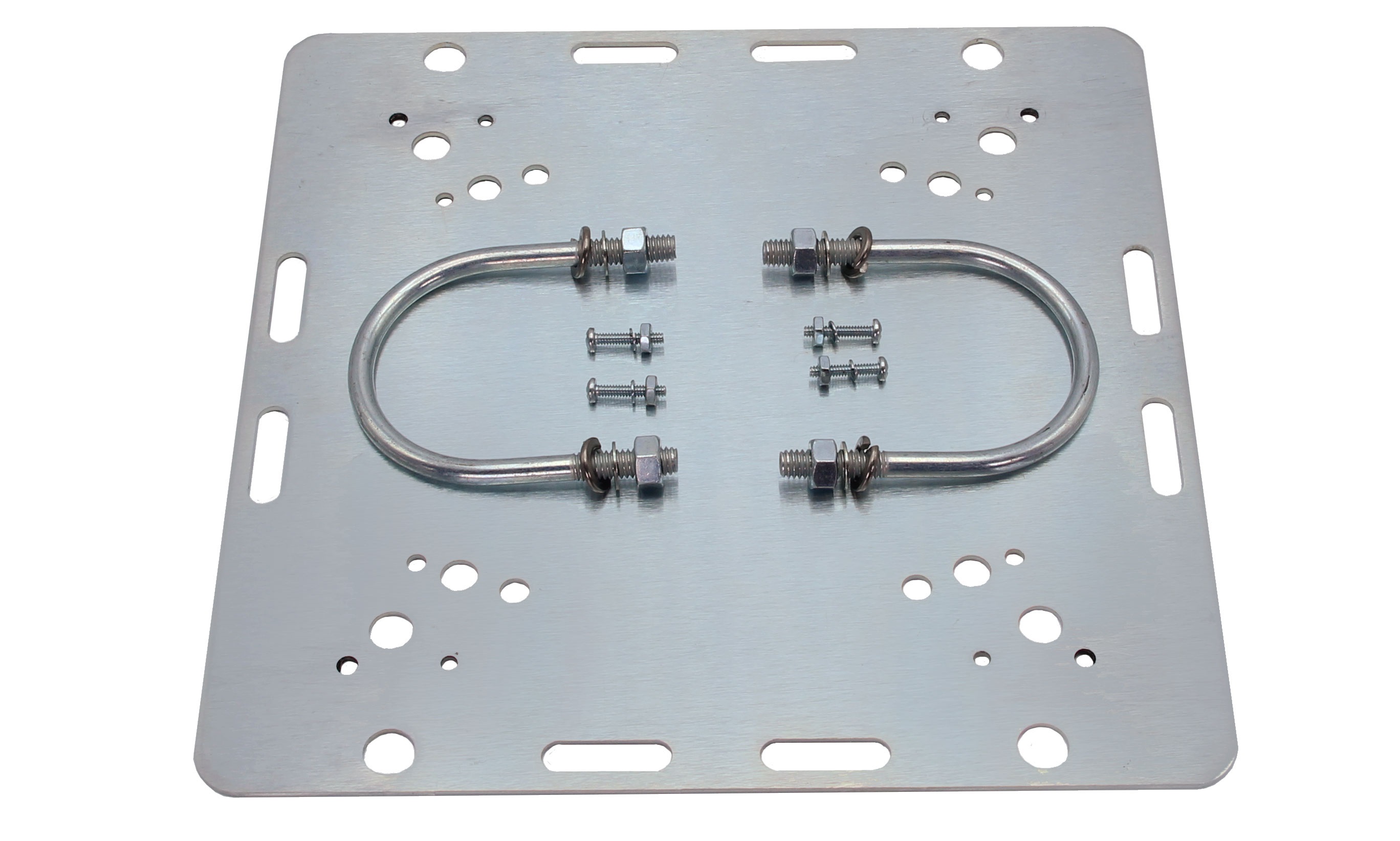

- One 13 gauge steel or stainless steel mounting plate
- Four (each) bolts, washers, lock washers & nuts to mount enclosure to plate
- Two U-bolts, and four (each) washers, lock washers & nuts to mount plate to pipe
Mounting (Rear View)

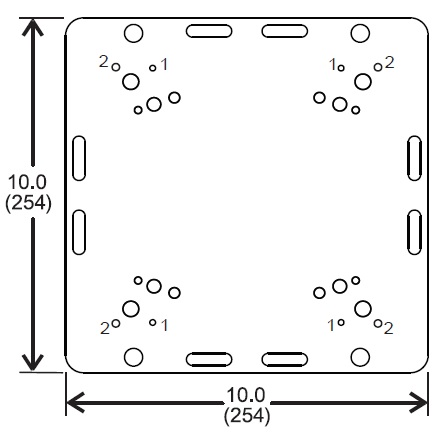

Mounting Holes Location
| Hole ID | Enclosure Type |
| 1 | PDA2811, PDA2812, PDA2414, PDA2415 |
| 2 | PDA3407-PDA3414 |

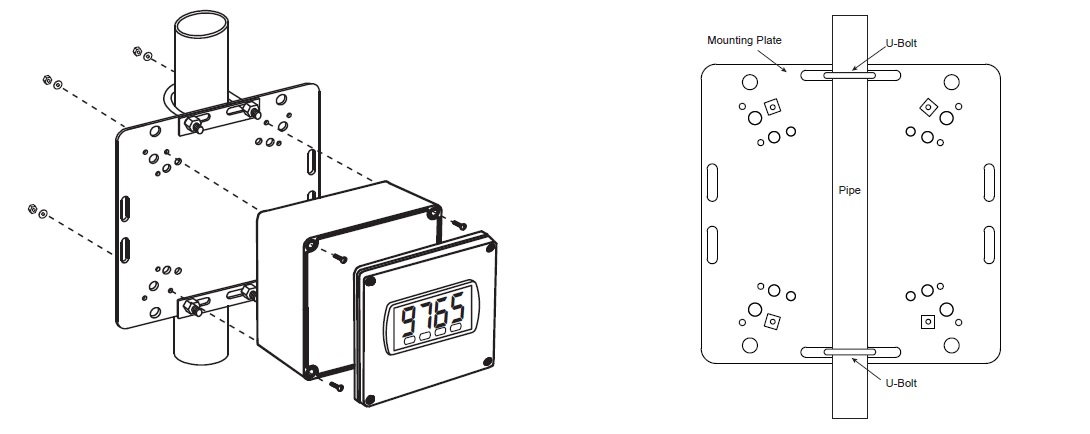

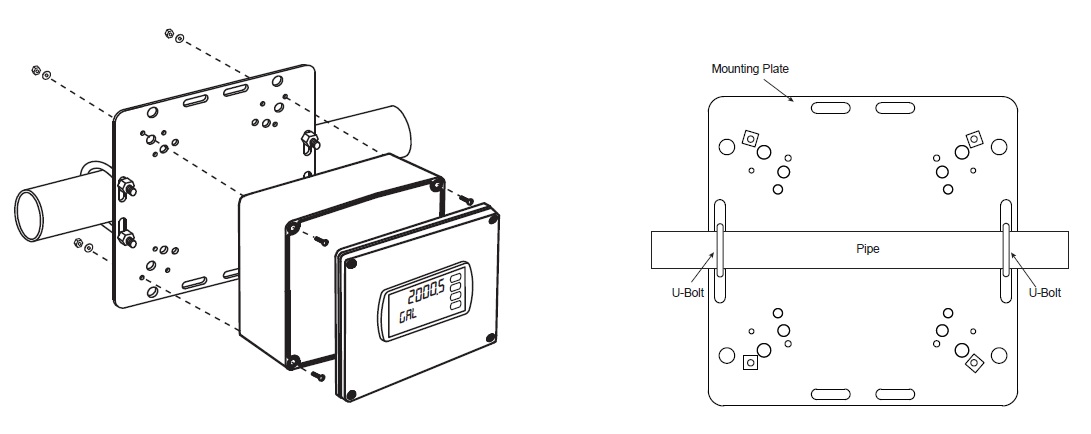

Drawings
Note: Other products mount in similar fashion.
Ordering Information
| Model | Description | Plate Dimensions Inch (mm) | Weight lb (kg) |
| PDA6545 | Steel Pipe Mount Kit for PDA3400 Series and PDA2811, PDA2812, PDA2814, PDA2815 Enclosures | 10.00 x 10.00 X 0.90 (254 X 254 X 23) | 2.60 (1.18) |
| PDA6545-SS | Stainless Steel Pipe Mount Kit for PDA3400 Series and PDA2811, PDA2812, PDA2814, PDA2815 Enclosures | 10.00 x 10.00 X 0.90 (254 X 254 X 23) | 2.90 (1.31) |
The PDA6545 may be used to mount the following products to 1.5" or 2" pipes:
- PDA2811, PDA2812, PDA2814, PDA2815 Enclosures
- PDA3400 Series Enclosures
