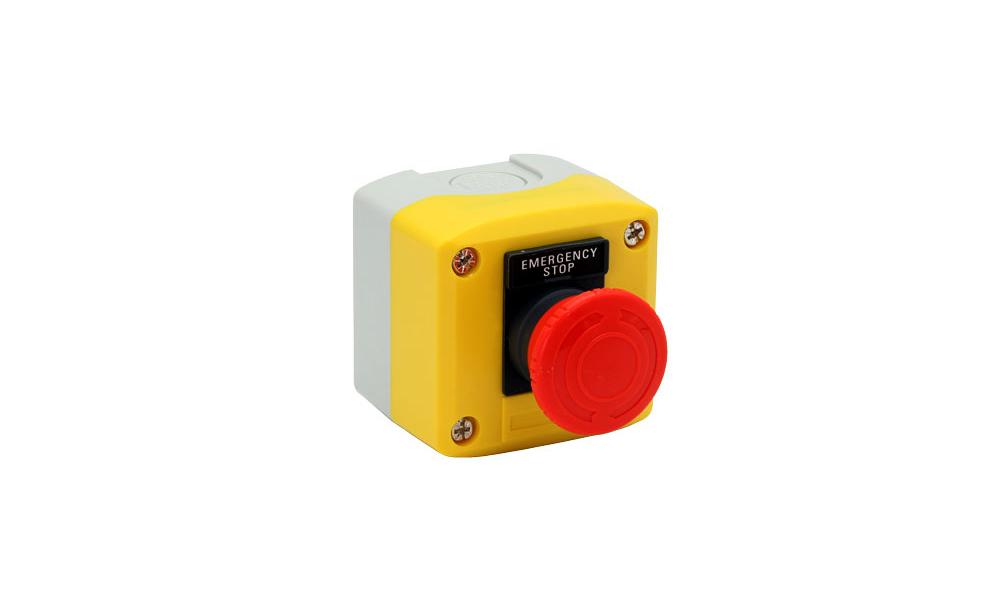

PDA2360-E
PDA2361-A
PDA2361-B

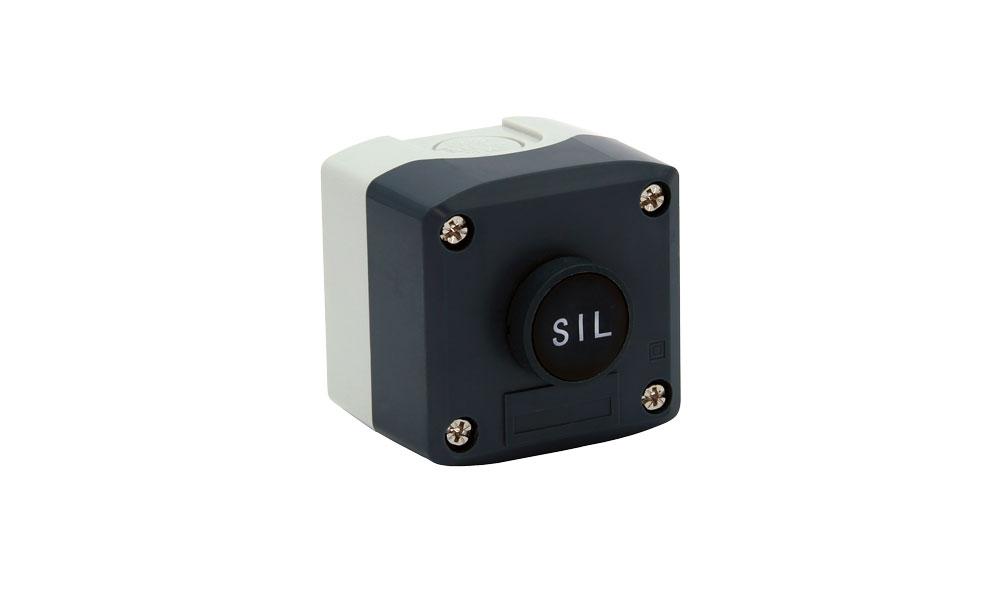

PDA2361-Q
PDA2361-R
PDA2361-S
PDA2361-T

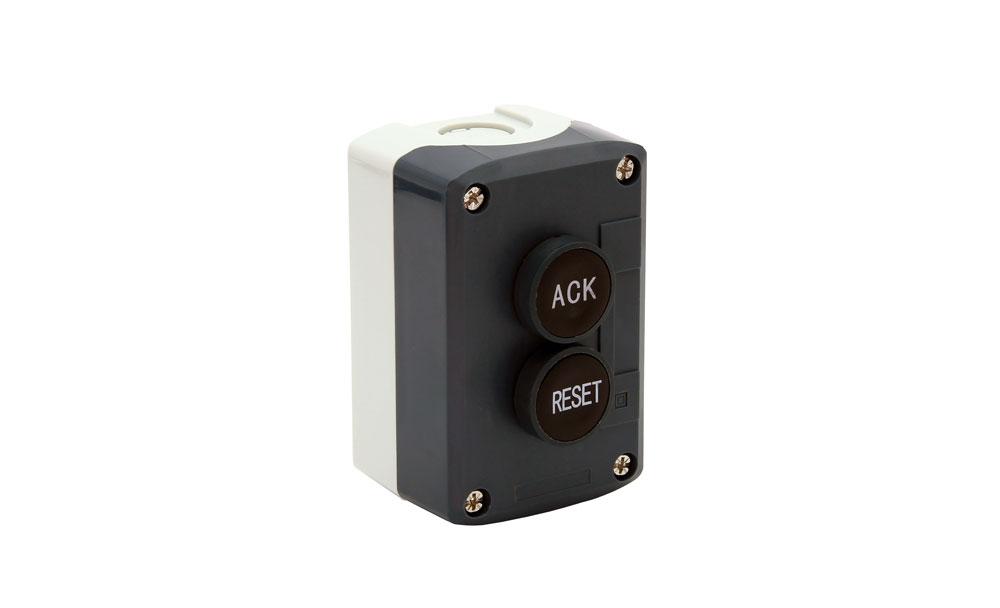

PDA2362-AR
PDA2362-BB
PDA2362-SS
PDA2364-MRUE
PDA2364-MSBS

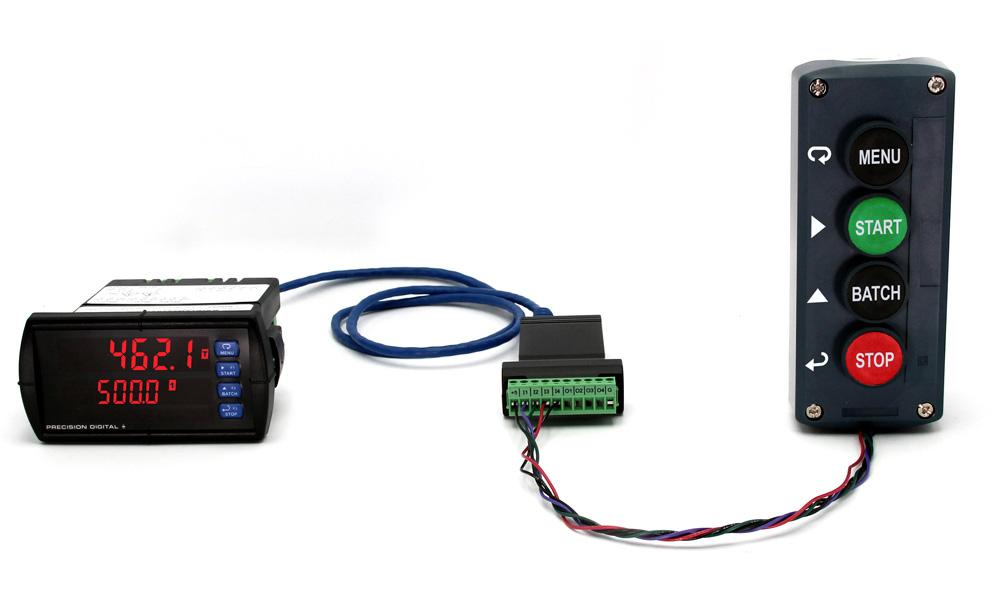

PD6210 Connected to PDA2364-MSBS with PDA1044

Features

  • Complete Pre-Assembled Stations
  • Fitted with 1, 2, or 4 Normally Open (NO) Spring Return Plastic Bezel Pushbuttons
  • Trigger Action Turn to Release Pushbutton (PDA2360-E only)
  • IP65 / NEMA 4, 4X and 13 Rated
  • Button Text for: Start, Stop, Batch, Acknowledge, Tare, Silence, Emergency Stop Functions, or Blank
  • Four-Position Control Station for Remote Operation of ProVu and Helios Buttons
  • Wall Mountable

Overview

The PDA2360 series of plastic control stations provide a convenient way to remotely control devices such as Precision Digital’s digital meters and controllers. For instance, there is a four-position control station that mimics the ProVu and Helios’s four buttons: Menu, Right Arrow, Up Arrow, and Enter. There are other control stations that can be used to reset the total, acknowledge relays, set a tare, and run a batch process. There are even control stations with no text on the buttons that can be used for any purpose the user requires. An emergency stop control station is also available.

The control stations come pre-assembled with 1, 2, or 4 Normally Open (NO) red, green, or black pushbuttons. Knockouts on the top and bottom of the enclosure are provided for convenient wiring and two mounting holes on the back of the enclosure make it easy for wall mounting.

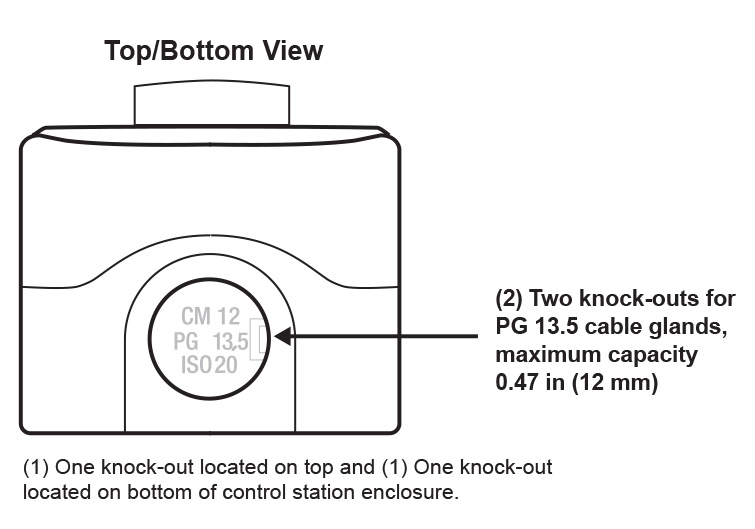

knock-Outs

PDA2360 Knockouts

Switch Terminal Blocks

PDA2360 Terminal Blocks
2-Button Control Station Shown
The number of switch terminal blocks depends on the number of buttons on the control station. The control stations are available with 1, 2, or 4 buttons.
SPECIFICATIONS
Rated Capacity240V/3A (AC-15 per IEC 947-5-1) 110V/0.6A (DC-14 per IEC 947-5-1)
Contact Resistance<50mohm
Mechanical Durability>3x10^4 (spring return button) >5x10^3 (latching emergency button)

For applications requiring Normally Closed contacts, order:

Model PDA236X-NC: NC Switch Contact Terminal for Control Stations

Connections

PDA2360 Knockouts

PDA2360 Knockouts

PDA2360 Knockouts

Specifications

Pushbuttons: Control Station with 1, 2, or 4 Normally Open (NO) buttons: red, green, or black flush spring return pushbuttons.
Button Diameter: 1.13" (29 mm)
Emergency Stop Control Station: 1 red, latching, mushroom head pushbutton, turn to release.
Button Diameter: 1.5" (38 mm)
Electrical Blocks: 1, 2, or 4 mounted to the inside back of the enclosure
Cable Entries: Knock-outs for cable-gland on top and bottom of box (CM 12, PG 13.5, and ISO 20).
Maximum capacity: 0.47" (12 mm)
Environment: Operating Temperature Range: - 25 to + 70° C,
Protection Degree: IP65 (IEC 529) and NEMA 4, 4X and 13.
Material: Polycarbonate, color: dark gray lid, light gray base on 1, 2, or 4 button control stations. Yellow lid, light gray base on emergency control station.
Switch Terminal Blocks:
Rated Capacity: 240V/3A (AC-15 per IEC 947-5-1)
110V/0.6A (DC-14 per IEC 947-5-1)
Contact Resistance: <50mohm
Mechanical Durability: >3x10^4 (spring return button)
>5x10^3 (latching emergency button)
Weight: Control box with 1 button: 4.0 oz (113g),
Control box with 1 emergency button: 4.8 oz (136g),
Control box with 2 buttons: 6.4 oz (181g),
Control box with 4 buttons: 10.4 oz (295g)

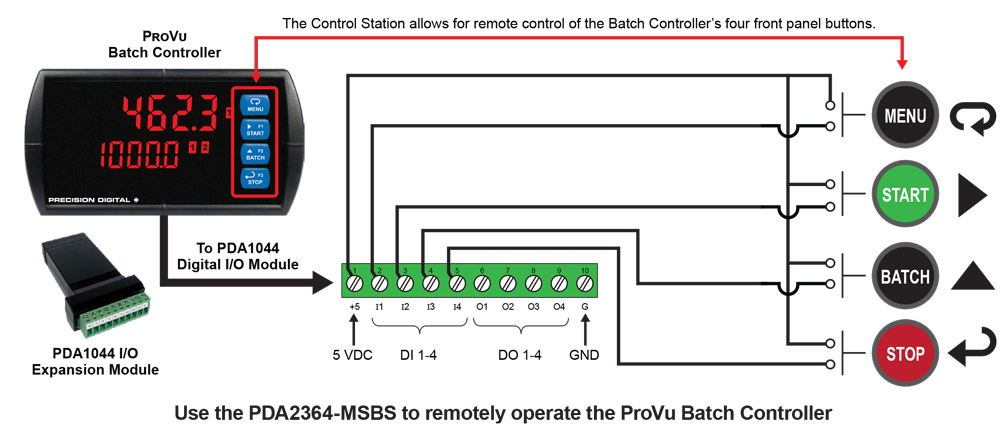

ProVu (PD6000 - PD7000) Connections: Single button control stations may be connected directly to the on-board F4 digital input on the ProVu. Control stations with more than one button require a PDA1044 digital I/O module to connect the ProVu to the control station.

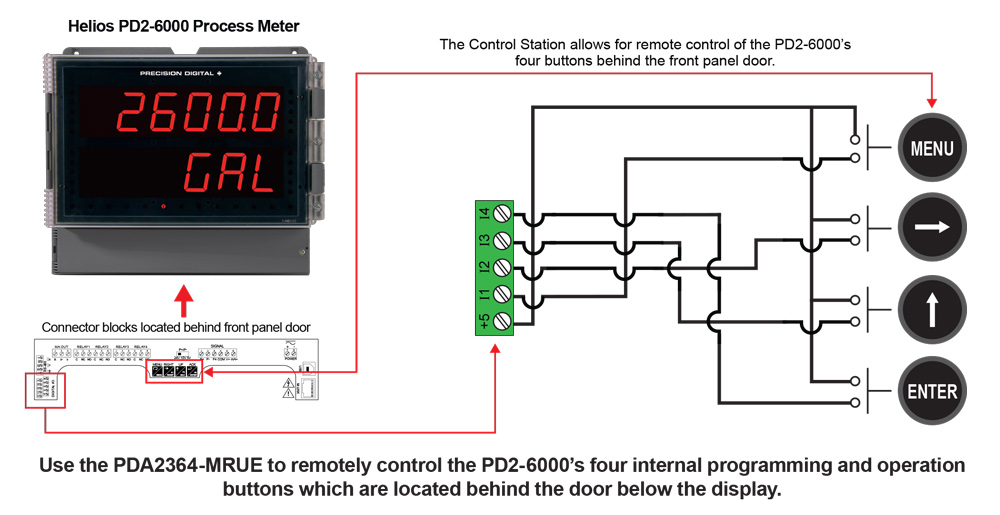

Helios (PD2-6000 – PD2-7000) Connections: No external device is required to connect the Helios to a control station.
Trident (PD765 X2 models only) Connections: Trident X2 models only. No external device is required to connect the Trident X2 to a control station.
Loop Leader (PD6600 – PD6624) Connections: Single button control stations may be connected directly to a Loop Leader.
Vigilante Annunciator (PD154 & PD158) Connections: No external device is required to connect the Vigilante Annunciator to a control station.
ConsoliDator+ (PD9000) Connections: No external device is required to connect the ConsoliDator+ to a control station.

Mounting Dimensions

PDA2360 Mounting Dimensions

Overall Dimensions

Control Box with (1) One Button

PDA2360 Mounting Dimensions

Control Box with (2) One Buttons

PDA2360 Mounting Dimensions

Control Box with (4) One Buttons

PDA2360 Mounting Dimensions

Control Box with Emergency Button

PDA2360 Mounting Dimensions

Pushbutton Diameter

PDA2360 Mounting Dimensions
