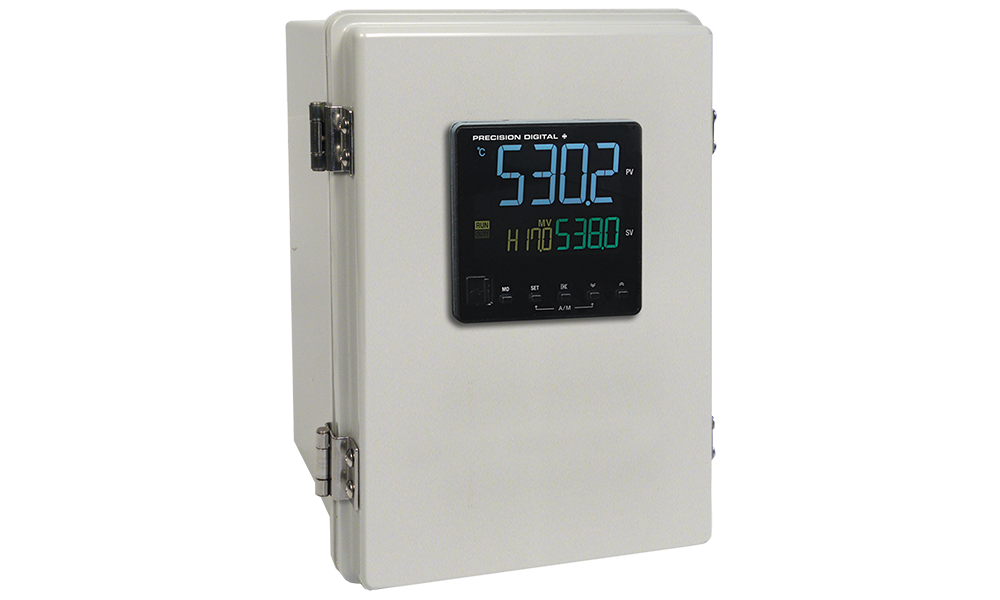

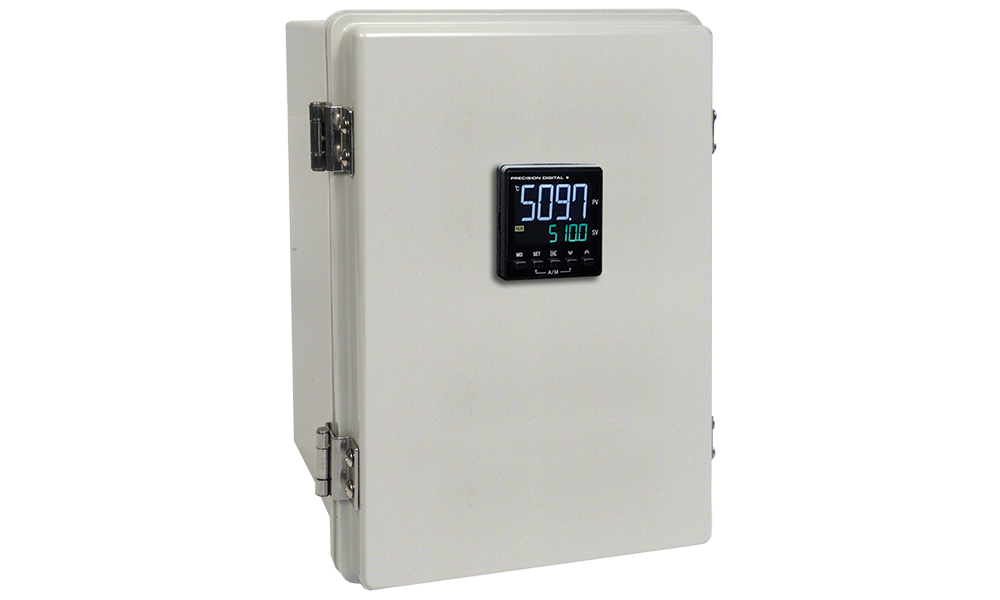

PDA2301
PDA2301-V
PDA2302

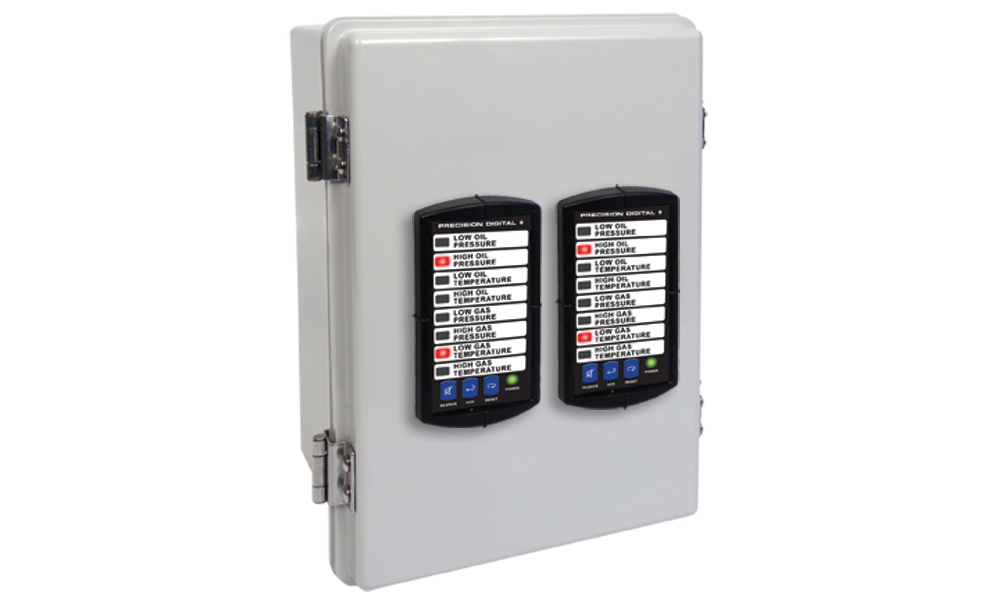

PDA2302-V
PDA2303
PDA2303-V

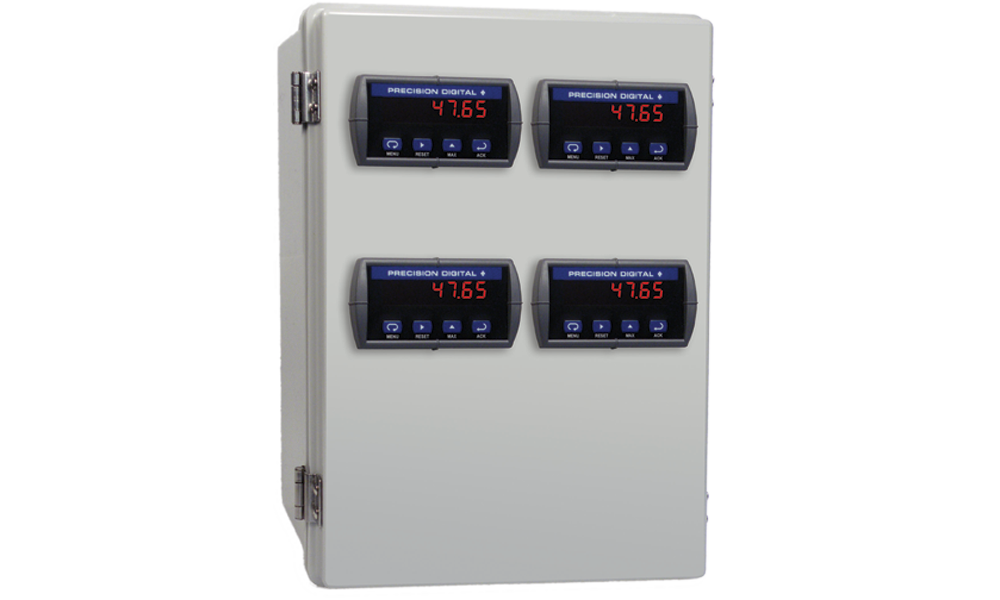

PDA2304

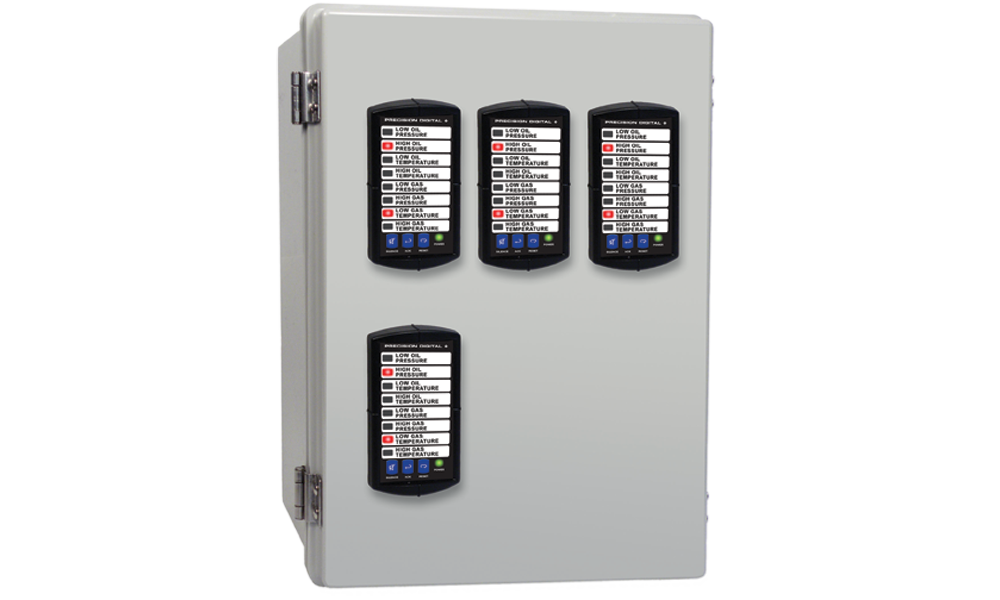

PDA2304-V
PDA2305
PDA2305-V

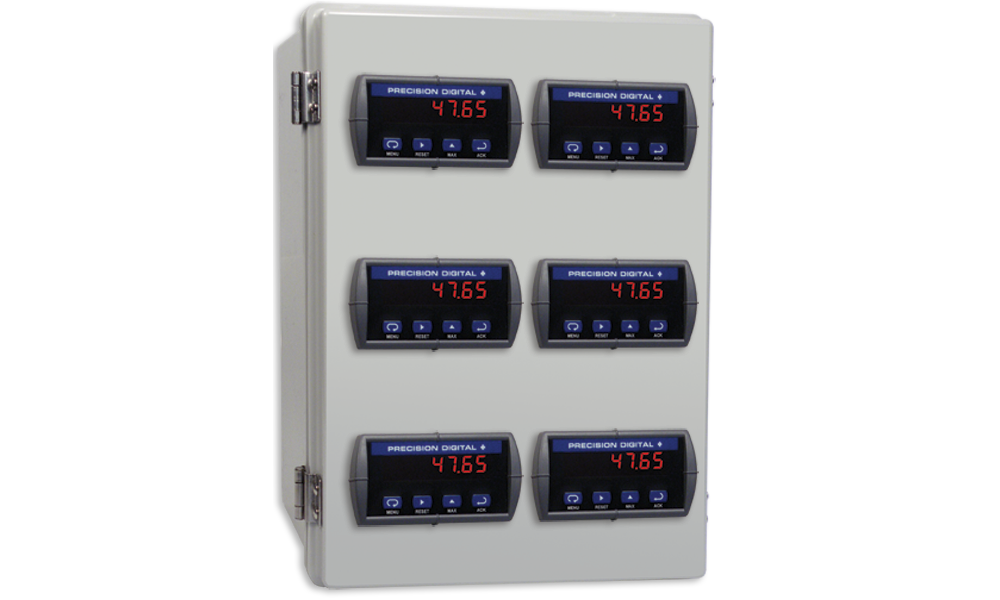

PDA2306
PDA2306-V
PDA2307
PDA2308
PDA2309
PDA2310
PDA2322
PDA2304-1
PDA2304-2
PDA2304-3
PDA2301 with MOD-LRHB1
UL Listing

Features

  • House up to 10 Meters
  • Plastic
  • Horizontal, Vertical or No Cutouts
  • 1/8 DIN Cutout(s) Pre-Cut
  • NEMA 4X
  • Hinged Door
  • Stainless Steel Cover Latches
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Hardware (Supplied)
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed
  • Light / Horn / Reset Switch Option

Overview

The PDA2300 series of economical plastic NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to ten Precision Digital meters to walls and other vertical structures. Many of these enclosures also have room for additional devices like a red light / horn and a 24 VDC transmitter power supply. Sub- panels are available to mount additional devices to the base of the enclosure. These enclosures come pre-cut with horizontal or vertical 1/8 DIN cutouts or they can be ordered with no cutouts. The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter. Mounting hardware is provided. The door is hinged and secured with stainless steel latches. Enclosures, meters and accessories are ordered and packaged separately.

Wall Mounting

The PDA2300 enclosures include four mounting flanges and four screws for your convenience. Using the included screws and a phillips head screwdriver simply assemble each flange in the four threaded screw holes on the back of the enclosure as shown in the example below. Now the enclosure is ready to be easily mounted to a wall.

PDA2300 series with mounting flanges

The PDA2301 series enclosures with supplied mounting flanges installed

PDA2300 screws and mounting flanges

The PDA2300 series enclosures is supplied with 4 screws and 4 mounting flanges

COVER SECURING METHOD

The cover is secured using stainless steel clasps.

PDA2300 cover

Accessories

Sub-Panels

The PDP2303, PDP2308, PDP2310 sub-panels provide a convenient way to mount additional items to the base of the enclosure. They can be drilled to accept screws for easy mounting of relays, contactors, securing wiring clips, or installing other internal devices. See chart below for compatibility.

sub-panels
Sub-Panel Specifications

Size:
PDP2303: 7.87" × 11.81"
(200 mm × 300 mm)
PDP2308: 11.81" × 15.75"
(300 mm × 400 mm)
PDP2310: 15.75" × 19.69"
(400 mm × 500 mm)
Material: ABS Plastic
Mounting hardware is included.

ModelPDP2303PDP2308PDP2310
Horizontal Cutouts
PDA2301
PDA2302
PDA2303
PDA2304
PDA2304-1
PDA2304-2
PDA2304-3
PDA2305
PDA2306
PDA2307
PDA2308
PDA2309
PDA2310
PDA2312
Vertical Cutouts
PDA2301-V
PDA2302-V
PDA2303-V
PDA2304-V
PDA2305-V
PDA2306-V
PDA2322
No Cutouts
PDA2303-B
PDA2308-B
PDA2310-B

PDA1024-01 24 VDC Power Supply for DIN Rail

PDA1024-01 24 VDC Power Supply for DIN Rail

The PDA1024-01 is a DIN rail mounted 24 VDC, 1.5 A power supply.

Specifications

Output Voltage: 21.6 ~ 26.4 VDC; ±10% 1.5A rated current.
Dimensions: 3.07" x 3.66" x 2.20"
(78 mm x 93 mm x 56 mm) (W x H x D)

PDA-SSTAG Stainless Steel Tags

PDA-SSTAG Stainless Steel Tags

PDA-SSTAG is a laser etched stainless steel tag accessory for any of your Precision Digital meters. The tag features custom text for equipment identification, instruction, or whatever else is needed in your facility. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need it.

PDX18DIN-FILLER 1/8 DIN Cutout Filler

PDX18DIN-FILLER 1/8 DIN Cutout Filler

The NEMA 4X 1/8 DIN cutout filler is used to cover up empty 1/8 DIN cutouts and maintain the NEMA 4X rating to the panel or enclosure. It consists of a generic bezel with a black faceplate, as well as mounting brackets, gasket, etc.

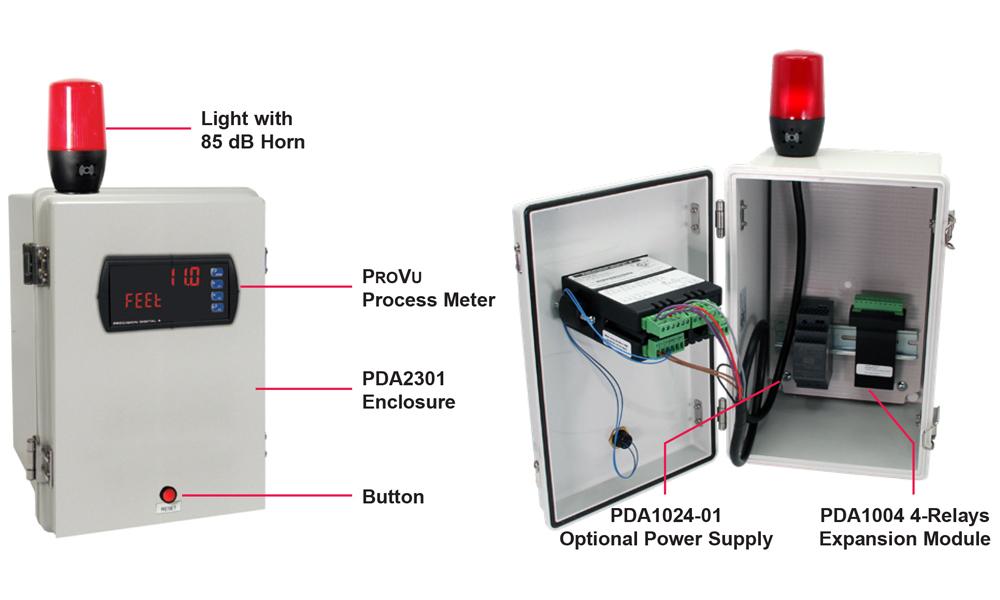

PDA2300 Series Enclosure with Light / Horn


PDA2300 Series Enclosure with Light / Horn
Light / Horn Accessories

Precision Digital offers a Light / Horn that can be mounted to any PDA2300 series enclosures by the user. This Light / Horn can be wired to flash or stay steady on and the horn is rated at 85 dB. The light and horn can be controlled independently of each other via separate relays on the meter such that the horn can be programmed to silence via a button mounted to the enclosure and the light can be programmed to stay on until the alarm clears.

The light / horn and reset button are all rated NEMA 4X or IP65. The following table illustrates a typical way the Light / Horn option can be wired and programmed for the ProVu meter:

Relay #Connected toTypical reset method
(user selectable)
1Flashing Light(1)Reset automatically after alarm clears
2HornSilence with Reset Button at any time
3User DeviceAs user desires
4User DeviceAs user desires

1. Light can be wired to flash or stay steady on

Note: The Light / Horn option is powered from the 200 mA transmitter power supply, so when that option is installed, the meter's transmitter power is downgraded from 200 mA. See isolated Transmitter Power Supply specification on meter's data sheet for details.

PDA1024-01 Mounted on PDP2303 Sub-Panel
MOD-LRHB1

When this MOD is ordered, the enclosure comes pre-drilled with holes for Light / Horn and Reset Button to be installed by user. The Light / Horn hole is in the back left corner of the enclosure and the Reset button is centered on the front of the enclosure about an inch off the bottom of the door. If the user would prefer to mount these items in different locations, order the PDA-LRH and the PDA-BUTTON1R separately and drill holes and mount as desired.

Light / Horn Dimensions Units: Inches (mm)
Light / Horn Dimensions

General

Material: Thermoplastic Polyester
Color: Gray
Meters: Houses up to 10 meters
Meter Mounting Method: Through cover
Cover Mounting Method: Hinge / Hasp
Ratings: NEMA 4X
Approvals: UL, C-UL
Operating Temperature: -40 to 120°C
Warranty: 1 year

Meter Types

Type Meters
B PD542, PD543, and PD562
C PD603, PD644, PD743, PD765, PD6602, PD6603, PD6604, PD6606, PD6607, PD6608, PD6622, PD6624, and PD6626, and PD6628.
D PD138, PD154, and PD158
E PD6000, PD6001, PD6060, PD6080, PD6081, PD6088, PD6089, PD6100, PD6200, PD6210, PD6262, PD6300, PD6310, PD6310-WM, PD6363, PD6400, and PD7000

Features

Available 1 Required

Model# of MetersMeter Type
BCDE
DIN
14116
Fits
PDA1024-01
Fits
MOD-LRHB1
Horizontal Cutouts
PDA23011


YesYes
PDA23022


YesYes
PDA23033


YesYes
PDA23044


YesYes
PDA2304-11


YesYes
PDA2304-22


YesYes
PDA2304-33


YesYes
PDA23055


YesYes
PDA23066


YesYes
PDA23122


YesYes
PDA23077


YesYes
PDA23088


YesYes
PDA23099


YesYes
PDA231010


YesYes
Vertical Cutouts
PDA2301-V1


YesYes
PDA2302-V2


YesYes
PDA23222

YesYes
PDA2303-V3


YesYes
PDA2304-V4


YesYes
PDA2305-V5


YesYes
PDA2306-V6


YesYes
No Cutouts
PDA2303-BN/AYesYes
PDA2308-BN/AYesYes
PDA2310-BN/AYesYes

Dimensions

Units: Inches (mm)

Small Enclosures

small enclosure dimensions

Weight: 3.15 lbs (1.43 kg)

Dimensions for: PDA2301, PDA2301-V, PDA2302, PDA2302-V, PDA2303, PDA2303-B, PDA2322.


Medium Enclosures

medium enclosure dimensions

Weight: 5.50 lbs (2.49 kg)

Dimensions for: PDA2303-V, PDA2304, PDA2304-V, PDA2304-1, PDA2304-2, PDA2304-3, PDA2305, PDA2305-V PDA2306, PDA2306-V, PDA2307, PDA2308, PDA2308-B, PDA2312.


Large Enclosures

large enclosure dimensions

Weight: 8.75 lbs (3.97 kg)

Dimensions for: PDA2309, PDA2310, PDA2310-B.
