MeterView XL software connects directly to the meter via a micro USB cable and is available for programming and setup of Loop Leader, Loop Leader+, ProtEX+, and VantageView+ series process meters and flow rate/totalizers. MeterView XL software is used to program parameters for a wide variety of applications such as tank level, pump alternation, rate/totalizing, batch control, and more. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. When connected to the PC, the meter is powered by the USB connection, so no additional power is needed during programming.
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300

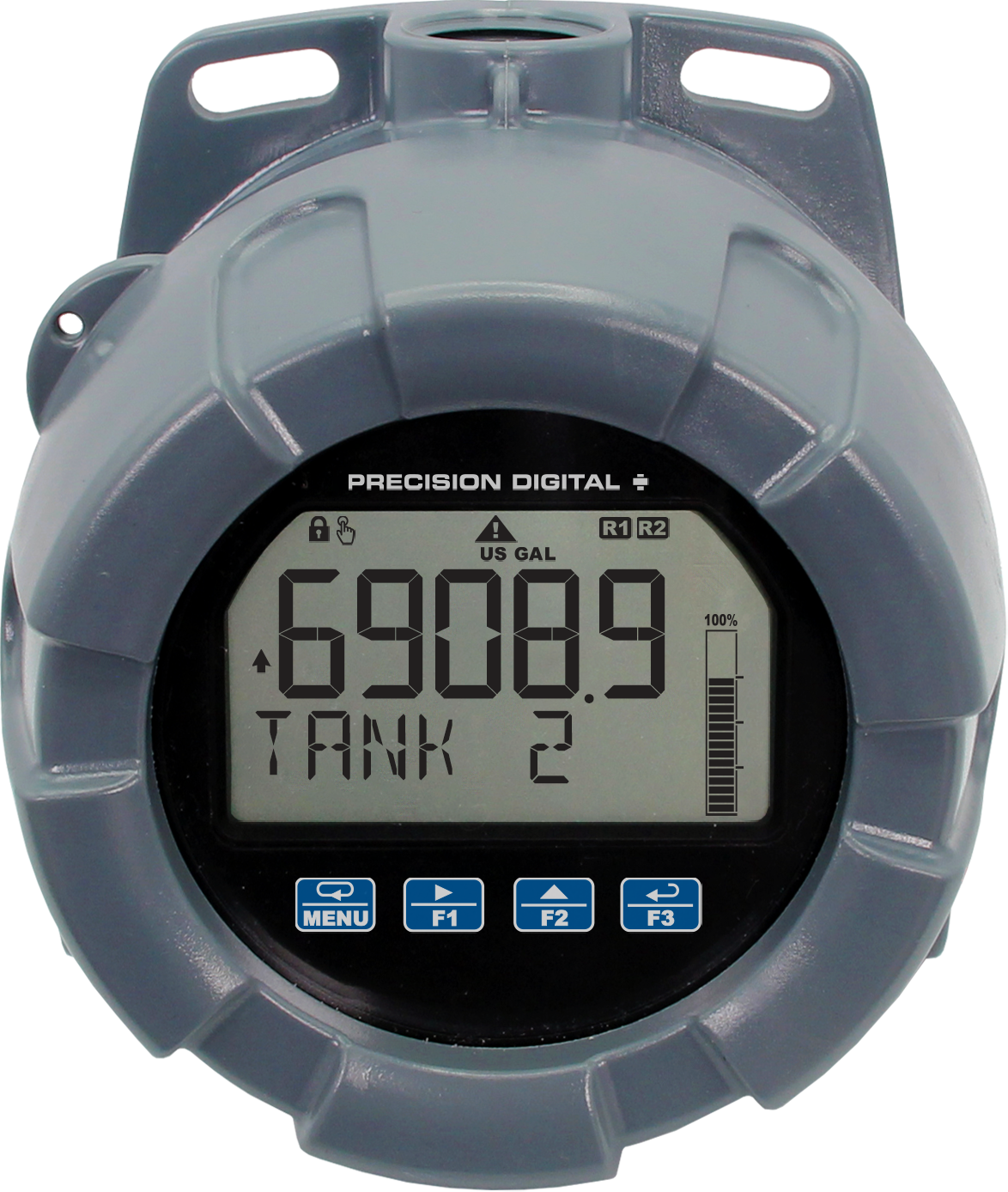

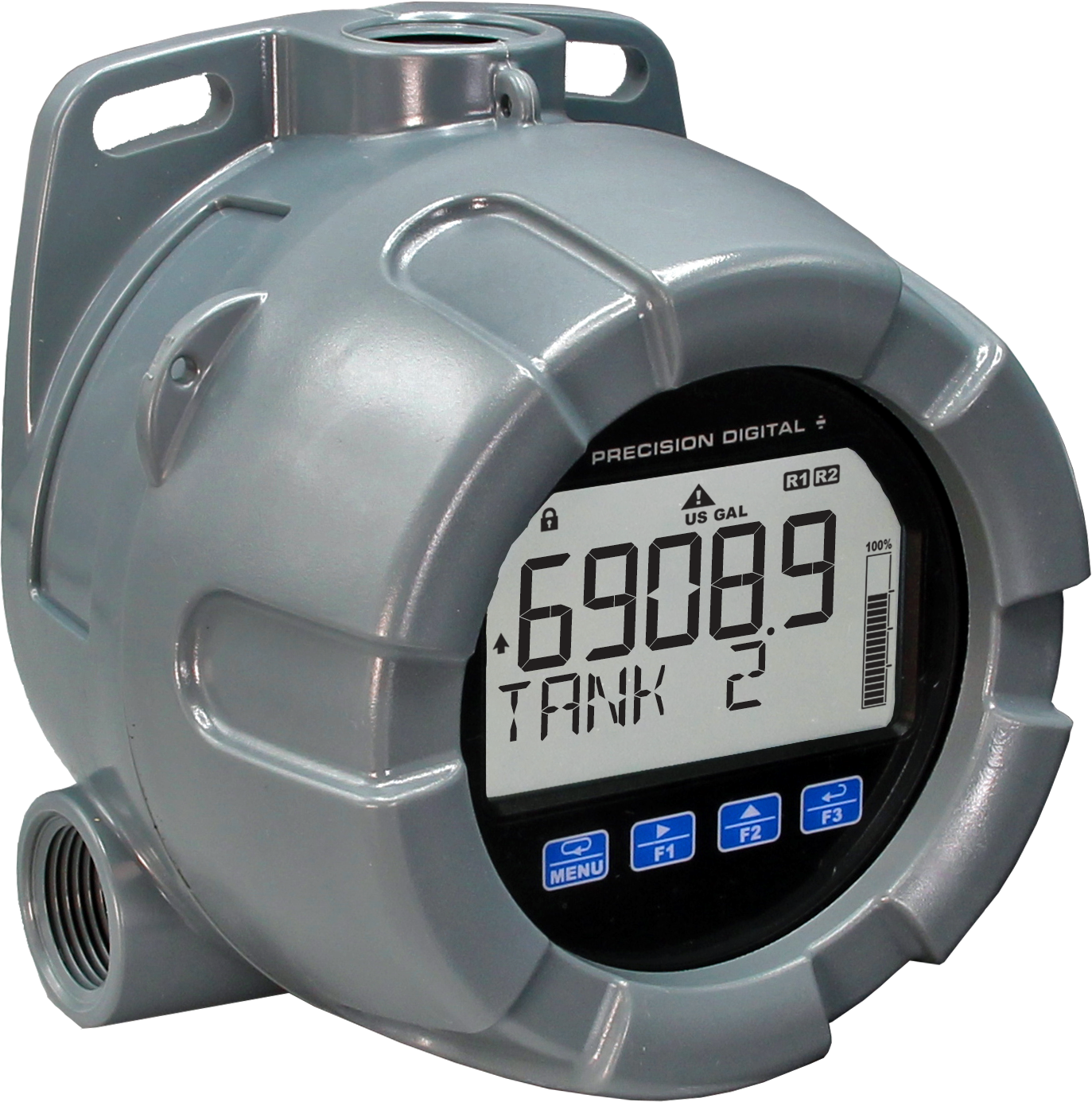

VantageView+ NEMA 4X Loop-Powered Process Indicators
PD6908-GP Left Plastic
Model
PD6908-GP-PL-LNN
Product Type
VantageView+ NEMA 4X Loop-Powered Indicator
Input(s)
4-20 mA
Number of Inputs
1
Display
Dual Line, Backlit LCD
Power
Loop-Powered
Output(s)
(2) Open Collectors
Operating Temperature Range
-40 to 75°C (-40 to 167°F)
Installation Temperature Range
-40 to 75°C (-40 to 167°F)
Serial Communications
None
Math Functions
None
Enclosure Material
Plastic
Enclosure Rating
IP66, NEMA 4X
Conduits (Number) & Size
(3) 3/4" NPT (Two Plugs Provided)
Weight
1.9 lbs (862 g)
Approvals
CE
Warranty
3 Years
$585.00

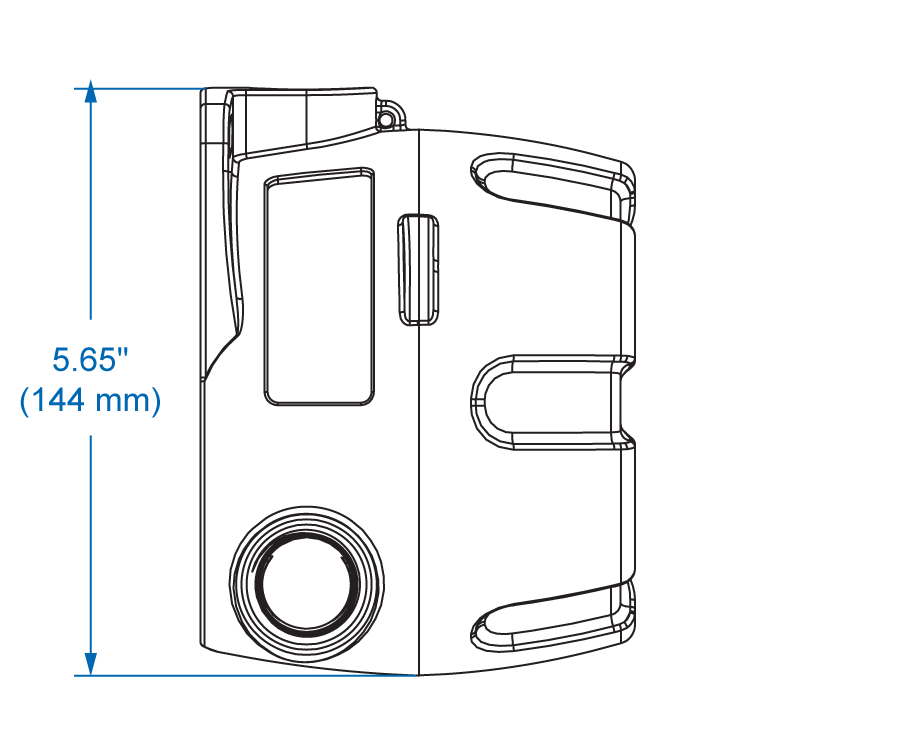

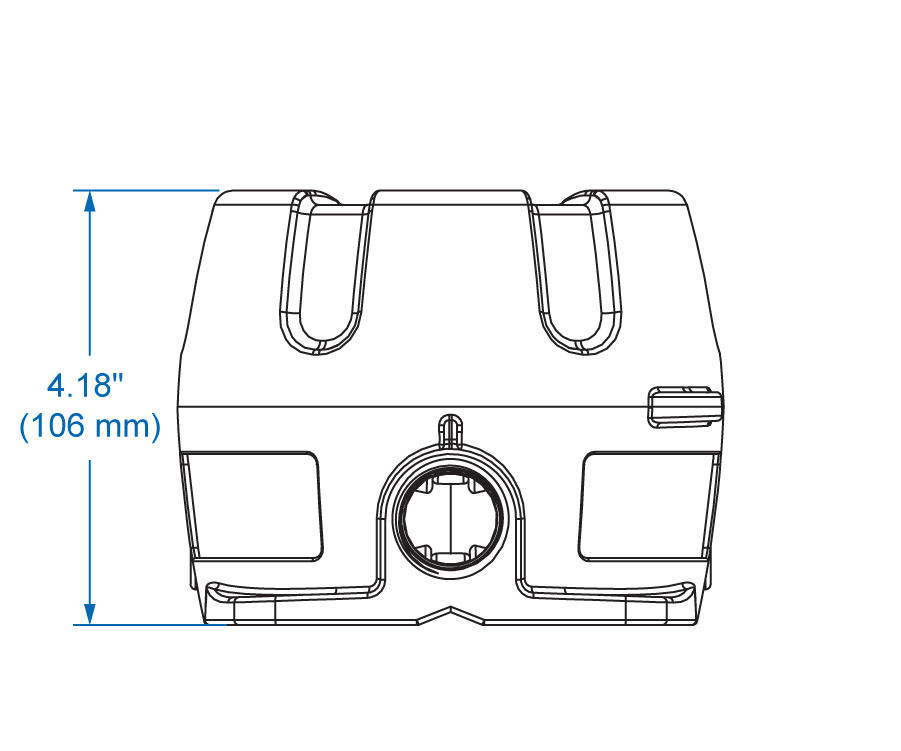

Inches (mm)
