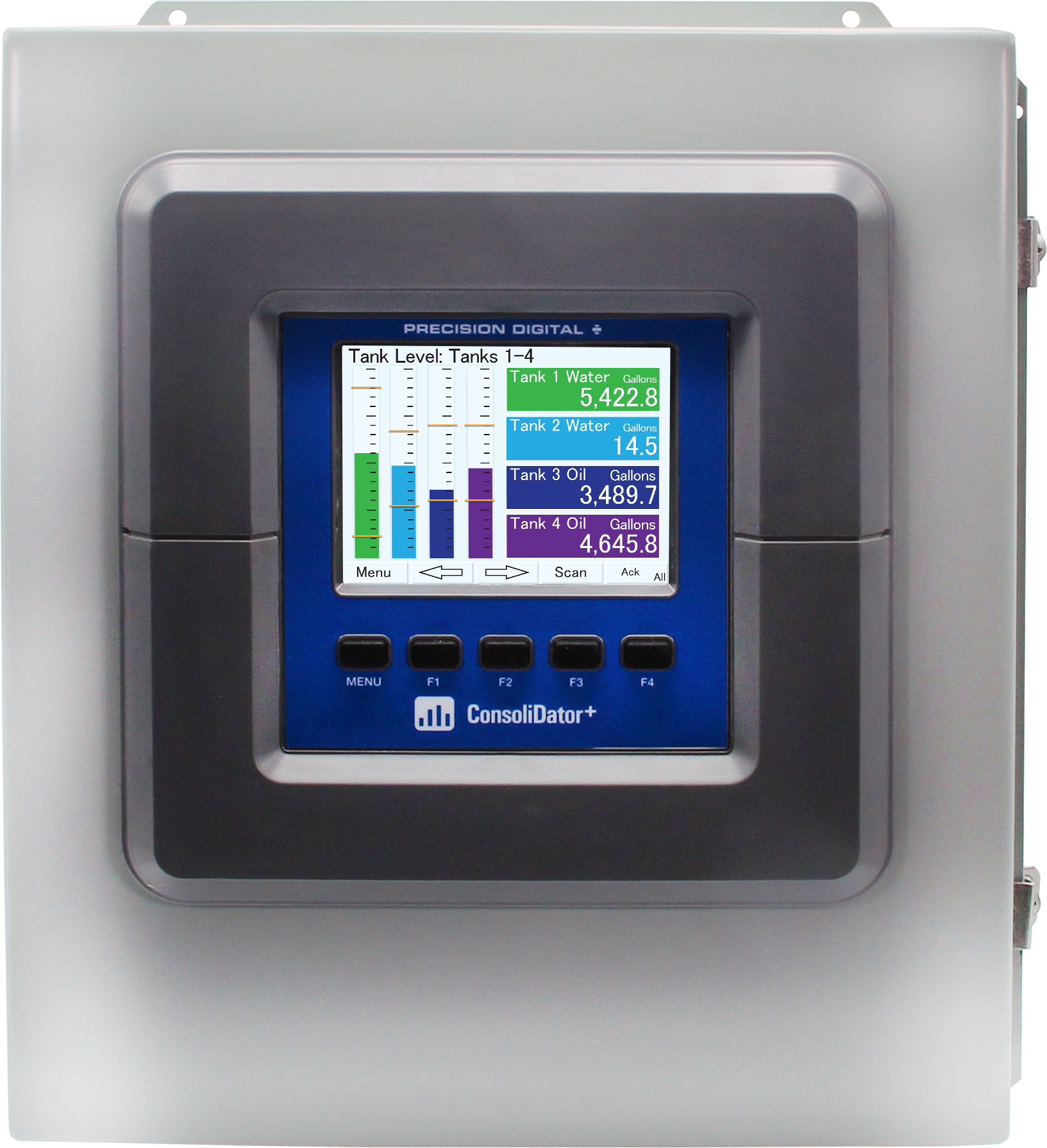

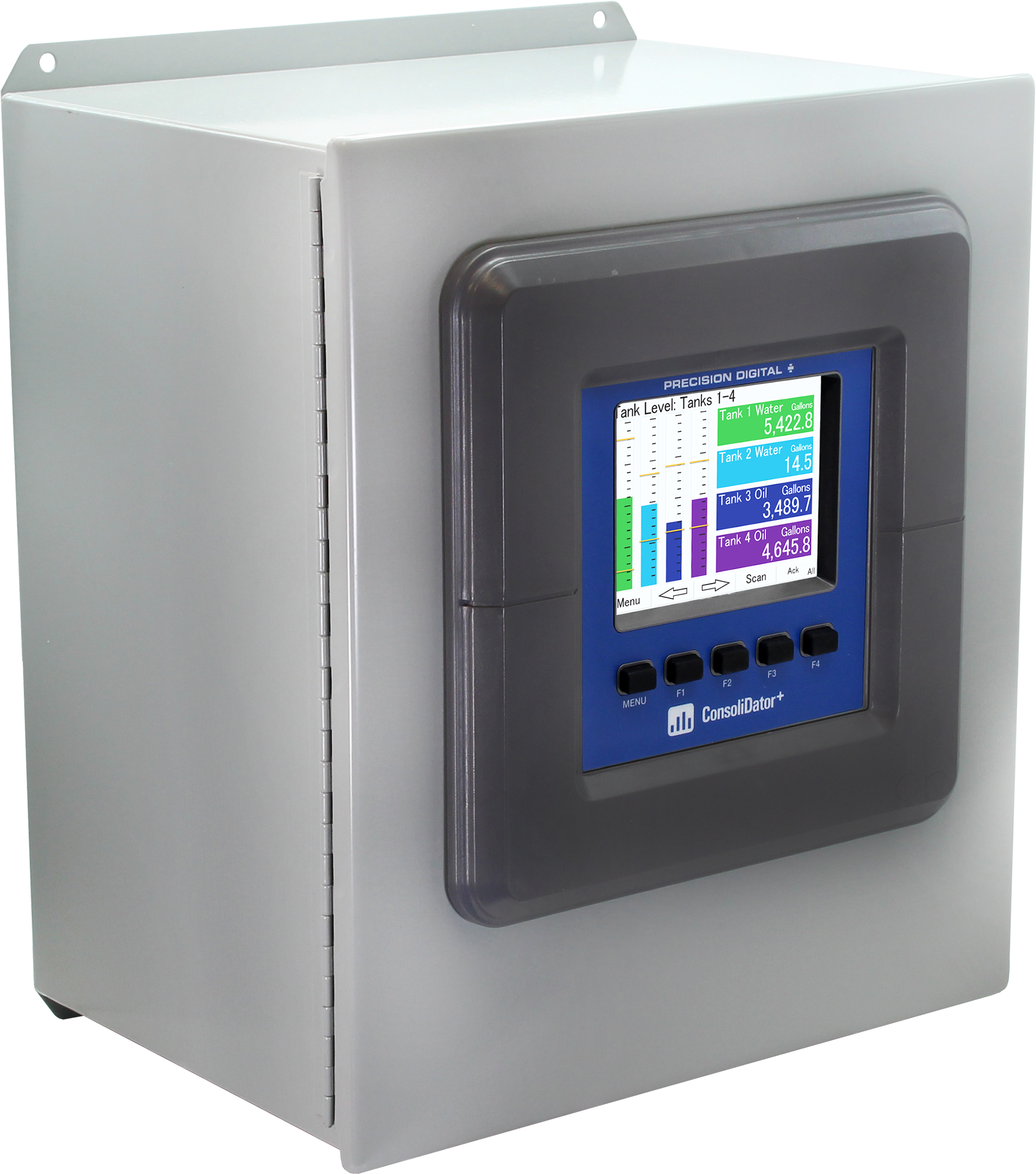

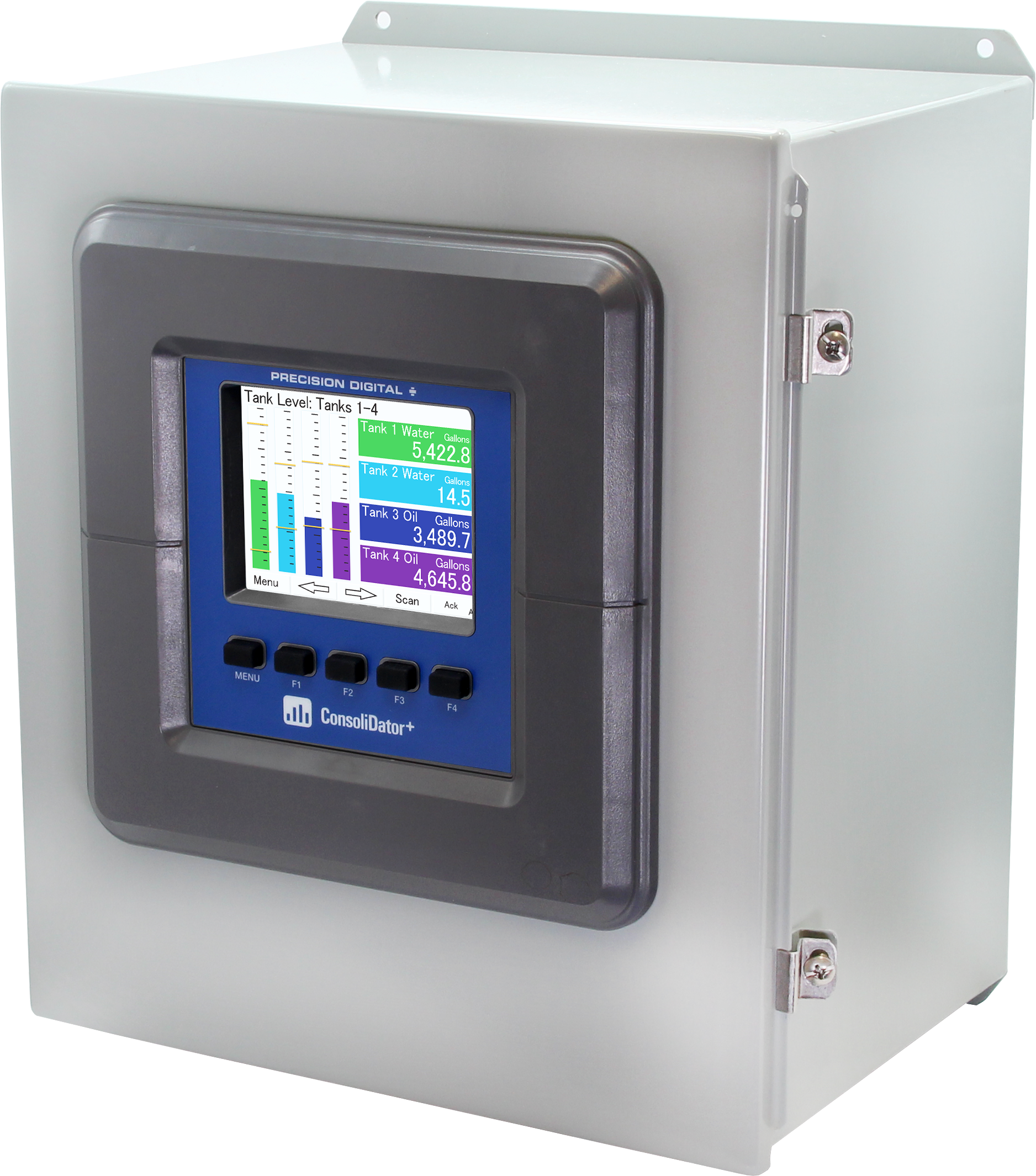

UL Type / NEMA 4 Painted Steel Enclosure for ConsoliDator+
PDA2929
Model
PDA2929
Product Type
Steel UL Type 4 Enclosure with (1) Cutout for ConsoliDator+
Material
Painted Steel
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
PDP2929
Applicable Meter Types
ConsoliDator+
Cutouts
(1) Cutout for ConsoliDator+
Cover Securing Method
Hinge / Screw
Fits PDA1024-01
Yes
Sun Hood Compatible
Yes

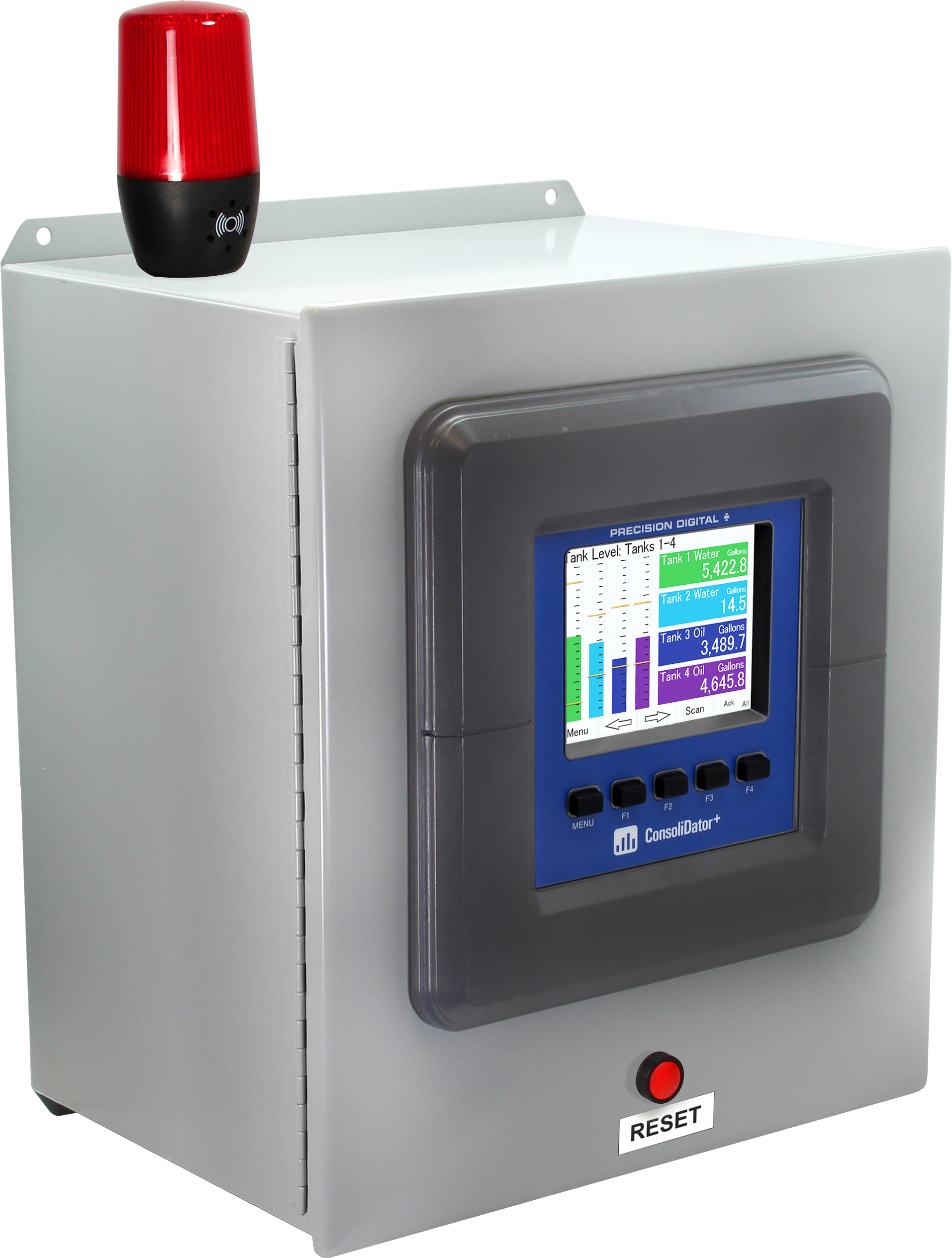

Light/Horn Compatible
Yes
Overall Dimensions
14.0" x 16.0" x 10.0" (355 mm x 406 mm x 254 mm) (W x H x D)
Weight
21.9 lbs (9.9 kg)
Approvals
C-UL, UL, CSA
Warranty
1 Year
$860.00

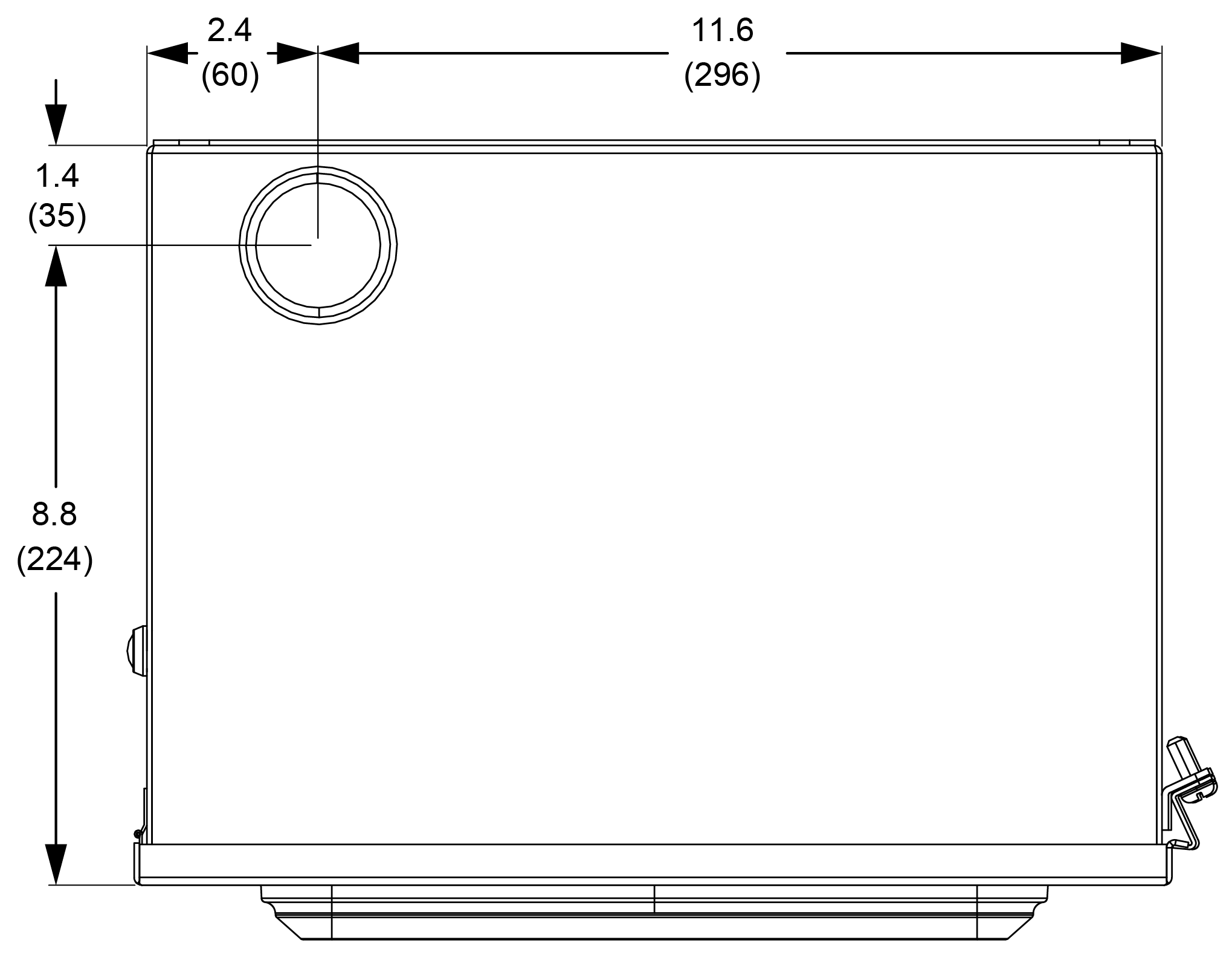

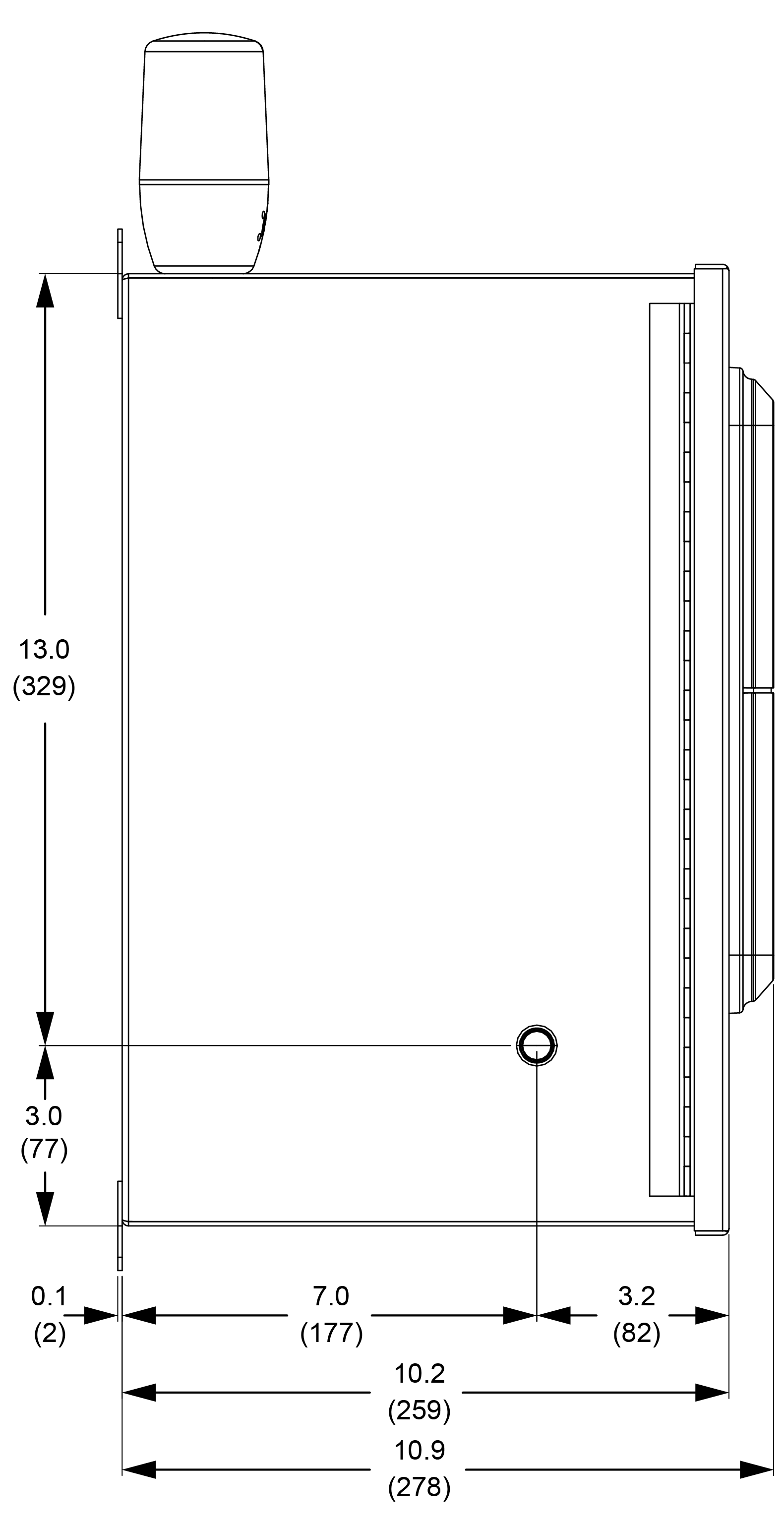

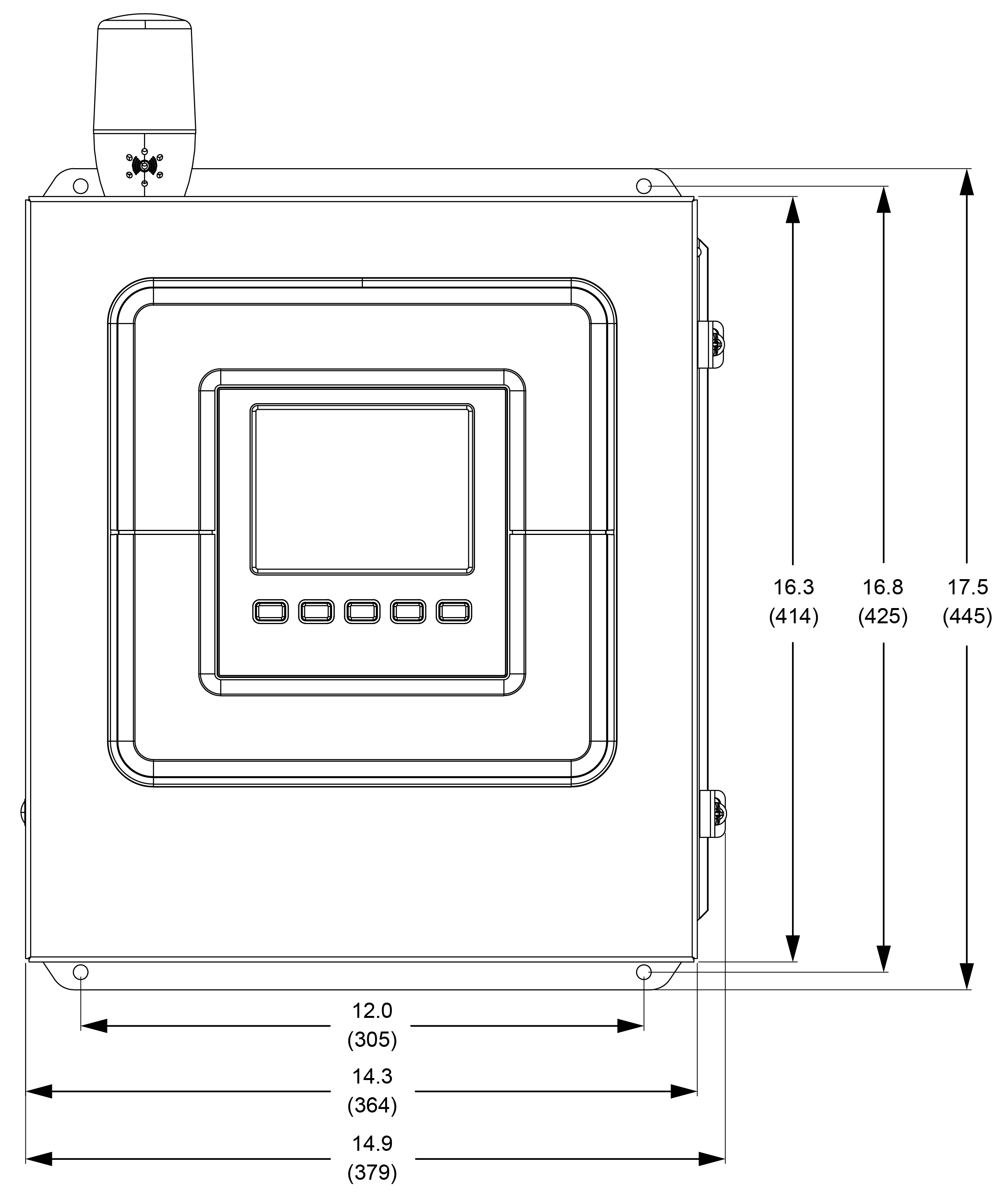

Inches (mm)
