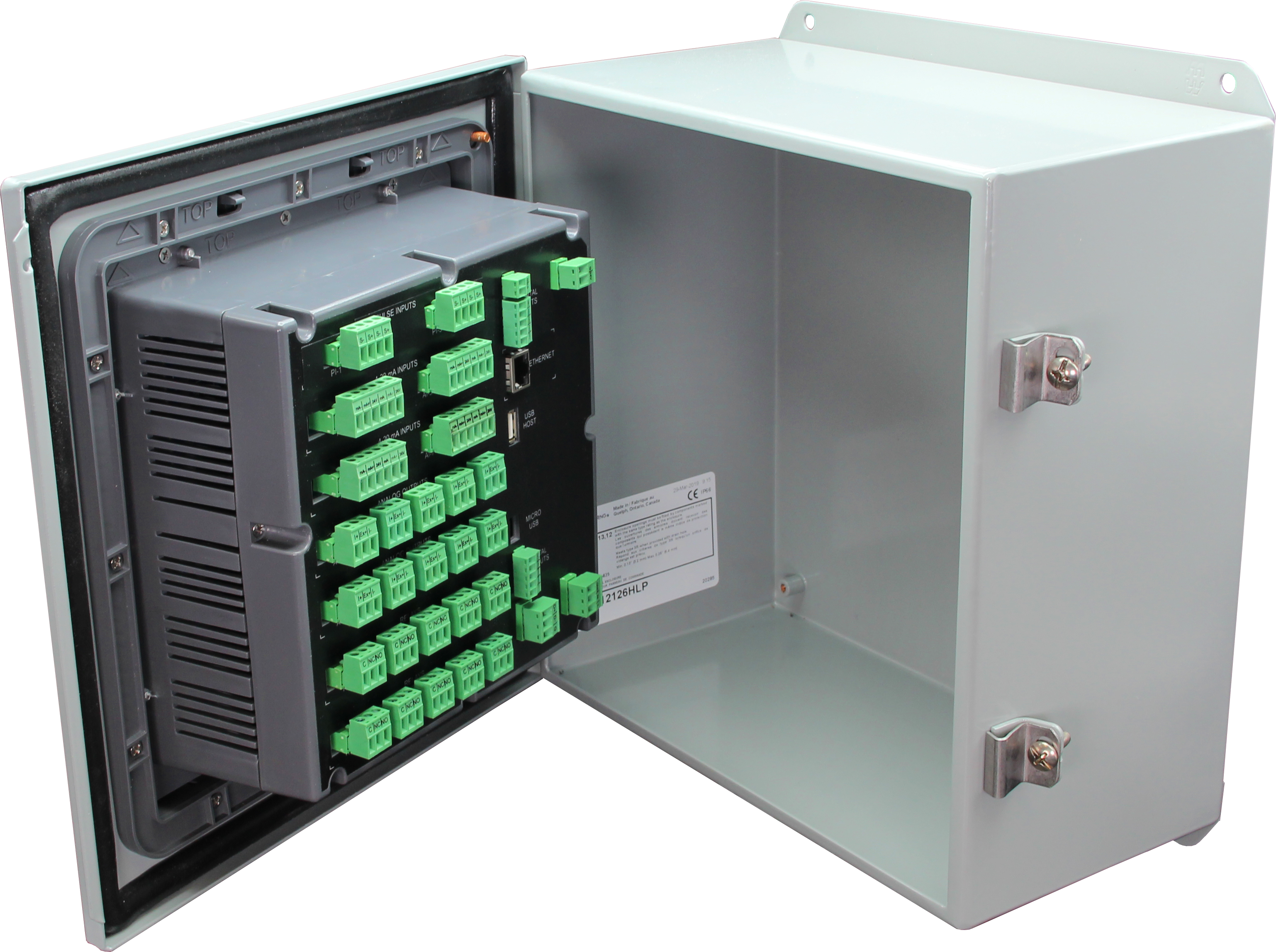

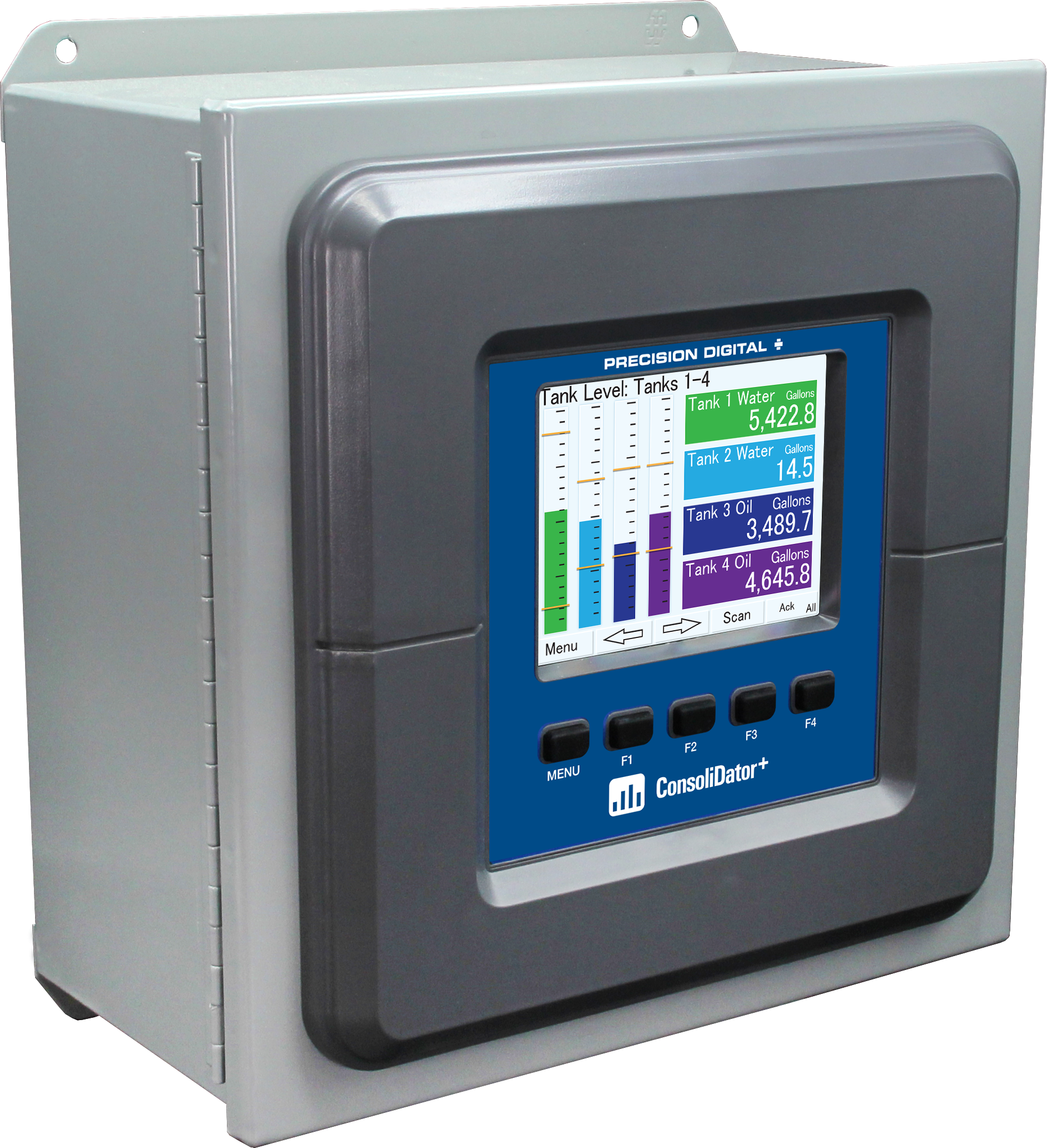

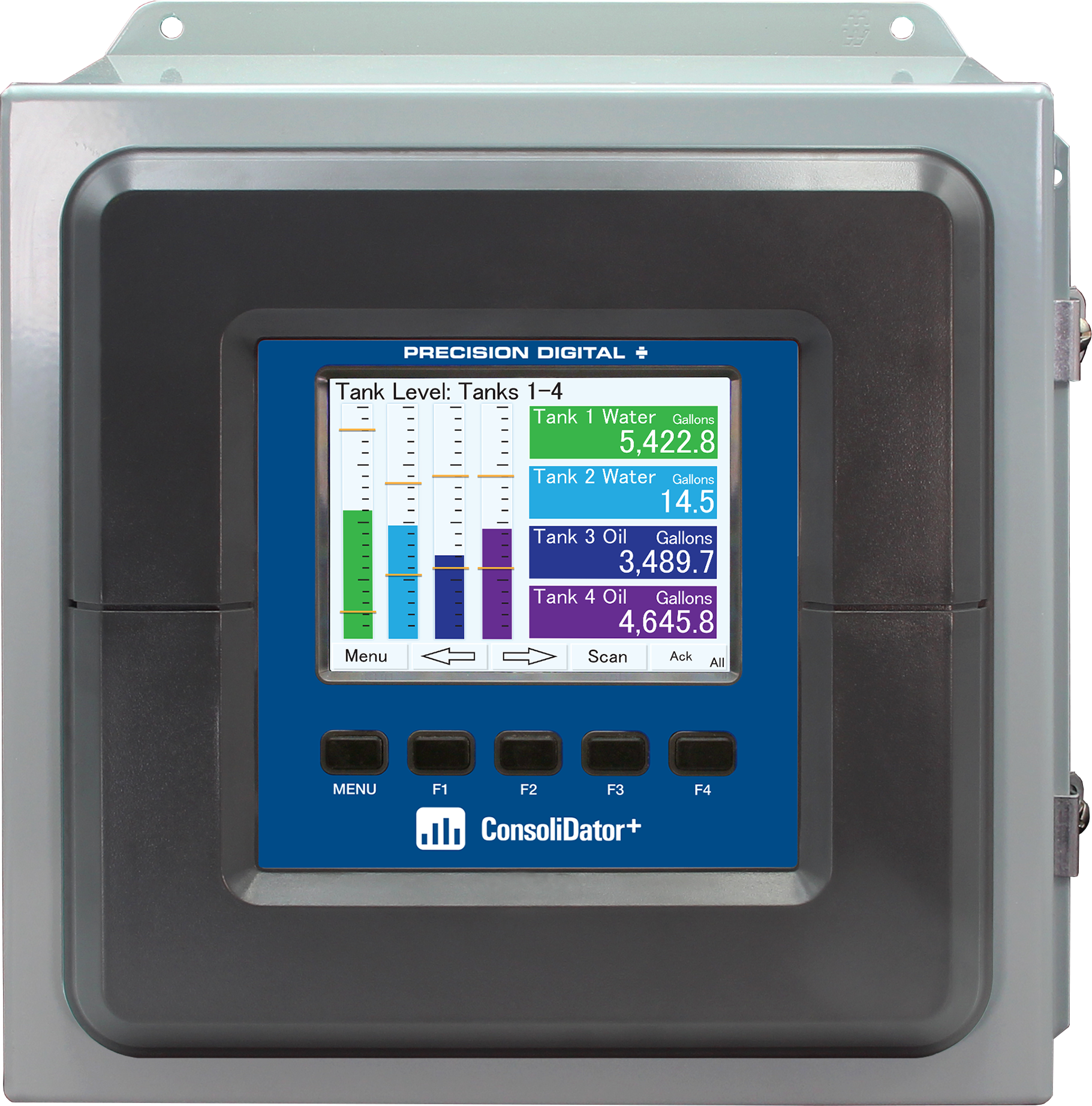

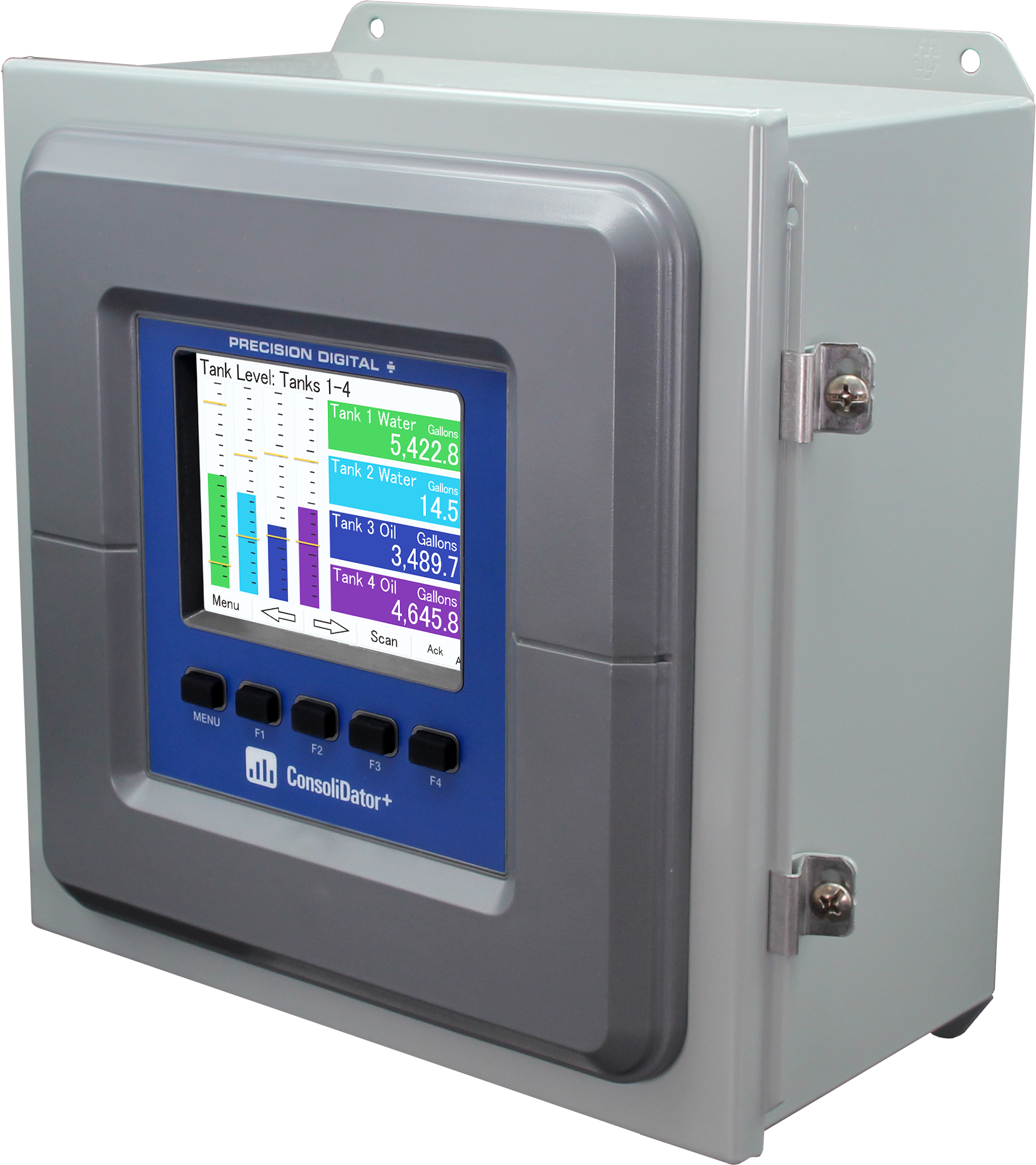

UL Type / NEMA 4 Painted Steel Enclosure for ConsoliDator+
PDA2909
Model
PDA2909
Product Type
Steel UL Type 4 Enclosure with (1) Cutout for ConsoliDator+
Material
Painted Steel
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
PDP2909
Applicable Meter Types
ConsoliDator+
Cutouts
(1) Cutout for ConsoliDator+
Cover Securing Method
Hinge / Screw
Fits PDA1024-01
Yes
Sun Hood Compatible
Yes
Light/Horn Compatible
Yes

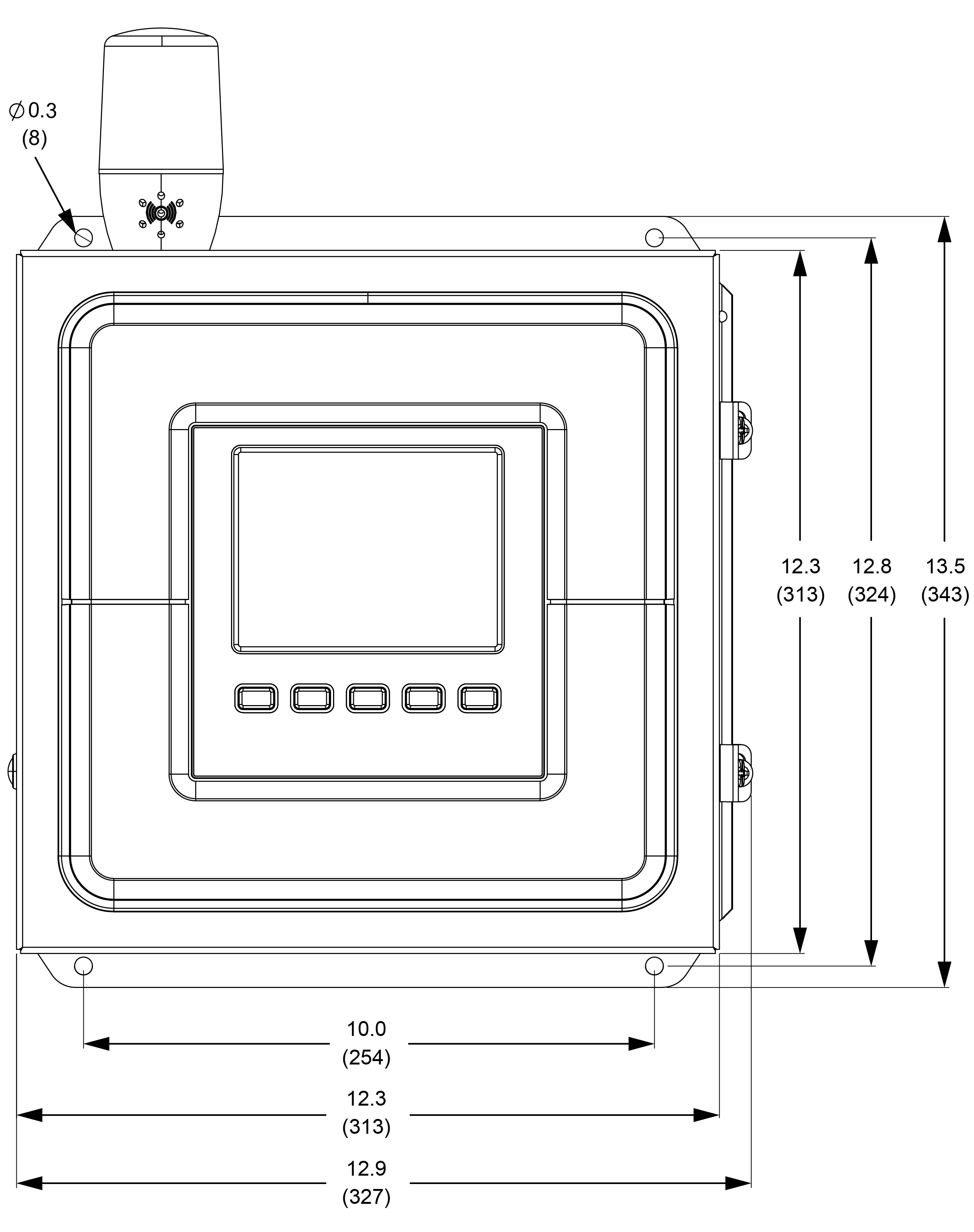

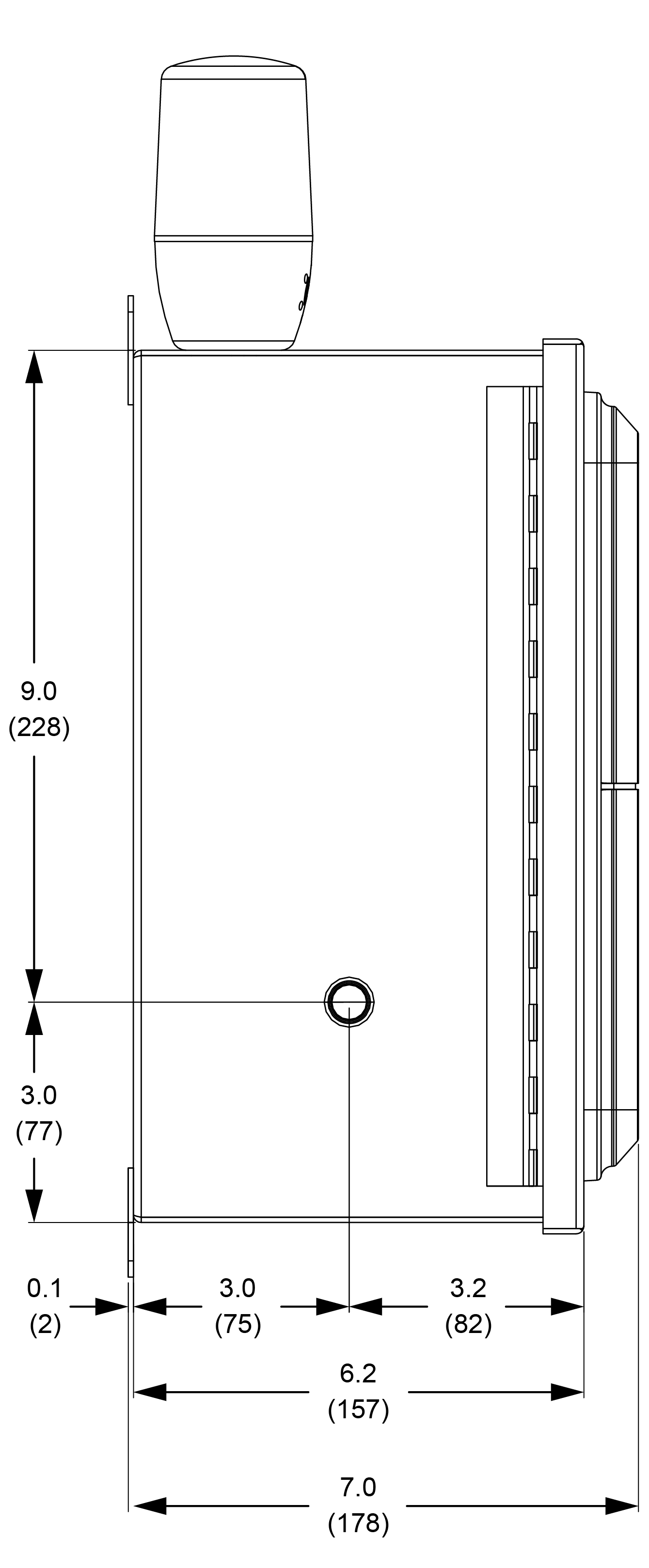

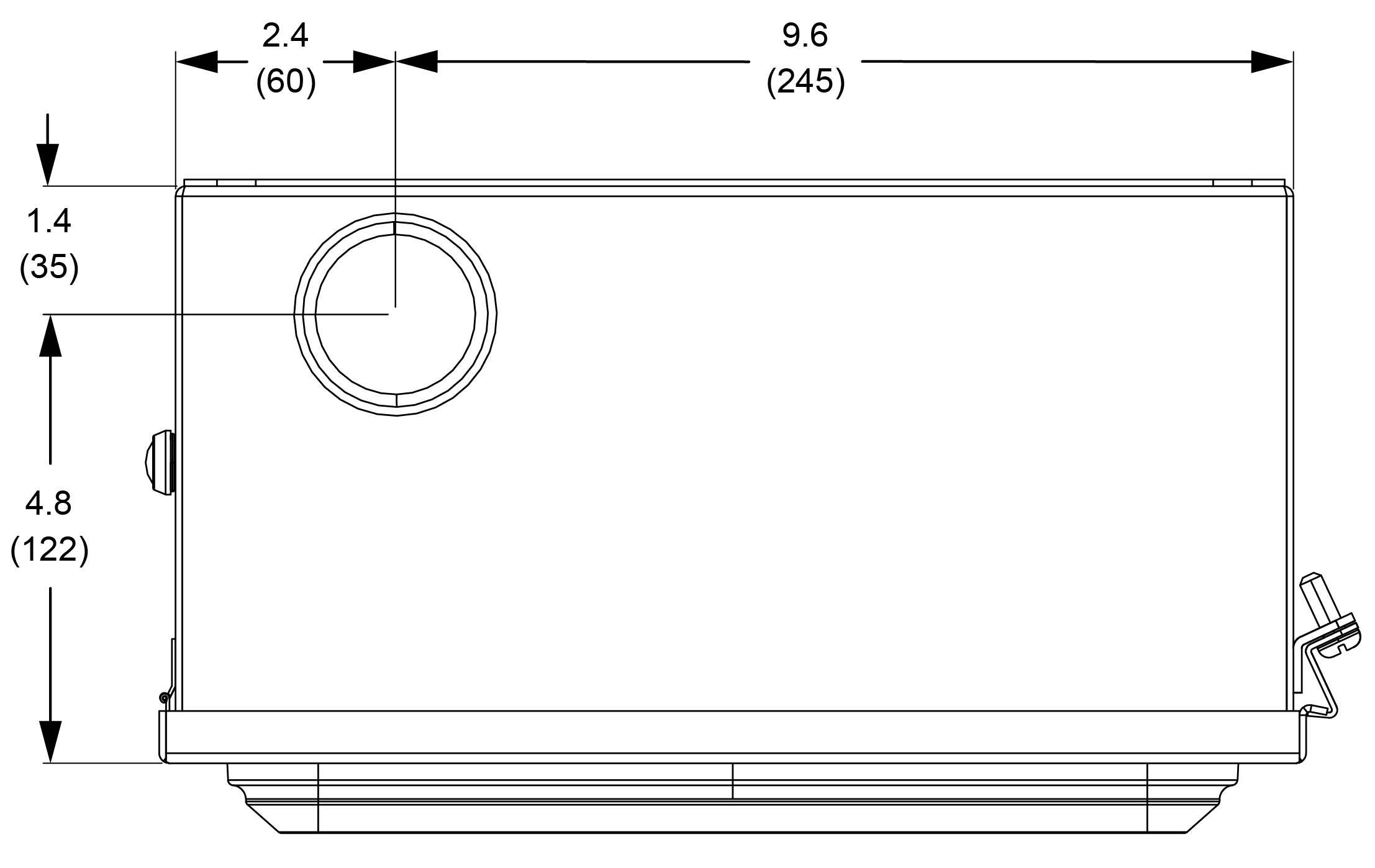

Overall Dimensions
12.0" x 12.0" x 6.0" (305 mm x 305 mm x 152 mm) (W x H x D)
Weight
11.6 lbs (5.3 kg)
Approvals
C-UL, UL, CSA
Warranty
1 Year
$484.00
Inches (mm)
