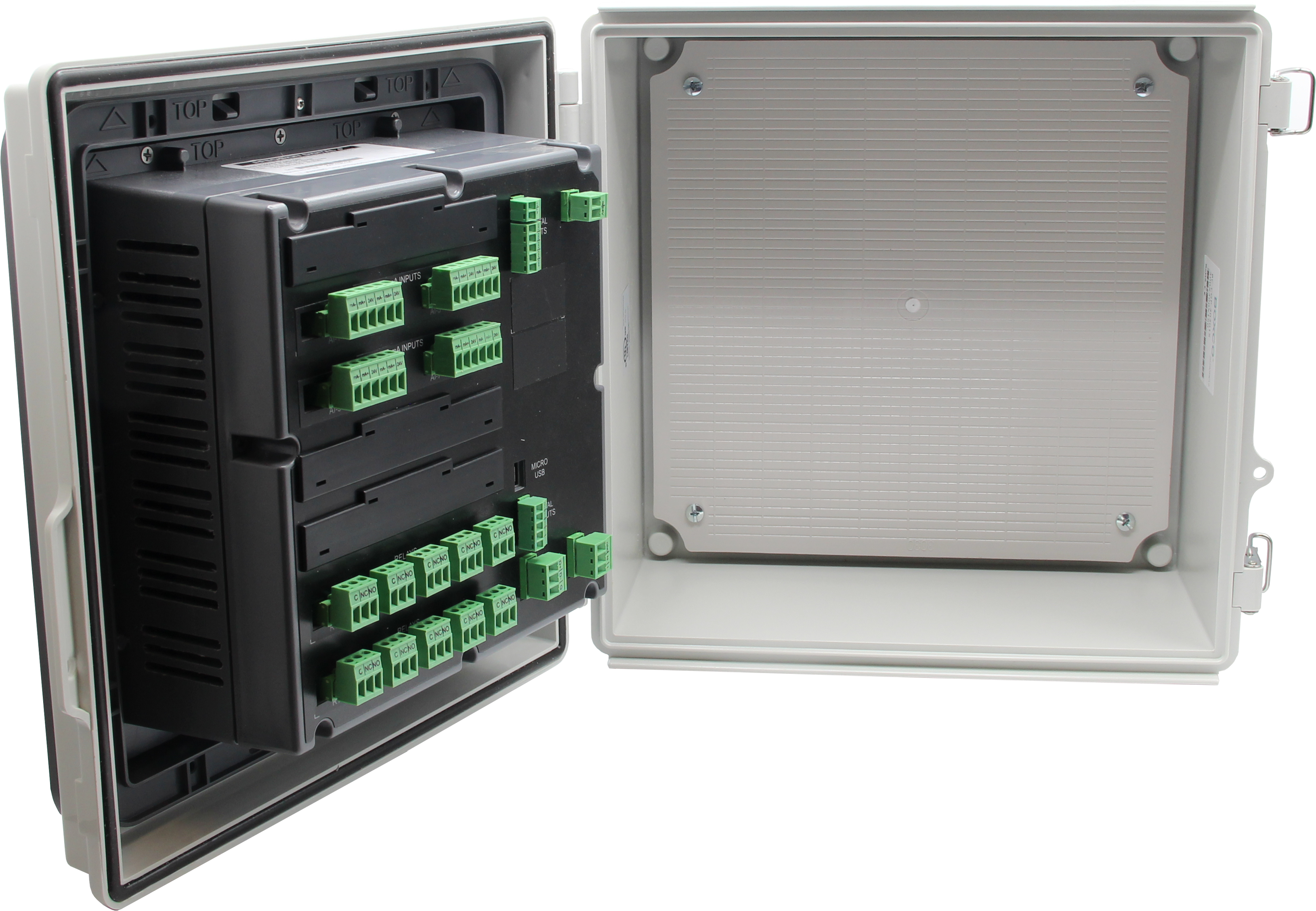

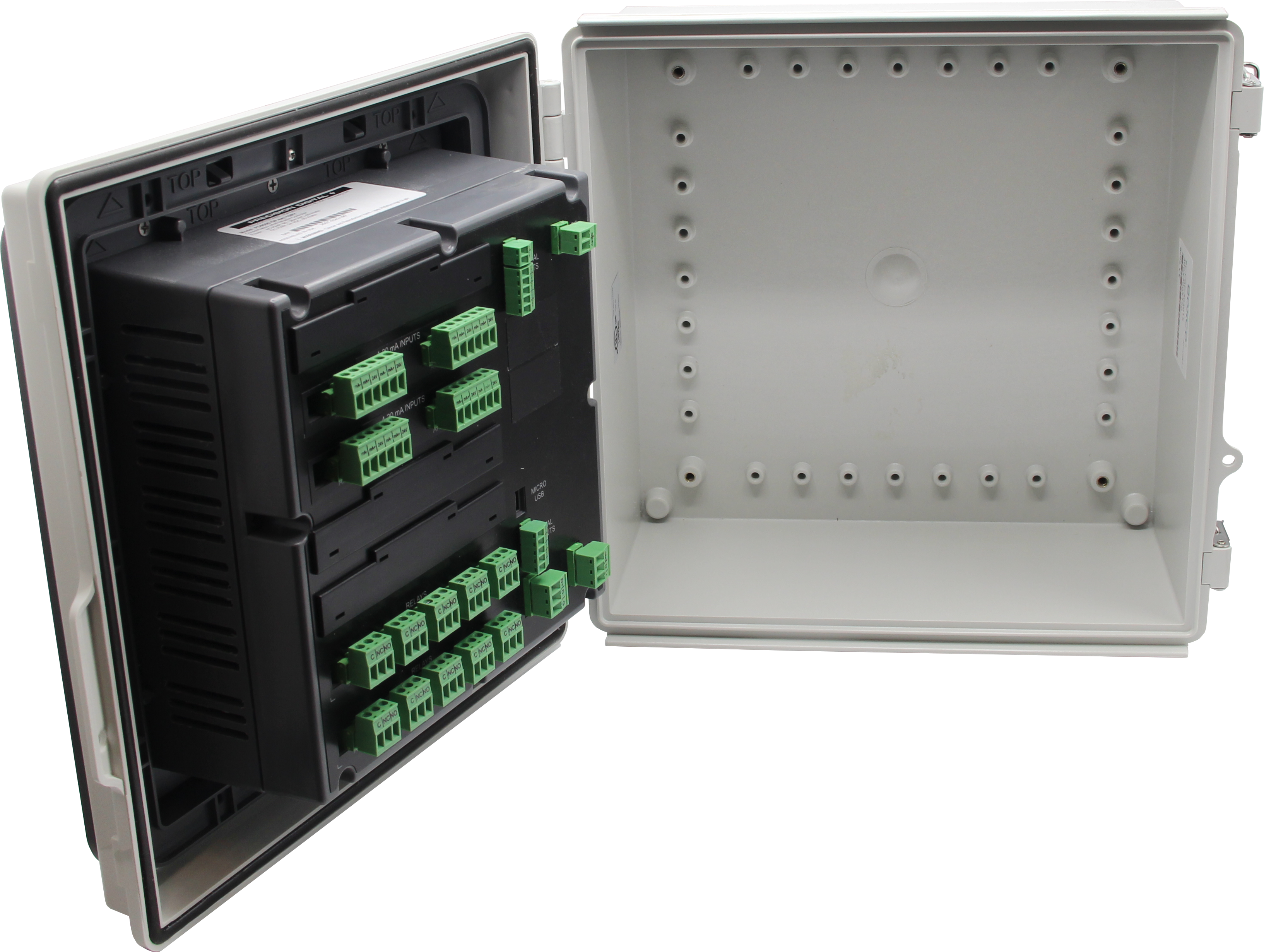

Plastic UL Type 4X Enclosure with (1) Cutout for ConsoliDator+

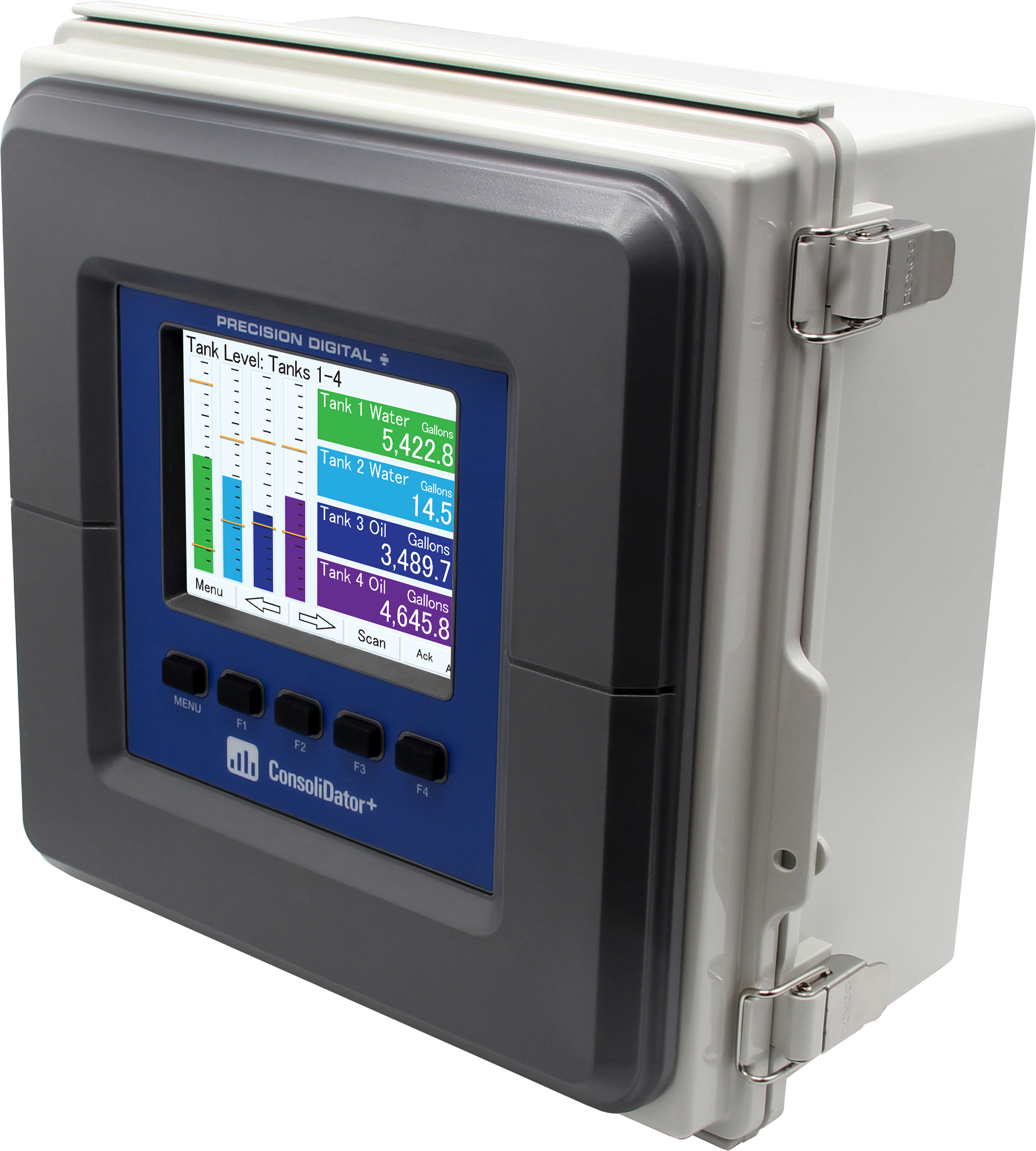

Right View
Model
PDA1909
Product Type
Plastic UL Type 4X Enclosure with (1) Cutout for ConsoliDator+
Material
Thermoplastic Polyester
Meter Mounting
Through Cover
Conduit Hole Location
None
Sub-Panel Model Number
PDP1909
Applicable Meter Types
ConsoliDator+
Cutouts
(1) Cutout for ConsoliDator+
Cover Securing Method
Hinge / Hasp
Fits PDA1024-01
Yes
Sun Hood Compatible
Yes
Light/Horn Compatible
Yes

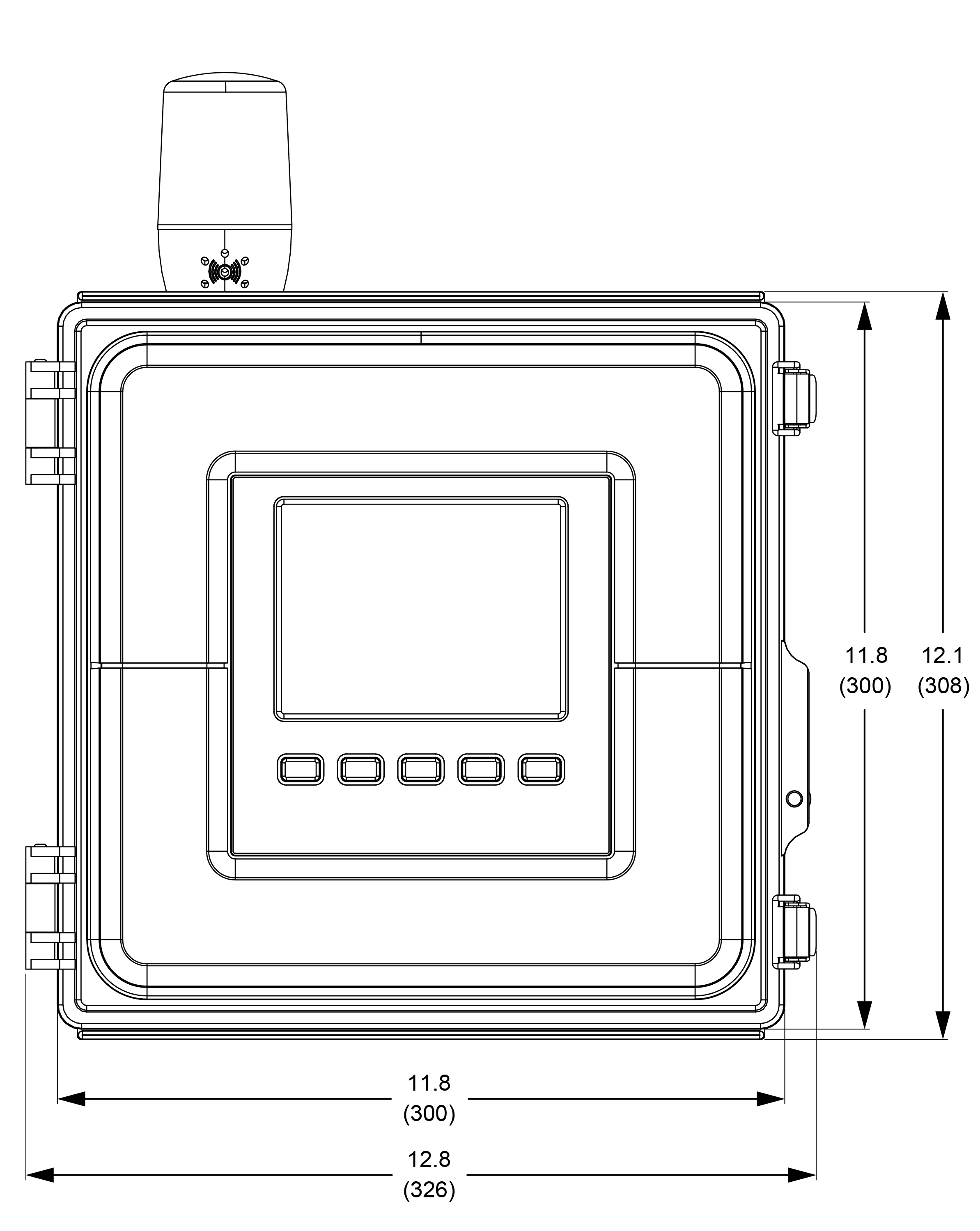

Overall Dimensions
11.8" x 11.8" x 5.9" (300 mm x 300 mm x 150 mm) (W x H x D)
Weight
3.1 lbs (1.4 kg)
Approvals
C-UL, UL
Warranty
1 Year
$212.00

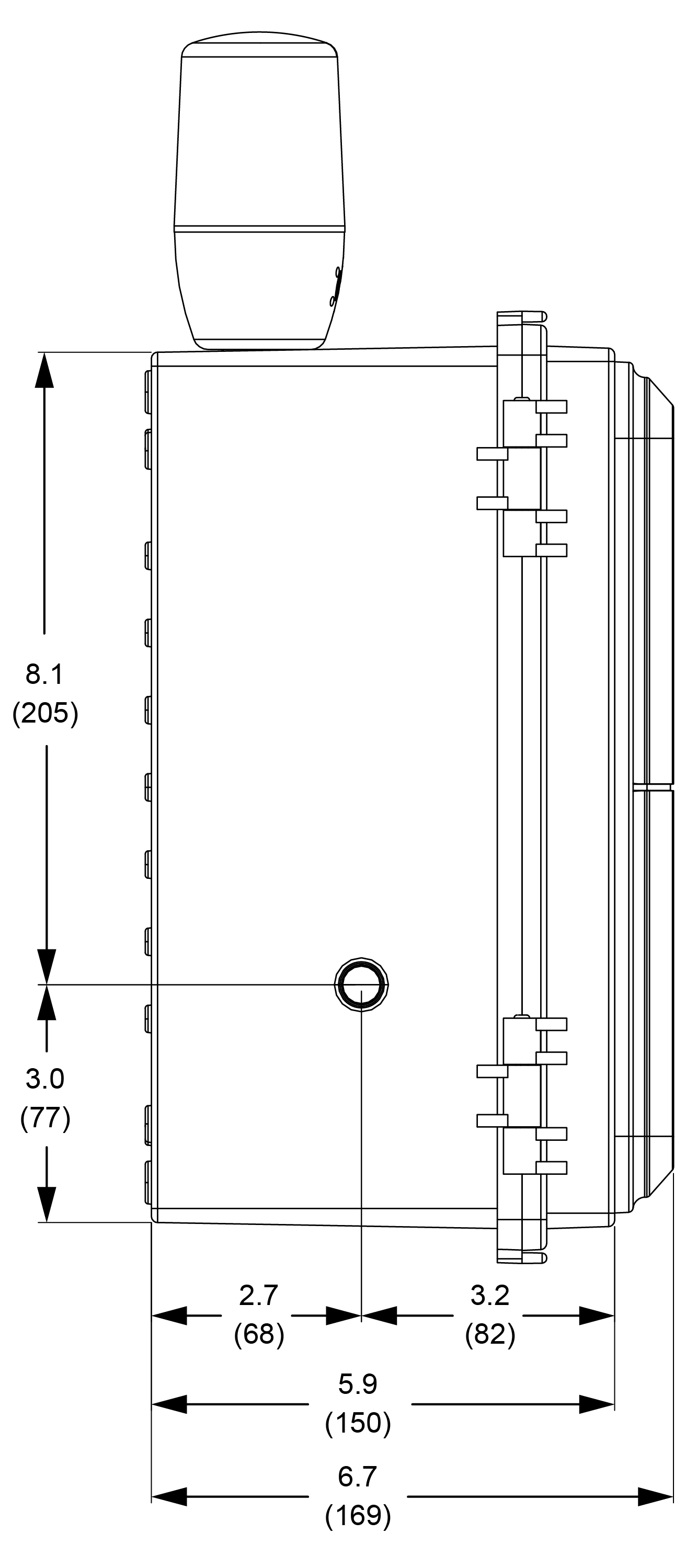

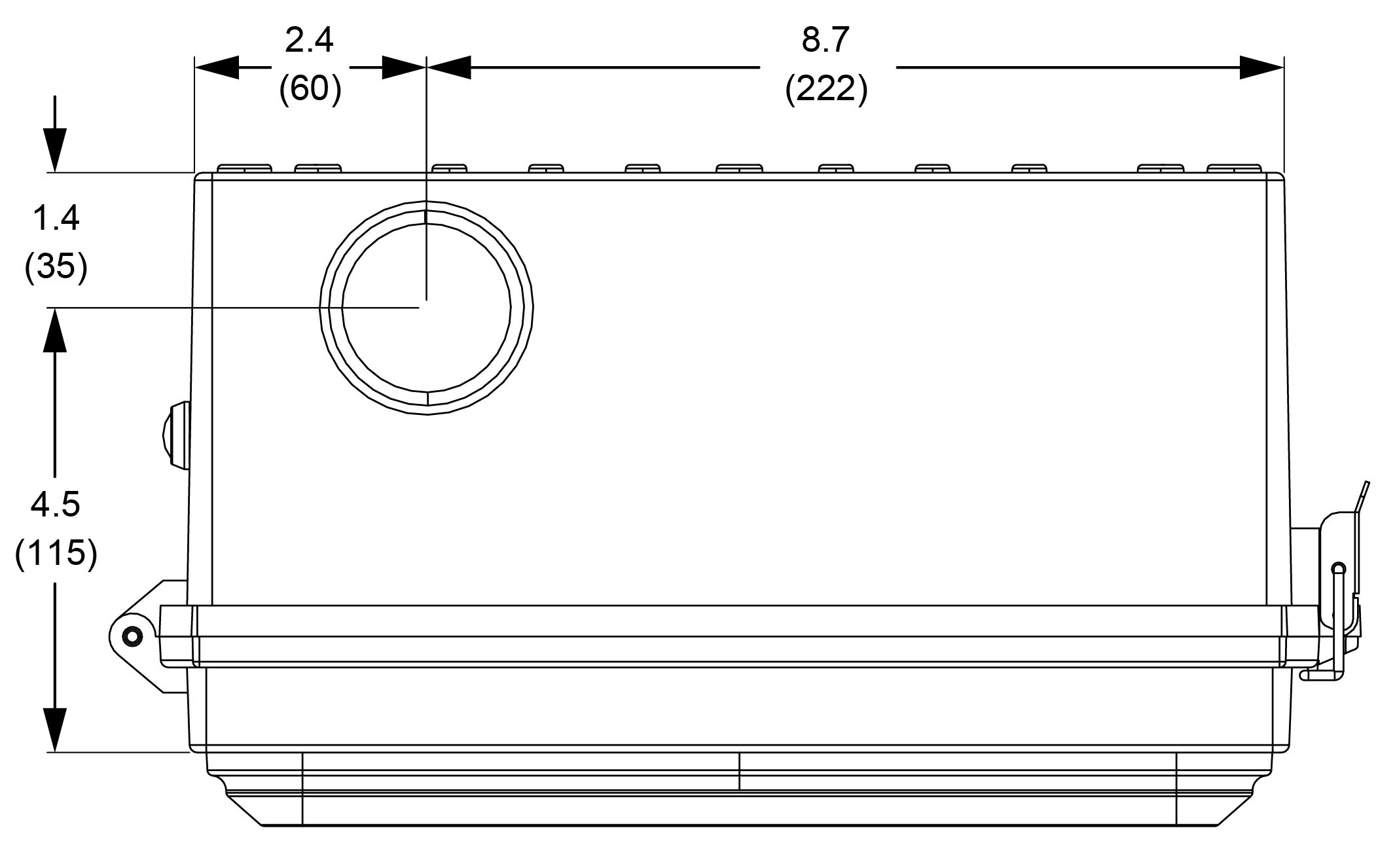

Inches (mm)
