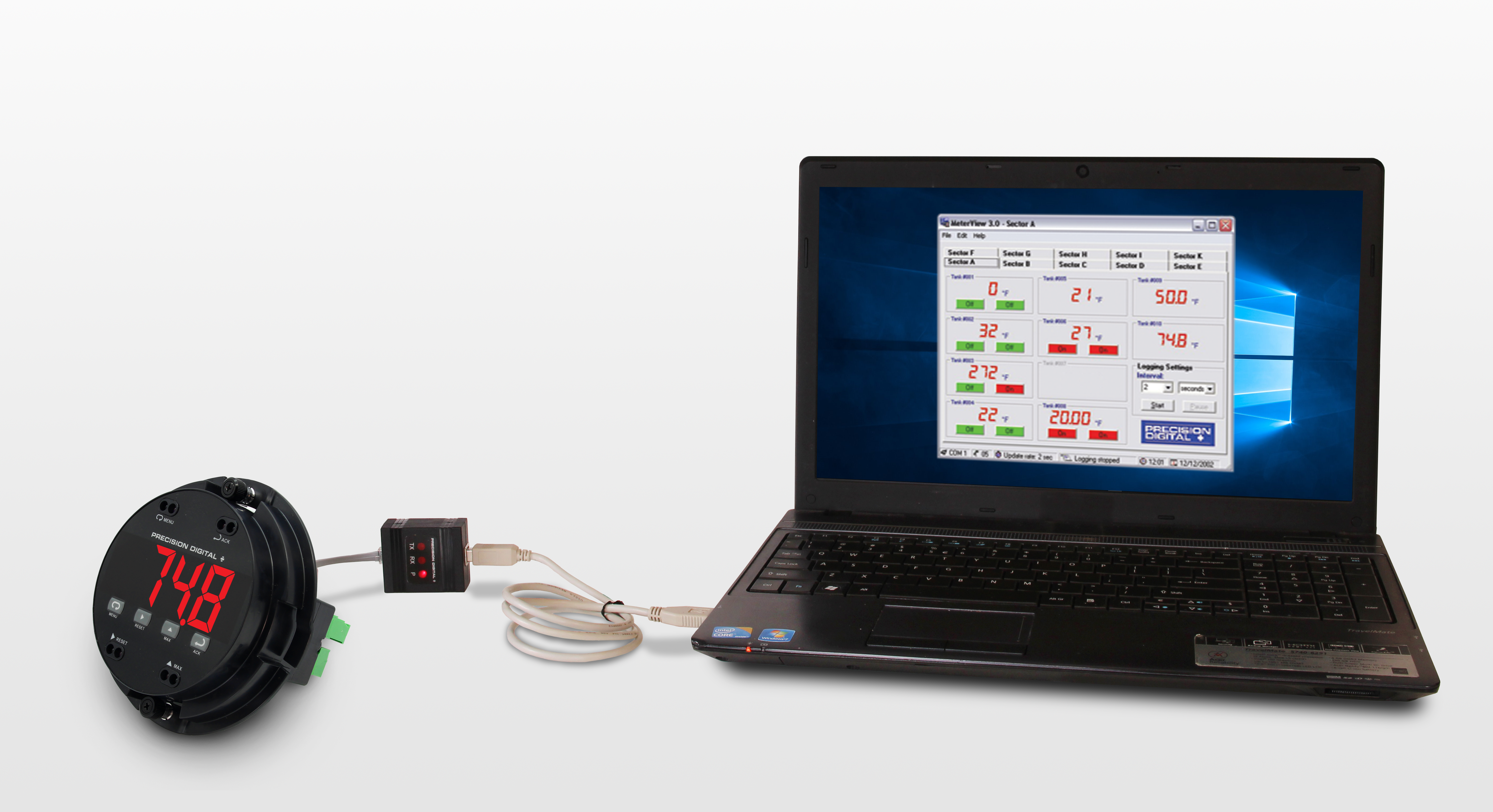

MeterView software allows all PD765 or PD8-765 setup parameters to be programmed from a PC and to save the configuration settings to a file for reporting or programming other meters. For programming purposes, MeterView software connects to the PD765 or PD8-765 meter via a PDA8006 USB serial adapter.
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!
Questions? (508) 655-7300

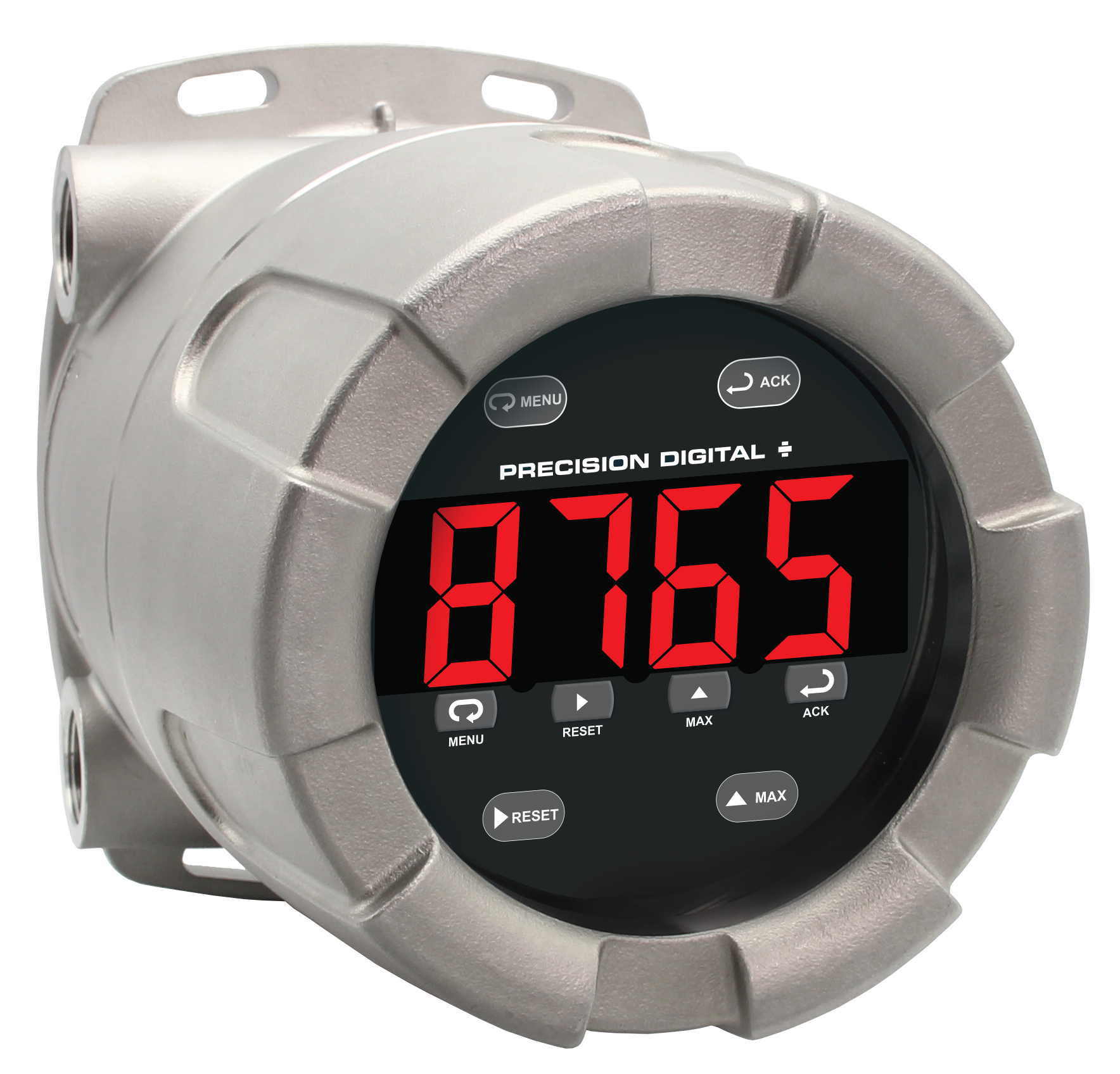

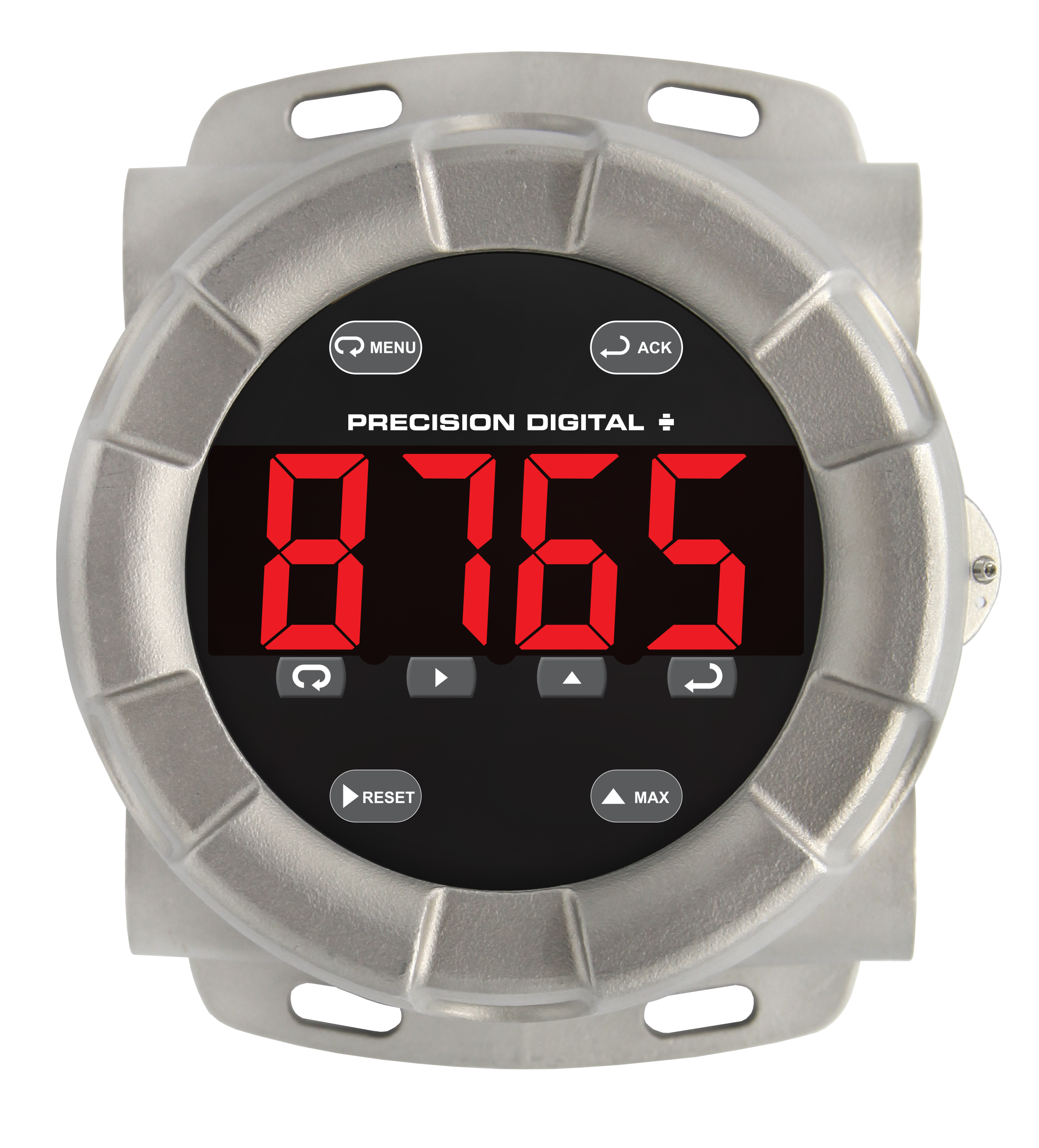

ProtEX-MAX Explosion-Proof Process and Temperature Meter

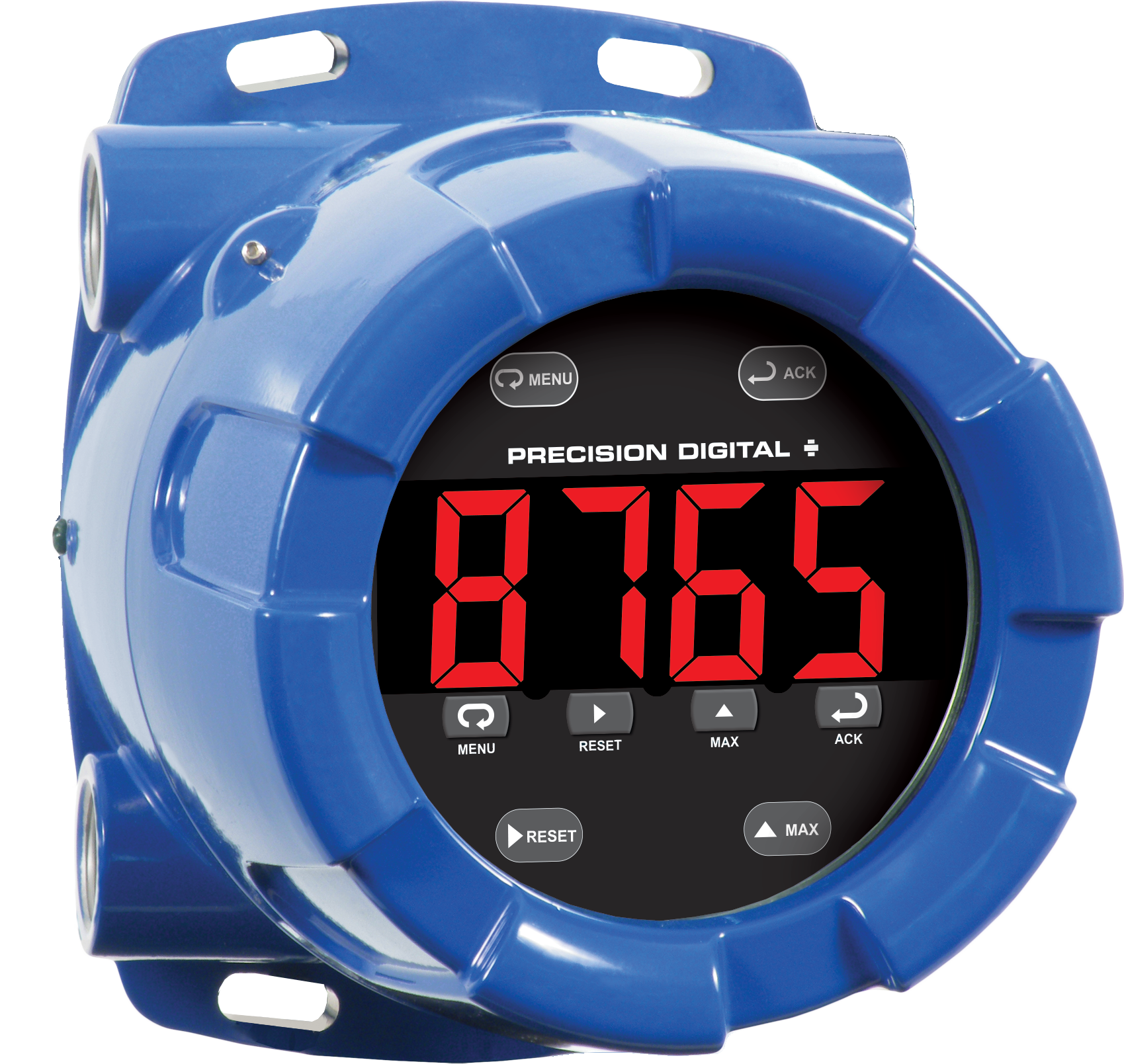

PD8-765 in Aluminum Enclosure
Model
PD8-765-6X5-10
Product Type
ProtEX-MAX Explosion-Proof Process & Temperature Meter
Input(s)
4-20 mA, ± 10 V, Thermocouple, RTD (Field Selectable)
Number of Inputs
1
Display
SunBright Red LED, 7 Segments, 4 Digits (-1999 to 9999), 1.20" (30.5 mm)
Power
85-265 VAC, 90-265 VDC
Transmitter Power
24 VDC @ 200 mA
Output(s)
(2) Relays, (1) 4-20 mA
4-20 mA Output Power
24 VDC @ 40 mA
Operating Temperature Range
-55 to 65ºC (-67 to 149°F)
Serial Communications
On-Board Modbus RTU RS-485
Math Functions
None
External Modules Available
None
Enclosure Material
Aluminum
Enclosure Rating
IP68, Explosion-Proof, NEMA 4X
Conduits (Number) & Size
(4) 3/4" NPT
Weight
14.7 lbs (6.7 kg)
Approvals
IECEx (XP), ATEX (XP), CSA (XP), CE
Warranty
3 Years
$1653.00
Inches (mm)
