PD8-6100

ProtEX-MAX Explosion-Proof Strain Gauge, Load Cell & mV Meter

Model

PD8-6100-6H7

Product Type

ProtEX-MAX Explosion-Proof Strain Gauge / Load Cell Meter

Input(s)

Strain Gauge, Load Cell, Millivolts

Number of Inputs

1

Display

Dual Line, SunBright Red LED, 7 Segments, 6 Digits (-99999 to 999999)

Transmitter Power

10 VDC @ 25 mA

Output(s)

(4) Relays, (1) 4-20 mA

Operating Temperature Range

-55 to 65ºC (-67 to 149°F)

Serial Communications

On-Board Modbus RTU RS-485

Math Functions

None

External Modules Available

None

Enclosure Material

Aluminum

Enclosure Rating

IP68, Explosion-Proof, NEMA 4X

Conduits (Number) & Size

(4) 3/4" NPT

Weight

14.7 lbs (6.7 kg)

Approvals

IECEx (XP), ATEX (XP), CSA (XP), CE

Warranty

3 Years

$1798.00

Model Details

PD8-6100-6H7

0 In Stock
Connections

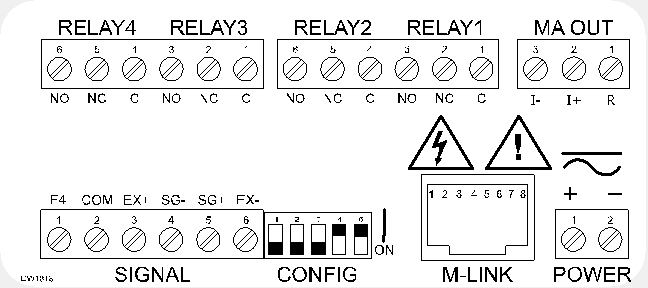

PD8-6100-#H7 Connectors Label

Dimensions

Inches (mm)

Front
Front
Side Cross Section
Side Cross Section
