PD8-6000

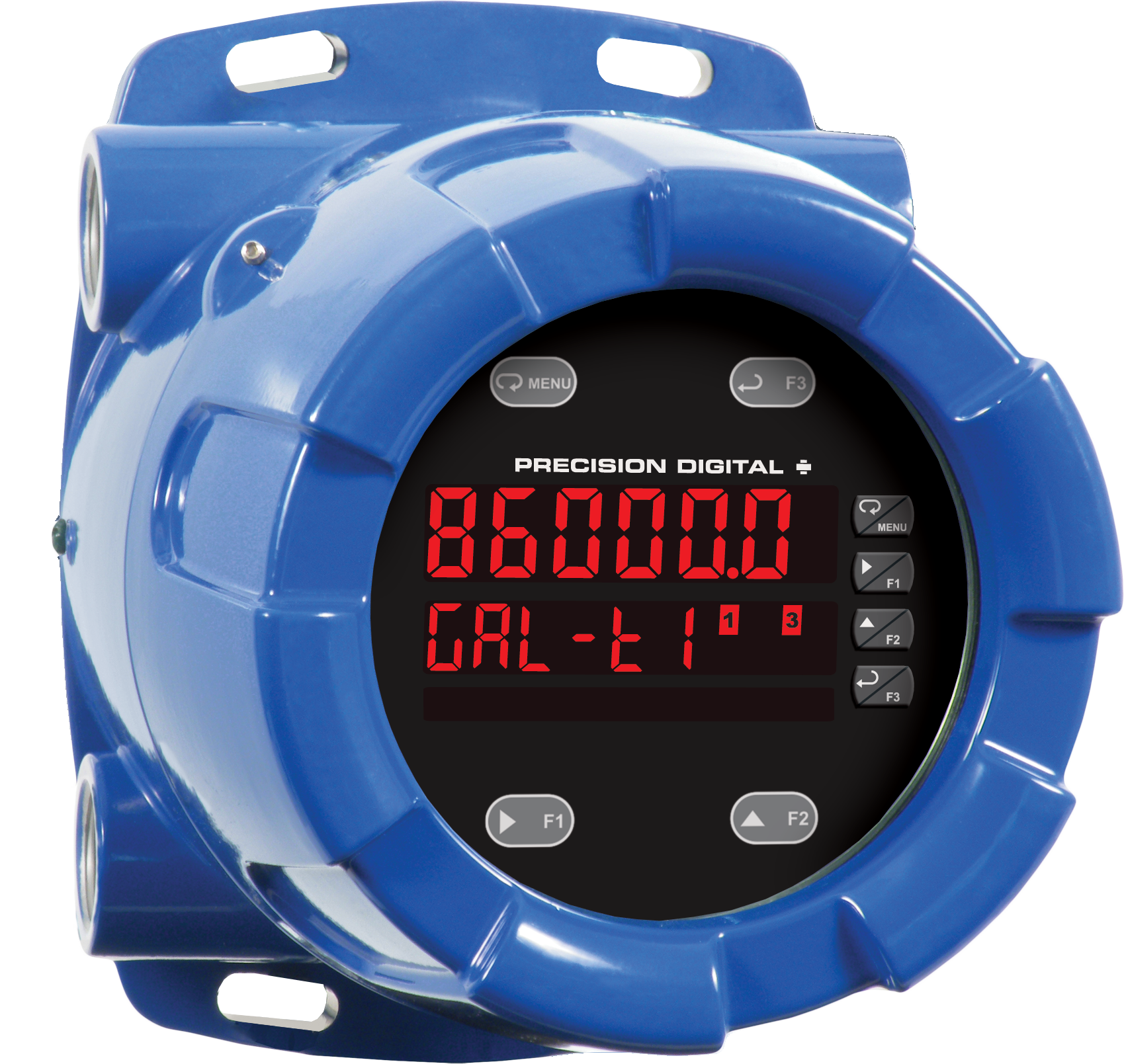

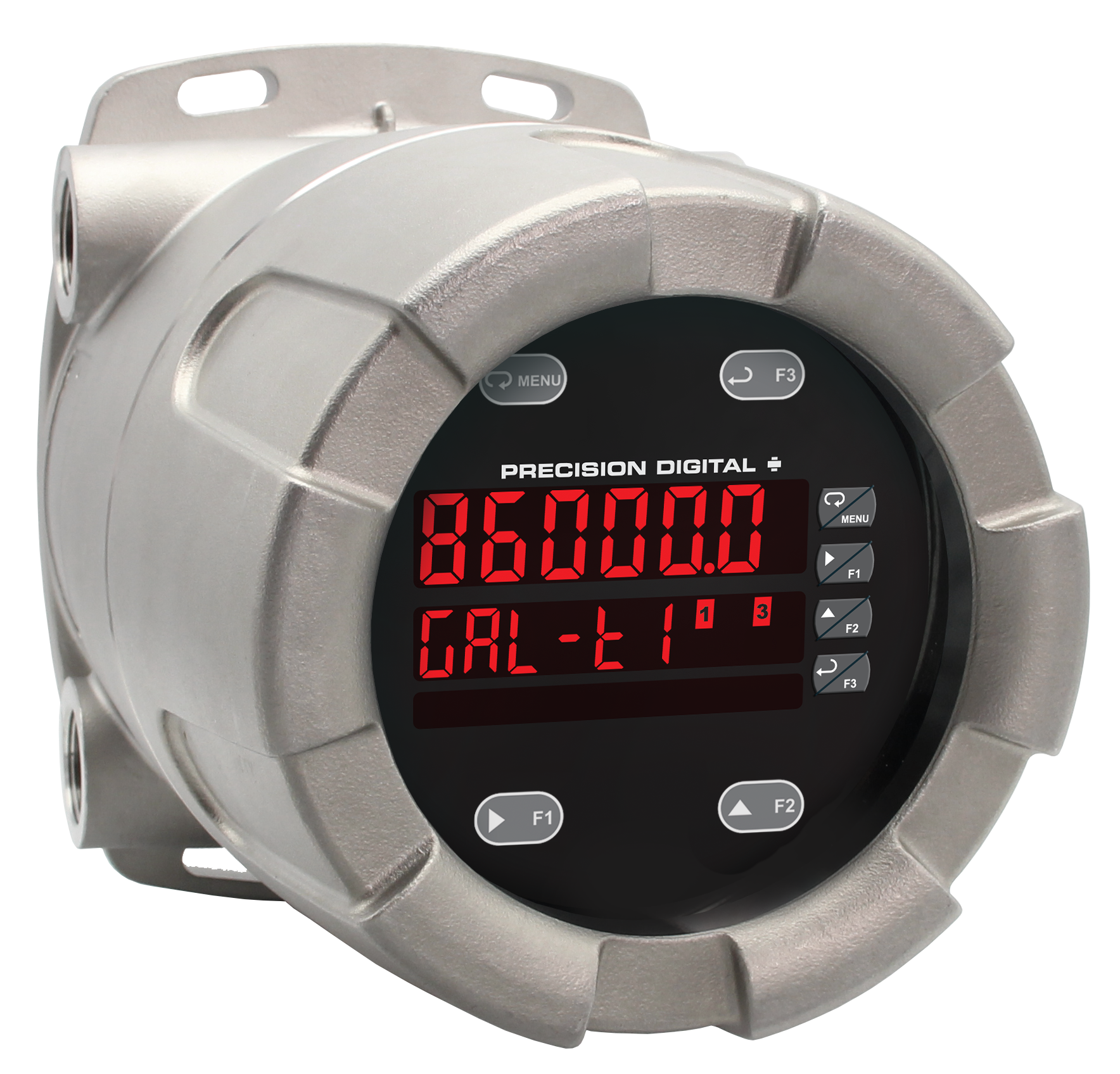

ProtEX-MAX Explosion-Proof Process Meter

Model

PD8-6000-6H0

Product Type

ProtEX-MAX Explosion-Proof Process Meter

Input(s)

4-20 mA, ± 10 V, (Field Selectable)

Number of Inputs

1

Display

Dual Line, SunBright Red LED, 7 Segments, 6 Digits (-99999 to 999999)

Power

85-265 VAC, 90-265 VDC

Transmitter Power

24 VDC @ 25 mA

Output(s)

None

Operating Temperature Range

-55 to 65ºC (-67 to 149°F)

Serial Communications

On-Board Modbus RTU RS-485

Math Functions

None

External Modules Available

None

Enclosure Material

Aluminum

Enclosure Rating

IP68, Explosion-Proof, NEMA 4X

Conduits (Number) & Size

(4) 3/4" NPT

Weight

14.7 lbs (6.7 kg)

Approvals

IECEx (XP), ATEX (XP), CSA (XP), CE

Warranty

3 Years

$1598.00

Model Details

PD8-6000-6H0

0 In Stock

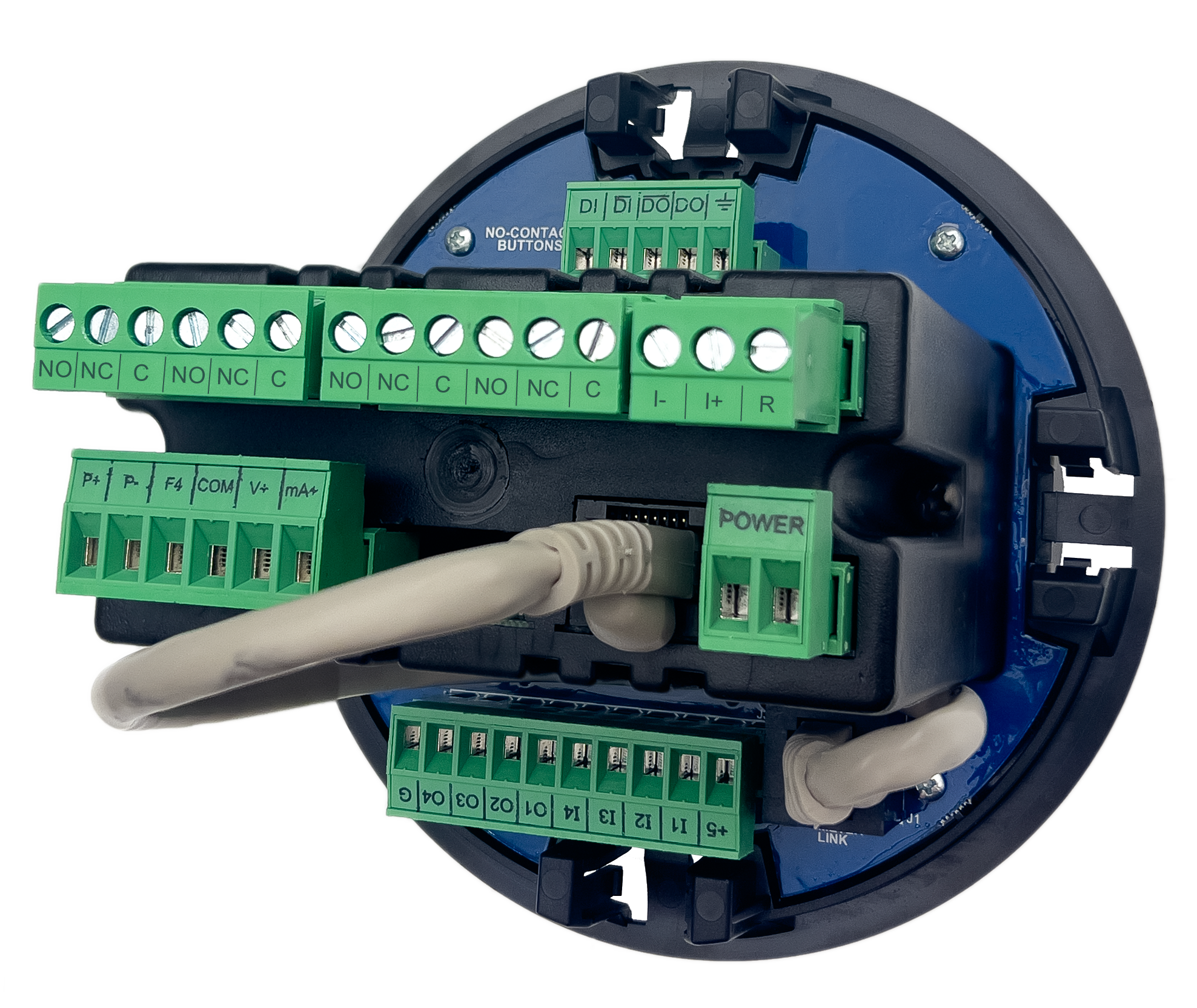

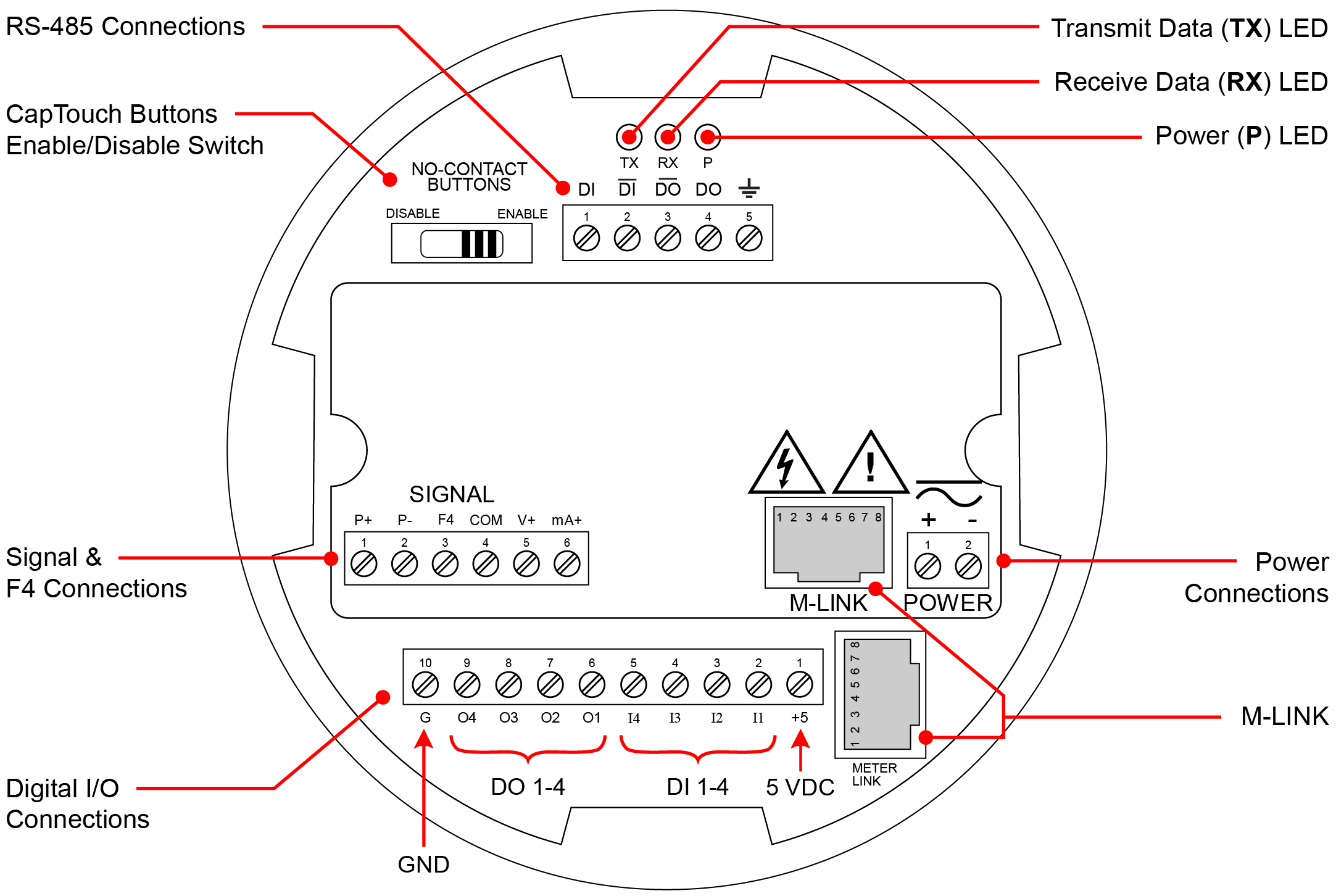

Connections
PD8-6000-6H0 Connectors Label

Dimensions

Inches (mm)

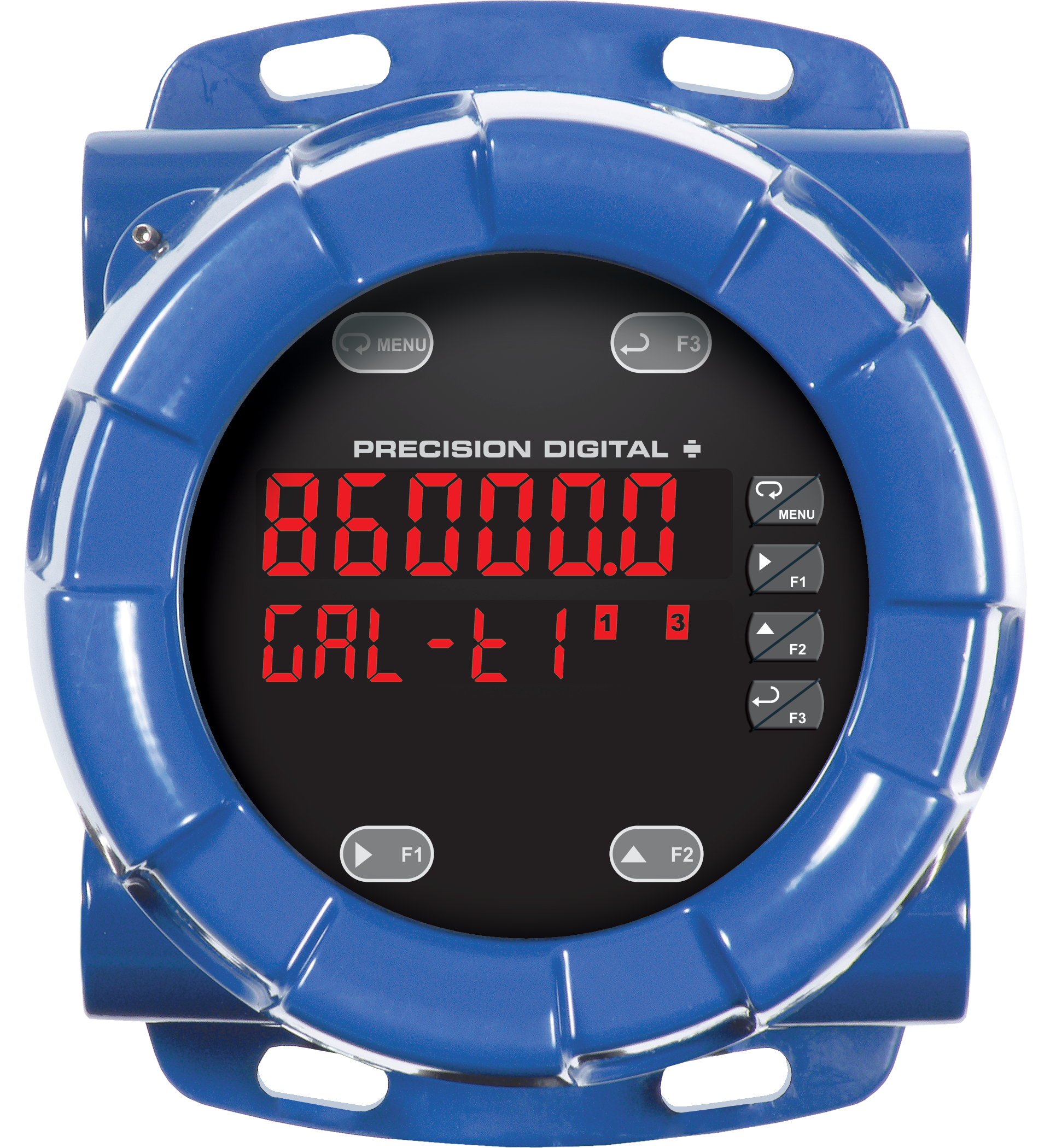

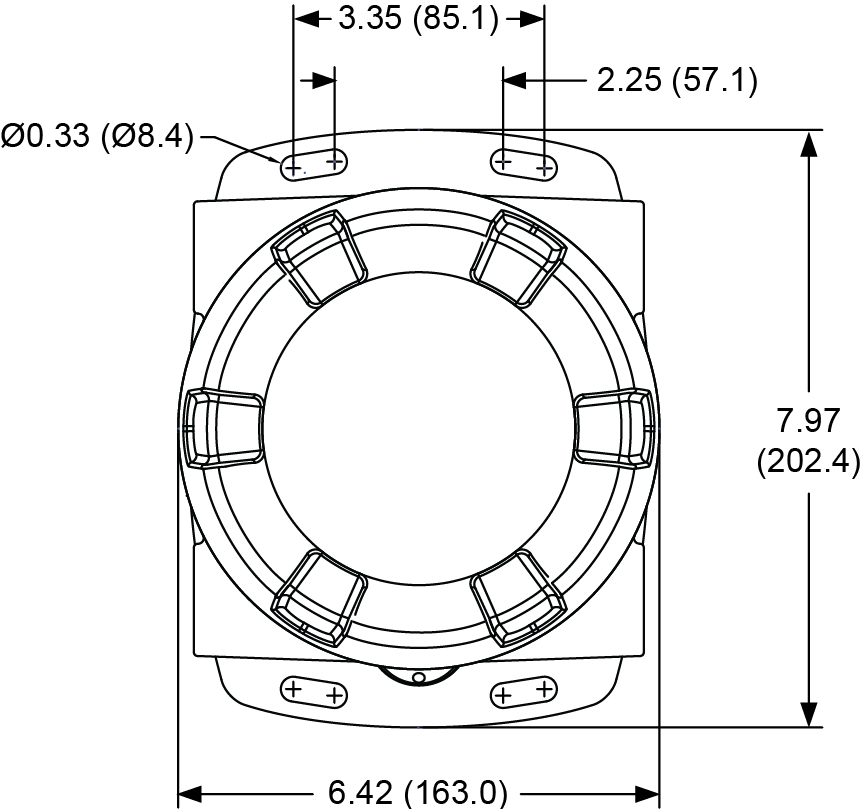

Front
Front

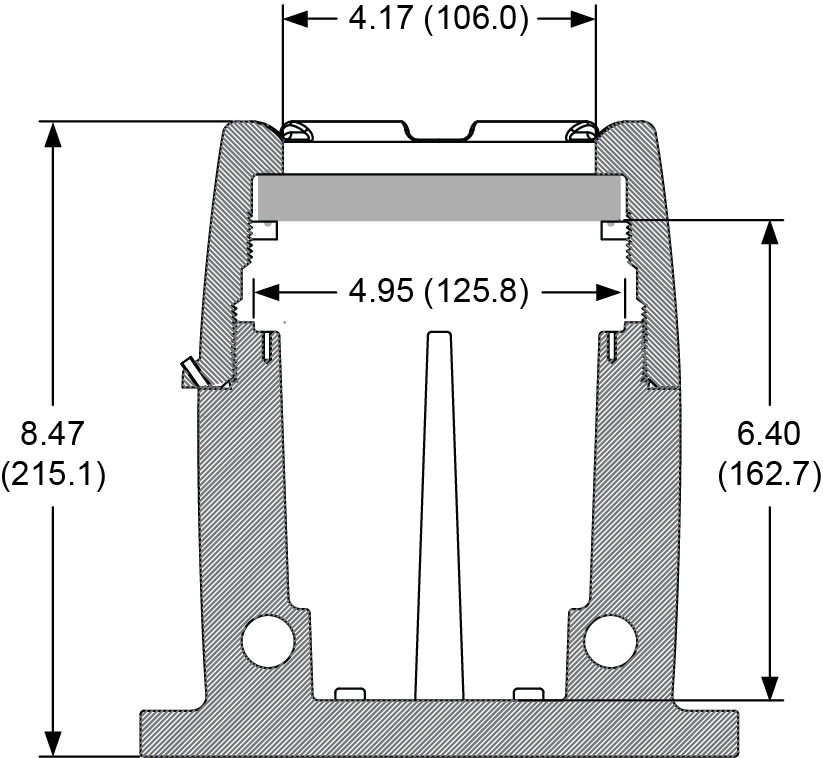

Side Cross Section
Side Cross Section
