Models in stock

from $1873.00

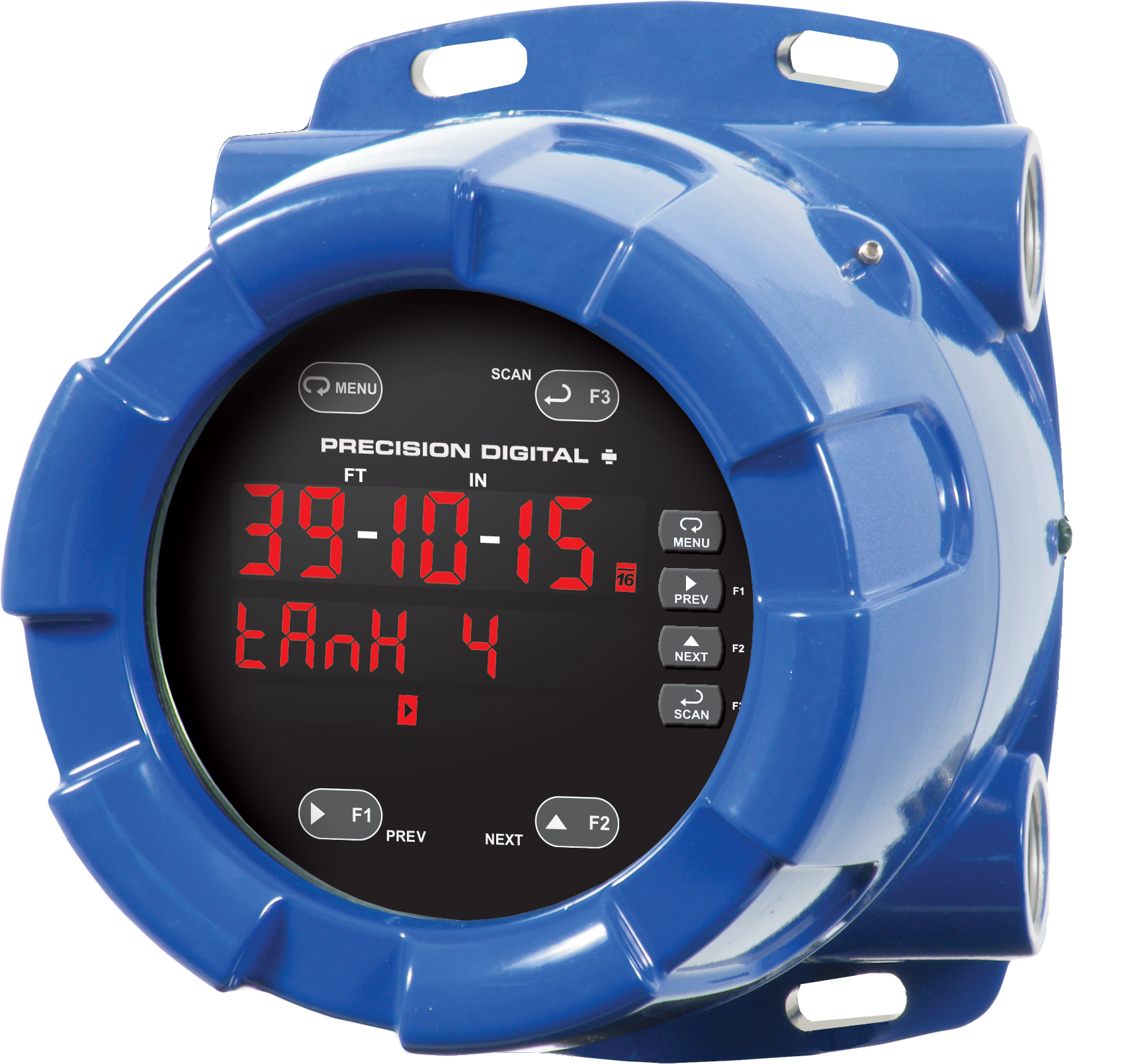

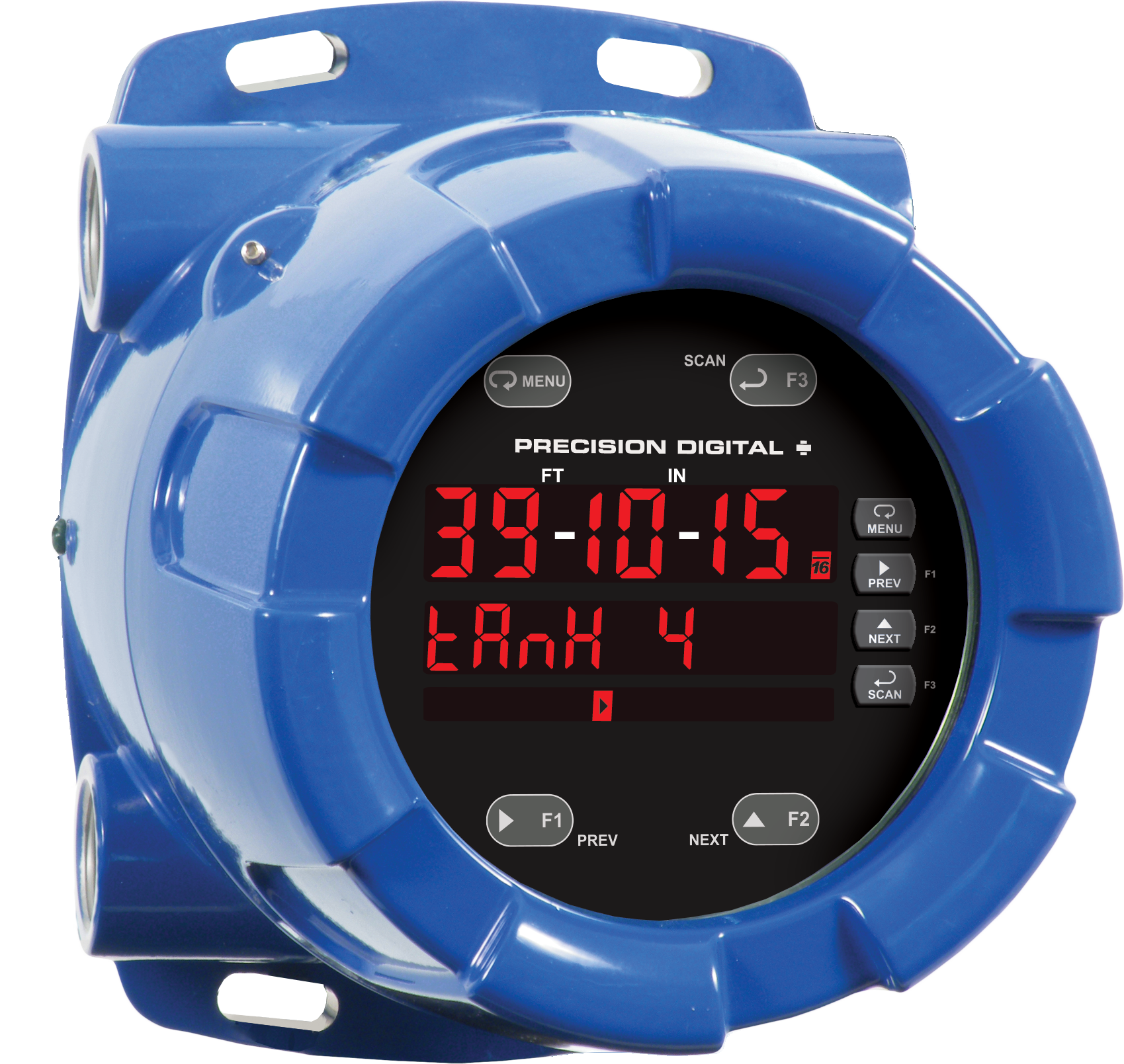

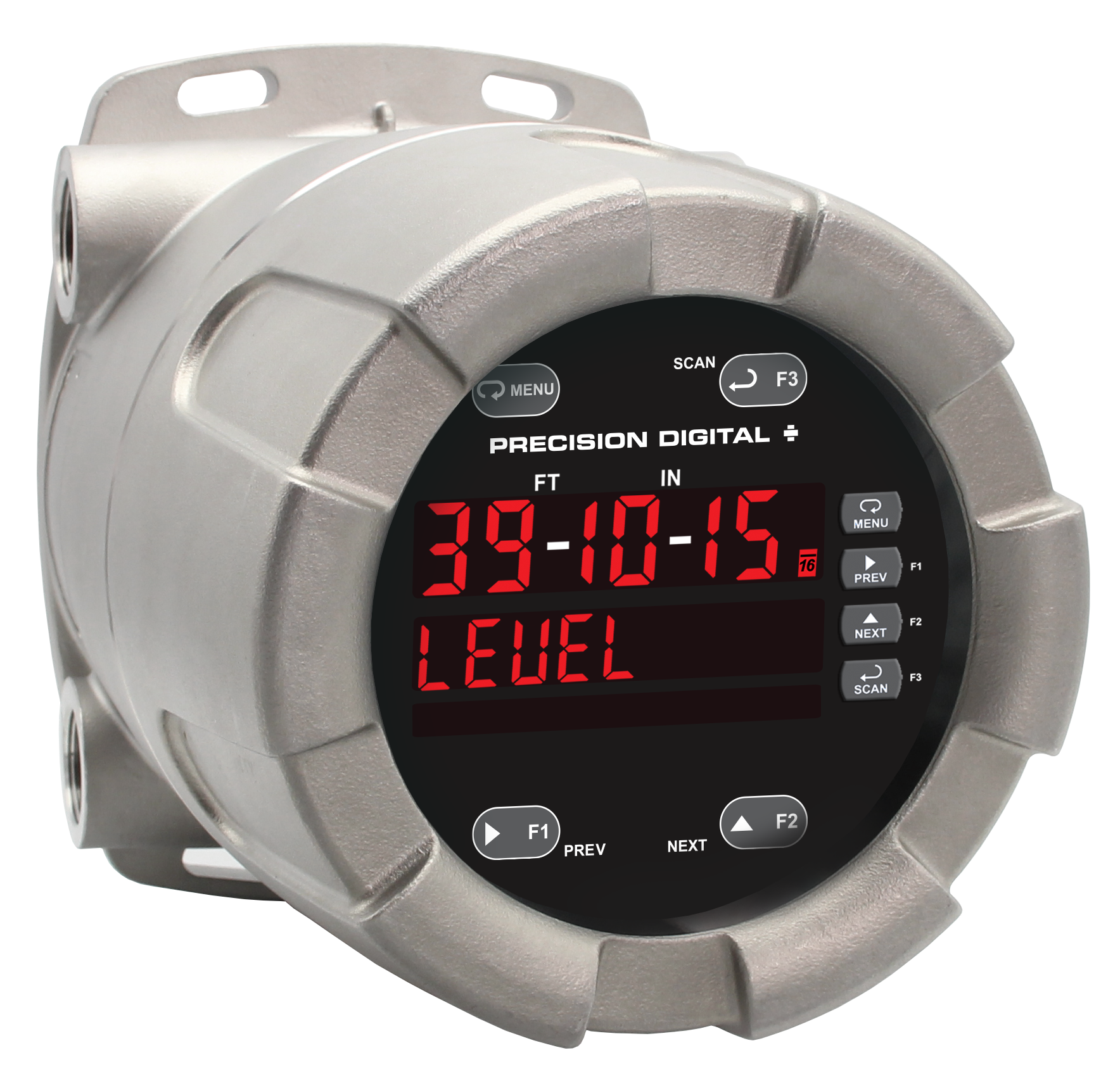

The ProtEX-MAX PD8-6081 Super Snooper feet & inches Modbus scanner offers all the functionality of the ProVu PD6081 as a CSA, ATEX, and IECEx certified explosion-proof product. It is available in an aluminum or stainless steel enclosure and will operate over a wide temperature range of -55 to 65°C (-67 to 149°F). It displays level information on a specially designed feet & inches display, instead of the usual decimal format. It is the ideal display for hazardous areas with Modbus level or multivariable transmitters and is capable of scanning up to 16 process variables. Its unique feet & inches upper LED display can indicate up to 99 feet, 11 and 15/16 inches. The 6-digit lower display can indicate units, tags, or other variables such as volume, temperature, or density. The PD8-6081 also has dual analog inputs, for integrating traditional 4-20 mA or voltage inputs in the display scanning. The scanner can be setup as a Modbus master, slave, or snooper. Various math functions may be applied to the analog or Modbus inputs, such as addition, difference, average, and ratio. The PD8-6081 can be equipped with four internal relays and a 4-20 mA output. It can be programmed and operated without opening the housing by using the built-in CapTouch through-glass buttons.
