- Fully-Approved Explosion-Proof Loop-Powered Process Meter
- 4-20 mA Input
- 1 Volt Drop (4 Volt Drop with Backlight)
- 1.0" (25.4 mm) 3½ Digits LCD Display; -1000 to 1999
- Display Mountable at 0°, 90°, 180°, & 270°
- HART® Protocol Transparent
- Loop-Powered Backlight
- Operating Temperature Range: -40 to 75°C (-40 to 167°F)
- Installation Temperature Range: -55 to 75°C (-67 to 167°F)
- Zero & Span Potentiometer Adjustments for Easy Field Scaling
- Conformal Coated PCBs for Dust and Humidity Protection
- UL Listed as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
- CSA Certified as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
- ATEX and IECEx Certified as Explosion-Proof
- Wide Viewing Angle
- Built-In Flange for Wall or Pipe Mounting
- Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum & Stainless Steel Enclosures
- Two 3/4" NPT or M20 Threaded Conduit Openings
- 2" U-Bolt Kits Available
- Stainless Steel Tag Available
- 3-Year Warranty
** NEW IMPROVED WEB STORE! | All users must register for a new account. | Register now > **
BUY ONLINE TO SAVE TIME AND INCREASE ORDER ACCURACY!

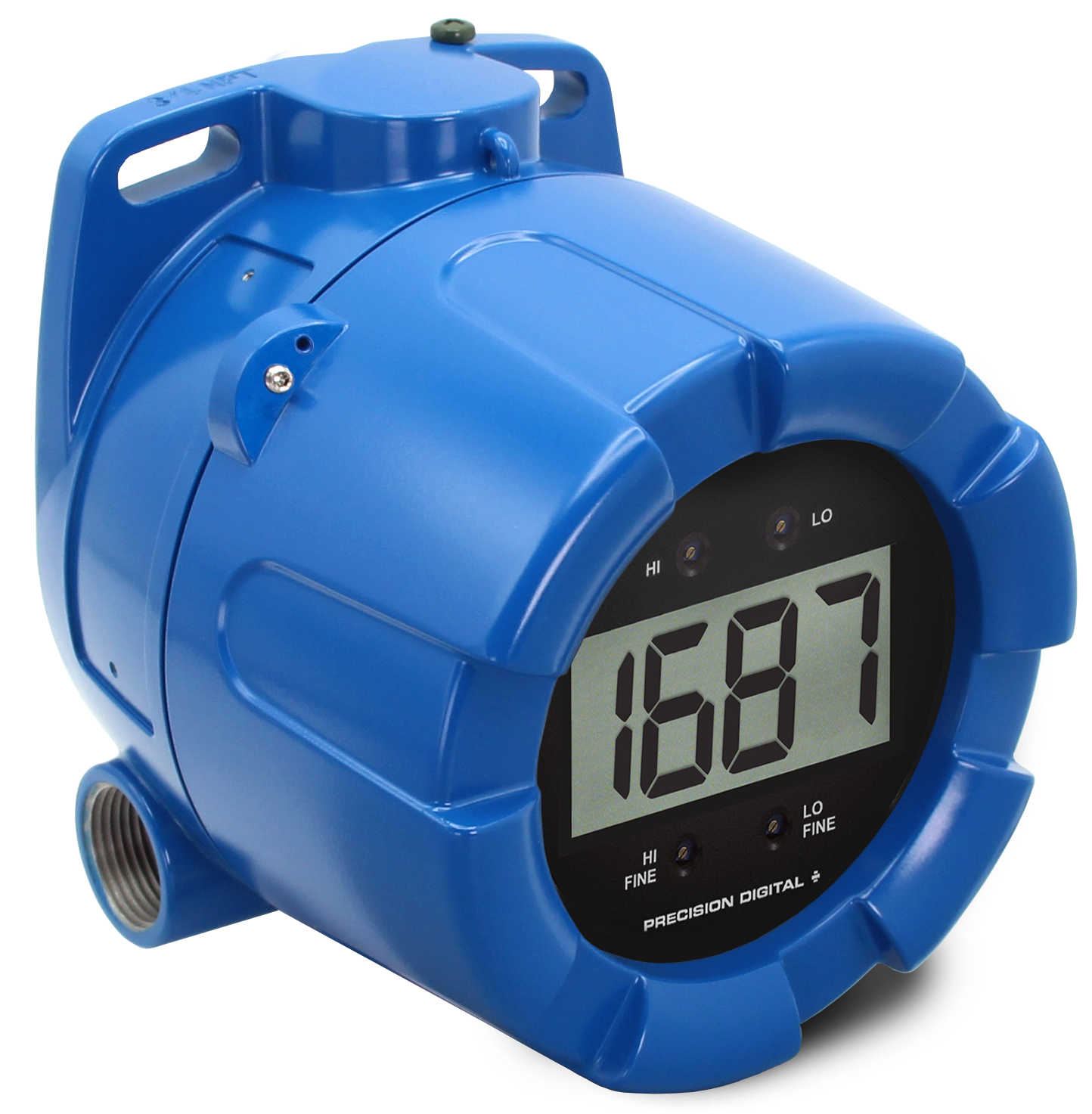

ProtEX-FarVu Explosion-Proof Large Display Loop-Powered Meter
Models in stock
from $511.00
The ProtEX-FarVu PD6870 is a rugged, explosion-proof, loop-powered meter with 1" display digits ideal for demanding applications in hazardous areas or in the harshest environmental conditions.
The ProtEX-FarVu carries all major approvals including:
• UL Listed as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
• CSA Certified as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
• ATEX and IECEx Certified as Explosion-Proof
The PD6870 is available in either an aluminum or stainless steel enclosure with ¾" or M20 connections. It will operate down to -40°C and is approved for installation in areas where the temperature gets as cold as -55°C, however, the display will cease functioning.
- Worldwide Explosion-Proof Approvals
- Loop-Powered
- Large Digits
