Model: PDA2361-R

PDA2360 Plastic Control Stations

SKU: PDA2361-R
Product Type: Plastic Control Station with 1 Black Reset Button
Warranty: 1 year
Product Family: PDA2360
Product category: Accessories & Modifications

Features

  • Complete Pre-Assembled Stations
  • Fitted with 1, 2, or 4 Normally Open (NO) Spring Return Plastic Bezel Pushbuttons
  • Trigger Action Turn to Release Pushbutton (PDA2360-E only)
  • IP65 / NEMA 4, 4X and 13 Rated
  • Button Text for: Start, Stop, Batch, Acknowledge, Tare, Silence, Emergency Stop Functions, or Blank
  • Four-Position Control Station for Remote Operation of ProVu and Helios Buttons
  • Wall Mountable

Overview

The PDA2360 series of plastic control stations provide a convenient way to remotely control devices such as Precision Digital’s digital meters and controllers. There are control stations that can be used to reset the total, acknowledge relays, set a tare, and run a batch process. Blank buttons for custom user actions and emergency stop control stations are also available.

The control stations come pre-assembled with 1, 2, 3, or 4 Normally Open (NO) red, green, or black pushbuttons. Knockouts on the top and bottom of the enclosure are provided for convenient wiring and two mounting holes on the back of the enclosure make it easy for wall mounting. All control stations are IP65 / NEMA 4, 4X and 13 rated.

Switch Terminal Blocks

The number of switch terminal blocks depends on the number of buttons on the control station. The control stations are available with 1, 2, or 4 buttons.

PDA2360 Terminal Blocks
2-Button Control Station Shown

Specifications

Rated Capacity240V/3A (AC-15 per IEC 947-5-1), 110V/0.6A (DC-14 per IEC 947-5-1)
Contact Resistance50 mΩ
Mechanical Durability>3x10^4 (spring return button)
>5x10^3 (latching emergency button)

For applications requiring Normally Closed contacts, order PDA236X-NC NC Switch Contact Terminal for Control Stations.

Remote Batch Control Connections

The ProVu batch controllers can be operated via the front panel push buttons or a remote control station using the PDA1044 digital I/O expansion module as illustrated below.

Remote Batch Control Connections

Connections

PDA2361

PDA2361 Connections for ProVu Series
PDA2361 Wiring to a ProVu or Helios Meter Using the On-Board Digital Input Connection
PDA2361 Connections for Trident X2 Series
PDA2361 Wiring to a Trident X2 Meter Using the On-Board Digital Inputs Connection
PDA2361 Connections for Loop Leader Series
PDA2361 Wiring to a Loop Leader Meter Using the On-Board Digital Input Connection

PDA2364-MRUE

PDA2364-MRUE Connections for Helios Series
PDA2364-MRUE Wiring to a Helios Meter Using Its Digital I/O Connections
PDA2364-MRUE Connections for Loop Leader+ Series
PDA2364-MRUE Wiring to a Loop Leader+ Meter Using Its Remote Contacts

PDA2364-MSBS

PDA2364-MSBS Connections for ProVu Series
PDA2364-MSBS Wiring to a ProVu Batch Controller Using a PDA1044 I/O Expansion Module
PDA2364-MRUE Connections for Helios Series
PDA2364-MSBS Wiring to a Helios Batch Controller Using Its Digital I/O Connections
PDA2364-MRUE Connections for Loop Leader+ Series
PDA2364-MSBS Wiring to a Loop Leader+ Flow Rate/Totalizer in Batch Controller Mode Using Its Remote Contacts

Note: These specifications apply to the entire product series and may contain information that is not relevant to this particular model number.

General

Pushbuttons

Control Station with 1, 2, 3, or 4 Normally Open (NO) buttons: red, green, or black flush spring return pushbuttons.

Button Diameter: 1.13" (29 mm)

Emergency Stop Control Station: 1 red, latching, mushroom head pushbutton, turn to release.

Button Diameter: 1.5" (38 mm)

Electrical Blocks

1, 2, 3, or 4 mounted to the inside back of the enclosure

Cable Entries

Knock-outs for cable-gland on top and bottom of box (CM 12, PG 13.5, and ISO 20). Maximum capacity: 0.47" (12 mm)

Switch Terminal Blocks

Rated Capacity: 240V/3A (AC-15 per IEC 947-5-1), 110V/0.6A (DC-14 per IEC 947-5-1)

Contact Resistance: <50mohm

Mechanical Durability: >3x10^4 (spring return button) >5x10^3 (latching emergency button)

Weight

Control box with 1 button: 4.0 oz (113g)

Control box with 1 emergency button: 4.8 oz (136g)

Control box with 2 buttons: 6.4 oz (181g)

Control box with 3 buttons: 8.0 oz (227g)

Control box with 4 buttons: 10.4 oz (295g)

Environmental

Operating Temperature Range: -25 to + 70° C

Protection Degree: IP65 (IEC 529) and NEMA 4, 4X and 13

Warranty

1 year parts and labor. See Warranty Information and Terms & Conditions for complete details.


Connections

ProVu

Single button control stations may be connected directly to the on-board F4 digital input on the ProVu. Control stations with more than one button require a PDA1044 digital I/O module to connect the ProVu to the control station.

Helios

No external device is required to connect the Helios to a control station.

Trident X2

No external device is required to connect the Trident X2 to a control station.

ConsoliDator+

No external device is required to connect the ConsoliDator+ to a control station.

Loop Leader+

No external device is required to connect the Loop Leader+ to a control station.

Loop Leader

Single button control stations may be connected directly to a Loop Leader.

Vigilante II

No external device is required to connect the Vigilante II Annunciator to a control station.

Note: This tab applies to the entire product series and may contain information that is not relevant to this particular model number.

Pushbutton Diameter

knock-Outs

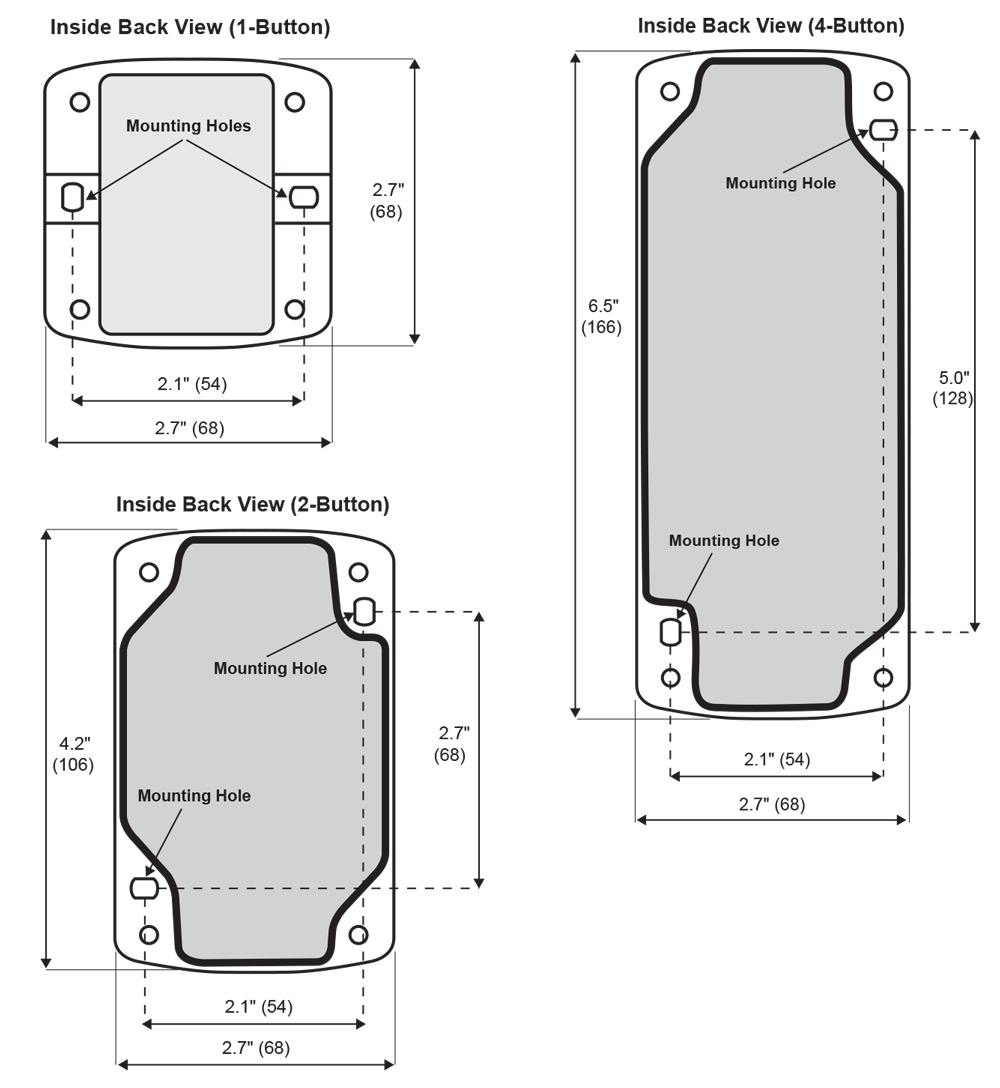

Dimensions

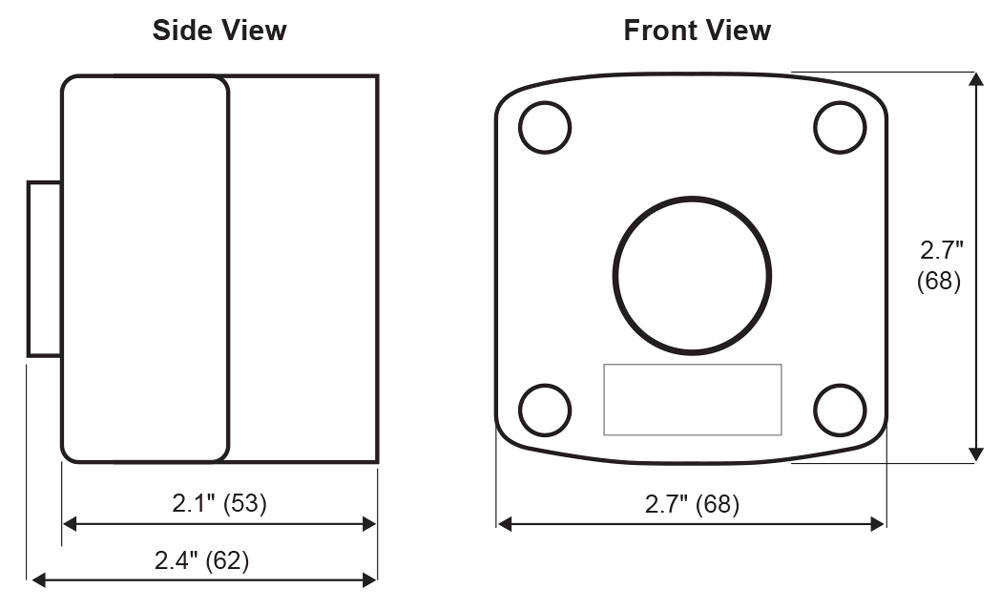

Control Box with (1) One Button

Control Box with One Button

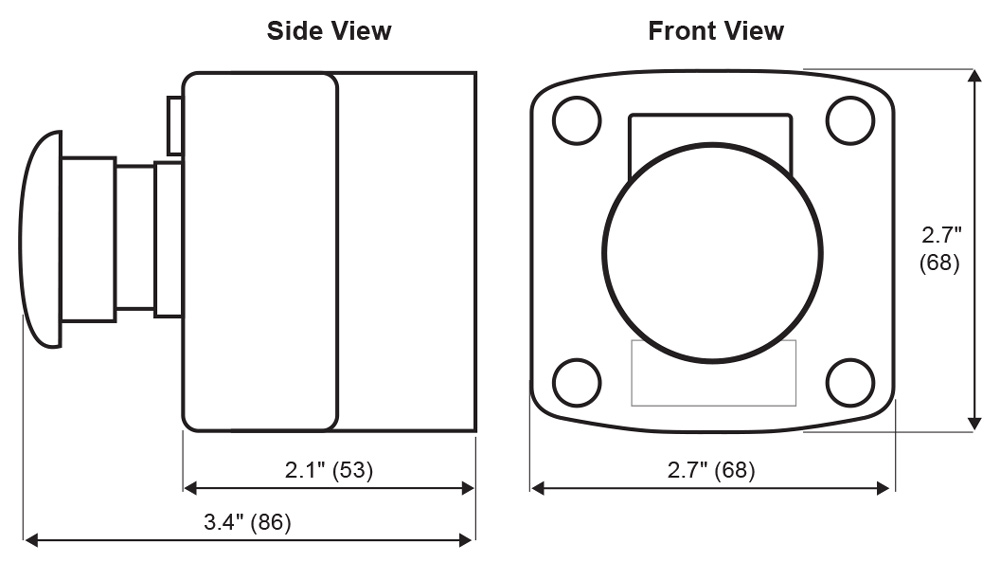

Control Box with (1) One Emergency Button

Control Box with One Emergency Button

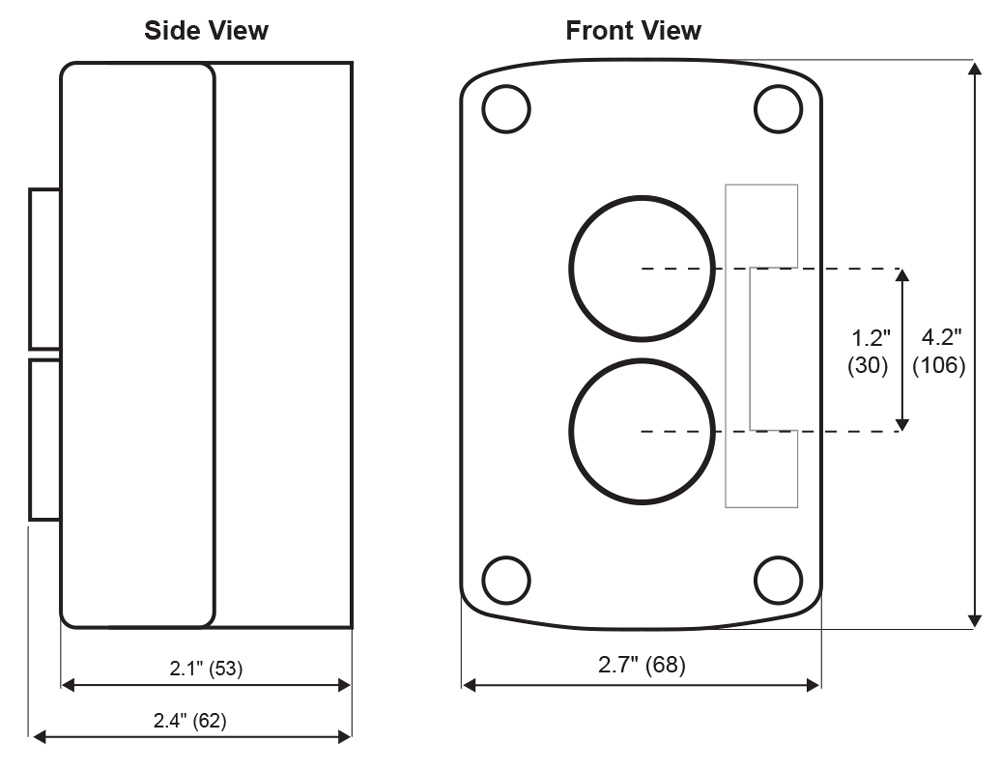

Control Box with (2) Two Buttons

Control Box with Two Buttons

Control Box with (3) Three Buttons

Control Box with Three Buttons

Control Box with (4) Four Buttons

Control Box with Four Buttons
