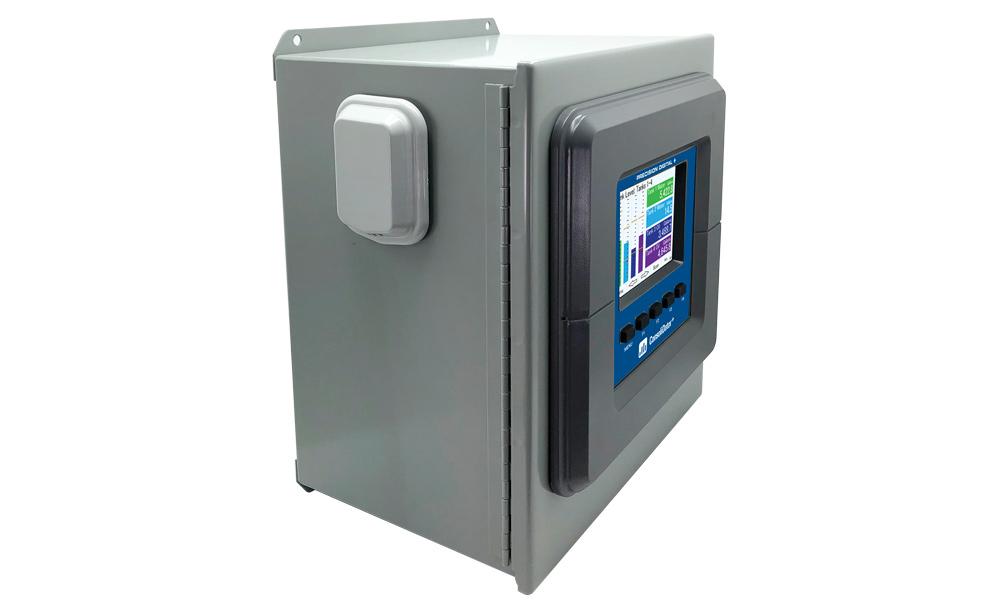

Enclosure and ConsoliDator+ (Sold Separately)

Overview

The PDA0007 ventilation kit consists of two vents and is designed to equalize internal / external pressure and temperature to prevent condensation from building up in the enclosure. Internal baffles within the vents create an airflow pattern that allows air to pass between the inside of the enclosure and the outside environment. The vents are rated UL & CSA Type 4X and IP66. The ventilation kit can also be ordered as a MOD-VENT-P for plastic enclosures and a MOD-VENT-M for steel enclosures. When this is done, the accompanying enclosure will be provided with pre-drilled holes for the vents (Installation is done by the user and the enclosure is sold separately). See ordering information.

Features

  • Prevents Condensation Inside the Enclosure
  • UL & CSA Type 4X IP66
  • Plastic and Steel Enclosures Available with Mounting Holes Pre-Drilled
  • For Wall Thickness of 16 Gauge to 1/4"
  • Corrosion Resistant Polycarbonate
  • Comes with two vents
  • Installation Template Included
  • Hardware Included

Installation

Note: A Philips screwdriver is required to install the vents to the enclosure. All hardware is provided.

  1. Punch out the four mounting holes and vent hole from the provided installation template.
  2. Position the template on a flat smooth surface of the enclosure. Align the template so that the top is facing the top of the enclosure and mark the hole locations as shown. Repeat this step for the other vent.
  3. Remove the template and drill the 4 holes for the mounting screws, 3/16" (.188 mm) and the hole for the vent opening 1.0" (25.4 mm) diameter accordingly. Repeat this step for the other vent.
  4. Mount the vents with 4 each of the mounting screws (provided) to the exterior of the enclosure, making sure the vent slots are pointing downward. It is recommended to install the two vents on opposite sides of the enclosure: one mounted high and the other mounted low. Adjust as application requires.
  5. Mounting surface thickness: 0.059" - 0.250" (1.5 mm - 6.4 mm). Tightening torque: 12-15 lb-in.
  6. Hardware provided: 8 screws (8-18 x ½")

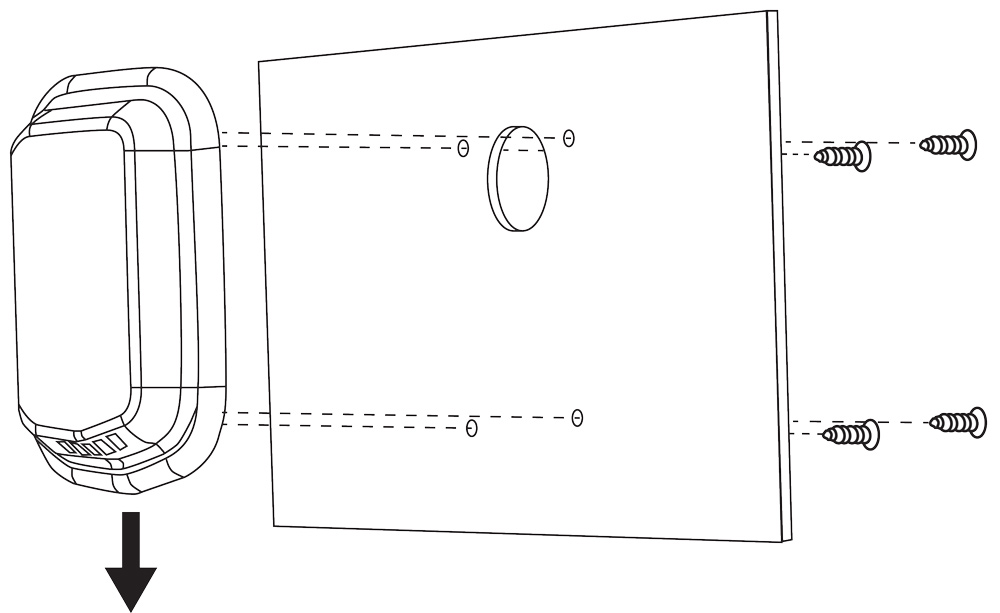

PDA0007 Installation Drawing

Vent slots must be pointing downward

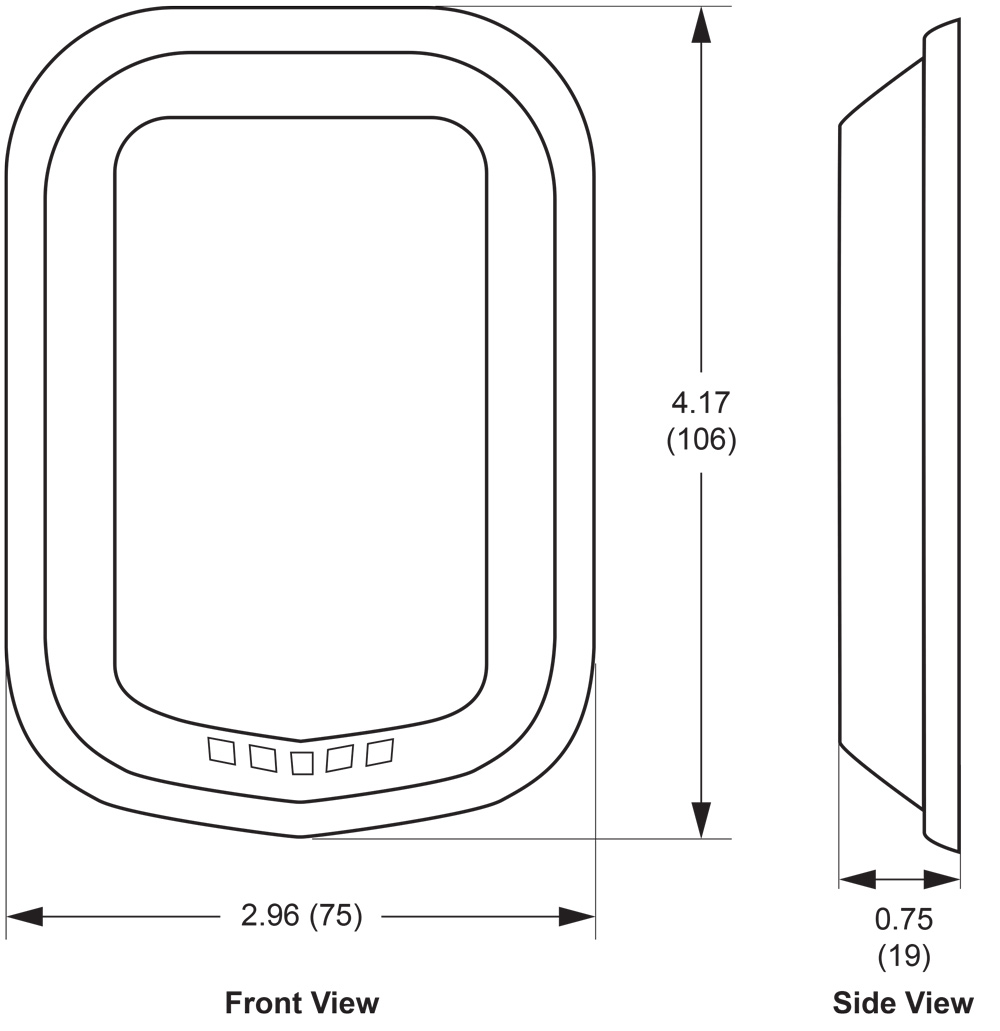

Dimensions

Units: Inches (mm)

PDA0007 Installation Drawing

General

Ingress Protection: UL & CSA Type 1, 3R ,4, 4X IP66
Material: Injected Molded Polycarbonate, UL 94 V-0, color: gray
Gasket Material: (FIP) Polyurethane
Operating Temperature: -35 to 130°C (-31 to 266°F)
Outdoor Rating: UV rating (f1) per UL746C-UV stabilized
Dimensions: 4.17" x 2.96" x 0.75" (106 mm x 75 mm x 19 mm) (H x W x D)


Choose Your Options

Configurations other than those specified above are available at a $250 adder. Consult factory for desired model number and price.
