Features

  • Loop-Powered Field-Mount Meters
  • 4-20 mA Input Displayed with ±0.02% of Full-Scale Accuracy
  • 1.5 Volt Drop (4.7 Volt Drop with Backlight)
  • 0.7" (17.0 mm) 5 Digits 7-Segment, FT-IN & Fractions Top Display (PD6907)
  • 0.7" (17.0 mm) 5 Alphanumeric Characters Top Display (PD6908)
  • 0.4" (10.2 mm) 8 Alphanumeric Characters Bottom Display
  • Displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches (PD6907)
  • 20-Segment Bargraph Standard
  • CapTouch Through-Window Button Programming with Normal and Delayed Modes
  • Loop-Powered Backlight with Red Backlight for Alarm Conditions
  • (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
  • (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
  • Stopwatch & Timer Functions to Drive Relays & Open Collectors
  • Optional Isolated 4-20 mA Analog Output
  • Relay Pump Alternation Based on Level and Runtime
  • Round Horizontal Tank Function; Just Enter Diameter & Length
  • 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
  • Free PC-Based MeterView XL USB Programming Software
  • Operating Temperature Range: -40 to 75°C (-40 to 167°F)
  • Conformal Coated PCBs for Dust & Humidity Protection
  • Plastic NEMA 4X, IP66 Enclosure
  • 3-Year Warranty

Why Use Loop-Powered Meters?

The most basic decision a user wishing to display a 4-20 mA signal on a digital display has to make is: should the meter be powered by line voltage or should it be powered by the 4-20 mA loop?

There are three main benefits of using loop-powered devices:

  • No additional power required
  • Easy wiring
  • Additional digital displays can easily be added in the same loop

The following diagram illustrates how a loop-powered meter is wired. Notice there are only two connections made to the meter.

For more information on loop-powered meters, check out Fundamentals of Loop-Powered Devices and Loop-Powered vs Line-Powered Meters white papers.

Overview

Loop-Powered Indicators with Advanced Display and Control Features

The VantageView+ loop-powered meters can be installed in a variety of harsh operating environments to provide convenient and informative display of any 4-20 mA signal. One of the most convenient features is the dual-line display, typically used to display the process variable on the 5-character alphanumeric top display and the units of measure or tag on the 8-character alphanumeric bottom display. Feet and inches models display level in feet and inches on the top display while the 8-digit alphanumeric bottom line may be used to display a tag or custom message. Further enhancing the display on these instruments is a 20-segment bargraph.

Four CapTouch through-glass buttons are available to operate the instrument without removing the cover. The CapTouch buttons have two modes of operation: Normal and Delayed, and they can be disabled for security via a switch on the display module.

All models come equipped with two open collector outputs and a digital input. There are also models available with two solid-state relays and isolated 4-20 mA analog output options. The open collector outputs are useful for alarm indication. The digital input can be used to acknowledge the relays, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, on/off control, or pump alternation.

Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. The meter will also be powered by the USB connection so no additional power is needed during programming.

For explosion-proof & instrinsically safe versions of these instruments please click here.

Front

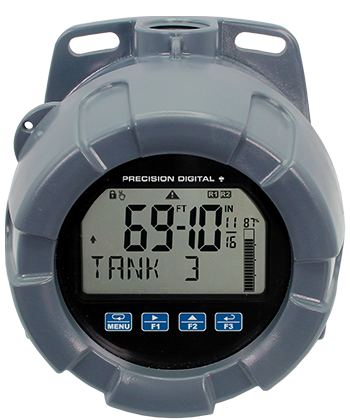

PD6907-GP
PD6907-GP-PL
  • Feet & inches
  • Plastic

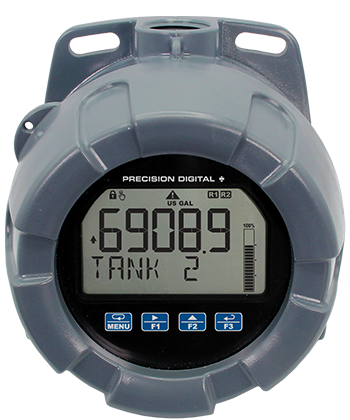

PD6908-GP
PD6908-GP-PL
  • Decimal display
  • Plastic

Connections

Standard
  • (2) Open Collector Outputs Standard (150 mA max); Assignable to Pulse, Alarm, Timer, or Stopwatch
  • Digital Input for Remote Operation of a Single Task
Options
  • (2) Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
  • Isolated 4-20 mA Analog Output

Display Features

PD6907 Feet & Inches Meter with Bargraph

PD6908 Process Meter with Decimal Display

Commas on bottom display

Commas Make it Easy to Read Big Numbers

The bottom display is set to show a comma separating the thousands and millions place by default if a numeric value is being displayed. This feature can be disabled or enabled using the Comma menu.

Dual-line display toggling

Dual-Line Display with PV/Units/Tag/Bargraph

One of the most common configurations of these instruments is displaying the process variable on the top line and units and a tag toggling on the bottom line with a bargraph for additional clarity.

Meter with Red Backlight

Backlight Turns Red on Alarm

The loop-powered backlight is standard on all VantageView+ meters. It provides optimum visibility in any lighting condition and it can be programmed to turn red for alarm conditions. The backlight may be enabled or disabled using the Backlight menu. The backlight is enabled by default (input must be wired appropriately for the loop-powered backlight to function).

Meter with Bargraph

Bargraph Provides Quick Understanding

The 20-segment bargraph helps users get a quick understanding of where their process is at. The bargraph can be programmed to represent the percent of PV1 or PV2 or it can be scaled to any range within the scale.

Meter with Bargraph

On PD6907 models, the bargraph also includes a dynamic numeric value of the percentage the bargraph represents.

Dual Scale Feature

Dual-Scale Display Feature

Users can use the meter’s dual-scale feature when they want to show the same input in two different scales. For instance, the following example shows an application where the meter displays the input in feet and gallons.

14-segment Characters Comparison

14-Segment Characters

Notice how much better letters like “T”, “N” and “K” appear as 14-segment characters on the bottom display vs. 7-segment characters found on other meters.

Predefined and Custom Units

The meter has six available preprogrammed unit classes, volume, height, temperature, pressure, weight, and rate. When the desired unit class or unit of measure within a class is not available, a custom unit may be programmed by using the (CUSTOM) menu.

Change Between Units

It is possible to change the display units within the selected unit class without the need to re-scale the meter. When selecting a new unit from within the DISPLAY menu (e.g. changing from gallons (GAL) to liters (L), the meter will automatically convert the display values to display the new unit. If entering a custom unit (CUSTM), a custom conversion factor will need to be entered.

Tare

The tare function zeroes out the display. In the case of scale weight, tare is used to eliminate container weight and provide net weight readings. The captured tare may be reset manually with any function key or digital input.

CapTouch Through-Window Buttons

All PD6900 meters are equipped with four capacitive sensors that operate as through-window buttons so that they can be operated without removing the cover (and exposing the electronics) in harsh environments.

CapTouch buttons are designed to work under any lighting condition and to protect against false triggering. They can be turned off for security via a switch on the display module.

To actuate a button, press one finger to the window directly over the marked button area. When the cover is removed, the CapTouch buttons can be used after the meter completes a self-calibrating routine ( flashes). The sensors are disabled when more than one button is pressed, and they will automatically re-enable after a few seconds ( off).

CapTouch Buttons Operation Modes

The CapTouch buttons have two modes of operation: Normal and Delayed.

Normal

Normal is the factory default setting. This mode is recommended for programming the meter or when immediate operation of the buttons is needed.

Delayed

Use the Delayed mode to prevent accidental trigger of the buttons. In the Delayed mode, the buttons enter into a low sensitivity state (sleep) and they ignore quick button presses after 20 seconds of inactivity. To wake up the buttons, press and hold any button for more than 2 seconds, the buttons respond normally.

Turning Off CapTouch Buttons

The CapTouch buttons can be turned off for security by moving the slide switch located on the display module to the Off position.

Switch to Disable CapTouch Buttons

Outputs

PD6900 meters, when ordered with the two solid-state relays, have several features that make them ideal for simple duplex pump control. The relays can be programmed to alternate the pumps based on level and runtime thus ensuring even wear on both pumps. If the level remains constant (within on/off points), alternation is based on runtime. If the level cycles the on/off points, alternation is based on level and runtime. If the runtime is set to 0, alternation is based on level. The meter also keeps track of runtime for both pumps and the number of times they have cycled.

Two Open Collector Outputs

The meter is equipped with two NPN open collector outputs that may be set up for pulse outputs, alarms, timed pulses, stopwatch on/off, or disabled. Pulse outputs can be set to transmit the PV value (PV1 or PV2 if meter is in dual-scale mode). Output 2 may be used to generate a quadrature output based on the other open collector output. An output test mode is also selectable to generate pulses at a constant programmable frequency.

Two Optional Solid-State Relays

The meter is optionally equipped with two solid-state relays that may be set up for alarms, timer, stopwatch on/off, or pump alternation. The relays are rated at 250 VAC/DC @ 0.5 A for resistive loads and 38 VA @ 0.3 A, 250 VAC/DC max (Safe Area only) for inductive loads. Alarms are available based on the PV value or the digital input.

Optional Isolated 4-20 mA Output

The isolated analog output signal can be configured to represent the process variable (PV1, PV2, or retransmit). While the output is nominally 4-20 mA, the signal will accurately accommodate under- and over-ranges from 1 to 23 mA. The output can be reverse scaled such that the meter’s high calibration value outputs 4 mA and the meter’s low calibration outputs 20 mA.

Loop-Powered Relay Alarm Trip

The two solid-state relays can be used as a loop-powered relay alarm trip. The meter’s two relays can be programmed for two different kinds of latching operation: Reset via momentary contact closure at any time or reset via momentary contact closure only after the alarm has cleared. And the meter’s display can be programmed to turn red and flash a unique custom alarm message for each relay – something not found on most loop-powered alarm trips.

Resetting the Open Collectors and Relays

The open collectors and relays (alarms) may be programmed to reset in the following ways:

  • Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.
  • Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can also be reset using the Enter button (or whichever function key is set to acknowledge) at any time.
  • Latching (LATCH): Alarm must be reset manually and can be done so at any time. Press the Enter (ACK) button at any time to clear the alarm.
  • Latching with Reset after Cleared (L-CLEAR): Alarm must be reset manually and can only be done so after the alarm condition has cleared. Press the Enter (ACK) button after the alarm condition has cleared to reset the alarm.

Loop-Powered Isolator

The VantageView+ can be used as a loop-powered isolator for the 4-20 mA signal with the added benefit of a digital readout to display the process variable.

Pump Control

PD6900 meters, when ordered with the two solid-state relays, have several features that make them ideal for simple duplex pump control. The relays can be programmed to alternate the pumps based on level and runtime thus ensuring even wear on both pumps. If the level remains constant (within on/off points), alternation is based on runtime. If the level cycles the on/off points, alternation is based on level and runtime. If the runtime is set to 0, alternation is based on level. The meter also keeps track of runtime for both pumps and the number of times they have cycled.

Meter Displaying Pump Runtime The meter can display pump runtime for both pumps
Meter Displaying Number of Relay Cycles The meter can display the number of times the relays have cycled

In addition to the two solid-state relays for controlling pumps, the meter’s two open collectors could be used to indicate high or low level alarm conditions.

Pump Alternation Application

The PD6900 can be used as a pump controller to alternate two pumps and provide high and low level alarm indication. The pumps can be programmed to alternate on level and runtime and the meter can display the pump runtimes and the number of times they have cycled.

Pump Control with Alternation & Alarm Example

The following is a typical application where the relays and open collectors are used for pump alternation and high/low level alarm.

RelayOn PointOff PointFucntion
17,0002,000Controls backup pump
26,0002,000Controls main pump
Open CollectorOn PointOff PointFucntion
17,0006,500Trips high alarm
21,0001,500Trips low alarm
Step 1
PD6908 Pump Alternation Step 1

Relay #2 turns the main pump on at 6,000 gallons and turns it off at 2,000 gallons. lights up to show relay 2 is energized. The indicates level is rising.

Step 2
PD6908 Pump Alternation Step 2

With the Pump Alternation feature activated, the next time the level reaches 6,000 gallons, relay #1 transfers and starts the backup pump. lights up to show relay 1 is on.

Step 3
PD6908 Pump Alternation Step 3

If the backup pump is not able to keep up, and the level reaches 7,000 gallons, relay #2 transfers and starts the main pump as well. Open collector #1 trips the High Level Alarm, the display turns red and flashes “Hi Level” message, and indicates an alarm condition. The High Level Alarm resets at 6,500 gallons.

Step 4
PD6908 Pump Alternation Step 4

Once the level has dropped below the reset points, both relays will turn off. If the Main Pump fails to turn off, open collector #2 trips the Low Level Alarm at 1,000 gallons to warn against the pump running dry. The Low Level Alarm resets at 1,500 gallons.

Input Signal Conditioning

To satisfy applications that require scaling in ways other than the usual 2-point linear method, the meter can also be scaled for square root (differential pressure flow), programmable exponent (open channel flow) or round horizontal tank volume calculation.

For existing processes that require these linearization capabilities, one of the great benefits of loop-powered meters is that they get their power directly from the 4-20 mA loop and thus require no additional wiring. All a user has to do is break the existing loop and wire in the meter. For this reason, loop-powered meters are very easy to add to existing applications such differential pressure flow, open channel flow, or round horizontal tank volume calculation.

Round Horizontal Tank Volume Calculation

This function automatically calculates the volume in a round horizontal tank with flat ends.

Round Horizontal Tank Linearization

Programmable Exponent Linearization

The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow applications using weirs and flumes.

Open Channel Flow

Square Root Linearization

The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units. The meters in this data sheet will display flow rate only. To display both flow rate and total use the PD6928-GP.

Square Root Linearization

Multi-Point Linearization

Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected for the scaled value under the linear function. Multi-point linearization can be used to linearize the input so the meter can display volume from non-linear tanks or to convert level to flow using weirs and flumes with complex equations.

MeterView XL software makes it easy to program up to 32 points.

Multi-Point Linearization Using MeterView XL Software

Physical Features

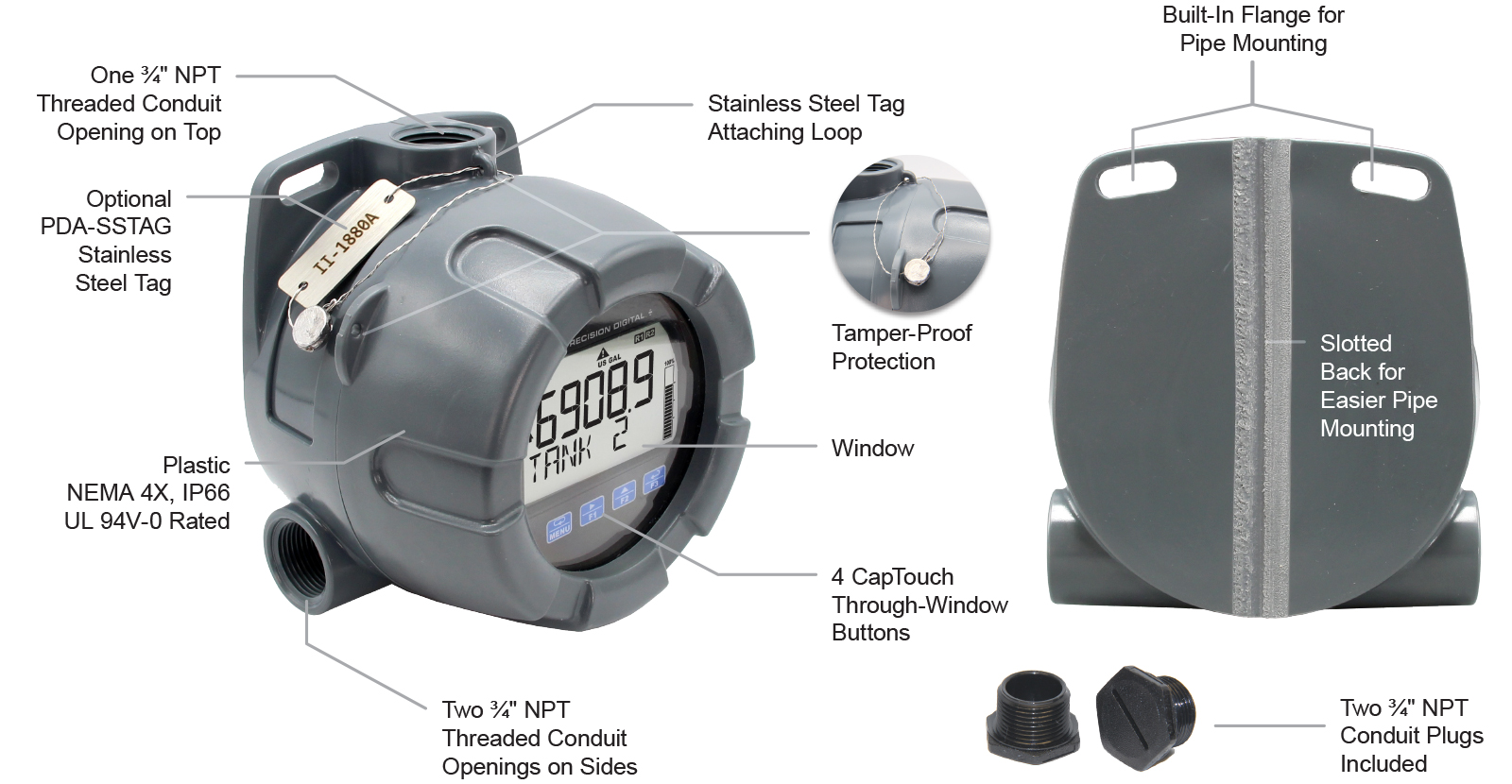

VantageView+ Plastic Enclosure

VantageView+ Physical Features Overview

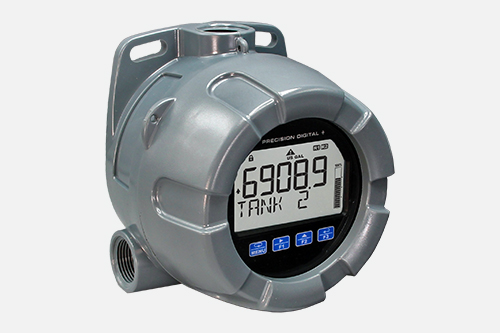

NEMA 4X / IP66 Rated Enclosure

NEMA 4X Enclosure

The VantageView+ enclosure provides serious protection from the elements, high impact, corrosion, and dust. It is NEMA 4X/IP66 rated.

PD6900 Mounted to a Pipe

Easy Pipe Mounting

The VantageView+ comes with a built-in flange. This allows easy mounting to walls or pipes using either a PDA6846 Zinc Plated Steel or a PDA6846-SS Stainless Steel 2" U-Bolt Kit. A slot on the back of the enclosure makes it easy to center the unit on a pipe.

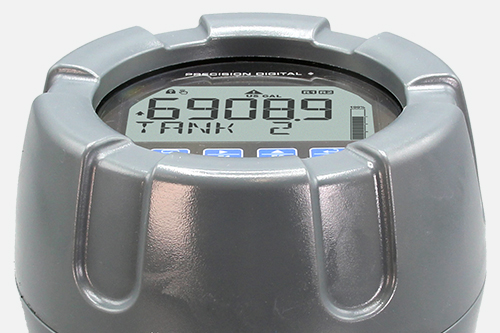

PD6900 Wide Angle Viewing

Wide Viewing Angle

The window and display module have been optimized to provide a wide viewing angle of approximately ±40°; nearly twice that of the competition.

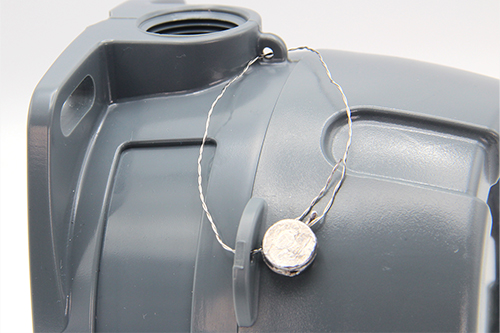

PD6900 with Tamper Seal

Tamper-Proof Capability

The instrument can be made tamper-proof by inserting a wire through the built-in loop on the base of the enclosure and a hole in the lid of the enclosure and securing this wire with a lead seal.

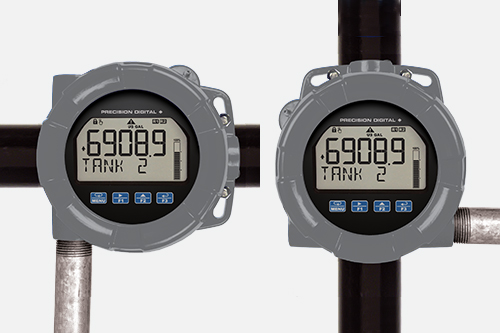

PD6900 Rotatable Display Module

Rotatable Display Module

The display module can be rotated in 90° increments providing added mounting flexibility. Plus the various conduit connections allow a variety of installation options.

PD6900 with Stainless Steel Tag Attached

Stainless Steel Tag Attaching Loop

The enclosure is equipped with a loop at the top to easily attach a PDA-SSTAG stainless steel tag.

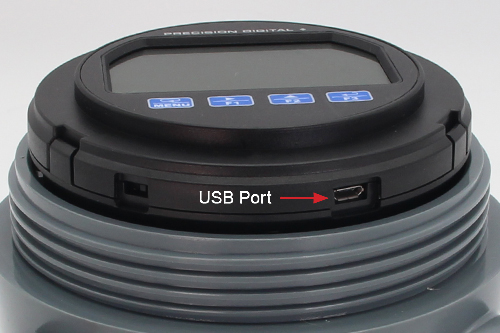

USB Port on Display Module

USB Port for Easy Connection to Free MeterView XL Software

A USB port located on the display module allows it to be connected to a PC for use with free MeterView XL software. The meter is powered by the USB connection during programming, if a 4-20 mA loop is not connected.

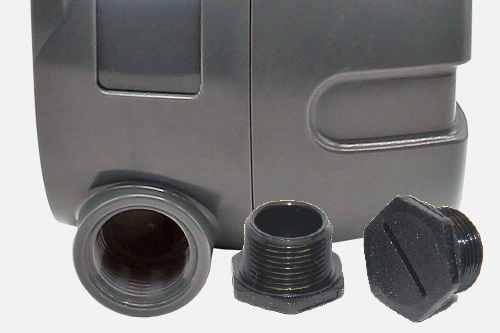

Conduit Opening and Plugs

Two Threaded Conduit Openings

The VantageView+ comes with three ¾" NPT threaded conduit openings and two conduit plugs included.

For additional conduit plugs see the PDAPLUG75P 3/4" NPT plastic conduit plug.

Operational Features

There are two ways the user can interact with the VantageView+ to perform a variety of useful functions: programmable function keys and the digital input.

Programmable Function Keys

The three CapTouch buttons labeled F1, F2, and F3 can be programmed as function keys to perform a variety of meter functions simply by pressing on the window over the button. These include operation of the tare function, resetting the tare, resetting the meter’s relays or open collectors, starting and stopping timers, and displaying max/min values. The default settings for the function keys are:

ButtonDescription (Default Settings)
Press to display max/min readings.
Press to reset max/min readings.
Press to acknowledge all manually resettable relays or open collectors.
Press to lock/unlock the display value after pressing the F1 key.

On-Board Digital Input

A digital input is standard on VantageView+ meters. This digital input is programmed identically to the function keys. The input is triggered with a contact closure between DI+ and DI-, or with an active low signal. For a complete list of Digital Input settings available, see Function Keys & Digital Input Available Settings in the instruction manual.


Except where noted all specifications apply to operation at +25°C.

Display

PD6907Dual-line LCD with backlight.
Top: 0.7" (17.8 mm) 5 digits, 7-segment, FT-IN & fractions.
Bottom: 0.4" (10.2 mm), 8 alphanumeric 14-segment characters.
Display may be programmed to turn red and flash a user-defined message on alarm condition.
PD6908Dual-line LCD with backlight.
Both lines alphanumeric.
Top: 0.7" (17.8 mm) 5 digits, 12-segment
Bottom: 0.4" (10.2 mm) 8 characters, 14-segment
Display may be programmed to turn red and flash a user-defined message on alarm condition.
BacklightPowered by 4-20 mA loop. Intensity varies with signal level.
Top DisplayPD6907:
FT - IN/*: Automatically reducing fractions to lowest denominator
*FT-IN/16, FT-IN/8, FT-IN/4, FT-IN/2, FT-IN
-99FT 11IN 15/16 to 999FT 11IN 15/16
PD6908:
5 digits (-9999 to 99999) or 5 characters
(all capital & most lower-case letters)
Bottom Display8 digits (-9,999,999 to 99,999,999; separated by commas) or 8 characters
(all capital & most lower-case letters)
Bargraph20 segments.
Numeric percent indication at top (PD6907 only)
Decimal PointUp to four decimal places on top display and up to seven decimal places on bottom display
CommasCommas to indicate 1000s
(e.g. 88,987,628) on bottom display only
Dual-Scale FeatureThe input can be displayed in different scales on the top and bottom displays. For instance, the top display could display the input in height and the bottom display could display that same input in volume.
Alarm IndicationProgrammable: loop-powered red backlight, flashing display, alarm symbol ⚠, bargraph segment flashes on alarm.
Custom Alarm MessagesProgrammable for each relay/open collector: 8 characters maximum; displayed every 10 sec for 1 sec on bottom display. May be turned off.
Display Update RateAmbient > -10°C: 1 Update/Second
Ambient = -20°C: 1 Update/2 Seconds
From -20°C to -40°C the update rate slows down
1 second for every -2°C (e.g. at -24°C, 1 update/4 seconds).
OverrangePD6907: Top: 999 11 15/16
PD6908: Top: 99999
Bottom: 99,999,999 (flashing)
UnderrangePD6907: Top -99 11 15/16
PD46908: Top: -9999
Bottom: -9,999,999 (flashing)


General

Programming MethodFour CapTouch through-window buttons when cover is installed.
The CapTouch buttons can be used with the cover removed.
Free PC-based USB MeterView XL programming software.
EnvironmentalOperating temperature range: -40 to 75°C (-40 to 167°F)
Storage temperature range: -40 to 85°C (-40 to 185°F)
Installation temperature range: -40 to 75°C (-40 to 167°F)
Relative humidity: 0 to 90% non-condensing
Printed circuit boards are conformally coated
Noise FilterAverages the input signal over a period of time between 1 and 16 seconds to dampen the effects of a noisy signal that causes a jumpy display.
Filter Bypass0.0 to 99.9% of full scale. Input signal changes greater than bypass value are displayed immediately.
RecalibrationRecalibration is recommended at least every 12 months.
Max/Min DisplayMax/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
TareTare function zeros out the meter to accommodate for weight of a container. Tare function can be assigned to a function key or a digital input.
PasswordProgrammable password restricts modification of programmed settings.
Non-Volatile MemoryAll programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
Normal Mode Rejection64 dB at 50/60 Hz
ConnectionsRemovable screw terminal blocks
Display terminals: accept 16 to 30 AWG wire
Relay terminals: accept 12 to 26 AWG wire
4-20 mA output: accept 16 to 30 AWG wire
Tightening TorqueDisplay terminals: 2.5 lb-in (0.28 Nm)
Relay terminals: 4.5 lb-in (0.5 Nm)
4-20 mA output terminals: 2.5 lb-in (0.28 Nm)
Overall Dimensions5.25" x 5.65" x 4.18" (133 x 144 x 106 mm) (W x H x D)
Weight1.9 lbs (0.9 kg)
Warranty3 years parts and labor. See Warranty Information and Terms & Conditions for complete details.


Enclosure

MaterialPolycarbonate plastic with UV stabilizer
GasketBuna-N
RatingNEMA 4X, IP66 plastic, UL 94V-0
ColorGrey
WindowClear polycarbonate with UV stabilizer
ConduitsThree 3/4" NPT threaded conduit openings
Conduit Stopping PlugTwo 3/4" NPT plastic conduit plugs with 1.29" wrenching flats and a screwdriver slot are included
FlangeBuilt-in flange for wall and pipe mounting.
Tamper-Proof SealCover may be secured with tamper-proof seal.
Instrument Tag LoopBuilt-in loop for securing stainless steel tag


Input

Input4-20 mA
Accuracy±0.02% of span ±1 count
PD6908: Square root and programmable exponent: 10-100% FS
Voltage DropWithout Backlight: 1.5 V maximum
With backlight: 4.7 V maximum
Equivalent ResistanceWith backlight off: 75 Ω @ 20 mA
With backlight on: 235 Ω @ 20 mA
Input OverloadOver current protection to 1 A maximum, Over voltage protection to 30 VDC max (between mA+ and mA-/BL-)
Temperature Drift25 PPM/°C from -40 to 75°C ambient
FunctionPD6908:
PV1: Linear (2-32 points), square root, or programmable exponent
PV2: Linear (2-32 points) or round horizontal tank
PD6907:
PV1: Linear (2-32 points)
PV2: Linear (2-32 points) or Round Horizontal Tank
Low-Flow / Low-Height CutoffPoint below at which the display always shows zero.
PD6908: 0.1 to 999,999 or disable.
PD6907: 1/16 to 999FT 11IN 15/16 or disable.
HART TransparencyThe meter does not interfere with existing HART communications; it displays the 4-20 mA primary variable and it allows the HART communications to pass through without interruption.
The meter is not affected if a HART communicator is connected to the loop. The meter does not display secondary HART variables.


Common Open Collector & Relay Specifications

Number Two open collectors & two relays
High or Low AlarmUser programmable for high or low alarm
Alarm Deadband0-100% FS, user programmable
Output AssignmentAlarm, Timer, Stopwatch, or Disable
Alarm Output SourceAssign to PV (PV1, PV2) or Digital Input
On & Off Time Delay0 to 9,999 seconds
Fail-Safe OperationIndependent for each open collector and relay.
Fail-safe on, the output is on under normal conditions.
Fail-safe off, the output is on under alarm conditions.
Alarm OperationAutomatic, automatic with manual override, latching (manual reset anytime), latching with reset after cleared (manual reset only after alarm has cleared)
Alarm IndicationProgrammable: loop-powered red backlight, flashing display, alarm symbol ⚠, bargraph segment flashes on alarm.
Custom Alarm MessagesProgrammable for each relay/open collector: 8 characters maximum; displayed every 10 sec for 1 sec on bottom display. May be turned off.
Alarm AcknowledgeCapTouch ACK button or external digital input resets output and screen indication.
Auto InitializationWhen power is applied to the meter, open collectors and relays will reflect the state of the input to the meter.
Timer OutputOne-shot or Continuous
Off Time Delay: 1 sec to 99:59:59 (hrs:min:sec)
On Time: 1 sec to 99:59:59 (hrs:min:sec)
StopwatchOutput turns on when started and off when stopped.


Open Collector Outputs

RatingIsolated open collector, sinking NPN
5-30 VDC @ 150 mA maximum
Output AssignmentPulse, Alarm, Timer, Stopwatch on/off, or Disable
Pulse Output SourcePV (PV1, PV2) or Test Frequency
Pulse Output Factor0.000001 to 999,999.9
Pulse Width0.5 ms @ 1 kHz; 500 ms @ 1 Hz; 50% duty cycle
Pulse Output Frequency1,000 Hz maximum
Quadrature Pulse OutputAvailable for Output 2
(90° behind Output 1) 500 Hz max
Alarm Output SourceAssign to PV (PV1, PV2) or Digital Input


Solid-State Relays

Rating250 VAC/VDC @ 0.5 A resistive
38 VA; 250 VAC; 0.3 A pilot duty (inductive)
13 VA; 250 VDC; 0.3 A pilot duty (inductive)
Noise SuppressionMetal oxide varistors across outputs
Relay AssignmentPump Alternation, Alarm, Timer, Stopwatch on/off, or Disable
Alarm Output SourceAssign to PV (PV1, PV2) or Digital Input
Pump AlternationRelays may be programmed to alternate with each pump cycle with an elapsed time override where the pumps will alternate regardless of level. Pump alternation time can be programmed for 0 to 999:59 (hrs:min)
Relay (Pump) RuntimeMeter will keep track of how long each relay (pump) has operated and display this information.
Relay (Pump) CyclesMeter will keep track of how many times the relays (pumps) have cycled and display this information.


4-20 mA Transmitter Output

Accuracy±0.05% FS ±0.001mA
Output SourcePV1, PV2, re-transmit; reverse scaling allowed
Scaling Range1.00 to 23.0 mA
DisableHigh impedance state, less than 1 mA
CalibrationFactory calibrated 4.00 to 20.00 mA
Underrange1.0 mA, 3.5 mA, or 3.8 mA (If input < 3.5 mA); or disable underrange; user selectable
Overrange20.5 mA, 20.8 mA, or 23.0 mA (If input > 20.5 mA); or disable overrange; user selectable
Isolation500 V input-to-output
Temperature Drift0.5 μA/°C max from -40 to 75°C ambient
External Loop Power Supply7.0 VDC to 30.0 VDC maximum
Output Loop Resistance10-750 Ω @ 24 VDC; 10-1100 Ω @ 30 VDC


On-Board Digital Input

FunctionRemote acknowledge/reset relays, reset max/min values, etc.
Contacts2.1 VDC on contact. Connect normally open contacts across DI+ and DI-
Logic LevelsLogic High: 2.4 to 30 VDC (max)
Logic Low: 0 to 0.9 VDC


MeterView XL Programming Software

AvailabilityFree download from www.predig.com/meterviewxl
System RequirementsMicrosoft® Windows® 7 & 10
CommunicationsUSB 2.0 (Standard USB A to USB B) Cable provided
ConfigurationConfigure all parameters on the meter. Configure meters one at a time.
Configuration FilesGenerate with or without meter connected; Save to file for later use.
USB Power ConnectionMeter is powered by USB connection during programming, if 4-20 mA loop is not connected.
WARNING
• The meter should only be connected to a computer while it is located in a safe area.
CompatibilityPrograms created for Loop Leader and Loop Leader+ may be run on either meter. Programs created for VantageView+ and ProtEX+ can be run on either meter. No other program sharing is permissible.


General Compliance Information

Electromagnetic Compatibility

EMC Emissions• CFR 47 FCC Part 15 Subpart B Class A emissions requirements (USA)
• ICES-003 Information Technology emissions requirements (Canada)
• AS/NZS CISPR 11 Group 1 Class A ISM emissions requirements (Australia/New Zealand)
• EN 55011 Group 1 Class A ISM emissions requirements (EU)
• EN 61000-6-4 Emissions requirements for Heavy Industrial Environments - Generic
EMC Emissions and ImmunityEN 61326-1
EMC requirements for Electrical equipment for measurement, control, and laboratory use – industrial use

MeterView XL Programming Software

Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. The meter will also be powered by the USB connection so no additional power is needed during programming.

MeterView XL Software
For more information visit www.predig.com/meterviewxl

Dimensions

Front View
Side View
Top View

Connections

Connectors Labeling

-LNN Base Meter (2 Open Collectors Standard)
-L2N Option (2 Solid-State Relays)
-L3N Option (4-20 mA Output)
-L5N Option (2 Solid-State Relays and 4-20 mA Output)

Wiring Diagrams

For existing applications, one of the great benefits of loop-powered meters is that they get their power directly from the 4-20 mA loop and thus require no additional wiring. All a user has to do is break the existing loop and wire in the meter.

Input Loop (4-20 mA) Connections

The following figures show a 4-20 mA loop connected to the meter. The first figure shows the connection without the backlight and the second shows the connection with the backlight. The meter is powered by the 4-20 mA current loop.

4-20 mA Input Connection without Backlight
4-20 mA Input Connection with Backlight

Digital Input Connections

A digital input is standard on the meter. This digital input is connected with a normally open contact across DI+ and DI-, or with an active low signal applied to DI+ and DI-.

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled mA OUT. The 4-20 mA output must be powered from an external power supply.

Solid-State Relay Connections

Relay connections are made to two-terminal connectors. Each relay’s C terminal is common only to the normally open (NO) contact of the corresponding relay.

Open Collector Outputs Connections

Open collector output 1 and 2 connections are made to terminals labeled O1+ and O1-, and O2+ and O2-. Connect the alarm or pulse input device as shown below.


Choose Your Options
