Atmosphères ExplosiblesEuropean ConformityIECEx Approval

Features

  • Large Display NEMA 4X, IP65 Loop-Powered Wall & Pipe Mounted Meters
  • 4-20 mA Input Displayed with ±0.02% FS Accuracy
  • 2.1 Volt Drop Maximum
  • 2.8" (71 mm) 5 Alphanumeric 14-Segment Characters Top Display (PD4-6608)
  • 2.8" (71 mm) 5 Digits 7-Segment, FT-IN & Fractions Top Display (PD4-6607)
  • 1.5" (39 mm) 8 Alphanumeric 14-Segment Characters Bottom Display
  • Displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches (PD4-6607)
  • 20-Segment Bargraph with Numeric Percent Indication
  • (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
  • (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
  • Stopwatch & Timer Functions to Drive Relays & Open Collectors
  • Optional Isolated 4-20 mA Analog Output
  • Relay Pump Alternation Based on Level and Runtime
  • Display Relay Runtime & Cycle Count via Relay Info Menu
  • Round Horizontal Tank Function; Just Enter Diameter & Length
  • 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
  • Free PC-Based MeterView XL USB Programming Software
  • Externally DC Powered Backlight with Red Backlight for Alarm Conditions
  • Operating Temperature Range: -40 to 75°C (-40 to 167°F)
  • Conformal Coated PCBs for Dust & Humidity Protection
  • ATEX and IECEx Certified as Intrinsically Safe
  • Pipe Mounting Kit Available
  • 3-Year Warranty
Watch the full length introduction video here.

Why Use Loop-Powered Meters?

The most basic decision a user wishing to display a 4-20 mA signal on a digital display has to make is: should the meter be powered by line voltage or should it be powered by the 4-20 mA loop?

There are three main benefits of using loop-powered devices:

  • No additional power required
  • Easy wiring
  • Additional digital displays can easily be added in the same loop

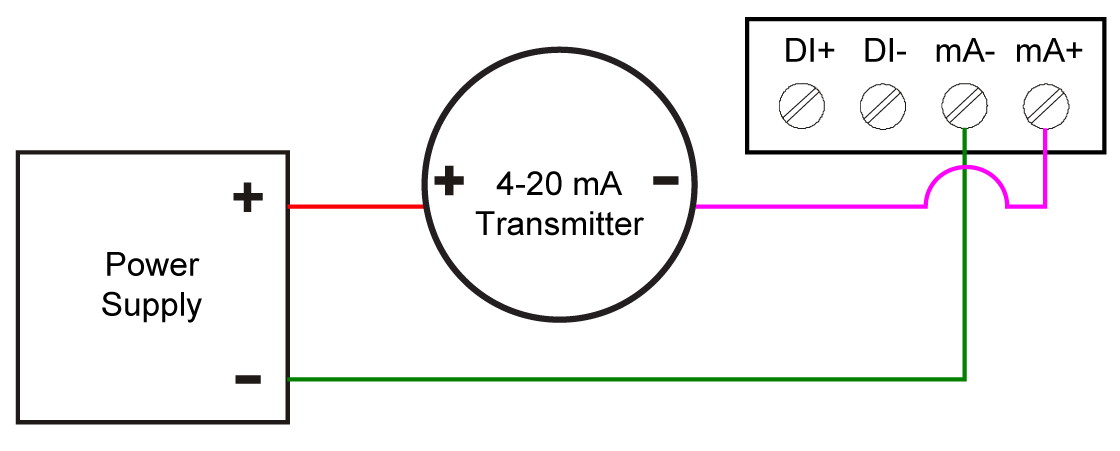

The following diagram illustrates how a loop-powered meter is wired. Notice there are only two connections made to the meter.

Loop-Powered Connections Diagram

For more information on loop-powered meters, check out Fundamentals of Loop-Powered Devices and Loop-Powered vs Line-Powered Meters white papers.

Overview

Intrinsically Safe Loop-Powered Indicators with Advanced Display and Control Features

The Loop Leader+ intrinsically safe loop-powered large display meters can be installed virtually anywhere to provide convenient and informative display of any 4-20 mA signal. One of the most convenient features of these instruments is their large, dual line display. The 2.8" 5-digit top display is used to display the process variable while the 1.5" 8-character alphanumeric bottom display can be used to display the units of measure or a tag. Feet and inches models display level in feet and inches on the top display while the 8-digit alphanumeric bottom line may be used to display a tag or custom message.

Further enhancing the display on these instruments is a 20-segment bargraph that also includes a numeric value of the percentage the bargraph represents.

Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. The PD4 is available in two configurations: Display only and with two solid-state relays and 4-20 mA analog output. All models come equipped with two open collector outputs and remote contacts. The open collector outputs are useful for alarm indication. The remote contacts can be used to remotely operate the four programming buttons, to acknowledge the relays, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, on/off control, or pump alternation.

For safe area versions of these instruments please click here.

Front

PD4-6603 Front
PD4-6607
  • Feet & inches on top line
  • 8-Digit alphanumeric bottom line
  • 20-Segment bargraph with numeric percentage

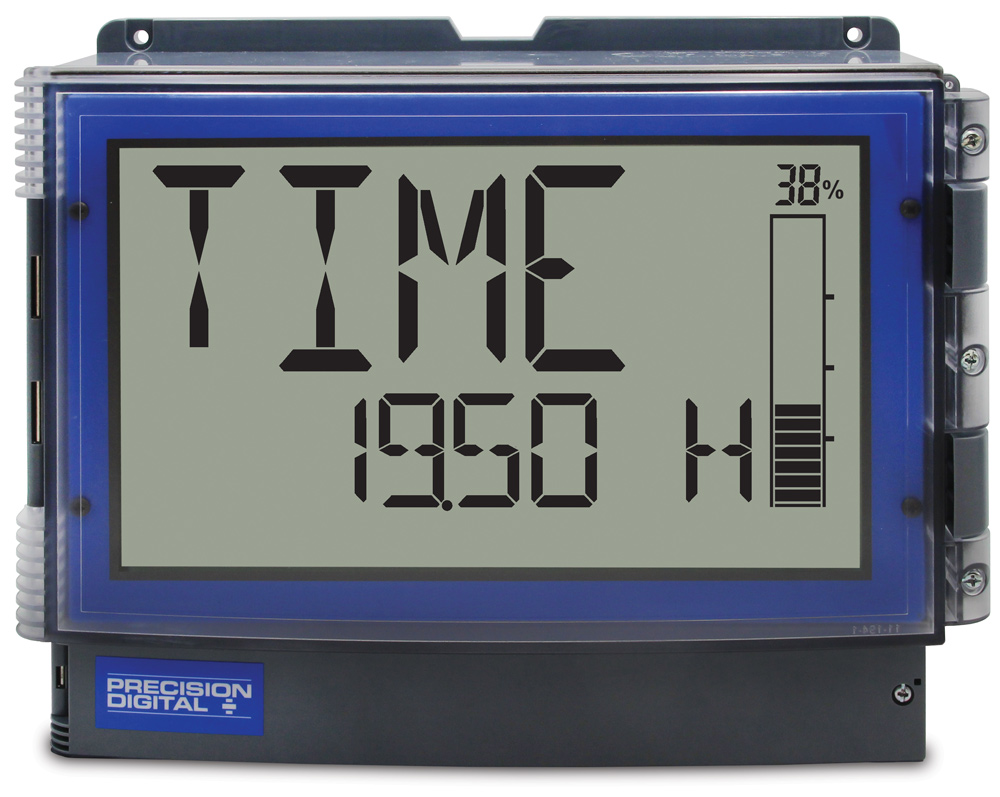

PD4-6604 Front
PD4-6608
  • 5-Digit alphanumeric top line
  • 8-Digit alphanumeric bottom line
  • 20-Segment bargraph with numeric percentage

Connections

PD4-6600 Connections
  • (2) Open Collector Outputs Standard (150 mA max); Assignable to Pulse, Alarm, Timer, or Stopwatch
  • Digital Input for Remote Operation of a Single Task
  • Remote Contacts for Remote Operation of All Four Programming / Operation Buttons Using Control Station PDA2364-MRUE
  • (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
  • Optional Isolated 4-20 mA Analog Output

Display Features

PD4-6607 Feet & Inches Level Display

PD4-6607 Display Features

For more information about the MOD-PD2LH light/horn & button modification series click here.

PD4-6608 Process Meter with Decimal Display

PD4-6608 Display Features

Large Informative Display

Large digits on top display of PD4

One of the most convenient features of the PD4 Loop Leader+ Series is its large, dual line display. With a whopping digit height of 2.8" (71 mm) on the top display, the Loop Leader+ has the largest digits for any loop-powered meter on the market! Even the 1.5" (39 mm) 8-character alphanumeric bottom display is bigger than most loop-powered large displays on the market. Plus, the 20-segment bargraph with percentage indication on top makes reading and understanding process values easier than ever. Predefined display units give users even more display flexibility, and the high contrast 24 VDC externally powered backlit LCD display is readable from far away and under various lighting conditions.

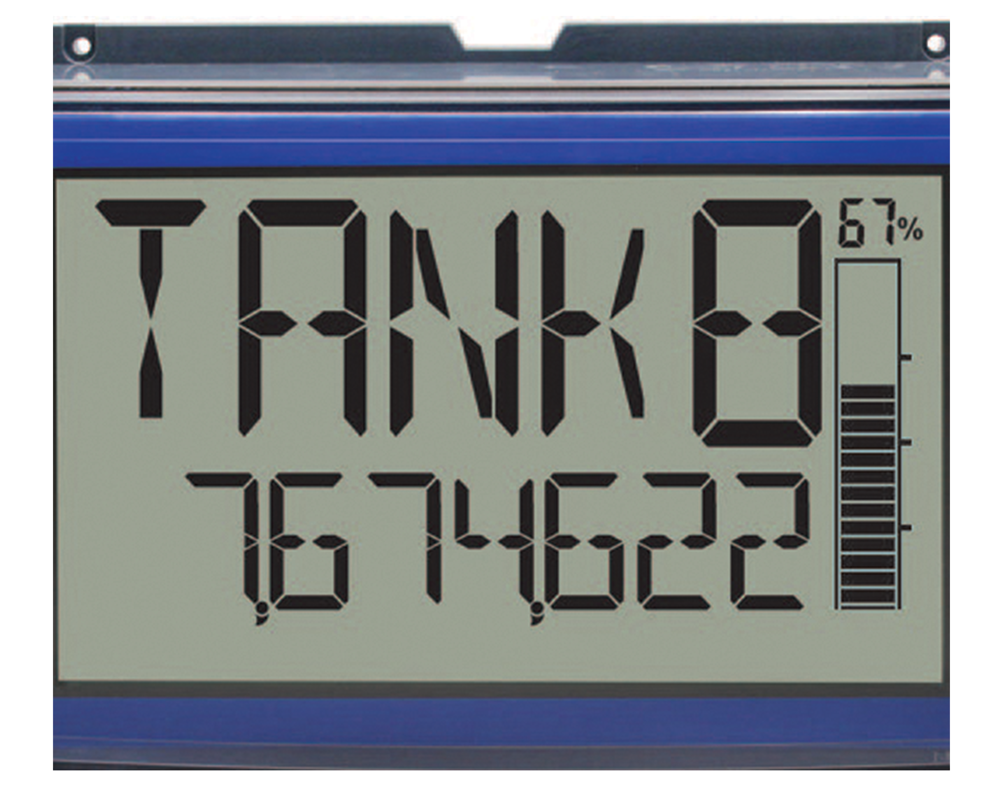

Commas on bottom display

Commas Make it Easy to Read Big Numbers

The bottom display is set to show a comma separating the thousands and millions place by default if a numeric value is being displayed. This feature can be disabled or enabled using the Comma menu.

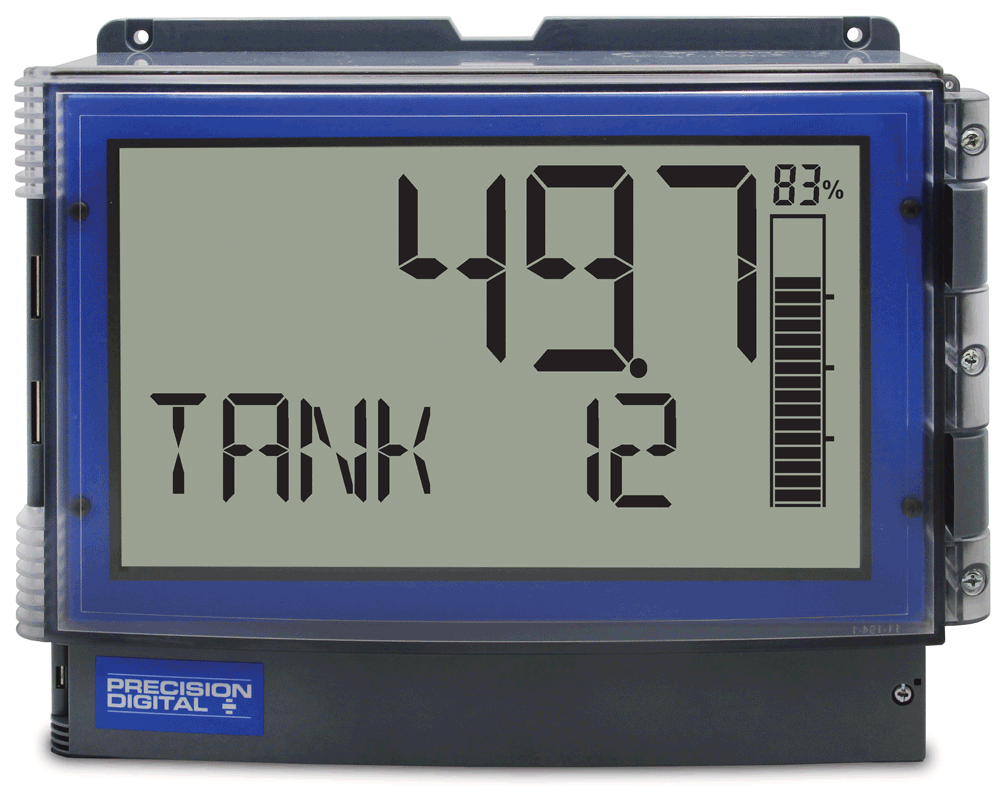

Dual-line display toggling

Dual-Line Display with PV/Units/Tag/Bargraph

One of the most common configurations of these instruments is displaying the process variable on the top line and units and a tag toggling on the bottom line with a bargraph for additional clarity.

The PD4’s 20-segment bargraph helps users get a quick understanding of where their process is at. This bargraph also includes a numeric value of the percentage the bargraph represents.

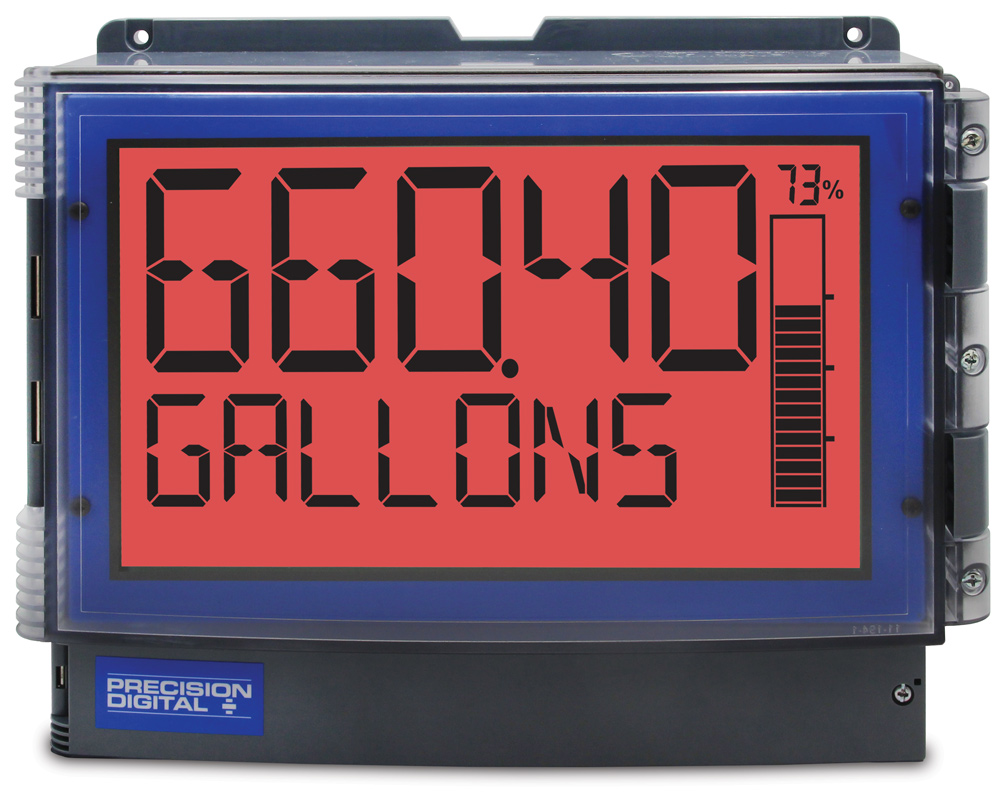

Meter with Red Backlight

Backlight Turns Red on Alarm

The externally DC powered backlight is standard on all Loop Leader+ meters. It provides optimum visibility in any lighting condition and it can be programmed to turn red for alarm conditions. The backlight may be enabled or disabled using the Backlight menu. The backlight is enabled by default (input must be wired appropriately for the backlight to function). The backlight must be powered by an external power source.

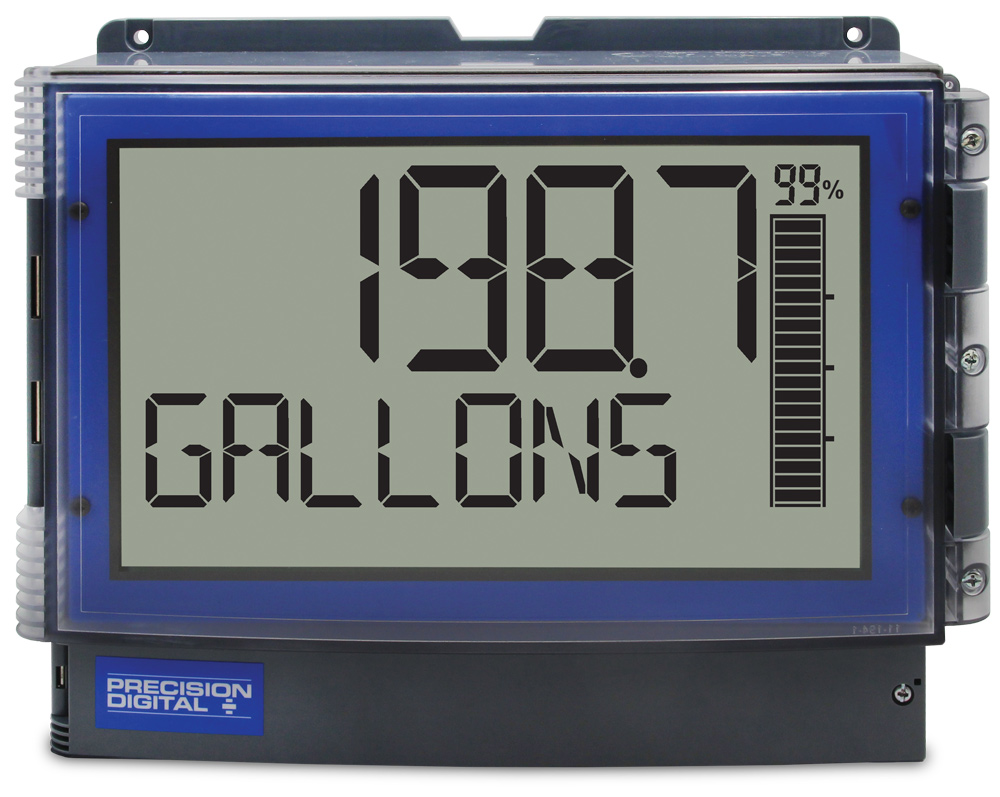

Meter with Bargraph

Bargraph Provides Quick Understanding

The 20-segment bargraph helps users get a quick understanding of where their process is at. This bargraph also includes a numeric value of the percentage the bargraph represents. The bargraph can be programmed to represent the percent of PV1 or PV2 or it can be scaled to any range within the scale.

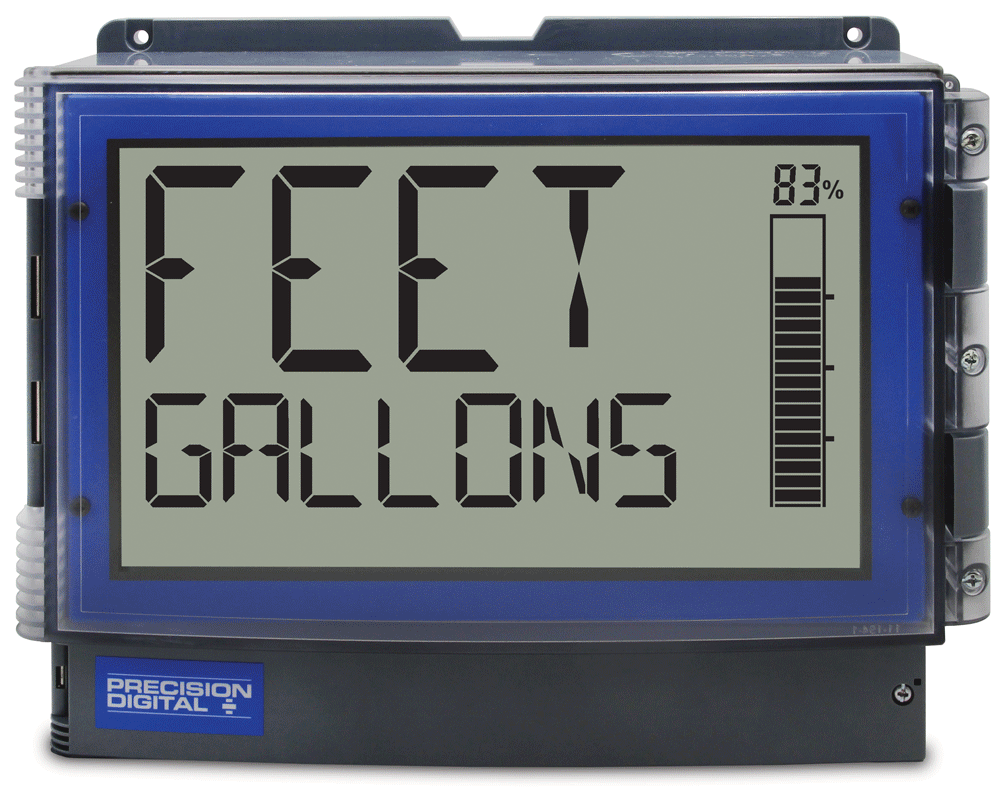

Dual Scale Feature

Dual-Scale Display Feature

Users can use the Loop Leader+ dual-scale feature when they want to show the same input in two different scales. For instance, the following example shows an application where the Loop Leader+ displays the input in feet and gallons.

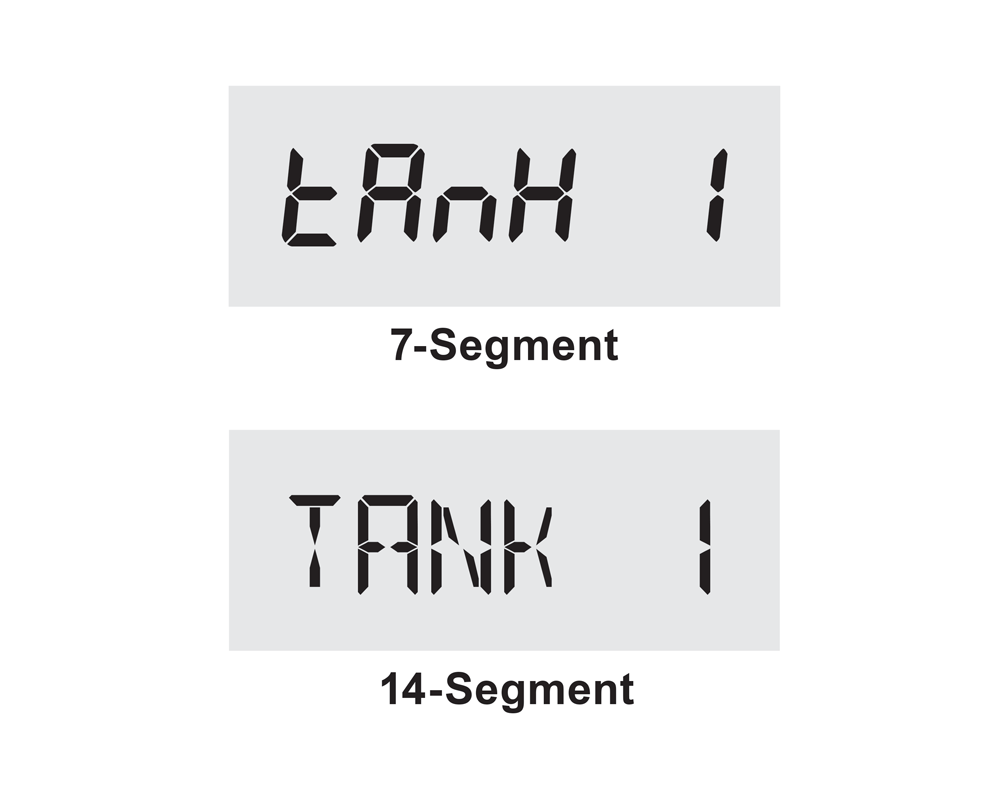

7-Segment vs. 14-Segment Comparison

14-Segment Characters

Notice how much better letters like “T”, “N” and “K” appear as 14-segment characters on the bottom display vs. 7-segment characters found on other meters.

Predefined and Custom Units

The meter has six available preprogrammed unit classes, volume, height, temperature, pressure, weight, and rate. When the desired unit class or unit of measure within a class is not available, a custom unit may be programmed by using the (CUSTOM) menu.

Change Between Units

It is possible to change the display units within the selected unit class without the need to re-scale the meter. When selecting a new unit from within the DISPLAY menu (e.g. changing from gallons (GAL) to liters (L)), the meter will automatically convert the display values to display the new unit. If entering a custom unit (CUSTM), a custom conversion factor will need to be entered.

Tare

The tare function zeroes out the display. In the case of scale weight, tare is used to eliminate container weight and provide net weight readings. The captured tare may be reset manually with any function key or digital input.

Outputs

Loop Leader+ meters come with two open collector outputs as standard and two solid-state relays and 4-20 mA output as options. The open collector outputs and relays generally operate in the same manner, with the major exception being the open collectors are not available for pump alternation and the relays are not available with pulse features. The open collectors and relays can be controlled either automatically or manually. The alarm status (with a unique flashing red message for each of the two relays and open collectors) will show on the display even with no output wired.

Two Open Collector Outputs

The meter is equipped with two NPN open collector outputs that may be set up for pulse outputs, alarms, timed pulses, stopwatch on/off, or disabled. Pulse outputs can be set to transmit the PV value (PV1 or PV2 if meter is in dual-scale mode). Output 2 may be used to generate a quadrature output based on the other open collector output. An output test mode is also selectable to generate pulses at a constant programmable frequency.

Two Optional Solid-State Relays

The meter is optionally equipped with two solid-state relays that may be set up for alarms, timer, stopwatch on/off, or pump alternation. The relays are rated at 250 VAC/DC @ 1 A for resistive loads and 75 VA @ 0.6 A, 250 VAC/DC max (Safe Area only) for inductive loads. Alarms are available based on the PV value or the digital input.

Optional Isolated 4-20 mA Output

The isolated analog output signal can be configured to represent the process variable (PV1, PV2, or retransmit). While the output is nominally 4-20 mA, the signal will accurately accommodate under- and over-ranges from 1 to 23 mA. The output can be reverse scaled such that the meter’s high calibration value outputs 4 mA and the meter’s low calibration outputs 20 mA.

Loop-Powered Relay Alarm Trip

The two solid-state relays can be used as a loop-powered relay alarm trip in general purpose areas. The Loop Leader+’s two relays can be programmed for two different kinds of latching operation: Reset via momentary contact closure at any time or reset via momentary contact closure only after the alarm has cleared. And the meter’s display can be programmed to turn red and flash a unique custom alarm message for each relay – something not found on most loop-powered alarm trips.

Resetting the Open Collectors and Relays

The open collectors and relays (alarms) may be programmed to reset in the following ways:

  • Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.
  • Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can also be reset using the Enter button (or whichever function key is set to acknowledge) at any time.
  • Latching (LATCH): Alarm must be reset manually and can be done so at any time. Press the Enter (ACK) button at any time to clear the alarm.
  • Latching with Reset after Cleared (L-CLEAR): Alarm must be reset manually and can only be done so after the alarm condition has cleared. Press the Enter (ACK) button after the alarm condition has cleared to reset the alarm.

Loop-Powered Isolator

The Loop Leader+ can be used as a loop-powered isolator for the 4-20 mA signal with the added benefit of a digital readout to display the process variable.

Pump Control

Loop Leader+ meters, when ordered with the two solid-state relays, have several features that make them ideal for simple duplex pump control. The relays can be programmed to alternate the pumps based on level and runtime thus ensuring even wear on both pumps. If the level remains constant (within on/off points), alternation is based on runtime. If the level cycles the on/off points, alternation is based on level and runtime. If the runtime is set to 0, alternation is based on level. The meter also keeps track of runtime for both pumps and the number of times they have cycled.

Meter Displaying Pump Runtime

The meter can display pump runtime for both pumps

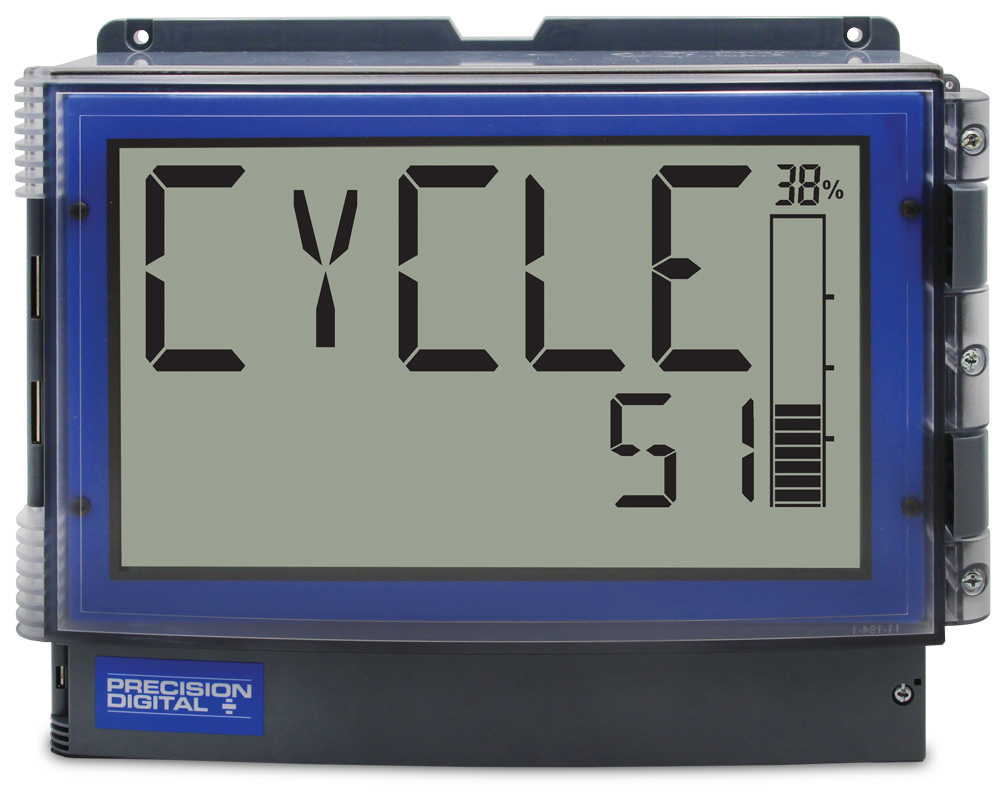

Meter Displaying Number of Relay Cycles

The meter can display the number of times the relays have cycled

In addition to the two solid-state relays for controlling pumps, the meter’s two open collectors could be used to indicate high or low level alarm conditions.

Pump Alternation Application

The Loop Leader+ can be used as a pump controller to alternate two pumps and provide high and low level alarm indication. The pumps can be programmed to alternate on level and runtime and the meter can display the pump runtimes and the number of times they have cycled. The PD4-6608–L5N can be used as an intrinsically safe pump controller.

Pump Control with Alternation & Alarm Example

The following is a typical application where the relays and open collectors are used for pump alternation and high/low level alarm.

RelayOn PointOff PointFucntion
17,0002,000Controls backup pump
26,0002,000Controls main pump
Open CollectorOn PointOff PointFucntion
17,0006,500Trips high alarm
21,0001,500Trips low alarm
Step 1
PD4-6600 Pump Alternation Step 1

Relay #2 turns the main pump on at 6000 gallons and turns it off at 2000 gallons.

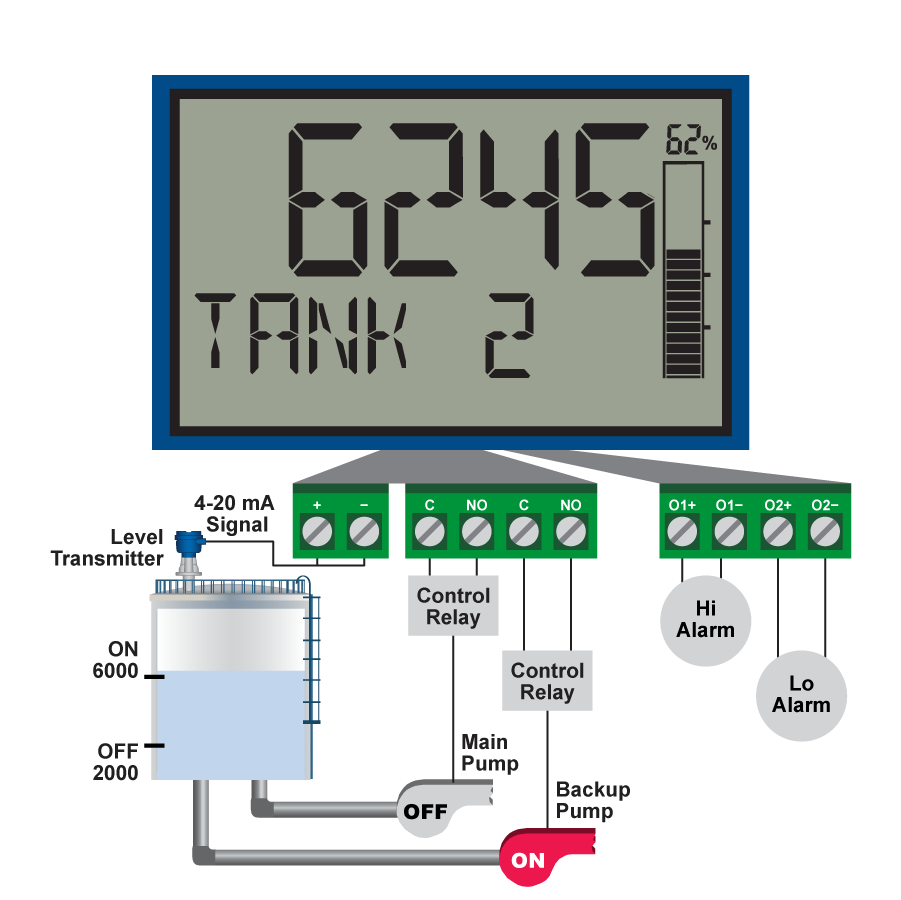

Step 2
PD4-6600 Pump Alternation Step 2

With the Pump Alternation feature activated, the next time the level reaches 6000 gallons, relay #1 transfers and starts the backup pump.

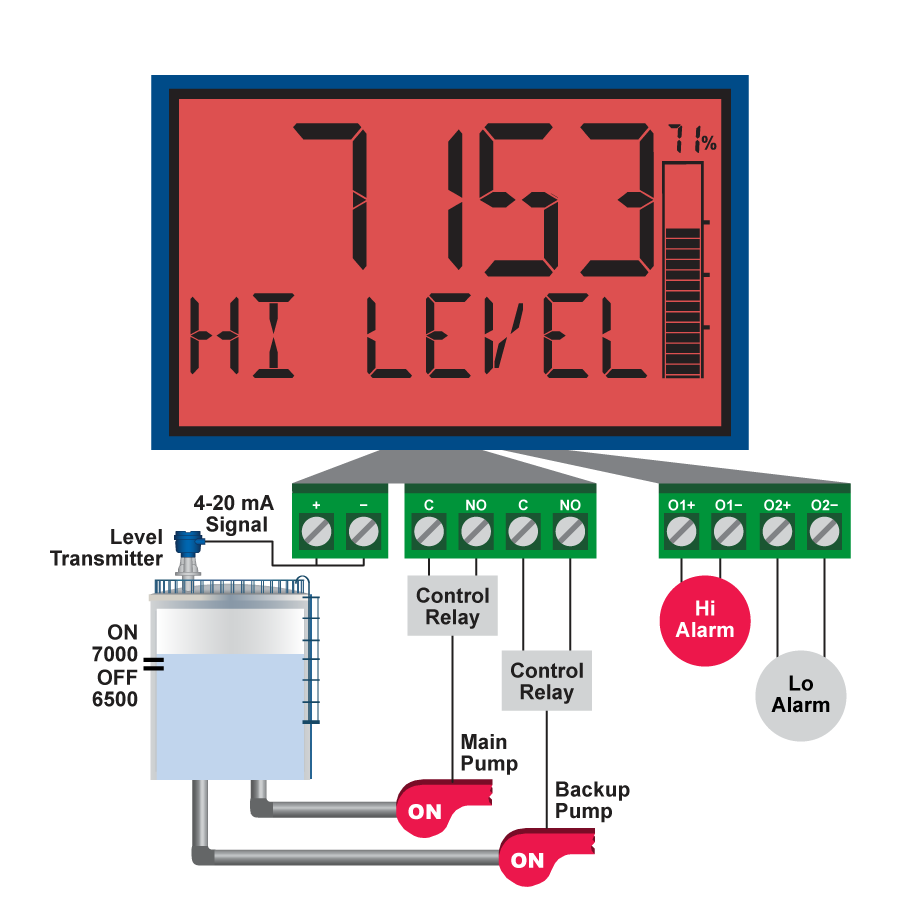

Step 3
PD4-6600 Pump Alternation Step 3

If the backup pump is not able to keep up, and the level reaches 7000 gallons, relay #2 transfers and starts the main pump as well. Open collector #1 trips the High Level Alarm, the display turns red and flashes “Hi Level” message. The High Level Alarm resets at 6500 gallons.

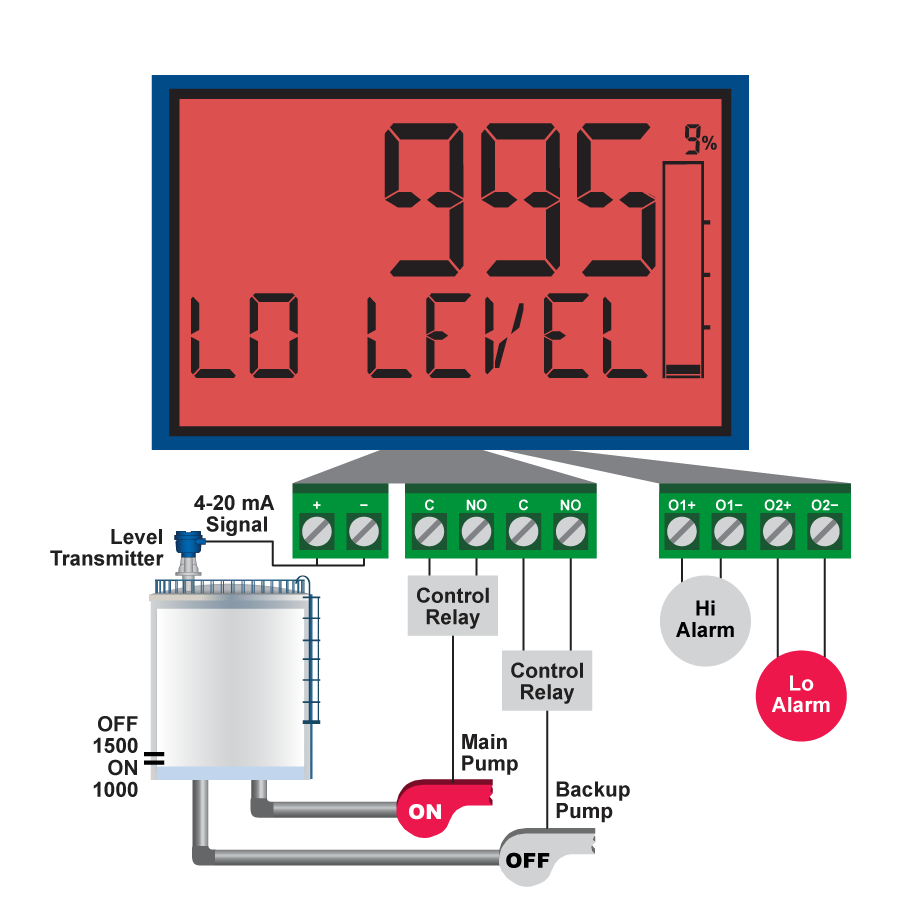

Step 4
PD4-6600 Pump Alternation Step 4

Once the level has dropped below the reset points, both relays will turn off. If the Main Pump fails to turn off, open collector #2 trips the Low Level Alarm at 1000 gallons to warn against the pump running dry. The Low Level Alarm resets at 1500 gallons.

Input Signal Conditioning

To satisfy applications that require scaling in ways other than the usual 2-point linear method, the Loop Leader+ can also be scaled for square root (differential pressure flow), programmable exponent (open channel flow) or round horizontal tank volume calculation.

For existing processes that require these linearization capabilities, one of the great benefits of loop-powered meters is that they get their power directly from the 4-20 mA loop and thus require no additional wiring. All a user has to do is break the existing loop and wire in the meter. For this reason, loop-powered meters are very easy to add to existing applications such differential pressure flow, open channel flow, or round horizontal tank volume calculation.

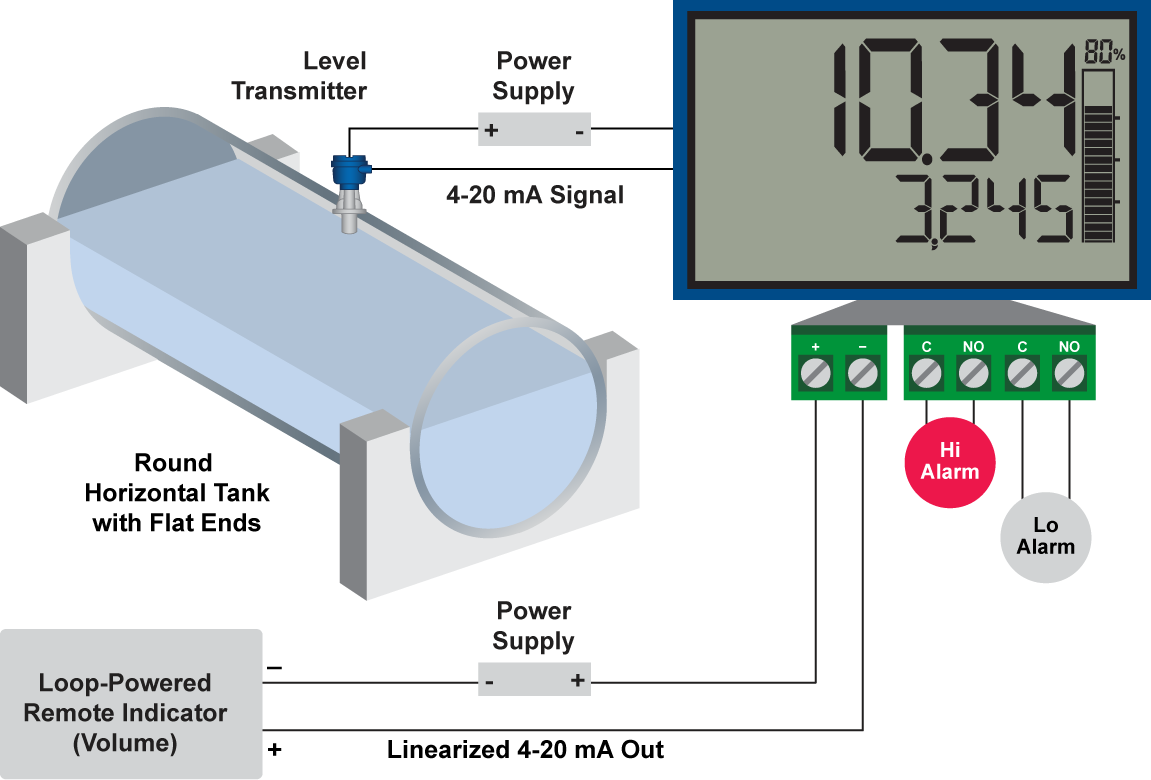

Round Horizontal Tank Volume Calculation

This function automatically calculates the volume in a round horizontal tank with flat ends.

Round Horizontal Tank Linearization

Programmable Exponent Linearization

The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow applications using weirs and flumes.

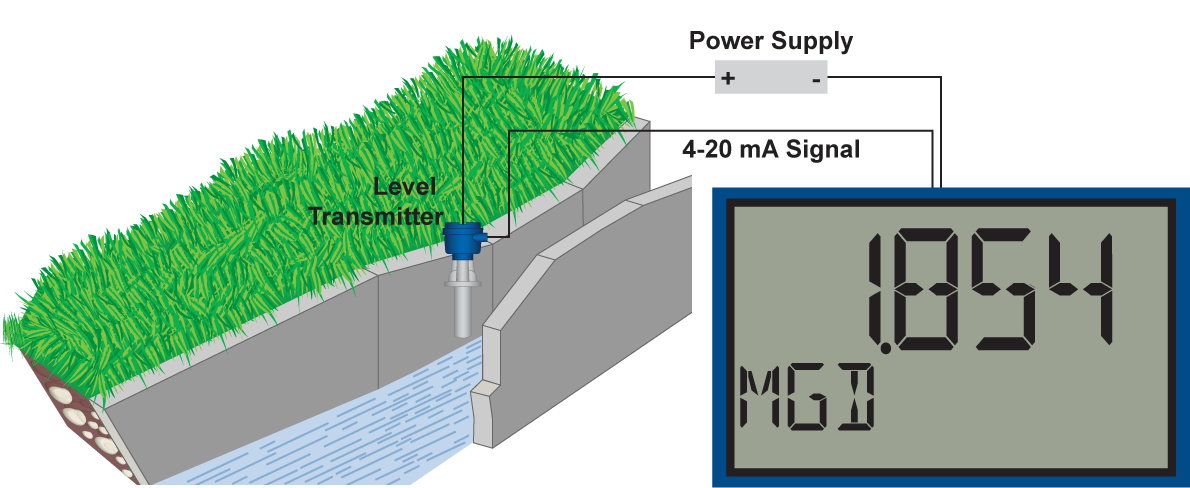

Open Channel Flow

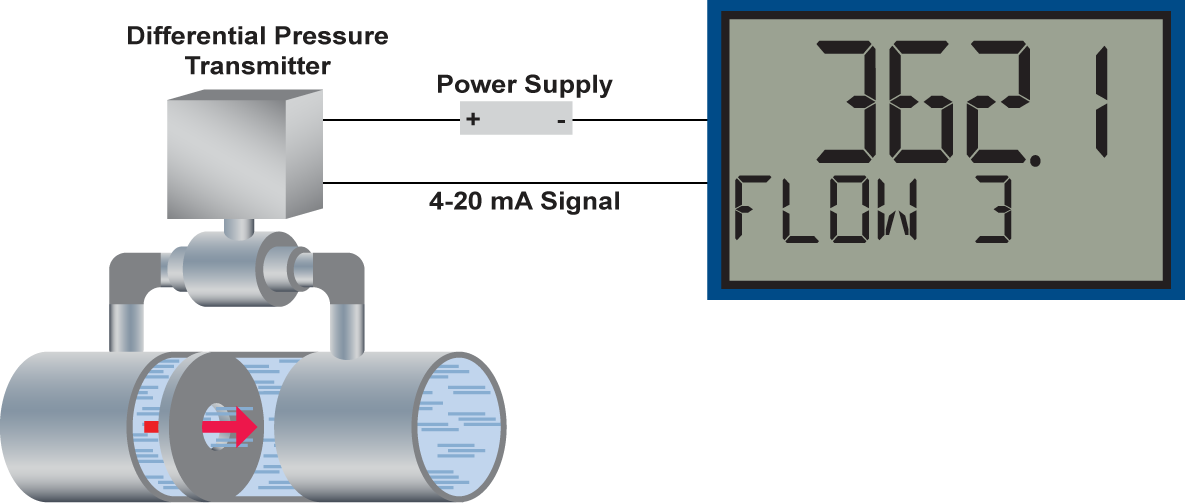

Square Root Linearization

The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units. The meters in this data sheet will display flow rate only. To display both flow rate and total use the PD4-6624.

Square Root Linearization

Multi-Point Linearization

Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected for the scaled value under the linear function. Multi-point linearization can be used to linearize the input so the meter can display volume from non-linear tanks or to convert level to flow using weirs and flumes with complex equations.

MeterView XL software makes it easy to program up to 32 points.

Multi-Point Linearization Using MeterView XL Software

Physical Features

The Loop Leader+ is designed for ease-of-use in industrial applications where it will be exposed to wet, dusty, hot, cold and other adverse conditions. The Loop Leader+ is housed in a rugged NEMA 4X / IP65 enclosure, can operate over a wide temperature range, includes removable screw terminal connectors, and it carries electrical safety approvals. All of these features are backed by a 3-year warranty.

Type 4X Front Panel

Type 4X / NEMA 4X Front Cover

Not only does the Loop Leader+ Type 4X approval indicate it is waterproof, it also indicates it is rugged. Part of the Type 4X test is to drop a 2 inch, 1 lb, solid stainless steel ball from 4 feet on top of the meter’s cover.

Removable Screw Terminals

Removable Screw Terminal Connectors

Industrial applications require screw terminal connections for easy field wiring and the Loop Leader+ goes one step further in convenience by making them removable also.

USB Port

USB Port

A USB port located inside the lower panel door of the meter allows it to be connected to a PC for use with free MeterView XL software. The meter is powered by the USB connection during programming, if a 4-20 mA loop is not connected.

Wide Operating Temperature Range

Wide Operating Temperature Range

The Loop Leader+ can operate from -40 to 75°C. This means it can be installed in a wide variety of indoor and outdoor industrial applications. And over this range, the Loop Leader+ will drift no more than 0.003% of calibrated span/°C from -40 to 75°C ambient.

Mounting Brackets

Integral Holes for Wall Mounting

The Loop Leader+ back panel includes four holes for convenient wall mounting.

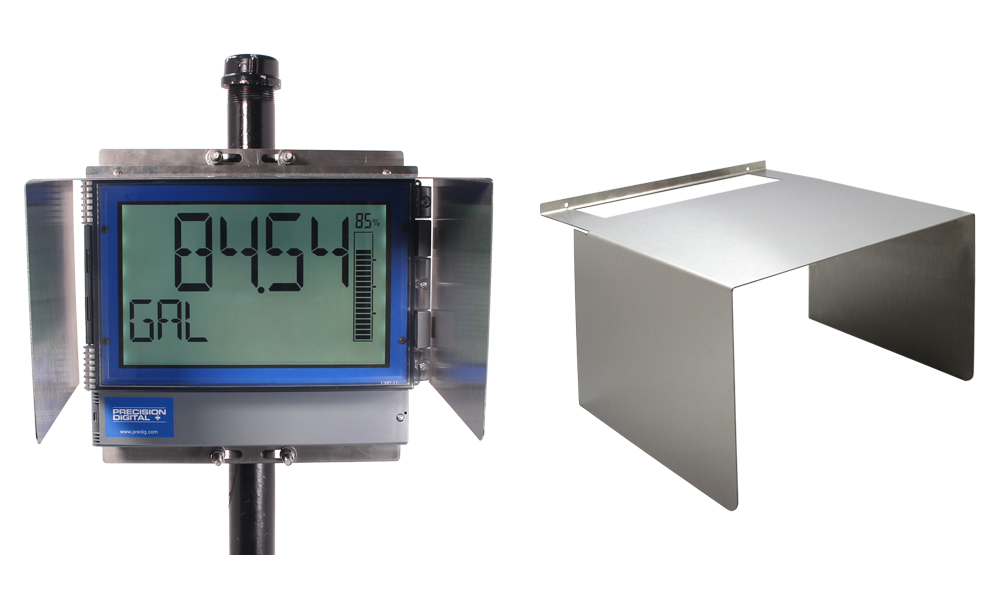

PDA6260 Pipe Mounting Kit

Pipe Mounting Kit

The PD4 can also be mounted to a pipe using the optional pipe mounting kit (PDA6260). This kit includes two mounting plates, two U-bolts, and the necessary nuts and bolts.

Operational Features

Once the meter has been installed and the lower panel door secured, the user can still operate the meter by connecting a control station to the Remote Contacts on the connector board. The user can then operate the four buttons as they are set up by default or change them to provide a variety of different functions by using the programmable function keys.

Programmable Function Keys

Three buttons labeled F1, F2, and F3 located inside the lower panel door can be programmed as function keys to perform a variety of meter functions simply by pressing the button. These include operation of the tare function, resetting the tare, resetting the meter’s relays or open collectors, starting and stopping timers, and displaying max/min values. The default settings for the function keys are:

ButtonDescription (Default Settings)
F1 Function Key ButtonPress to display max/min readings.
F2 Function Key ButtonPress to reset max/min readings.
F3 Function Key ButtonPress to acknowledge all manually resettable relays or open collectors.
Press to lock/unlock the display value after pressing the F1 key.

On-Board Digital Input

A digital input is standard on the meter. This digital input is programmed identically to the function keys. The input is triggered with a contact closure between DI+ and DI-, or with an active low signal. For a complete list of Digital Input settings, see the instruction manual.


PD4 Digital Input Connections

Except where noted all specifications apply to operation at +25°C.

Display

PD4-6607Dual-line LCD with backlight.
Top: 2.8" (71 mm), 5 digits 7-segment, FT-IN & fractions.
Bottom: 1.5" (39 mm), 8 alphanumeric 14-segment characters.
Display may be programmed to turn red and flash a user-defined message on alarm condition.
PD4-6608Dual-line LCD with backlight.
Both lines 14-segment alphanumeric.
Top: 2.8" (71 mm) 5 digits
Bottom: 1.5" (39 mm) 8 characters
Display may be programmed to turn red and flash a user-defined message on alarm condition.
Top DisplayPD4-6607: FT - IN/*: Automatically reducing fractions to lowest denominator
*FT-IN/16, FT-IN/8, FT-IN/4, FT-IN/2, FT-IN -99FT 11IN 15/16 to 999FT 11IN 15/16
PD4-6608: 5 digits (-9999 to 99999) or 5 characters
(all capital & most lower-case letters)
Bottom Display8 digits (-9,999,999 to 99,999,999; separated by commas) or 8 characters
(all capital & most lower-case letters)
Backlight Power Requirement24 VDC @ 46 mA, typical
Bargraph20 segments, numeric percent indication at top
Decimal PointUp to four decimal places on top display and up to seven decimal places on bottom display
CommasCommas to indicate 1000s
(e.g. 88,987,628) on bottom display only
Dual-Scale FeatureThe input can be displayed in different scales on the top and bottom displays. For instance, the top display could display the input in height and the bottom display could display that same input in volume.
Alarm IndicationProgrammable: red backlight, flashing display, bargraph segment flashes on alarm. Backlight requires external 24 VDC.
Custom Alarm MessagesProgrammable for each relay/open collector: 8 characters maximum; displayed every 10 sec for 1 sec on bottom display. May be turned off.
Display Update RateAmbient > -10°C: 1 Update/Second
Ambient = -20°C: 1 Update/2 Seconds
From -20°C to -40°C the update rate slows down
1 second for every -2°C (e.g. at -24°C,
1 update/4 seconds).
OverrangePD4-6607: Top: 999 11 15/16
PD4-6608: Top: 99999
Bottom: 99,999,999 (flashing)
UnderrangePD4-6607: Top -99 11 15/16
PD4-6608: Top: -9999
Bottom: -9,999,999 (flashing)


General

Programming MethodButtons behind lower panel door & Free PC-based USB programming software
Enclosure & MaterialsMaterial: High impact Polycarbonate with UV stabilizer enclosure, UL 94V-0
Rating: NEMA 4X / IP65
Gasket: Polyurethane
Color: gray
Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.
EnvironmentalOperating temperature range: -40 to 70°C (-40 to 158°F)
Storage temperature range: -40 to 85°C (-40 to 185°F)
Relative humidity: 0 to 90% non-condensing;
Printed circuit boards are conformally coated.
Noise FilterAverages the input signal over a period of time between 1 and 16 seconds to dampen the effects of a noisy signal that causes a jumpy display.
Filter Bypass0.0 to 99.9% of full scale. Input signal changes greater than bypass value are displayed immediately.
RecalibrationRecalibration is recommended at least every 12 months.
Max/Min DisplayMax/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
TareTare function zeros out the meter to accommodate for weight of a container. Tare function can be assigned to a function key or a digital input.
PasswordProgrammable password restricts modification of programmed settings.
Non-Volatile MemoryAll programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
Normal Mode Rejection64 dB at 50/60 Hz
ConnectionsRemovable screw terminals accept 12 to 22 AWG wire.
Remote contacts accept 16 to 30 AWG wire.
Tightening TorqueScrew terminal connectors: 4.5 lb-in (0.5 Nm)
Mounting screws: 8.0 lb-in max. (0.9 Nm)
Remote contacts: 2.5 lb-in (0.28 Nm)
Overall Dimensions10.6" x 12.6" x 4.8"
(270 mm x 320 mm x 121 mm)
(H x W x D)
Weight5.5 lbs (2.5 kg)
Warranty3 years parts and labor. See Warranty Information and Terms & Conditions for complete details.


Input

Input4-20 mA
Accuracy±0.02% of span ±1 count
Square root and programmable exponent: 10-100% FS
Voltage Drop2.1 V maximum
Equivalent Resistance105 Ω @ 20 mA
Input OverloadOver current protection to 1 A maximum, Over voltage protection to 30 VDC max (between mA+ and mA-/BL-)
Temperature Drift25 PPM/°C from -40 to 75°C ambient
FunctionPD4-6608:
PV1: Linear (2-32 points), square root, or programmable exponent
PV2: Linear (2-32 points) or round horizontal tank
PD4-6607:
PV1: Linear (2-32 points)
PV2: Linear (2-32 points) or Round Horizontal Tank
Low-Flow / Low-Height CutoffPoint below at which the display always shows zero.
PD4-6608: 0.1 to 999,999 or disable.
PD4-6607: 1/16 to 999FT 11IN 15/16 or disable.
HART TransparencyThe meter does not interfere with existing HART communications; it displays the 4-20 mA primary variable and it allows the HART communications to pass through without interruption.
The meter is not affected if a HART communicator is connected to the loop. The meter does not display secondary HART variables.


Common Open Collector & Relay Specifications

Number Two open collectors & two relays
High or Low AlarmUser programmable for high or low alarm
Alarm Deadband0-100% FS, user programmable
Output AssignmentAlarm, Timer, Stopwatch, or Disable
Alarm Output SourceAssign to PV (PV1, PV2) or Digital Input
On & Off Time Delay0 to 9,999 seconds
Fail-Safe OperationIndependent for each open collector and relay.
Fail-safe on, the output is on under normal conditions.
Fail-safe off, the output is on under alarm conditions.
Alarm OperationAutomatic, automatic with manual override, latching (manual reset anytime), latching with reset after cleared (manual reset only after alarm has cleared)
Alarm IndicationProgrammable: red backlight, flashing display, Bargraph segment flashes on alarm. Backlight requires external 24 VDC.
Custom Alarm MessagesProgrammable for each relay/open collector: 8 characters maximum; displayed every 10 sec for 1 sec on bottom display. May be turned off.
Alarm AcknowledgeFront panel ACK button or external digital input resets output and screen indication.
Auto InitializationWhen power is applied to the meter, open collectors and relays will reflect the state of the input to the meter.
Timer OutputOne-shot or Continuous
Off Time Delay: 1 sec to 99:59:59 (hrs:min:sec)
On Time: 1 sec to 99:59:59 (hrs:min:sec)
StopwatchOutput turns on when started and off when stopped.


Open Collector Outputs

RatingIsolated open collector, sinking NPN
5-30 VDC @ 150 mA maximum
Output AssignmentPulse, Alarm, Timer, Stopwatch, or Disable
Pulse Output SourcePV (PV1, PV2) or Test Frequency
Pulse Output Factor0.000001 to 999,999.9
Pulse Width0.5 ms @ 1 kHz; 500 ms @ 1 Hz; 50% duty cycle
Pulse Output Frequency1,000 Hz maximum
Quadrature Pulse OutputAvailable for Output 2
(90° behind Output 1) 500 Hz max
Alarm Output SourceAssign to PV (PV1, PV2) or Digital Input


Solid-State Relays

Rating250 VAC/VDC @ 1 A resistive
75 VA; 250 VAC; 0.6 A pilot duty (inductive)
25 VA; 250 VDC; 0.6 A pilot duty (inductive)
Noise SuppressionMetal oxide varistors across outputs
Relay AssignmentPump Alternation, Alarm, Timer, Stopwatch on/off, or Disable
Alarm Output SourceAssign to PV (PV1, PV2) or Digital Input
Pump AlternationRelays may be programmed to alternate with each pump cycle with an elapsed time override where the pumps will alternate regardless of level. Pump alternation time can be programmed for 0 to 999:59 (hrs:min)
Relay (Pump) RuntimeMeter will keep track of how long each relay (pump) has operated and display this information.
Relay (Pump) CyclesMeter will keep track of how many times the relays (pumps) have cycled and display this information.


4-20 mA Transmitter Output

Accuracy±0.05% FS ±0.001mA
Output SourcePV1, PV2, re-transmit; reverse scaling allowed
Scaling Range1.00 to 23.0 mA
DisableHigh impedance state, less than 1 mA
CalibrationFactory calibrated 4.00 to 20.00 mA
Underrange1.0 mA, 3.5 mA, or 3.8 mA (If input < 3.5 mA); or disable underrange; user selectable
Overrange20.5 mA, 20.8 mA, or 23.0 mA (If input > 20.5 mA); or disable overrange; user selectable
Isolation500 V input-to-output
Temperature Drift0.5 μA/°C max from -40 to 75°C ambient
External Loop Power Supply7.0 VDC to 30.0 VDC maximum
Output Loop Resistance10-750 Ω @ 24 VDC; 10-1100 Ω @ 30 VDC


On-Board Digital Input

FunctionRemote operation of front-panel buttons, acknowledge/reset relays, reset max/min values, etc. See User section of Display Functions & Messages on page 28 for a complete list of capabilities.
Contacts2.1 VDC on contact. Connect normally open contacts across DI+ and DI-
Logic LevelsLogic High: 2.4 to 30 VDC (max)
Logic Low: 0 to 0.9 VDC


Remote Contacts

FunctionTerminals provided for remote operation of all four programming / operation buttons (use PDA2364-MRUE control station).
Remote ButtonsMenu, Right, Up, Enter
Remote Function KeysF1 / Reset*
F2 / Max*
F3 / Ack*
*Defaults


MeterView XL Programming Software

AvailabilityFree download from www.predig.com/meterviewxl
System RequirementsMicrosoft® Windows® 7 & 10
CommunicationsUSB 2.0 (Standard USB A to USB B) Cable provided
ConfigurationConfigure all parameters on the meter. Configure meters one at a time.
Configuration FilesGenerate with or without meter connected; Save to file for later use.
USB Power ConnectionMeter is powered by USB connection during programming, if 4-20 mA loop is not connected.
CompatibilityPrograms created for Loop Leader and Loop Leader+ may be run on either meter. Programs created for VantageView+ and ProtEX+ can be run on either meter. No other program sharing is permissible.
WARNING
• The meter should only be connected to a computer while it is located in a safe area.


General Compliance Information

Electromagnetic Compatibility

EMC Emissions• CFR 47 FCC Part 15 Subpart B Class A emissions requirements (USA)
• AS/NZS CISPR 11 Class A ISM emissions requirements (Australia)
• EN 55011 Group 1 Class A ISM emissions requirements (EU)
• ICES-001 Issue 4 ISM emissions requirements (Canada)
EMC Emissions and ImmunityEN 61326-1
EMC requirements for Electrical equipment for measurement, control, and laboratory use – industrial use


Compliance Information

Hazardous Area Approvals

ATEXATEXII 1 G D
Ex ia IIC T4 Ga
Ex ia IIIC T200°C Da
-40°C ≤ Ta ≤ 75°C
Certificate Number: CML 18ATEX2091X
IECExEx ia IIC T4 Ga
Ex ia IIIC T200°C Da
-40°C ≤ Ta ≤ 75°C
Certificate Number: IECEx CML 18.0051X

MeterView XL Programming Software

Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. The meter will also be powered by the USB connection so no additional power is needed during programming.

MeterView XL Software
For more information visit www.predig.com/meterviewxl

Dimensions

Front and Side View

PD4-6600 Dimensions

Wall Mounting Holes Location

PD4-6600 Mounting Holes

Conduit Holes Location

PD4-6600 Mounting Holes

Connections

Connectors Labeling

PD4-6600-LNN Base Meter Connectors

-LNN Base Meter (2 Open Collectors Standard)

PD4-6600-L5N Option Connectors

-L5N Option (2 Solid-State Relays and 4-20 mA Output)

USB Connection Location

PD4-6600 USB Connection

Wiring Diagrams

For existing applications, one of the great benefits of loop-powered meters is that they get their power directly from the 4-20 mA loop and thus require no additional wiring. All a user has to do is break the existing loop and wire in the meter.

WARNING
• See Control Drawing LIM4-6600-2 for information on hazardous area wiring.

Safe Area Input Loop (4-20 mA) Connections

The following figures show a 4-20 mA loop connected to the meter. The first figure shows the connection without the backlight and the second shows the connection with the backlight. The meter is powered by the 4-20 mA current loop.

PD4-6600 4-20mA Connection without Backlight

4-20 mA Input Connection without Backlight

PD4-6600 4-20mA Connection with Backlight

4-20 mA Input Connection with Backlight

Safe Area Digital Input Connections

A digital input is standard on the meter. This digital input is connected with a normally open contact across DI+ and DI-, or with an active low signal applied to DI+ and DI-.

PD4-6600 Digital Input Connection

Safe Area 4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled mA OUT. The 4-20 mA output must be powered from an external power supply.

PD4-6600 4-20mA Output Connection

Safe Area Solid-State Relay Connections

Relay connections are made to a four-terminal connector. Each relay’s C terminal is common only to the normally open (NO) contact of the corresponding relay.

PD4-6600 Solid State Relay Connection

Safe Area Open Collector Outputs Connections

Open collector output 1 and 2 connections are made to terminals labeled O1+ and O1-, and O2+ and O2-. Connect the alarm or pulse input device as shown below.

PD4-6600 Open Collector Outputs Connection

Choose Your Options
